Vivid Audio、「 Giya G4 」国内発売!!

国内ニュース速報 [Japan]

\2,800,000(pair・税別)

GIYA G4 Specifications .
Specification
Configuration: 4-way 5-driver system
Cabinet: Glass reinforced balsa cored sandwich composite
Finish: Multi component high gloss automotive
HF: D26 26mm alloy dome unit with Tapered Tube loading, catenary dome profile, radially polarised super flux magnet structure & isolating compliant mount
MID: D50 50mm alloy dome unit with Tapered Tube loading, catenary dome profile, radially polarized magnet structure & isolating compliant mount
Lower MID: C125S C100S alloy cone unit with Tapered Tube loading, short-coil long-gap motor design, 50mm CCA ribbon coil on highly vented former, highly aligned chassis
LF: Two C125L alloy cone unit with short-coil long-gap motor design, 50mm copper ribbon coils on highly vented formers, highly aligned chassis, radial magnet structures & reaction cancelling compliant mount  structure & reaction cancelling compliant mount
Bass loading: Exponentially tapered tube enhanced bass reflex
Sensitivity: 86dB @ 2.83Vrms and 1.0 meter on axis
Impedance (Ohm): 6 nominal, 4 minimum, low reactance
Frequency range – 6 dB points: 36 – 36,000 Hz
First D26 Break Up mode: 44,000 Hz
Frequency response (Hz): 39 – 33,000 +/- 2 dB on reference axis
Harmonic distortion: (2nd and 3rd) < 0.5% over frequency range
Crossover frequencies (Hz): 250, 1000, 4000
Power handling (music program) watts rms: 400
Dimensions (H, W, D) mm: 1011, 300, 460
Net weight (kg): 32
Shipping dimensions (H, W, D) mm: (kg): 1200, 675, 530
Shipping mass (kg): 95 per pair

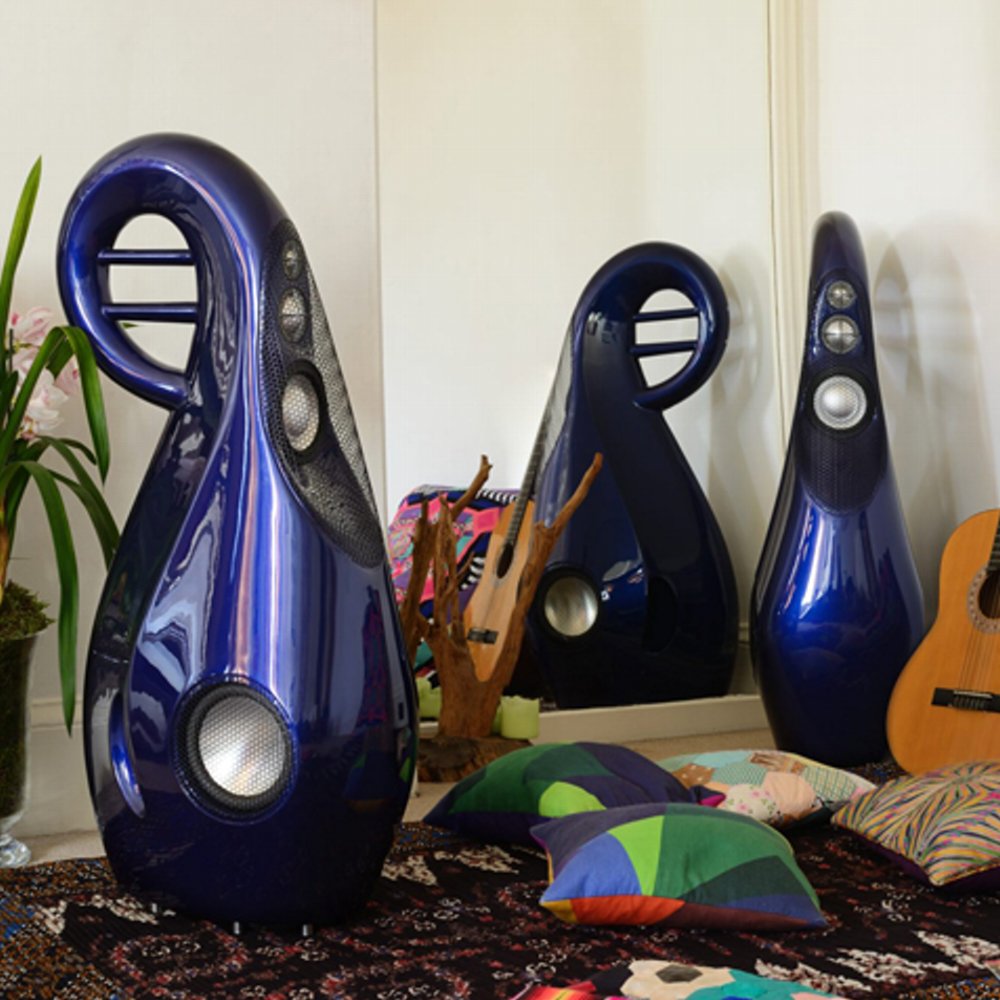

g4-3

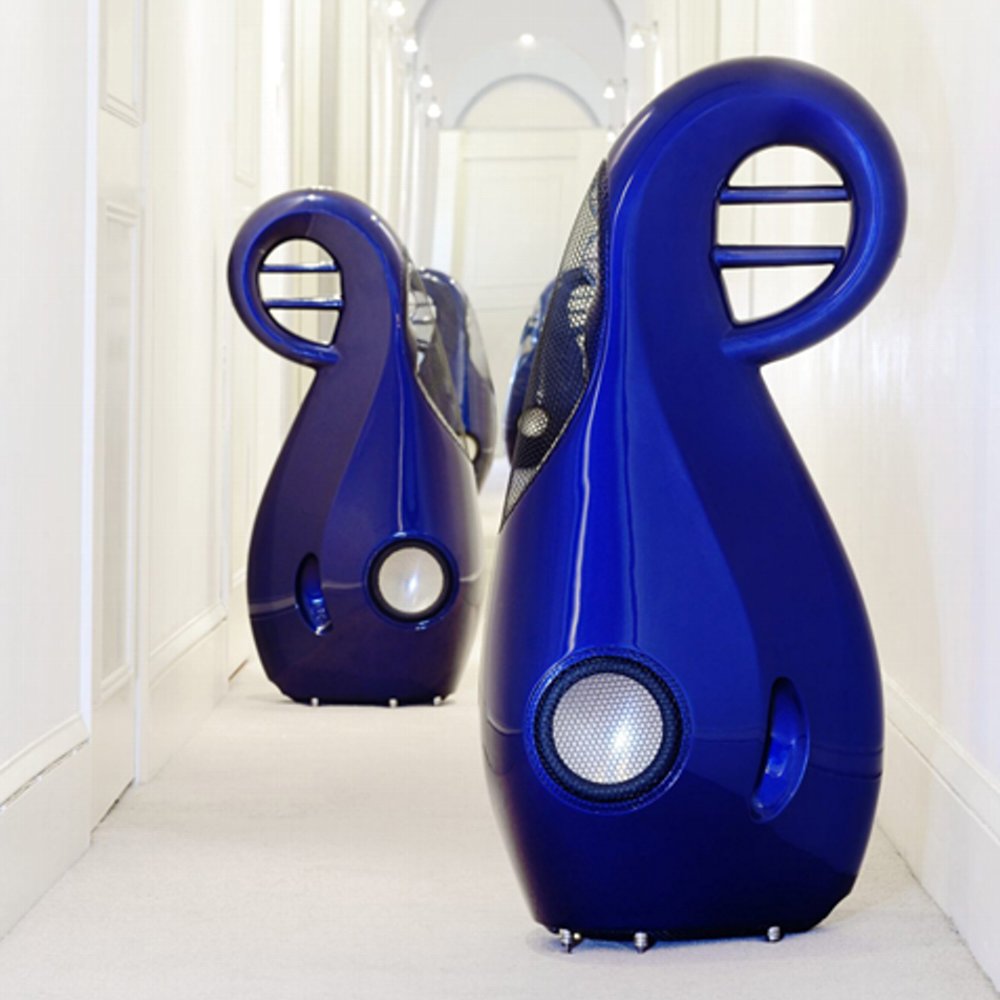

g4-concept

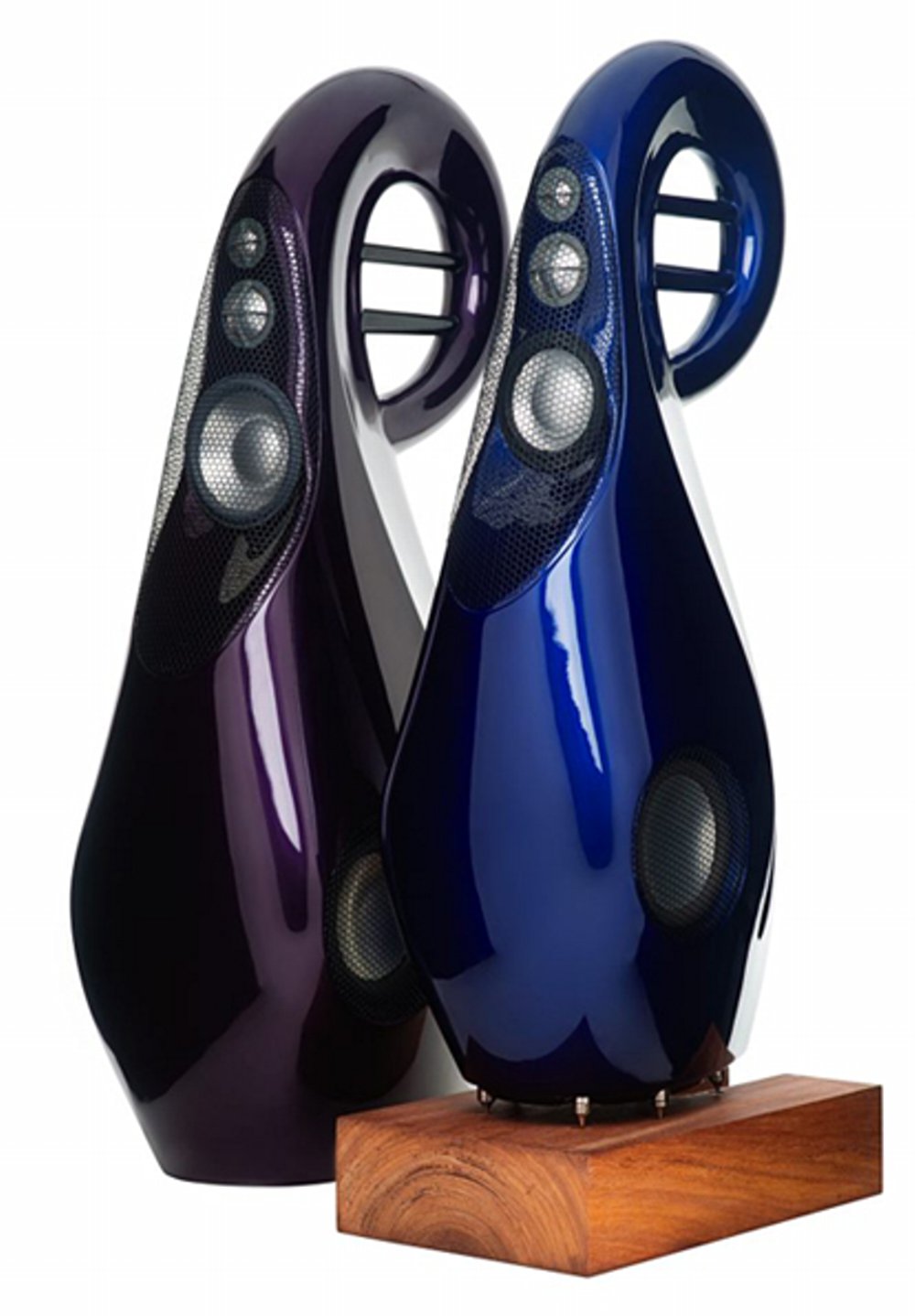

g4-2

« »
