Monitor Audio から Platinum Series 3G 登場！！

未分類

Monitor Audio

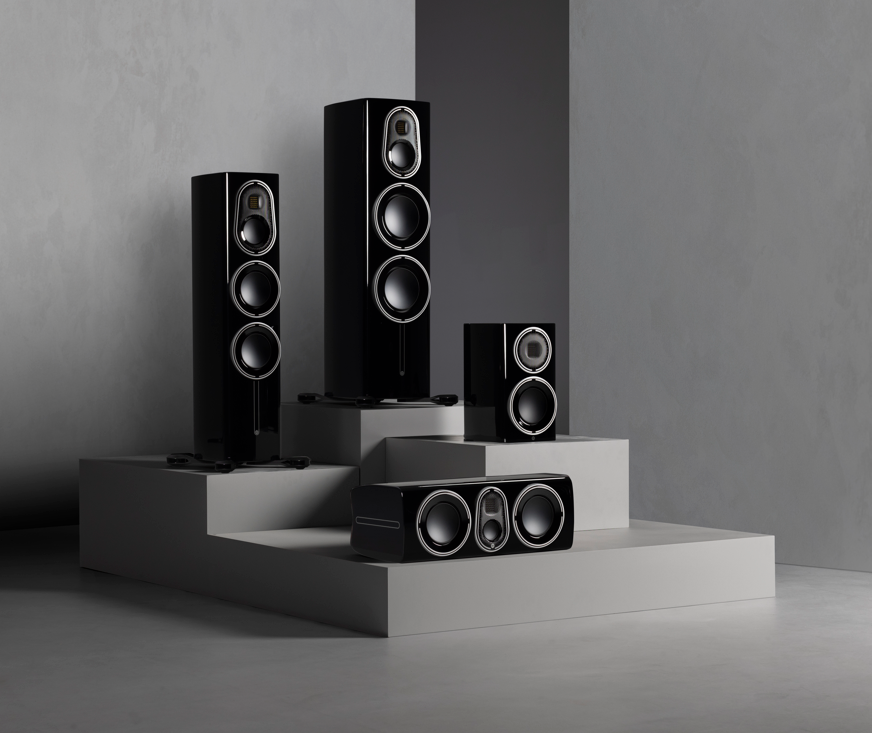

Platinum Series 3G

Platinum 300 3G 13,998 euros / pair
Platinum 200 3G 10,998 euros / pair
Platinum 100 3G 5,498 euros / pair
Platinum C250 3G 4,749 euros / piece

12月発売

Objects of Desire

Platinum Series 3G is a culmination of ground-breaking acoustic innovations brought together in a number of expertly crafted designs that celebrate the rich legacy of the Platinum Series. The range cements Monitor Audio’s deserved place within the high-end, premium loudspeaker space and represents a purity of sound and design beautifully entwined – the launch, a highpoint in the brands 50th Anniversary.

The definition of elegance
Platinum series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. Our UK-based design team worked closely with our acoustic engineers to deliver an aesthetic that celebrates the high-performance components without overpowering its surroundings.

The cabinet design on Platinum Series 3G is all new. Beautifully detailed and expertly crafted, our industry-leading attention to detail and passion for quality ensures that each cabinet is elegant and refined on the eyes, while being engineered for total acoustic performance.

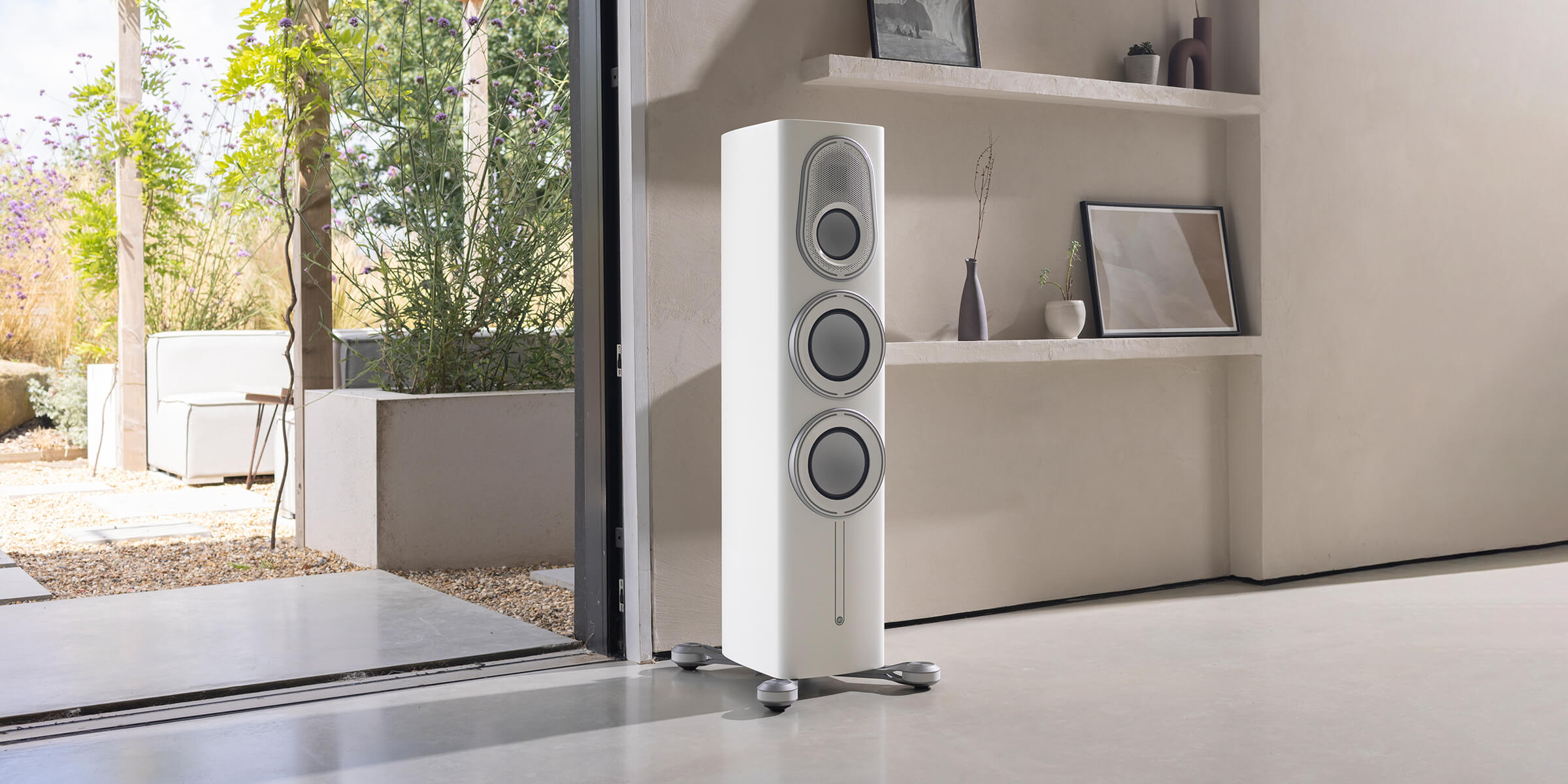

Constructed using laminated layers of MDF to form a curved and braced super rigid 18-21mm cabinet on the rear with a 36mm thick baffle precision machined to create a unique curved front profile. The cabinets are then embellished with etched inlays to highlight the craftsmanship, before 16 layers of lacquer are added on top to create a beautiful, luxury piano gloss finish. A pure satin matte finish is applied to models finished in white – a contemporary statement in any interior.

A technical legacy with ‘Concept 50’ technology
Platinum Series 3G builds on two generations of loudspeaker design, which has consistently evolved at each step. We have introduced a ground-up new MPD III transducer, developed for the ‘Concept 50’ speaker, which improves on every aspect, as well as improvements to the mid and bass driver cones called RDT III – a further significant development in driver technology.

Pinpoint accuracy for lifelike sound
New MPD III high frequency transducer. The improvements help to reduce distortion and flatten the frequency response leading to a clear and consistent sound across all your music.

Precision perfect
The Rigid Diaphragm Technology III (RDT III) cone has three new optimisations over its predecessor. Firstly, a new rear layer featuring two uniform layers of carbon fibre skin helps reduce cone breakup, as does an optimised rubber surround. Finally, an optimised cone edge treatment extends the passband of the drivers. When combined, these innovations significantly increase the useable bandwidth, enabling improvements to the crossover and final response of the speaker. The result: Platinum 3G mid and bass drivers boast the lowest distortion of any Monitor Audio speaker in its history.

Clever design is more than skin deep
Platinum series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. Our UK based design team have worked closely with the acoustic team to deliver an aesthetic which celebrates the performance components without overpowering its surroundings.

Aluminium Driver Frames
The drivers on the Platinum Series 3G are held in place with individually cast aluminium frames, creating two layers of isolation between the driver chassis and the cabinet.

New Outrigger Feet
The new Platinum outrigger foot assemblies have been precision engineered to form a solid platform for the floorstanding speakers while presenting a more elegant aesthetic compared to a cumbersome plinth.

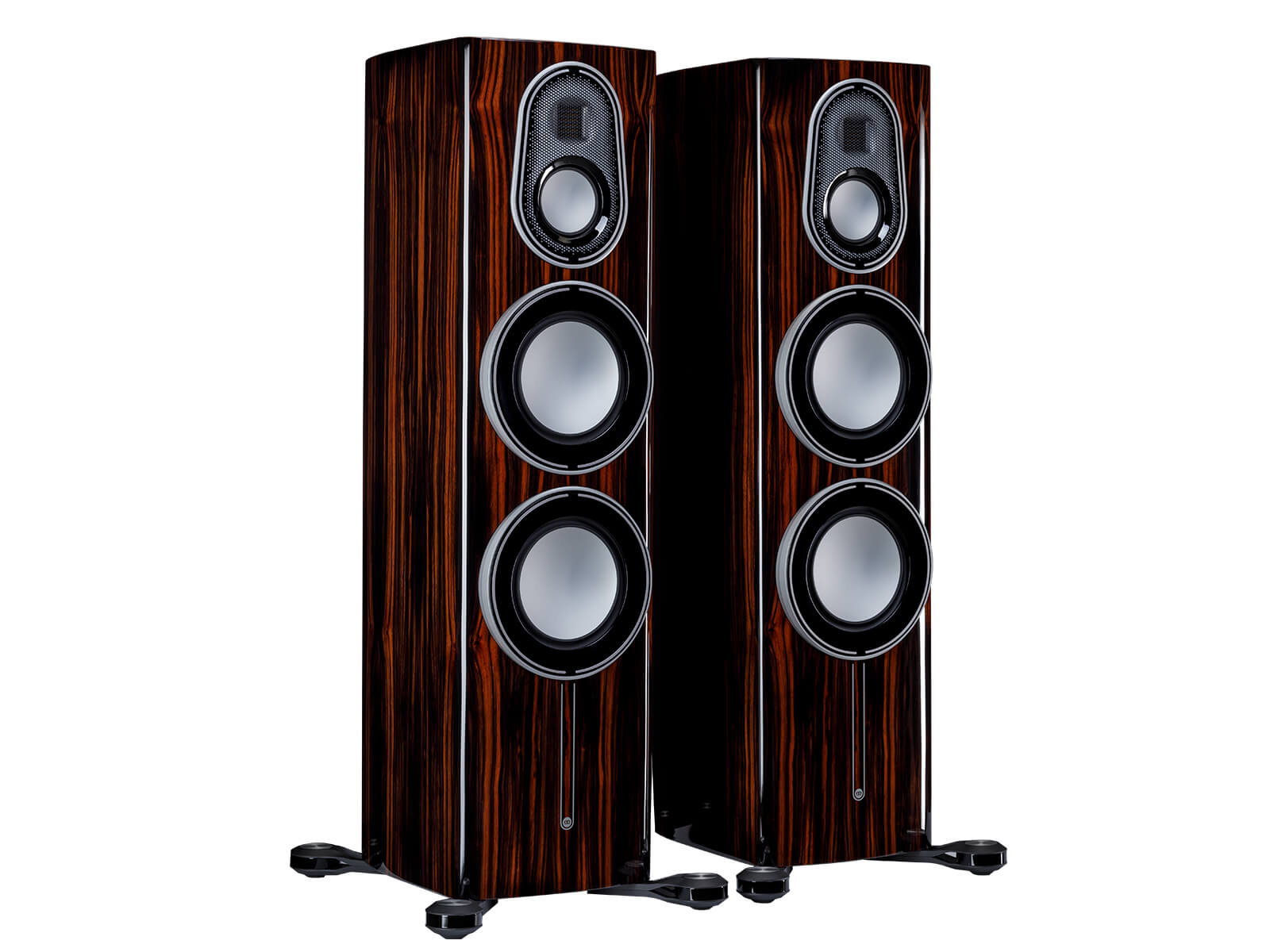

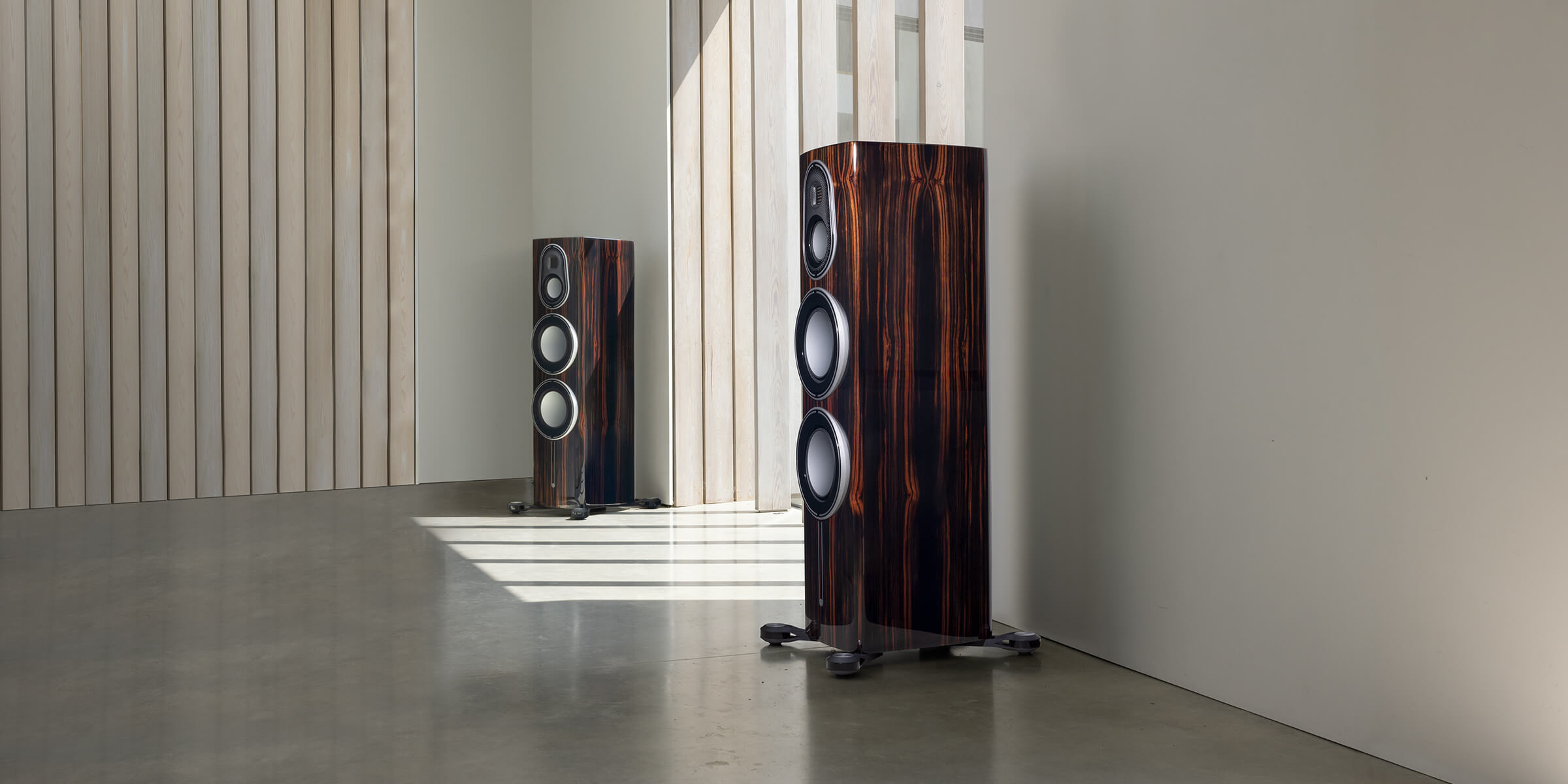

Platinum 300 3G

Key Features
1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
1 x 4” RDT III mid-range driver for incredible levels of clarity
2 x 8” RDT III bass drivers for exceptional scale and depth
Our flagship three-way loudspeaker delivers best-in-class sound
Totally immersive sound stage with music and film
Rear-ported and tuned for ease of positioning without affecting sound performance
Perfect for high performance hi-fi systems or home theatre
Cabinets are embellished with etched inlays to highlight the craftsmanship

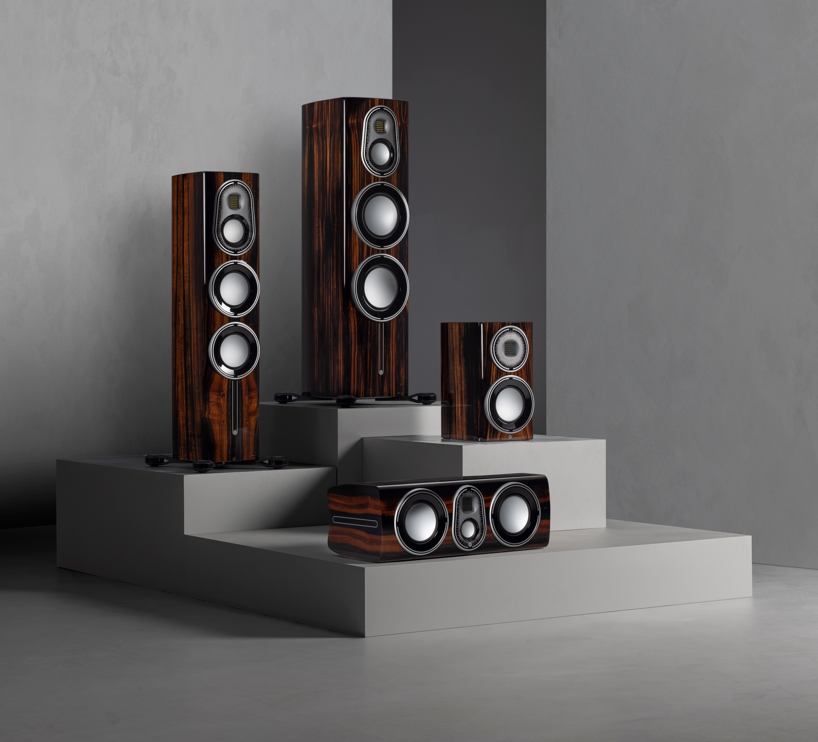

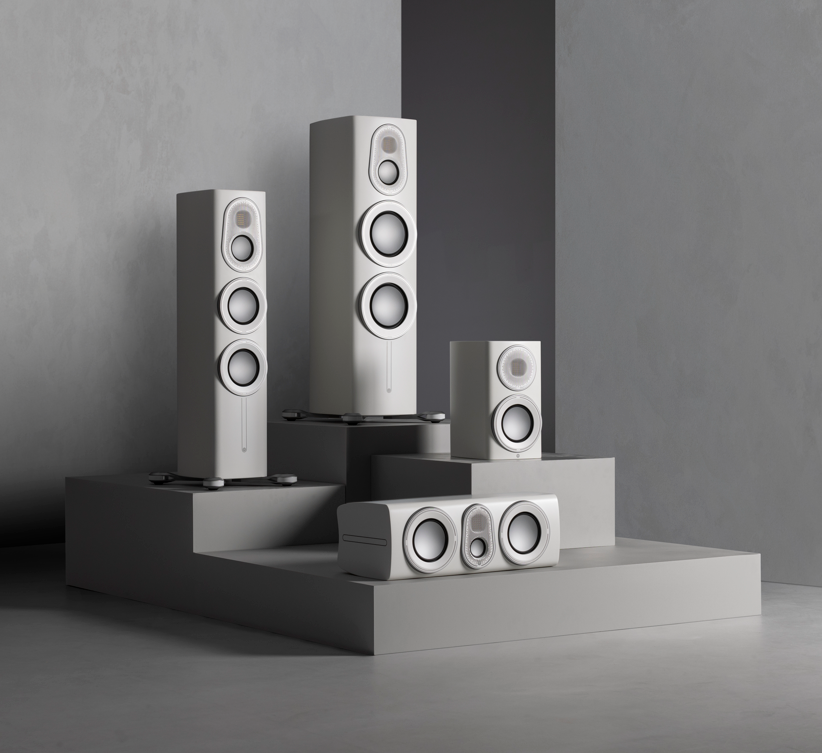

Choice of three high-quality, elegant finishes: Piano Black, Piano Ebony and Pure Satin White

System Format
3-Way
Frequency Response, Free-Field (-6dB)​
25 Hz – 60 kHz​
Frequency Response, In-Room (-6dB)
17 Hz – 60 kHz​
Sensitivity (2.83 Vrms @ 1m, Free-Field)​​
88 dB
Nominal Impedance
4 Ohms
Minimum Impedance (20 Hz to 20 kHz)​​
4.0 Ohms​ @ 3.75 kHz
Continuous Power Handling​ ​(RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
400 W​
Recommended Amplifier Power​ (RMS into 4 Ohm, Music Signal)
200 – 800 W​
Bass Alignment
Ported
Port Tuning Frequency
32 Hz
Crossover Frequency
LF/MF: 650 Hz​
MF/HF: 3 kHz
Drive Unit Complement
2 x 8″ RDT III bass driver, ​
1 x 4″ RDT III mid-range driver, ​
1 x MPD III tweeter
External Dimensions including Trims, Terminals & Outrigger Feet & Spikes (H x W x D)
1131.1 x 429.8 x 525 mm​ (44.5 x 16.9 x 20.6″)
External Dimensions including Trims, Terminals & Outrigger Feet without spikes (H x W x D)
1114.5 x 429.8 x 524.4 mm​ (44.5 x 16.9 x 20.6″)
Weight (each)
53.6 kg​ (118 lb 2 oz)

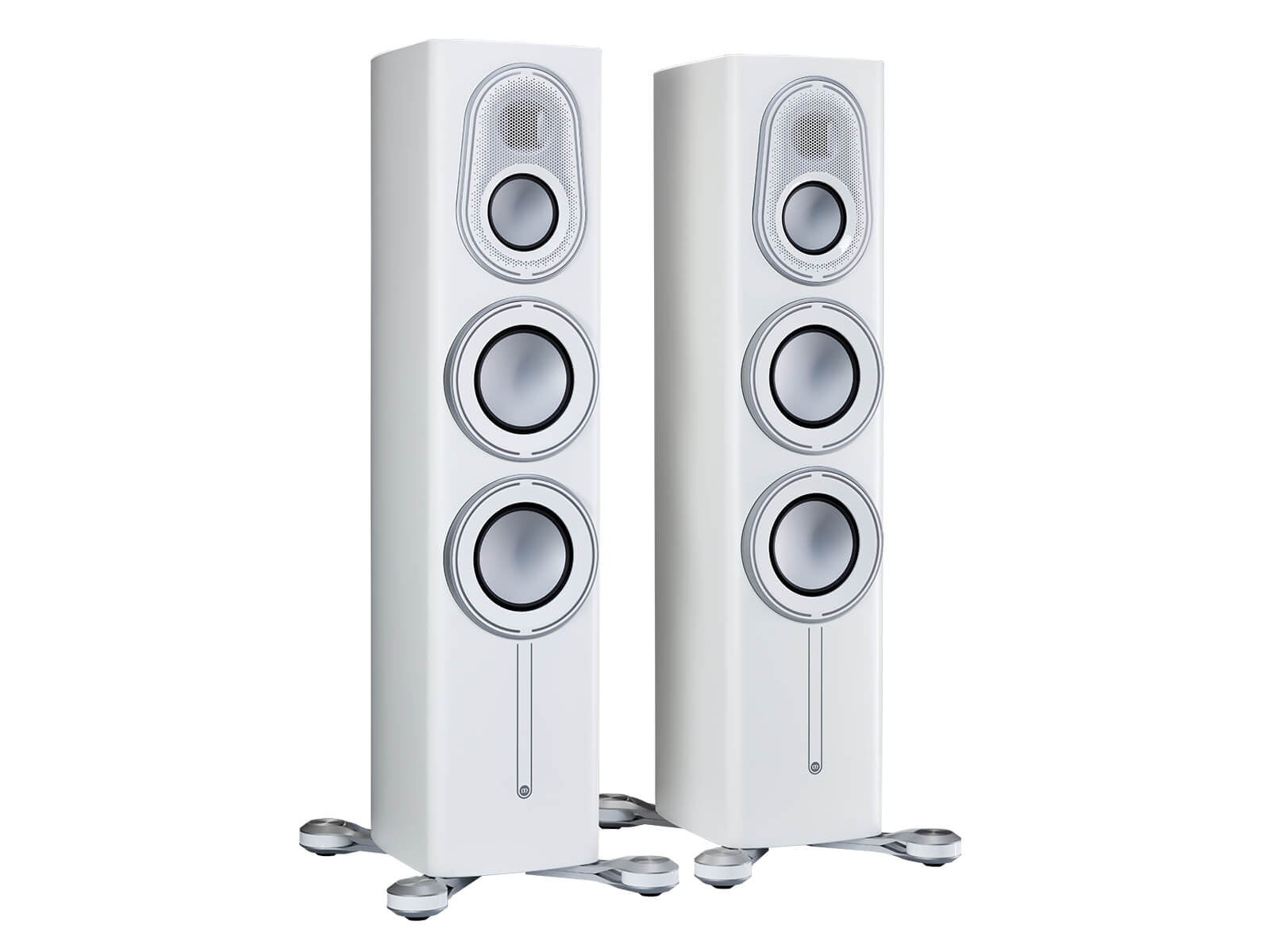

Platinum 200 3G

Key Features
1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
1 x 4” RDT III mid-range driver for incredible levels of clarity
2 x 6” RDT III bass drivers for exceptional scale and depth
A high-performance slim and compact three-way loudspeaker
Exceptionally large soundstage for a relatively compact loudspeaker
Rear-ported and tuned for ease of positioning without affecting sound performance
Perfect for high performance hi-fi systems or home theatre
Cabinets are embellished with etched inlays to highlight the craftsmanship
Choice of three high-quality, elegant finishes: Piano Black, Piano Ebony and Pure Satin White

System Format
3-Way
Frequency Response, Free-Field (-6dB)​
32 Hz – 60 kHz​
Frequency Response, In-Room (-6dB)
23 Hz – 60 kHz​
Sensitivity (2.83 Vrms @ 1m, Free-Field)​​
88 dB
Nominal Impedance
4 Ohms
Minimum Impedance (20 Hz to 20 kHz)​​
4.0 Ohms​ @ 2.5 kHz
Continuous Power Handling​ ​(RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
300 W​
Recommended Amplifier Power​ (RMS into 4 Ohm, Music Signal)
150 – 600 W​
Bass Alignment
Ported
Port Tuning Frequency
38 Hz
Crossover Frequency
LF/MF: 825 Hz​
MF/HF: 3 kHz
Drive Unit Complement
2 x 6″ RDT III bass driver,
1 x 4″ RDT III mid-range driver,
1 x MPD III tweeter​
External Dimensions including Trims, Terminals & Outrigger Feet & Spikes (H x W x D)
1041.6 x 368.7 x 454.9 mm​ (41 x 14.5 x 17.8″)
External Dimensions including Trims, Terminals & Outrigger Feet without spikes (H x W x D)
1025 x 368.7 x 454.9 mm​ (40.3 x 14.5 x 17.8″)
Weight (each)
35.8 kg​ (78 lb 14 oz)

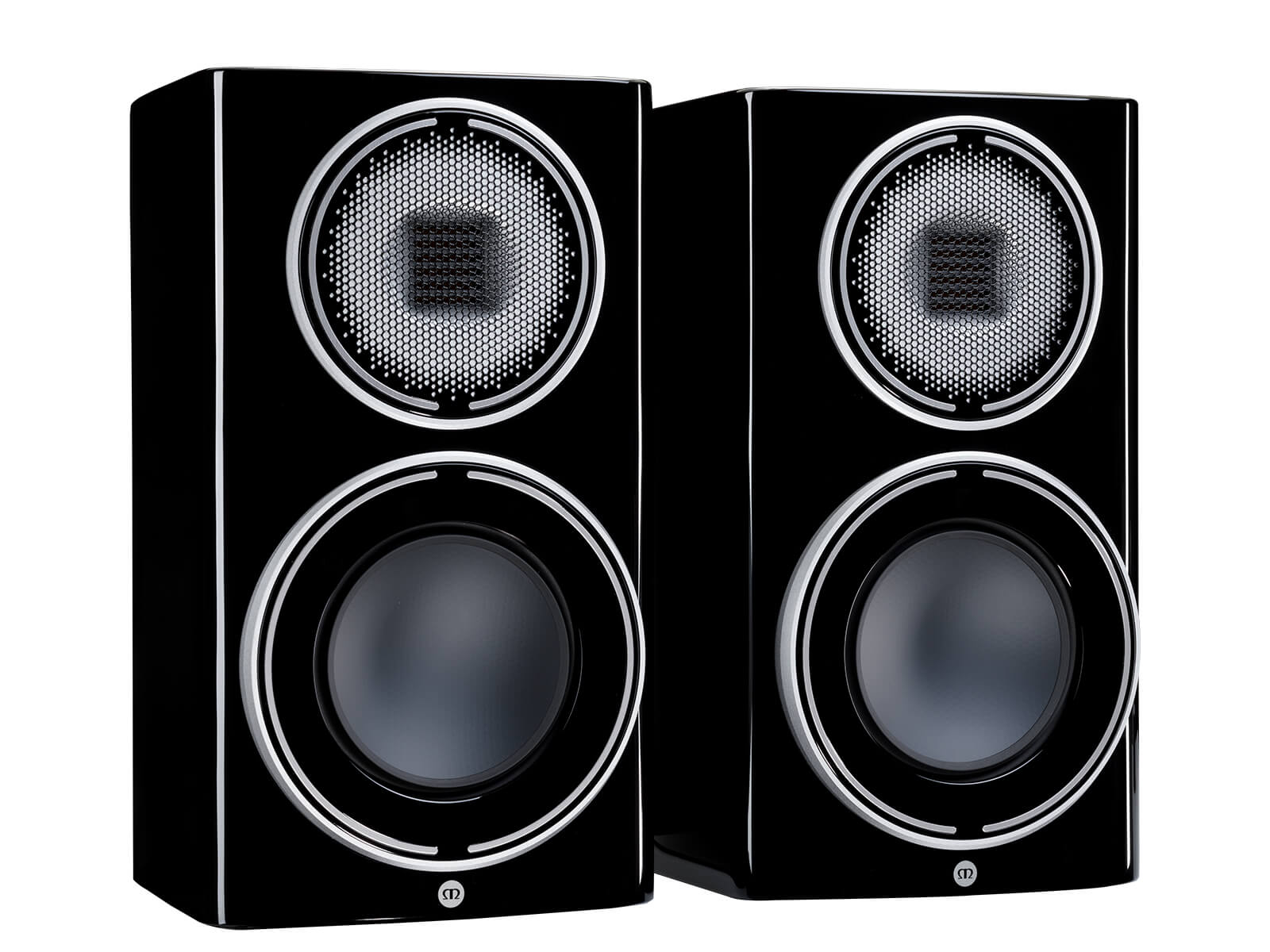

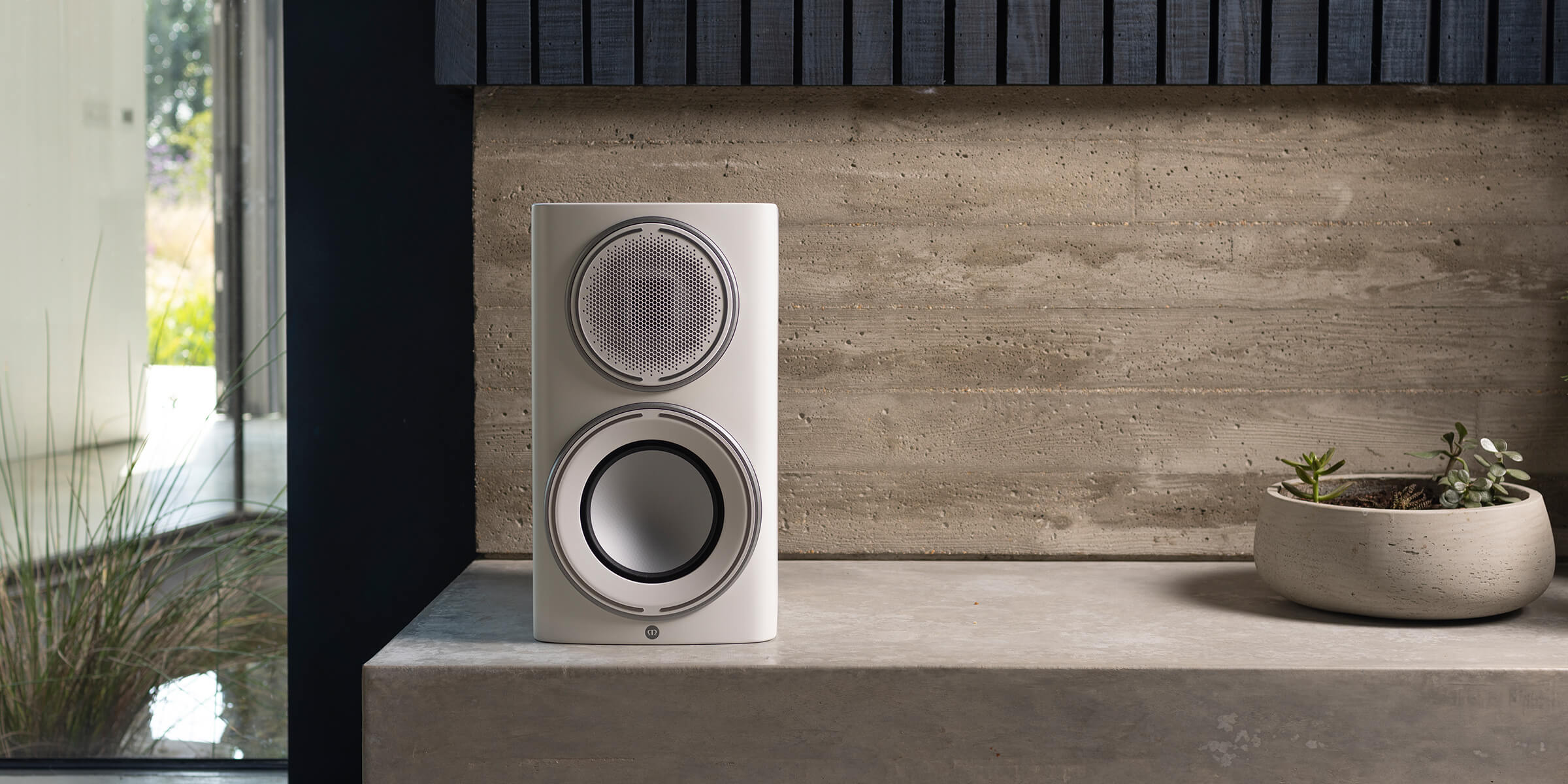

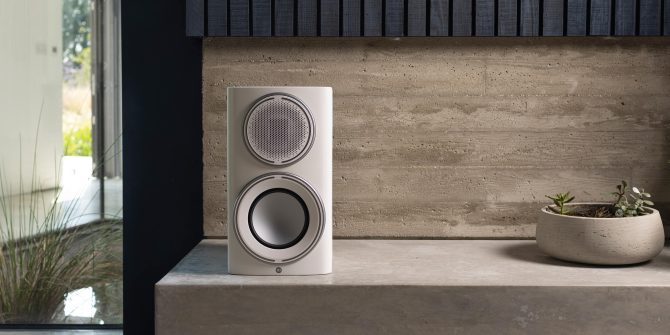

Platinum 100 3G

Key Features
1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
1 x 6” RDT III mid-bass driver for incredible levels of clarity and scale
A truly exceptional listening experience from a relatively small loudspeaker
Rear-ported and tuned for ease of positioning without affecting sound performance
Perfect for smaller high-performance music set-ups, or as front/rear channels in home cinema systems
Mount points for the Platinum 2G Stand
Cabinets are embellished with etched inlays to highlight the craftsmanship
Choice of three high-quality, elegant finishes: Piano Black, Piano Ebony and Pure Satin White

System Format
2-Way
Frequency Response, Free-Field (-6dB)​
37 Hz – 60 kHz​
Frequency Response, In-Room (-6dB)
28 Hz – 60 kHz​
Sensitivity (2.83 Vrms @ 1m, Free-Field)​​
85 dB
Nominal Impedance
4 Ohms
Minimum Impedance (20 Hz to 20 kHz)​​
4.0 Ohms​ @ 180 Hz​
Continuous Power Handling​ ​(RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
150 W​
Recommended Amplifier Power​ (RMS into 4 Ohm, Music Signal)
75 – 300 W​
Bass Alignment
Ported
Port Tuning Frequency
44 Hz
Crossover Frequency
LF/HF: 2.85 kHz​
Drive Unit Complement
1 x 6″ RDT III bass driver,​
1 x MPD III tweeter​
External Dimensions including Trims, Terminals & Outrigger Feet & Spikes (H x W x D)
398 x 225 x 325.6 mm​ (15.6 x 8.8 x 12.8″)
External Dimensions including Trims, Terminals & Outrigger Feet without spikes (H x W x D)
N/A
Weight (each)
15.2 kg​ (33 lb 8 oz)
