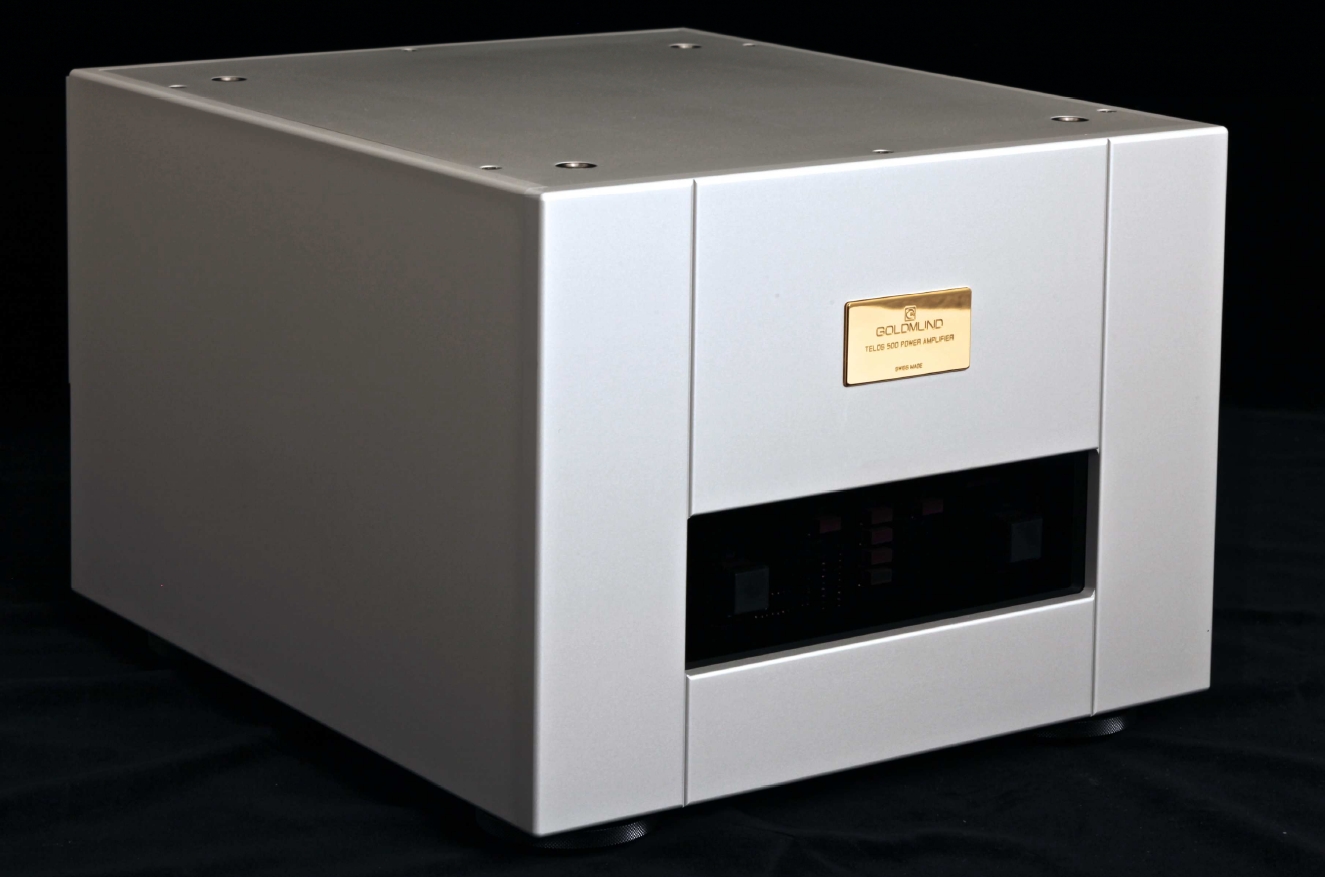

GOLDMUNDから、「 Telos 500 」　登場！！

海外ニュース速報 [World]

TECHNICAL SPECIFICATIONS

POWER SUPPLY
· Nominal Line Voltage 117 ; 234V
· AC line range: 10%
· Fuse 16A for 115 and 230V
· 10 toroidal transformers
· Separated ground and earth signal
· Connection between earth and ground to cancel all ground loops
Rated power consumption:
· IEC 60065, 1/8 Output Power at 8 Ω: 210 W
Max power consumption:
· IEC 60065 at 8 Ω /1% THD: 550 W
FRONT PANEL
· 2 control keys
· Red led display for Over-heating, DC offset or HF protection and Overload
· Green led display for Power ON, operating mode
· Yellow led display for AC line connection and digital Lock
· Yellow led display for Standby Mode
REAR PANEL
· Power cord: universal socket 3 lugs
· Main fuse (16 A slow-blow)
· Green-yellow AC earth binding post
· Output speaker 1 x 5 ways post
· Output speaker 1 x coaxial connector
· Analog Input connector RCA
· Input connector XLR for analog balanced input
· Digital input and output RCA connector
INPUT
Max level before clipping:
· Analog input: 1Vrms
· Digital input: – 6 dBFS
OUTPUT
Max level before clipping:
· 1 % THD, unloaded: 153 Vpp
PERFORMANCE
Output power:
· Power RMS (Goldmund FPP Standard): 350 Wrms on 8 Ω.
· Maximum power (IEC60065): 335 Wrms on 8 Ω / 1%THD
Bandwidth:
· 20Hz – 20KHz: +/-0,03dB, unloaded
· +/- 3dB: 0Hz to 100 kHz (limited by protection circuitry), unloaded
Slew rate:
· Unloaded,18V/μS
Distorsion:
· IMD (SMPTE), unloaded: < 0.03 %
· THD+N, unloaded: < 0.06 % from 20 Hz to 20 kHz at 20 Vrms output
Output noise floor:
· Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz
Gain:
· 35dB
Dynamic range:
· 22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB
Damping factor:
· at 8 Ω: > 160 from 20 Hz to 20 kHz
DIMENSIONS
· 330 W x 470 D x 270 H (mm)
WEIGHT
· Weight: 65 kg
WARRANTY
· 3 years parts and labo
