Klimax 350
The ultimate intelligent loudspeaker
Taking a digital signal as their input, the Klimax 350 ensures zero transmission loss from the source. Then our Katalyst DAC Architecture retrieves the maximum amount of musical information from this digital signal.
Exakt technology ensures our most natural sound ever, by aligning all the musical frequencies to arrive at your ear at the same time, exactly the way real musical instruments are experienced.
Because you’d expect the same incredible performance at all volume levels, the Klimax 350’s Dynamik power supply delivers 3000 W with speed and precision.
And while every room has its own effect on your music, Klimax 350 utilises our patented Space Optimisation technology to optimise performance based on the acoustic properties of your room and your desired speaker placement.
The result is the ultimate listening experience.
•Ultra-low resonance, pressure-formed cabinet
•Exakt technology built in
•Connects via Exakt Link to any Exakt-enabled Linn network music player
•6 channels of amplification per speaker
•In-house Katalyst DAC Architecture
•Patented Linn 3K Driver Array
•Aktiv Servo-Driven Bass system
•3000 W of power amplification per speaker
•Standard and high gloss real wood veneer or bespoke colour finishes
•A choice of chrome or black finish on the 3K array
海外ニュース速報 [World]
New solid black acrylic side panel launches across our upper ranges
We’re delighted to announce a new styling alternative for our full-size component ranges, Reference and Chord. All double- and quad-height products* in our two upper ranges can now be ordered with high-quality solid black acrylic side panels as an alternative to our traditional Integra Leg System, at no additional cost. Our single-height products** will also be available with the new side panels later in 2017.
The side panels are precision-machined from solid black acrylic and then machine-polished to a piano black finish, offering a softer look which reflects home décor. Compatible products can also be retro-fitted with the panels as a chargeable factory upgrade — please consult your local dealer for pricing.
*The following models can be ordered now with the solid black acrylic side panel options:
CD playback: Red Reference Mk III; Integrated amplifiers: CPM 2650; CPM 3350 and CPM 2800 MKII (with DAC); Preamps: CPA 5000 and CPA 8000; Power amps (mono): SPM 1400 MK II; SPM 6000 MK II and SPM 14000 MK II; Power amps (stereo): SPM 1200 MK II and SPM 1050 MK II
**The following models will be available later in 2017 with the side panel options:
Streaming: DSX 1000; Preamps: CPA 2500 and CPA 3000; Power amps (stereo): SPM 650
海外ニュース速報 [World]
■チタントーンアームワンド TDTW-01Ti
※グラハム社製PHANTOM Elite トーンアームアップグレード用の
チタンアームワンド。
定価 ￥ 580,000（税別）
■ヘッドシェル TDHS-01Ti
定価 ￥ 240,000（税別）
■アクリル製プラッターカバー
定価 ￥ 26,000（税別）
2017年4月頃発売予定
海外ニュース速報 [World]
The TRADITION
of Sonus faber
Homage collection has its root in the Sonus faber DNA of highest craftsmanship tradition and excellence in sound performances. Since its very beginning during the Nineties with the first Guarneri and Amati Homage, this collection has ever been the most iconic representation of Sonus faber values.
Homage Tradition collection is a new tribute to the mastery of Italian violin-making; the now classic lute shape, the hallmark of Sonus faber production, has been revisited and taken to new heights by embodying both the classic lines of the Homage collection and those of the Lilium cabinet, thus giving new volumes to the speakers of this collection.
• AMATI TRADITION: € 20.500
• SERAFINO TRADITION: € 15.500
• GUARNERI TRADITION: € 11.700 (standincluded)
2017年2月発売

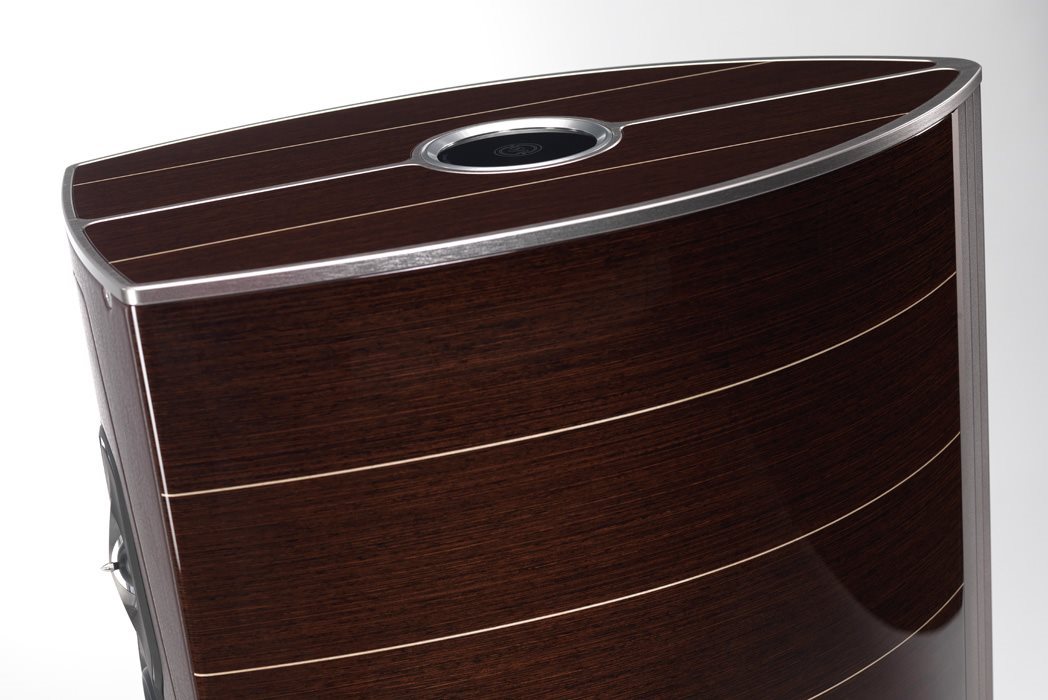

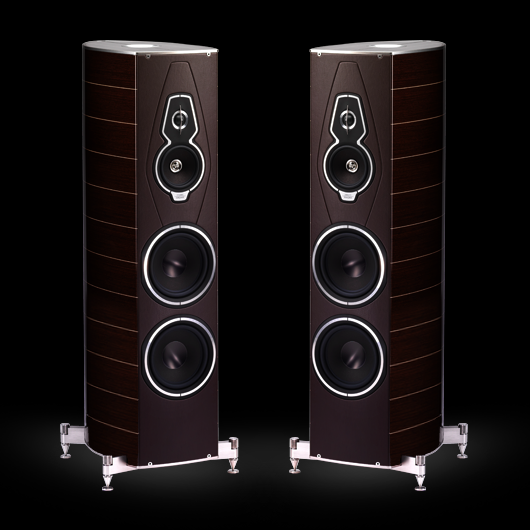

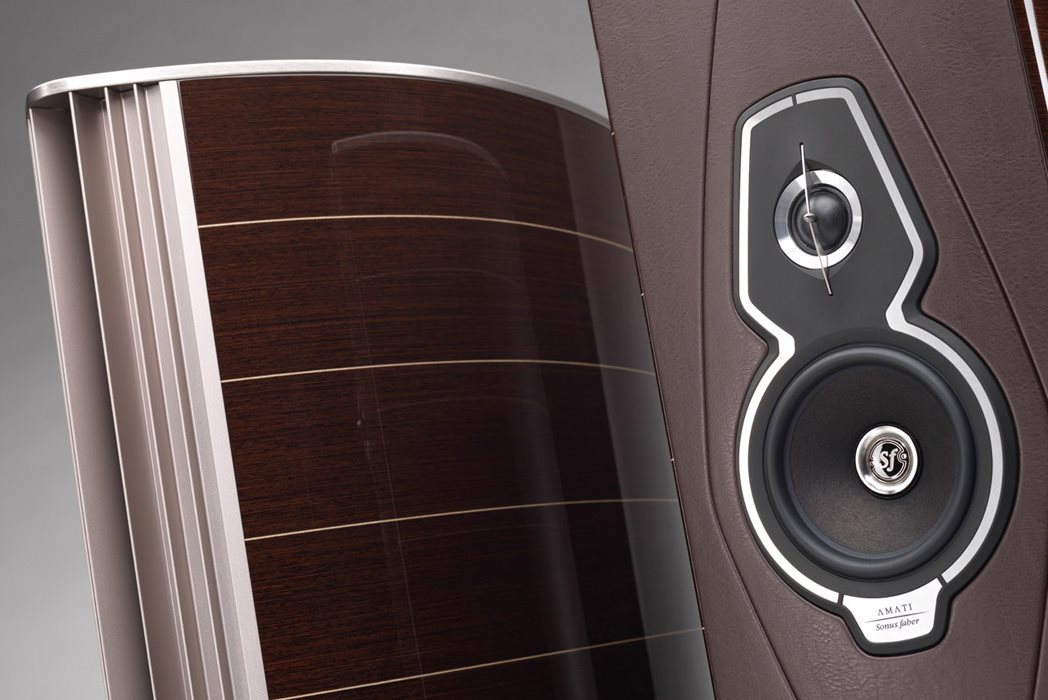

AMATI TRADITION
System

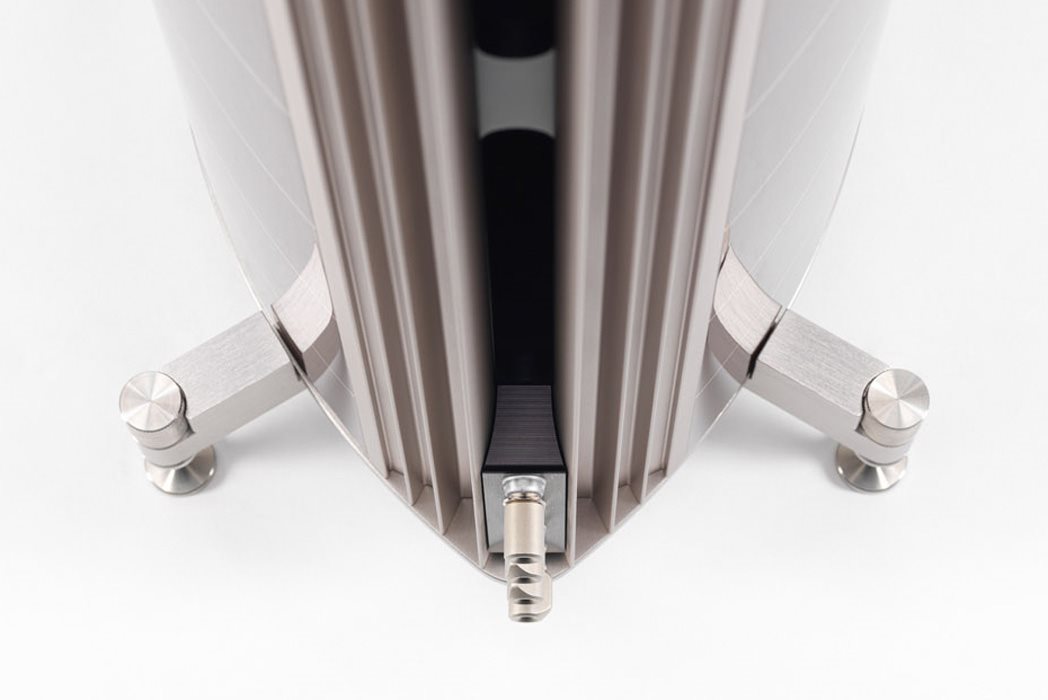

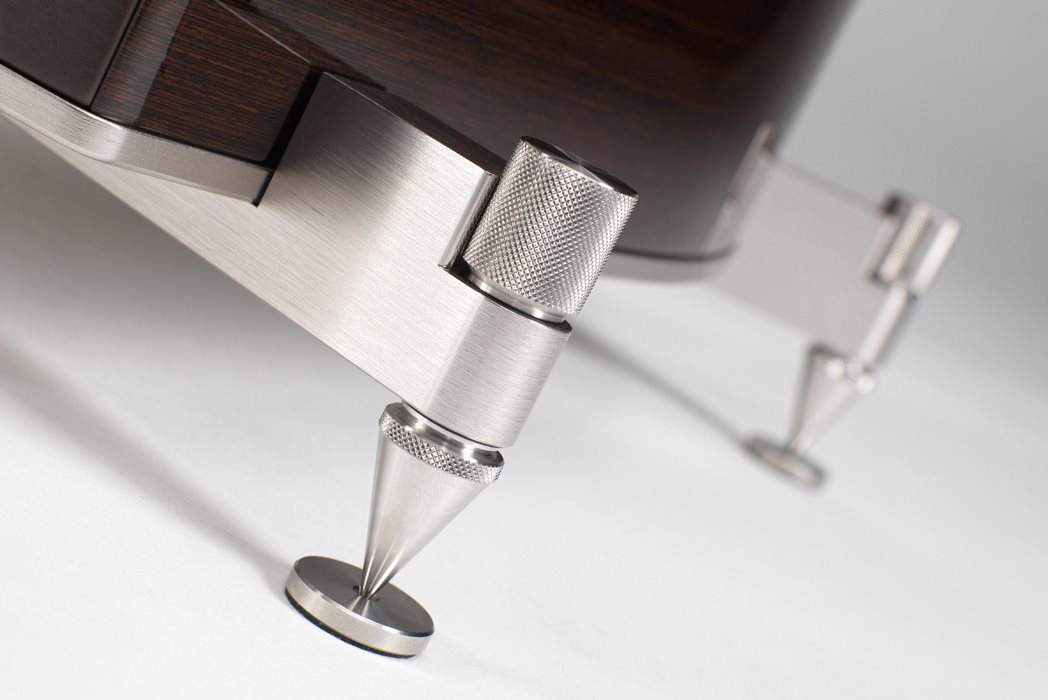

3.5 way, full para-aperiodic vented box “Stealth Ultraflex System” and “Zero Vibration Transmission” technology , vibration transmission- decoupled from the floor, staggered low frequency floorstanding loudspeaker system.
Tweeter
H28 XTR-04. Sonus faber silk dome 28 mm “Arrow Point” DAD, implemented with a natural wood acoustic labyrinth rear chamber. Midrange M15 XTR-04. Sonus faber designed 150 mm neodymium magnet system ultra dynamic linearity midrange.
Woofer
2 x W22XTR-08. Sonus faber designed 220 mm lightweight “sandwich” cone structure (high-tech syntactic foam core and two external surface skins of cellulose pulp) woofers.
Cross-over point
80Hz – 250 Hz – 2.500Hz
Frequency Response
28 Hz – 35.000 Hz, Stealth reflex included.
Sensitivity
90 db SPL (2.83V/1 m).
Nominal
Impedance 4 ohm.
Suggested Amplifier Power Output
100W – 500W, without clipping.
Long-term Max Input Voltage (IEC 268-5)
25 V rms
Dimensions
(HxWxD)1176 x 411 x 512 mm
Weight
61 Kg

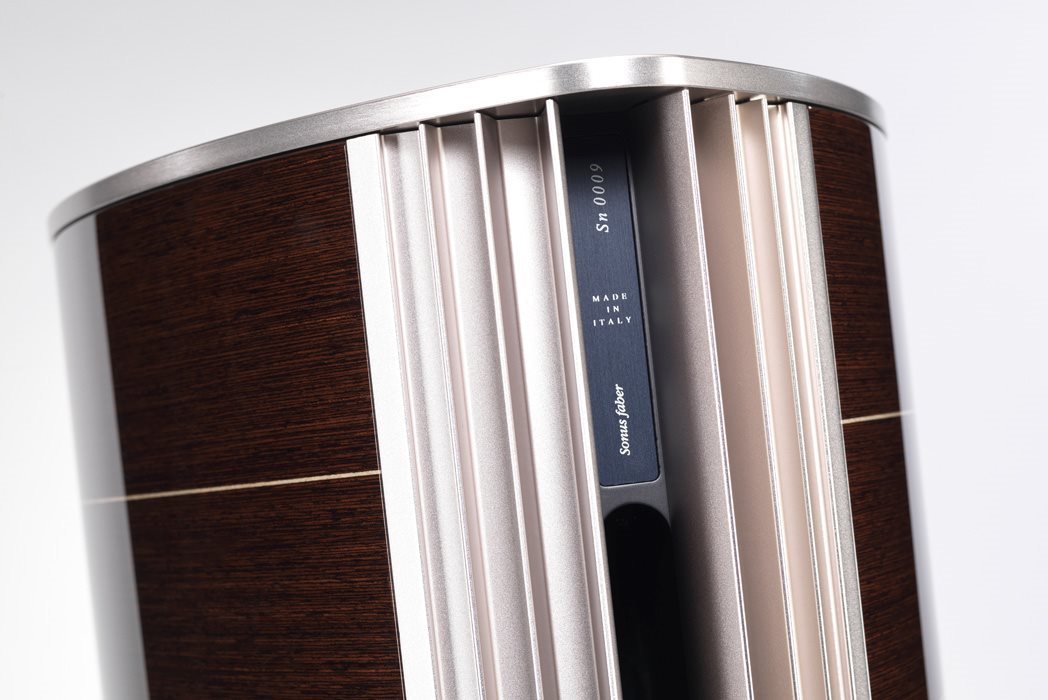

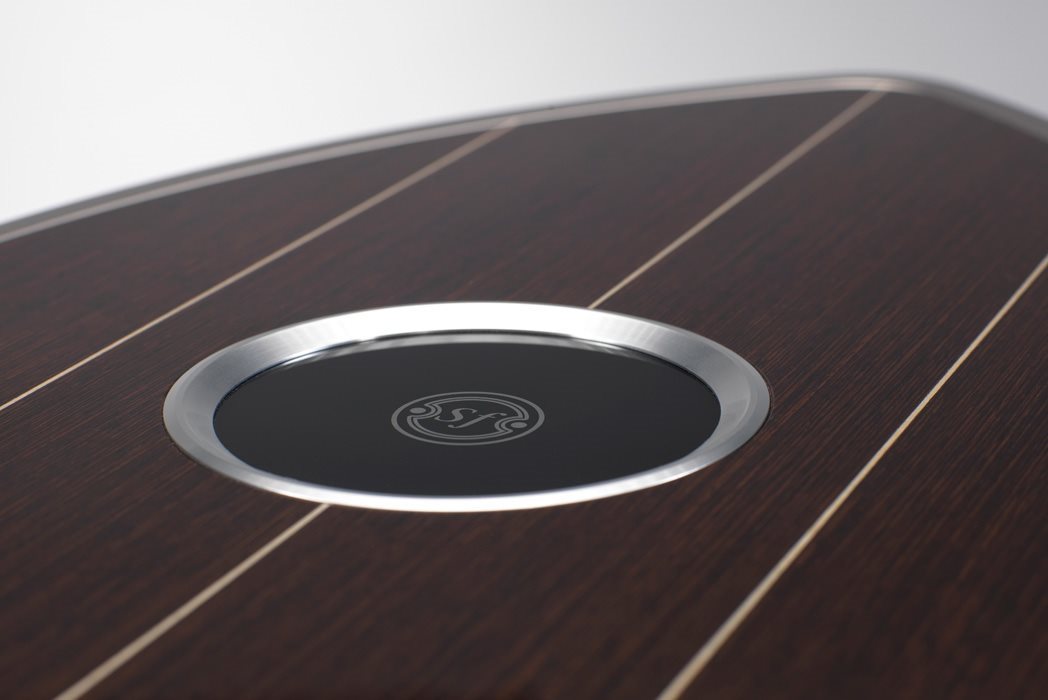

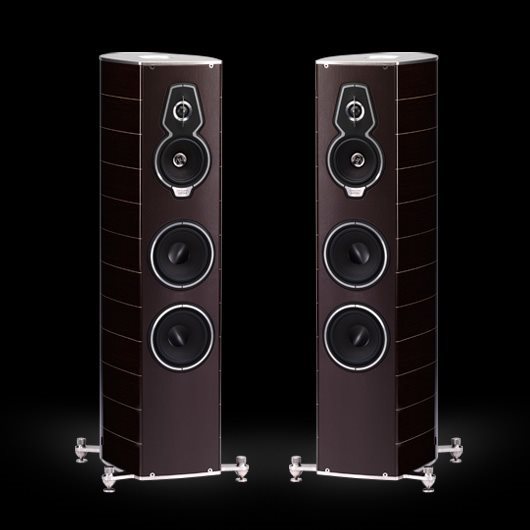

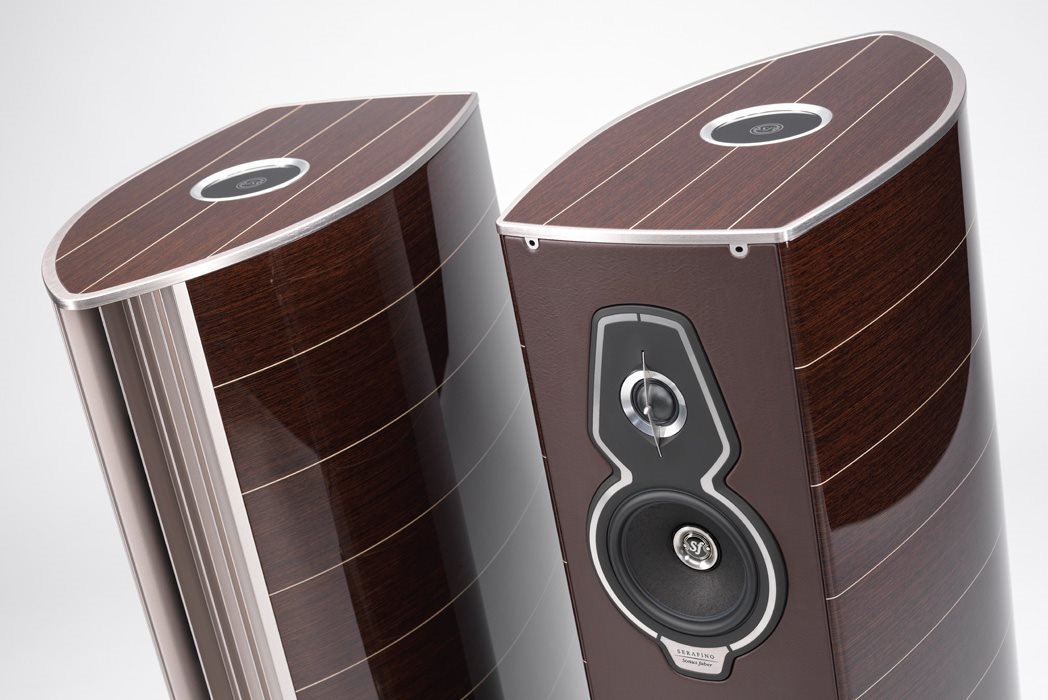

SERAFINO TRADITION
System

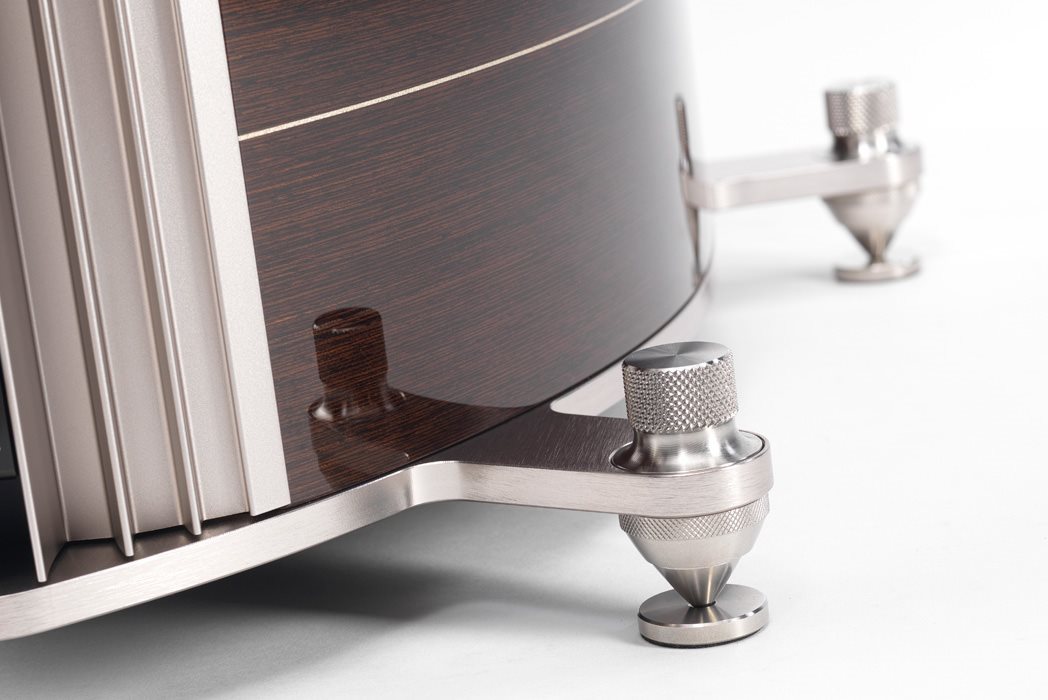

3.5 way, full para-aperiodic vented box “Stealth Ultraflex System and “Zero Vibration Transmission” technology , vibration transmission- decoupled from the floor, staggered low frequency floorstanding loudspeaker system.
Tweeter
H28 XTR-04. Sonus faber silk dome 28 mm “Arrow Point” DAD, implemented with a natural wood acoustic labyrinth rear chamber.
Midrange
M15 XTR-04. Sonus faber designed 150 mm neodymium magnet system ultra dynamic linearity midrange.
Woofer
2 x W18XTR-08. Sonus faber designed 180 mm lightweight “sandwich” cone structure (high-tech syntactic foam core and two external surface skins of cellulose pulp) woofers.
Cross-over point
80Hz – 250 Hz – 2.500Hz
Frequency Response
30 Hz – 35.000 Hz, Stealth reflex included.
Sensitivity
90 db SPL (2.83V/1 m).
Nominal Impedance
4 ohm.
Suggested Amplifier Power Output
80W – 350W, without clipping.
Long-term Max Input Voltage (IEC 268-5)
22 V rms
Dimensions
(HxWxD)1091 x 396 x 485 mm
Weight
52 Kg

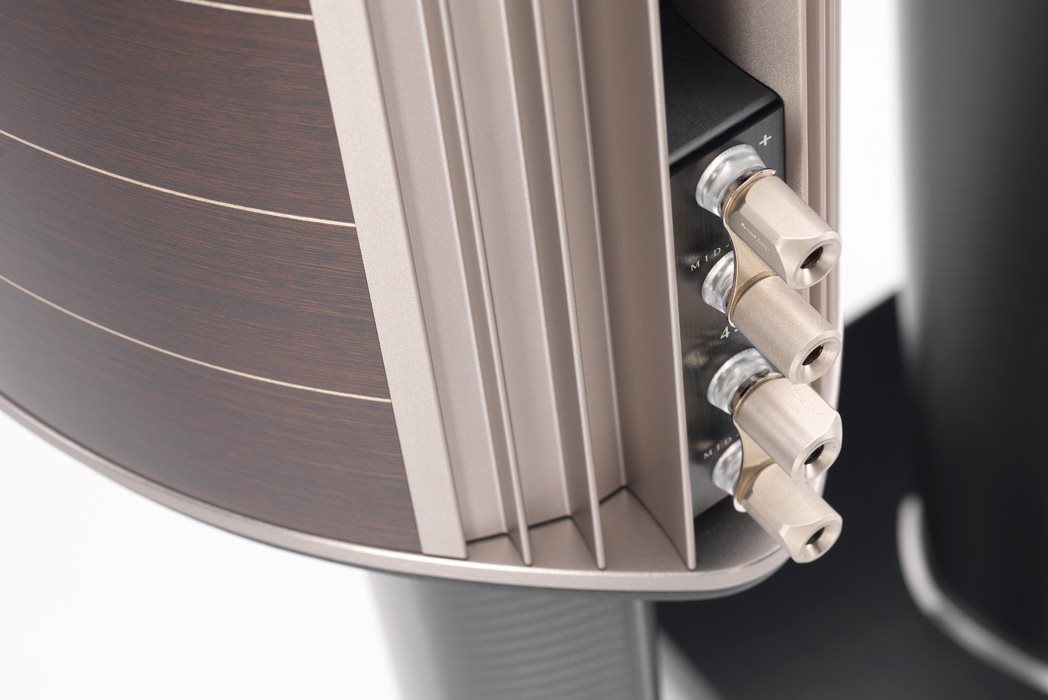

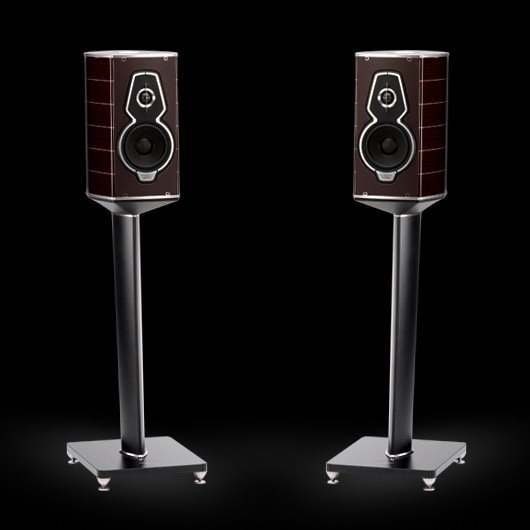

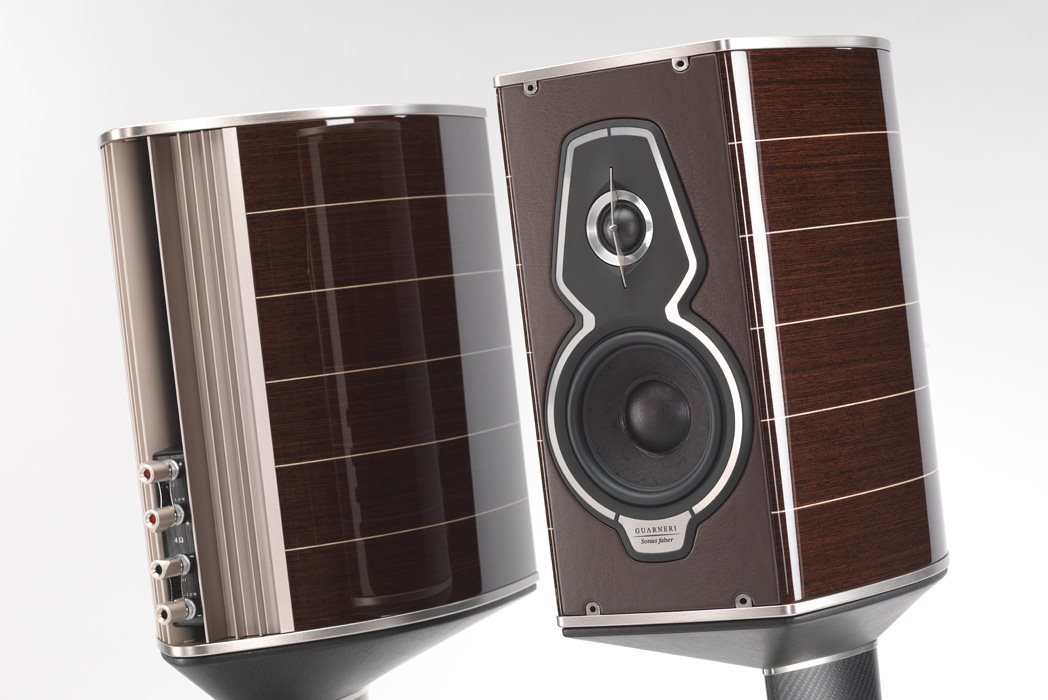

GUARNERI TRADITION
System
2 way, full para-aperiodic vented box “Stealth Ultraflex System” and “Zero Vibration Transmission” technology implemented on the dedicated stand, vibration transmission- decoupled from the floor, stand mount loudspeaker system.
Tweeter H28
XTR-04. Sonus faber silk dome 28 mm “Arrow Point” DAD, implemented with a natural wood acoustic labyrinth rear chamber.

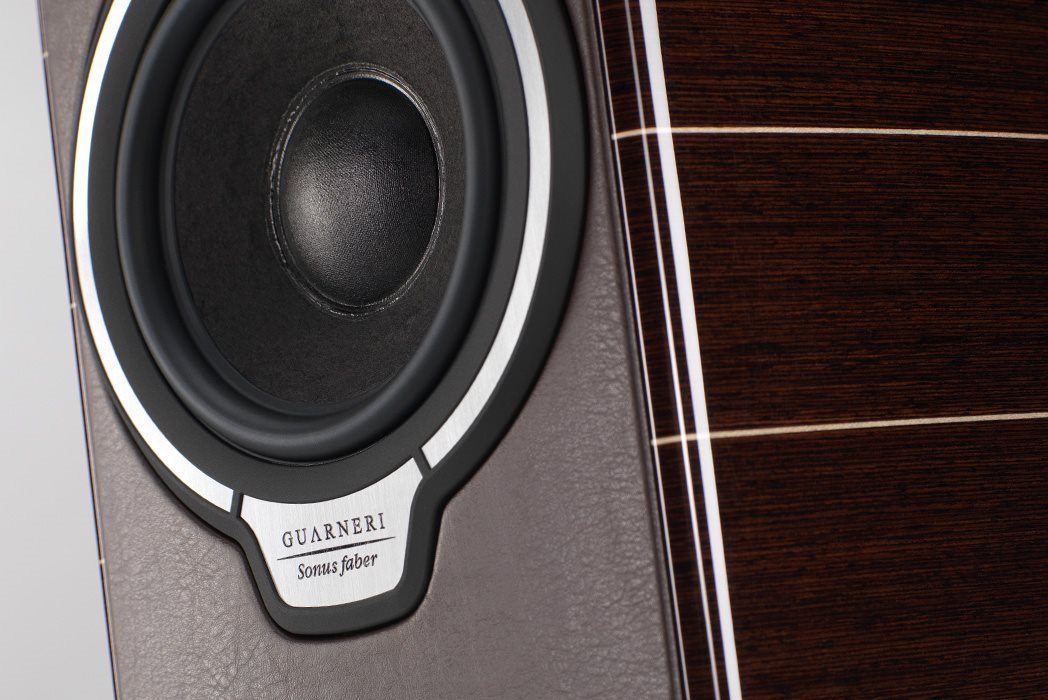

Midwoofer
W15 XTR-04. Sonus faber designed 150 mm neodymium magnet system ultra dynamic linearity midwoofer.
Cross-over point
2.500Hz.
Frequency Response
40 Hz – 35.000 Hz, Stealth reflex included.
Sensitivity
87 db SPL (2.83V/1 m).
Nominal Impedance
4 ohm.
Suggested Amplifier Power Output
30W – 250W, without clipping.
Long-term Max Input Voltage (IEC 268-5)
20 V rms
Dimensions (HxWxD)
377 x 239 x 375 mm Weight 16 Kg

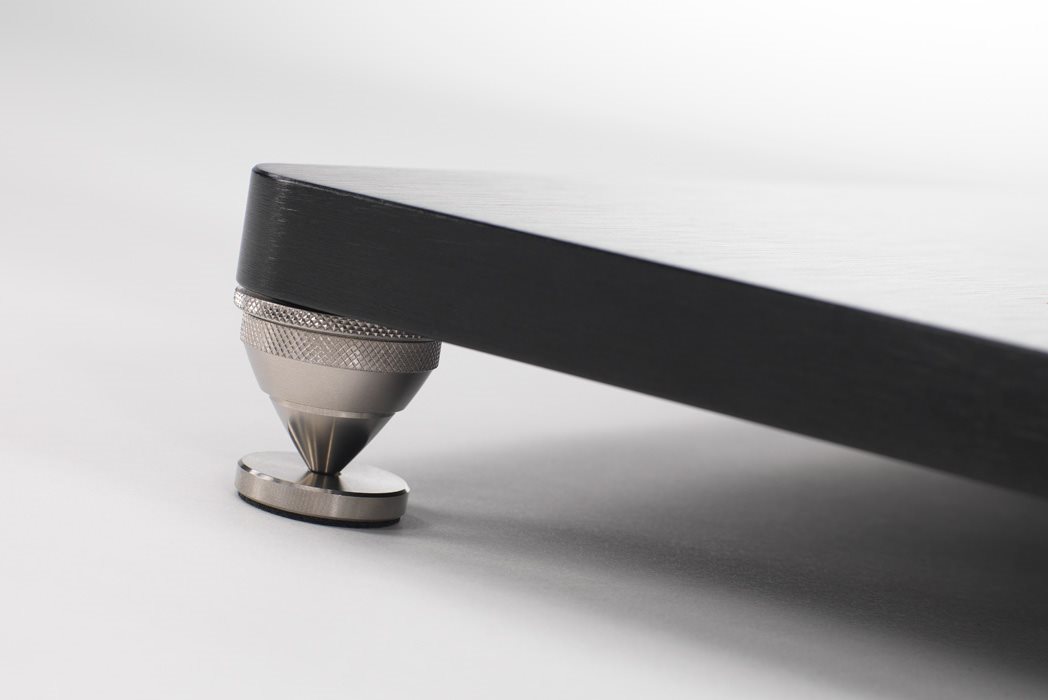

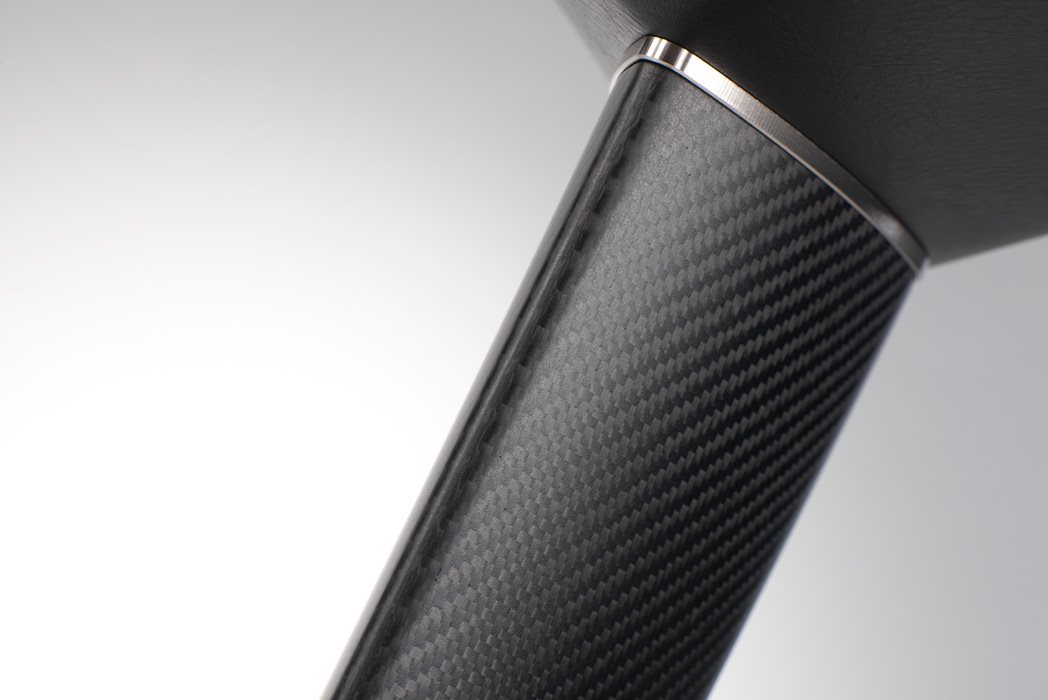

Dedicated Stand (entirely made in Carbon Fiber)
Dimensions (HxWxD)
758 x 300 x 390 mm
Weight
16 Kg
