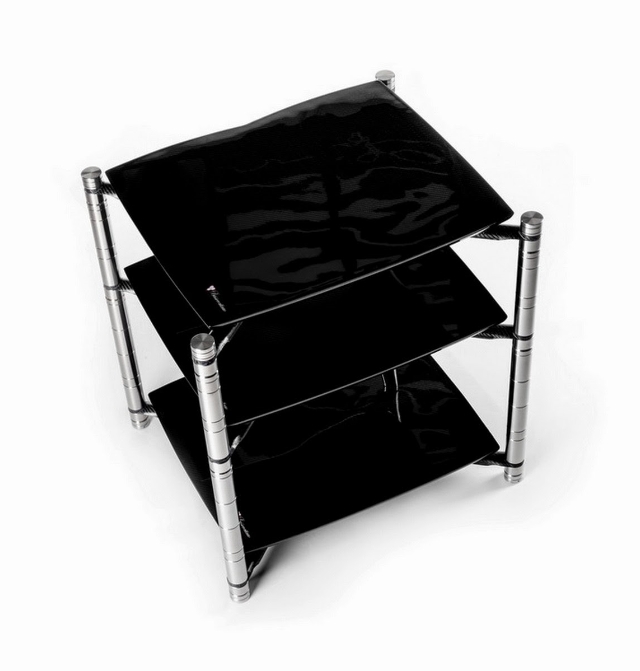

Harmonious shapes and performances without compromises. Carbon main structure (CFRP ENDOSKELETON) and highly cushioning techno gel on which float the shelves (LHPS SHELVES). An innovative and skillful material mix enhances the concept of perfection.

REVOLUTION LINE was born to create a new standard and to explode some false myths.

It is a product line born and designed to satisfy the most demanding enthusiast (AEON is the forefather and its name means “era” or “eternity”). It is tested with anti-seismic methodologies and certified thanks to cutting-edge devices that spotted its weak points and gave us the chance to fix them and develop a unique project.


Composite materials as system’s frame. Carbon fiber is an anisotropic material (it reacts differently to the different forces that stress it) that is used in the aerospace and automotive industry for its characteristics of high stiffness and lightweight.

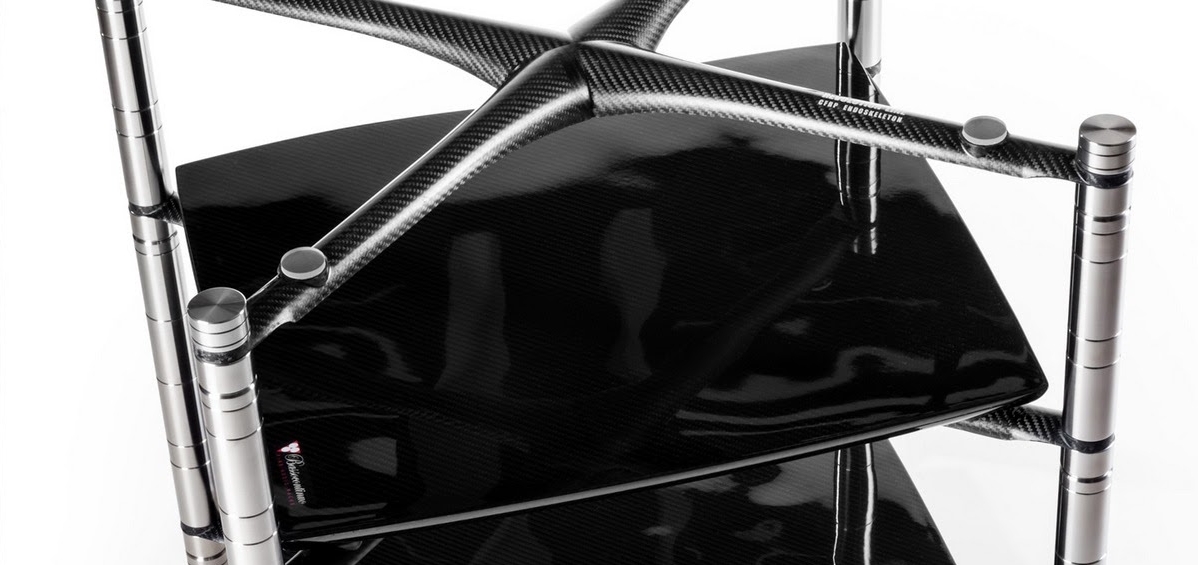

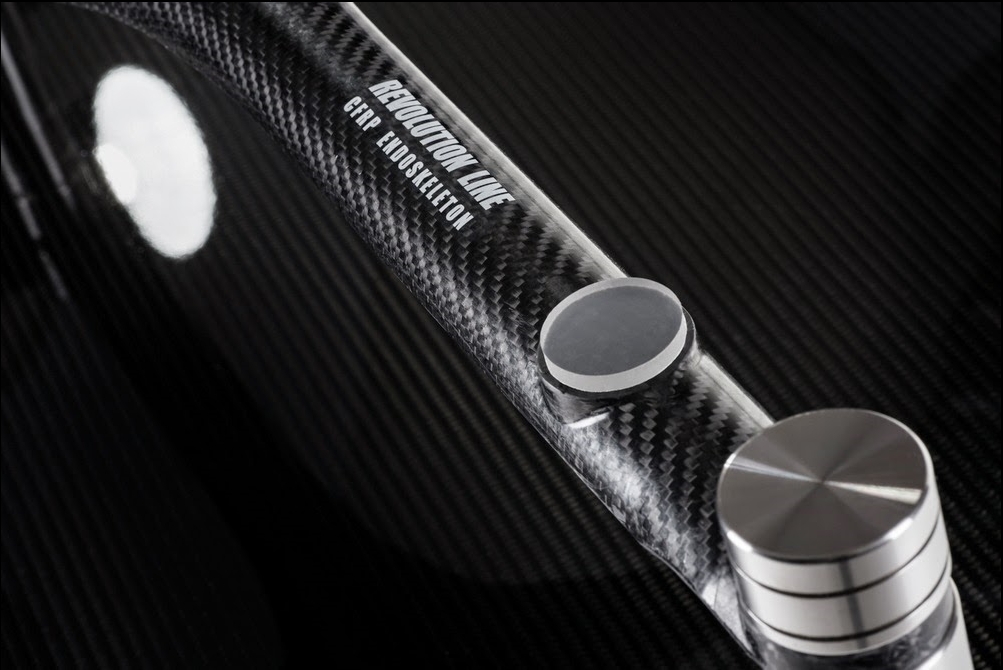

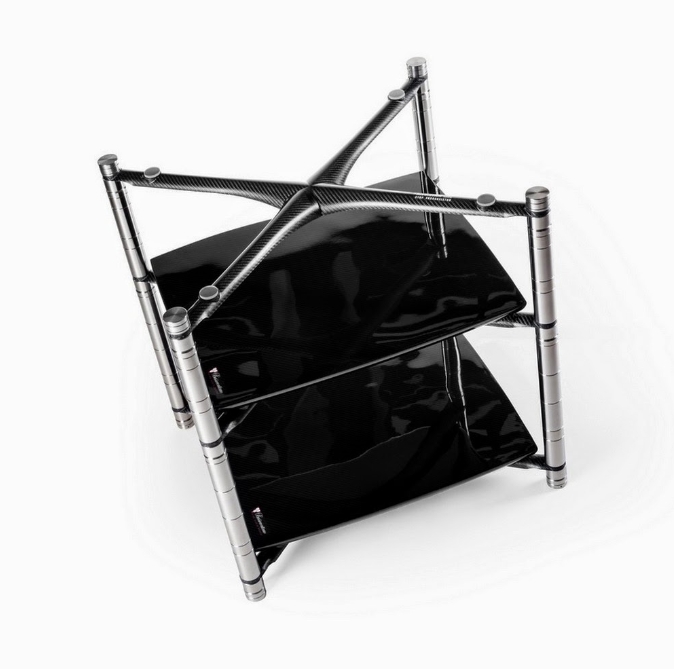

The CFRP (acronym for Carbon Fiber Reinforced Polymer) ENDOSKELETON is made of a BIDIRECTIONAL carbon and glass fiber sandwich structure reinforced with structural resins. The fibers orientation (optimized thanks to structural and accelerometric tests that have evidenced the critical stress points) made possible the creation of a very light main frame (around 600 grams) able to bear up to 140 times its weight.

The CFRP ENDOSKELETON is a MONOCOQUE BODY, namely made of a unique monolithic element made in an aluminium machined solid plate. Monocoque bodies have no structural welding and this is their distinguishing feature. Monocoque bodies are the best that composite market can offer. (F1 cars have a safety airframe that is made using this technology).

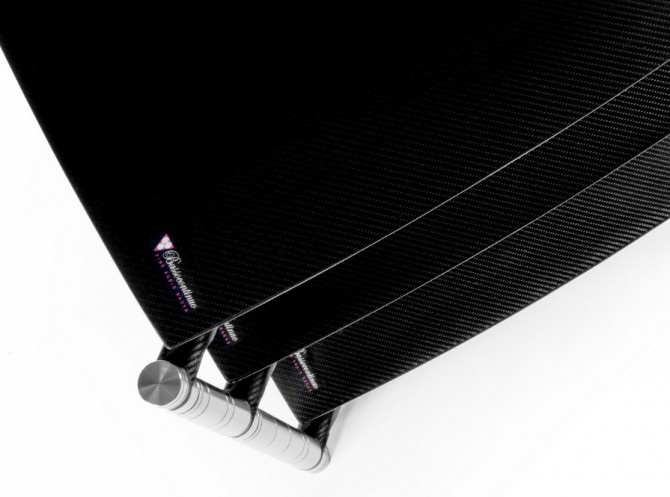

Lightweight High Performance Sandwich is a material mix especially designed to enhance sound performances. Each shelf section has a mono directional carbon fiber shell 1 mm thick and a special polyurethane foam with overlapping epoxy resin that build out supporting ribs. The result is a perfect dispersion of residual vibrations (generated by the sources) in the form of heat, a very high resistance to compression and to static load and an optimum force distribution (as it is demonstrated by the modal analysis).

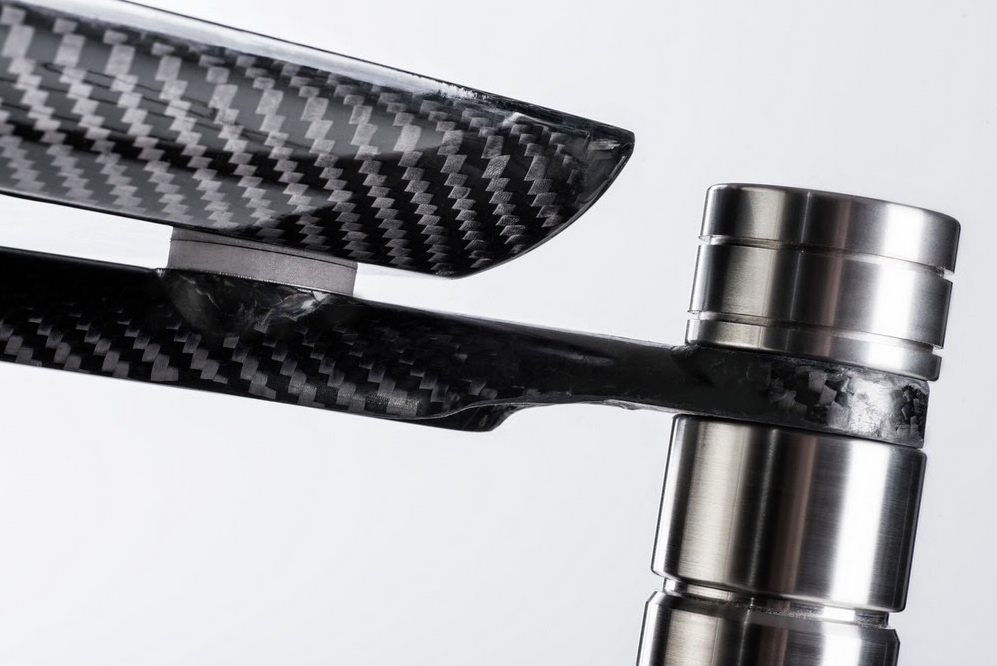

​The four techno gel dumpings on which it leans, allow the movement of the shelf in three directions and dramatically reduce direct vibrations generated by the sound pressure.

 TSA – Technogel Shock Absorber

To describe this exceptional material we need only few words!
Developed by Technogel Gmbh in cooperation with Bayer Chemical Company (it has been widely employed also in our ZEN LINE), Technogel is a unique “soft solid” material that joins together the 3D deformation of a fluid and the memory shape of a solid.
It’s a completely non-toxic and stable polyurethane substance (made without using oils or plasticizers), at first developed for the medical field and now used in a wide range of applications.
This material, exposed to dynamic stress, has demonstrated a degree of absorption and dispersion unique in its category.

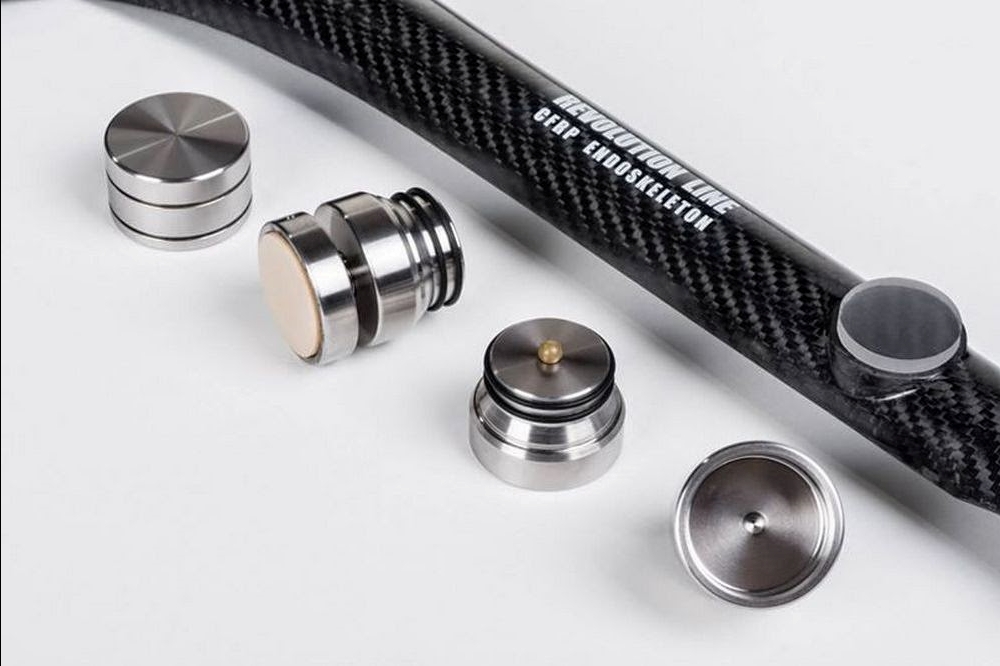

EDT – Encapsulated Damper Technology

Here is the challenge!

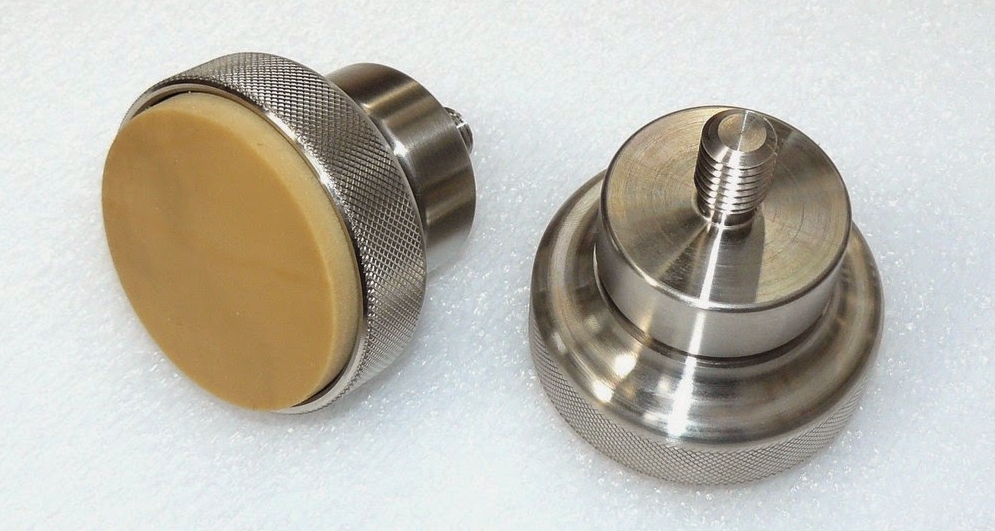

Where else could we place a high performance rack if not on the only material that can guarantees a very high absorption coefficient? Every foot is adjustable in height thanks to threads 1 point per inch, it has inside an elastomer cylinder 15 mm thick and 3 degrees of constraint (thus it maintains the necessary stability).
Thanks to the material’s relative compliance (50 sh.) the foot easily adjusts to the surface and at the same time this compliance absorbs (and disperse in the form of heat) floor vibrations that are the vibrations that have a bigger strength (low frequency transverse waves).
A simple but effective solution.










« »
