Voxativから、「 Ampeggio Due 2 」「 Ampeggio Due Acryl 」スピーカー、アルニコを使用した新ユニット「 AC-2A 」「AC-4A 」登場。
Ampeggio Due 2
Ampeggio Due Acryl
AC-2A Drive Unit with AlNiCo Magnet System
AC-4A The new driver generation with AlNiCo magnet system and wooden cone

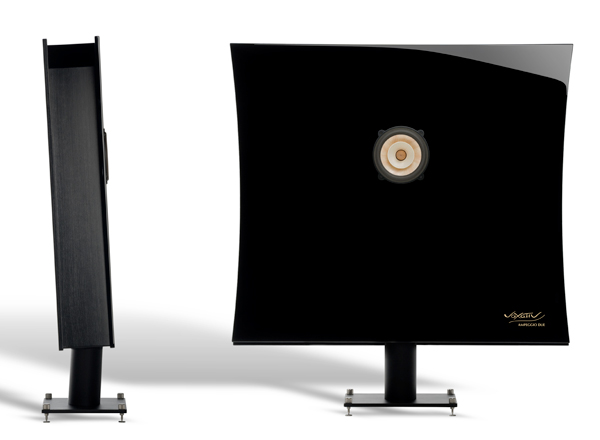

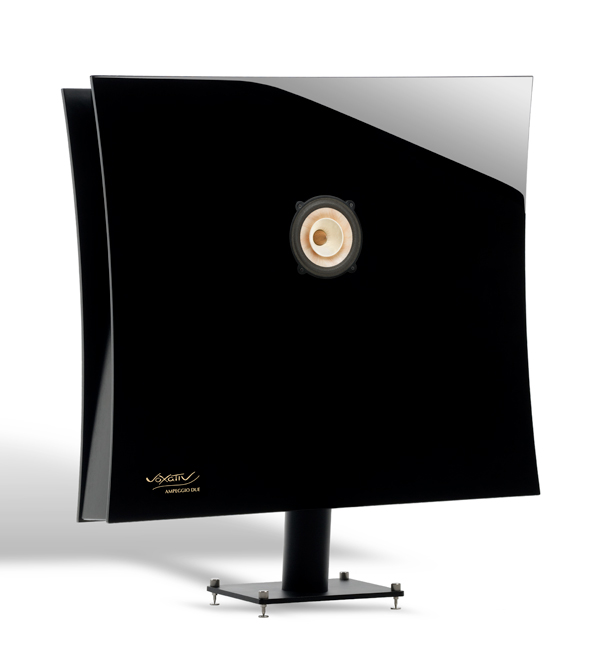

[Ampeggio Due 2]
The Ampeggio Due 2 is a new design which was especially created for our AC-4A driver.
This horn convinces with its shallow depth of only 19cm (7.5″). The horn openings are facing down. It’s bass response extends down to 25 Hz.
Despite of this phenomenal bass response the highs remain silky-smooth, very transparent, open and full of unheard details. The overall sound impresses with explosive dynamics and a phenomenal stage.
One watt amplifier power is enough for full delight.
Please visit our studio in Berlin to experience the remarkable sound of the VOXATIV Ampeggio Due.
Technical data:
Frequency response 25 – 20.000 Hz
Driver VOXATIV AC-4A
Efficiency 102 dB / 1W / 1 m
Capacity 50 W sinus
Dimensions (W x H x D) 120 x 180 x 19 cm / 47 x 71 x 7,5″
Weight 100 kg / 220 lbs

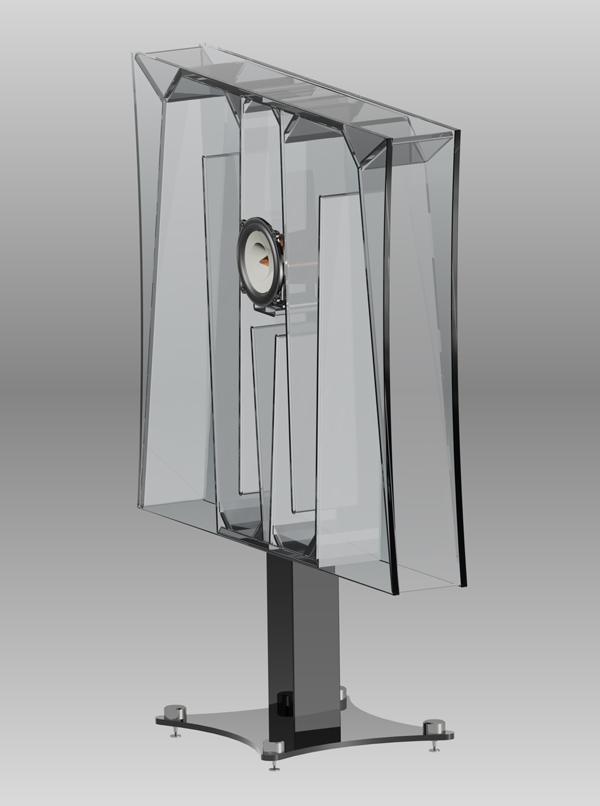

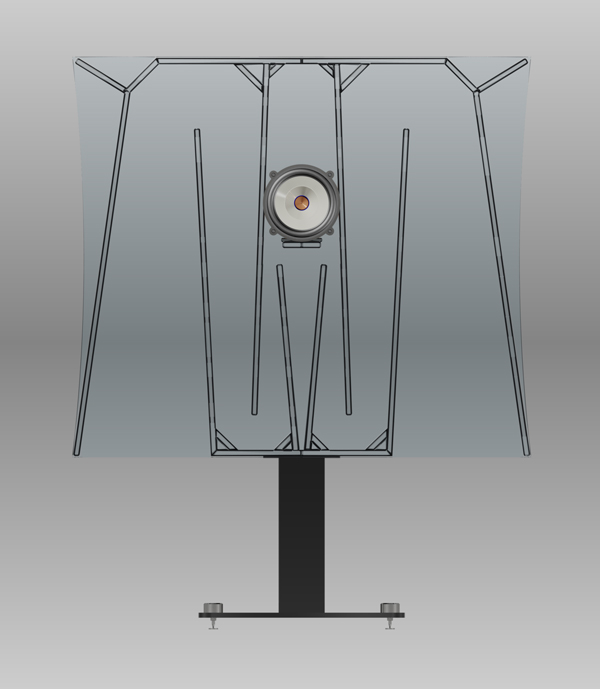

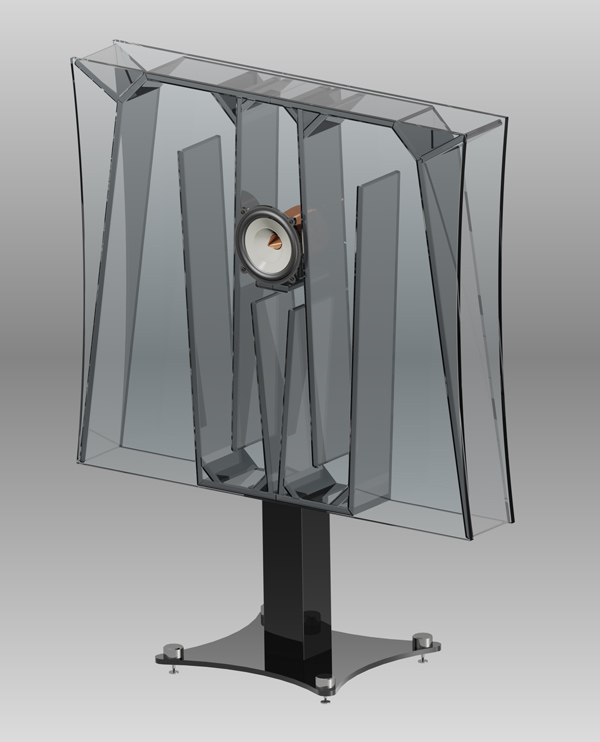

[Ampeggio Due Acryl]
The Ampeggio Due made of Acrylic Glass.
Of couse the famous Voxativ AC-Xp driver is embedded.
Really lightweight, aren’t they? The driver seems to be set in the air…
Technical data:
Frequency response 25 – 20.000 Hz
Driver VOXATIV AC-Xp
Efficiency 100 dB / 1W / 1 m
Capacity 50 W sinus
Dimensions (W x H x D) 120 x 180 x 19 cm / 47 x 71 x 7,5″
Weight 120 kg / 220 lbs

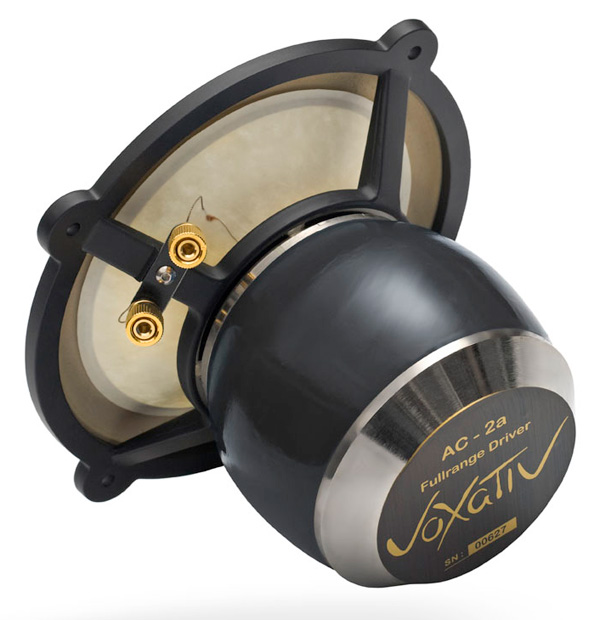

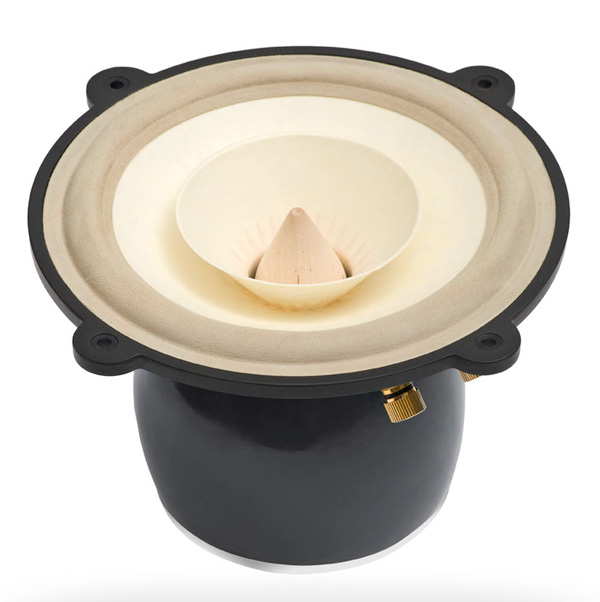

[AC-2A]
Finally: The Voxativ AC-2A Alnico driver.
This driver system completes our AC-2x series.
A real fullrange driver with powerful basses, lovable highs and a well tuned tonal balance.
Visit us in Berlin and listen.
Technical data:
Frequency response 20 – 20.000 Hz
Efficiency 97 dB / 1W / 1 m
Capacity 50 W nom / 100 W mus
Impedance [R] 10,5 Ohm
Complex impedance [Z] 15,0 Ohm
Resonance frequency 44,0 Hz
Mechanical Q-factor Qms 4,7
Electrical Q-factor Qes 0,64
Q-factor Qts 0,55
Equivalent volume [VAS] 67,0 Ltr
Xmss 4 mm
Depth 12,5 cm
Install diameter 19,0 cm
Weight 8,5 kg

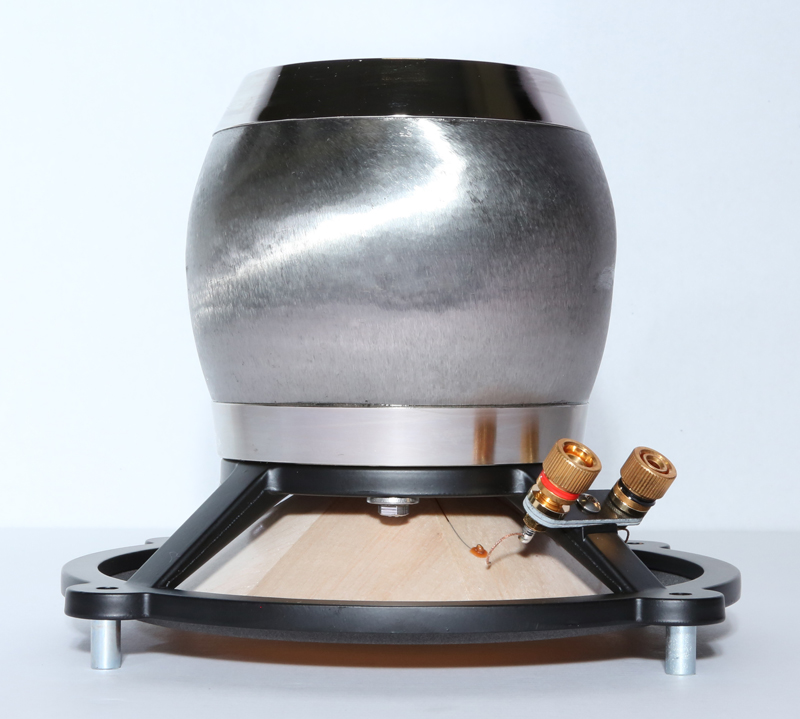

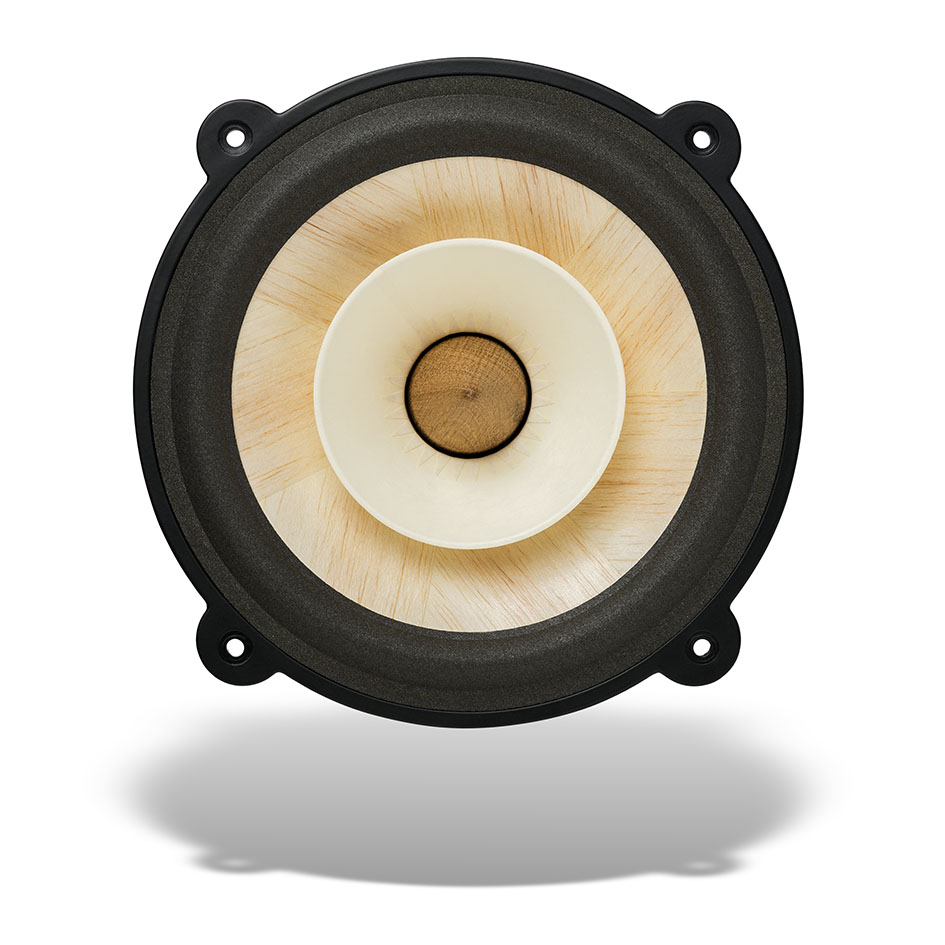

[AC-4A]
2013’s second innovation presented Voxativ – the Voxativ AC-4A driver is equipped with a cone made of real wood. Upon a new AlNiCo magnet is used. This reaches 2.4T in the gap and has an underhung coil.
A breathtaking bass response in our Ampeggio Due housing gives a 15″ woofer feeling, but with much more speed. Mids and highs are getting again more clarity and detail.A showpiece with a weight of 11 kg.
The Ampeggio due system can now be equipped with the new Voxativ AC-4A.
Technical data:
Frequency response 20 – 20.000 Hz
Efficiency 102 dB / 1W / 1 m
Capacity 50 W nom / 100 W mus
Impedance [R] 11,0 Ohm
Complex impedance [Z] 16,0 Ohm
Resonance frequency 42,0 Hz
Mechanical Q-factor Qms 4,08
Electrical Q-factor Qes 0,41
Q-factor Qts 0,37
Equivalent volume [VAS] 70,0 Ltr
Xmss 10 mm
Depth 12,5 cm
Install diameter 7,5″ / 19,0 cm
Weight 11,0 kg
