ATCから、新SCMシリーズ「 SCM7 」「 SCM11 」登場!!

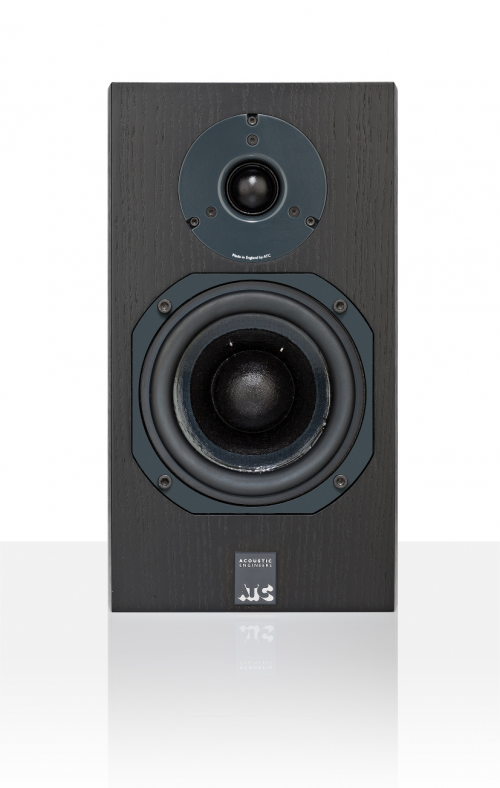

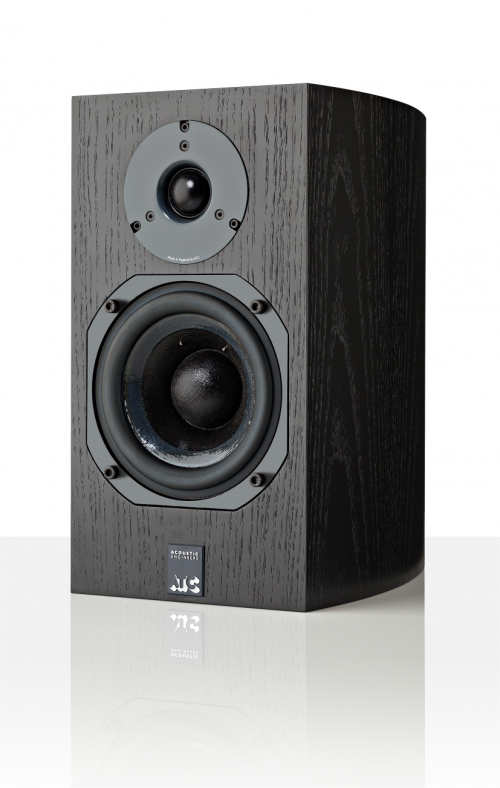

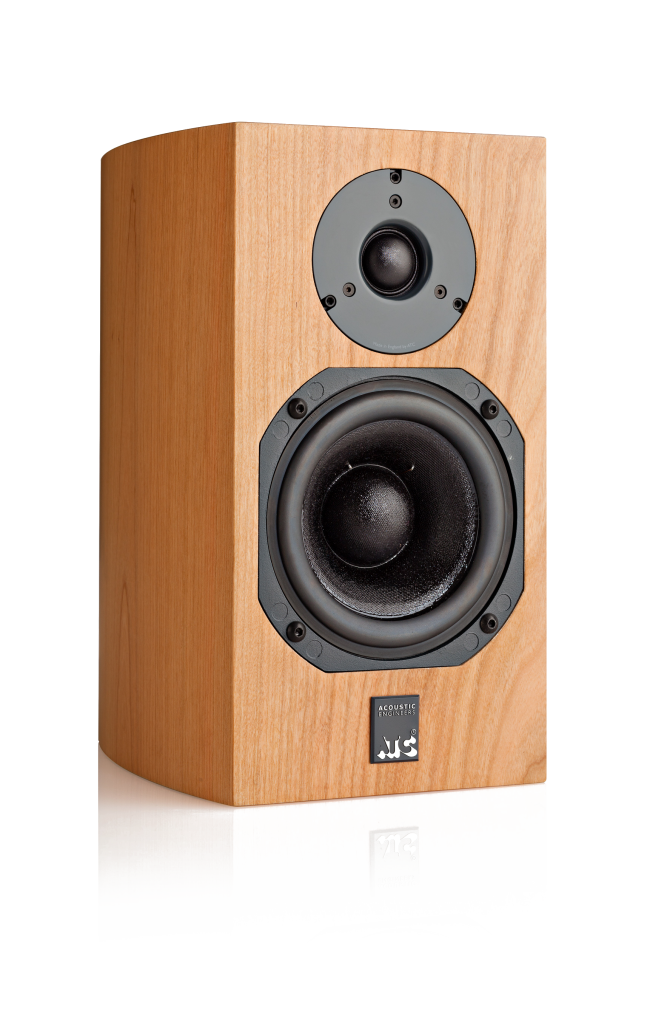

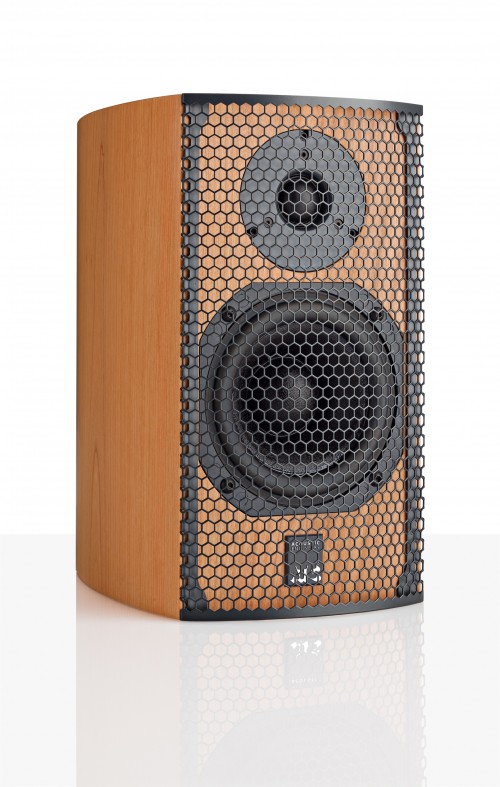

SCM7
Overview
•New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
•125mm ATC mid/bass unit with integral soft dome.
•In-house, hand-wound precision flat wire coil.
•3Kg optimised motor assembly.
•Massive optimised motor assembly.
•Flat impedance curve allowing easy load for amplifiers.
•6 year warranty.
Specification
Drivers: HF 25mm Neodymium, Mid/LF 125mm
Matched Response: ±0.5dB
Frequency Response (-6dB): 60Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 84dB @ 1W @ 1metre
Max SPL: 103dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 300x174x215mm
Weight: 7.5kg

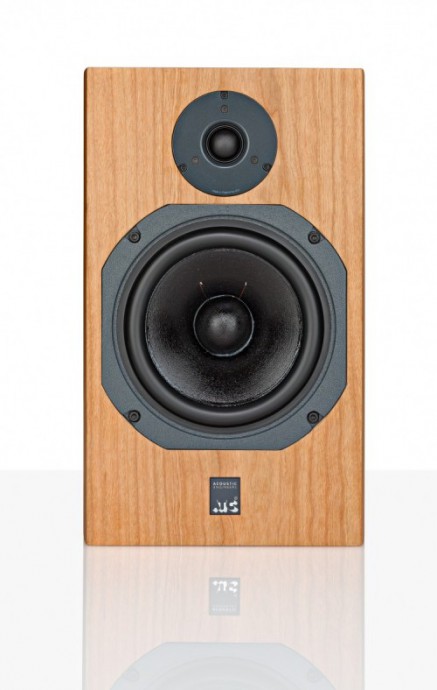

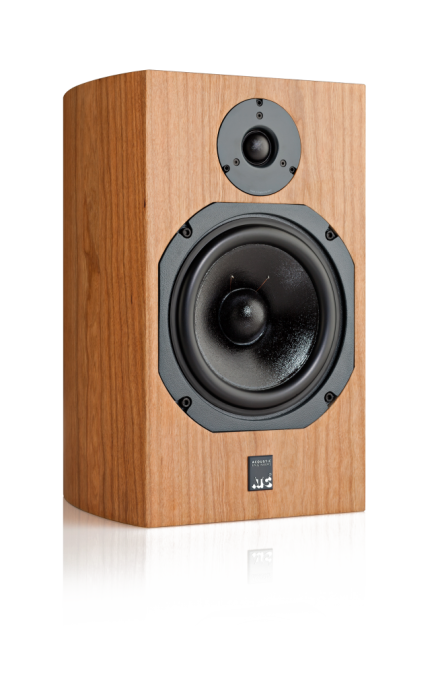

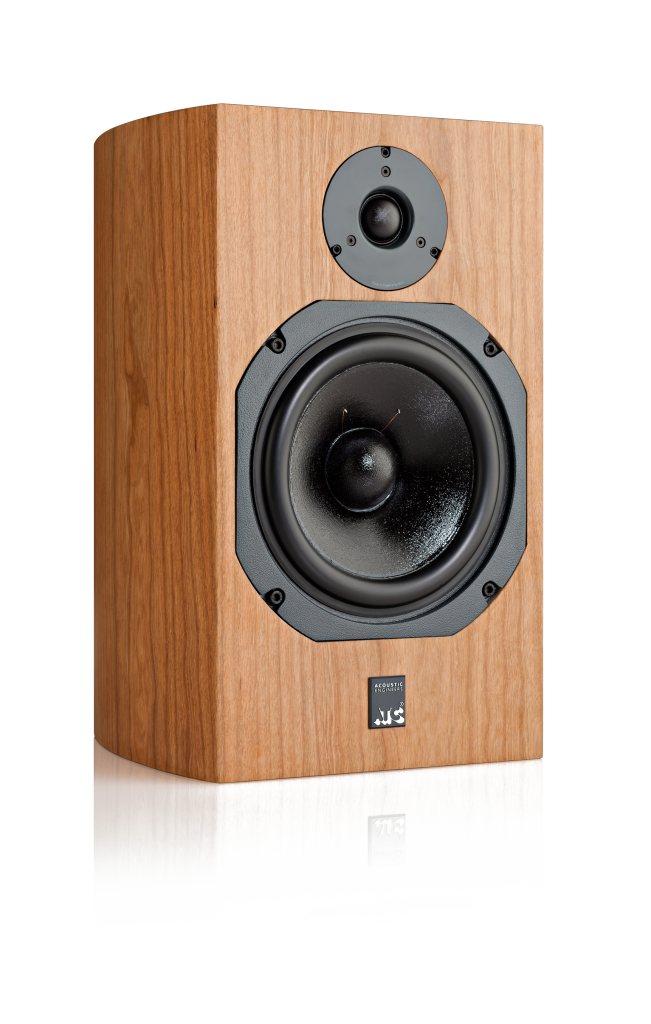

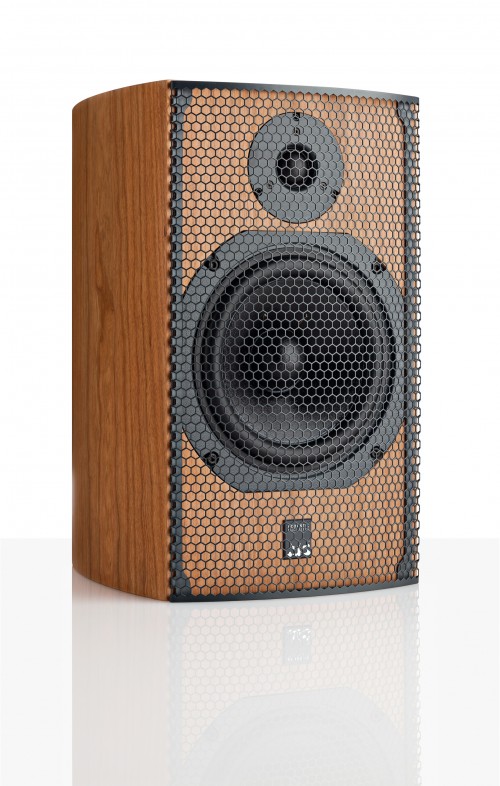

SCM11
Overview
•New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
•Precision undercut bass pole.
•“CLD” driver technology with 45mm integral soft dome.
•In-house, hand-wound precision flat wire coil.
•Massive optimised motor assembly.
•Flat impedance curve allowing easy load for amplifiers.
•6 year warranty.
Specification
Drivers: HF 25mm Neodymium, Mid/LF 150mm
Matched Response: ±0.5dB
Frequency Response (-6dB): 56Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.2kHz
Connectors : Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 381x232x236mm
Weight: 10.9kg
