NORDOST　新フラグシップケーブルシリーズ
Nordost Odin Gold
金メッキ8N銅(OFC)導体採用

以下は香港リリースの英語翻訳です

American Music Ribbon Nordost Odin Gold
In order to achieve perfection, change must start from the basics, and this is the philosophy behind the birth of the American Music Ribbon Nordost Odin Gold. As a pioneer in the Hi-end audio cable industry, Odin Gold combines the latest and most advanced cable manufacturing technologies of today, not only inheriting the revolutionary technology of its Odin 2 Odin 2 series, but also introducing an unprecedented element of fantasy, resulting in an unprecedented increase in the stability, conductivity and resistance of the conductor.
A new generation of reference flagship cables
Odin Gold is a new generation of reference grade flagship wire, which is an extraordinary achievement because of its ability to inject a sense of reality into the whole system in real time. Its intervention will inevitably make you wonder why the current system sounds more prominent than before, and make you question the existence of other so-called unbeatable cables.
Gold is the perfect match
Not only does gold have the sparkle and glamour of a lifetime, it is also an extremely stable, highly conductive, and valuable metal with extremely low internal resistance. When gold is covered with 8N (99.999999%) high purity single copper conductors using special technology, it prevents oxidation of the conductor, creating a constant and reliable signal path, and at the same time achieving a high level of precision that cannot be achieved with other metal materials, meaning that audio signals are transmitted faster and more accurately. At the same time, the natural resonance of the gold-covered pure copper conductors will have a positive effect on the sound, resulting in a significantly more refined and realistic feel when listening.
Dual Mono-Filament Double / Single Ribbon Spiral Shock
One of Nordost’s proudly revolutionary wire-making technologies is the patented process of separating the hard-won 8N (99.999999%) high purity single pure copper gold-plated conductor from the FEP insulating jacket. The conductor will be uniformly surrounded by two pre-twisted wires, so that each conductor is surrounded by an air dielectric. This unique process results in a significant increase in signal transmission speed and helps to enhance the mechanical damping characteristics, making Odin Gold sound unlike any other.
Mechanically Tuned Lengths
Using sophisticated instrumentation to analyze the natural resonance of conductors, Nordost has created a proprietary formula to determine the optimum length for each Odin Gold series cable based on its geometry and purpose, preventing gaps in time after the conductor is cut, and bringing sound performance to a uniform level.
Total Signal Control
RF noise and electromagnetic waves are the biggest culprits of signal degradation in the audio field. With American Music Ribbon Nordost’s unique Total Signal Control technology, each Odin Gold conductor will be wrapped in a unique, complex and evenly spaced gold-plated ribbon shield, combined with patented HOLO:PLUG® connectors to provide 100% total shielding coverage, ensuring that the smallest details, the proper positioning and sound of each instrument, are complete transmission.
HOLO:PLUG® Connectors
American Music Ribbon Nordost’s patented lightweight gold-plated HOLO:PLUG® connection terminals were created to fully match the internal geometry of different types of wire, so that each conductor can enjoy a seamless connection. The conductive components used in HOLO:PLUG® are carefully pre-plated before assembly to create the best possible interface between conductor and device.

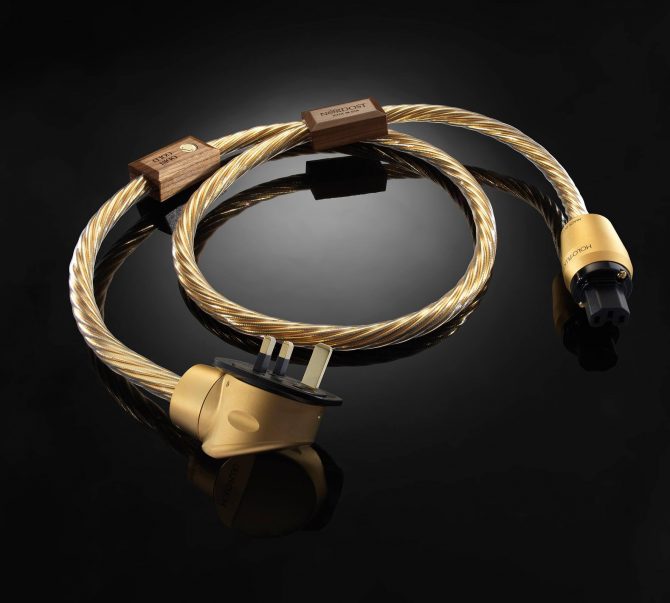

ODIN Power Cord
ODIN GOLD POWER CORD
Insulation material: High purity 1.003 grade extruded FEP
Structure: Mechanically tuned pitch/length, double/single ribbon spiral shock, full signal control
Number of conductors: 7 x 14 gauge
Conductor quality: 8N (99.999999%) single OFC pure copper gold plated
DC internal resistance: 1.33Ω per 1,000 feet
Shielding coverage area: 100% individual shielding, gold plated, full coverage
Wire power level: 20A
Transmission speed: 88% light speed level
Connection Terminals: HOLO:PLUG® Gold Plated American (Nema), European (Schuko), Australian, British with HOLO:PLUG® IEC-C15, IEC-C19 Female Plug

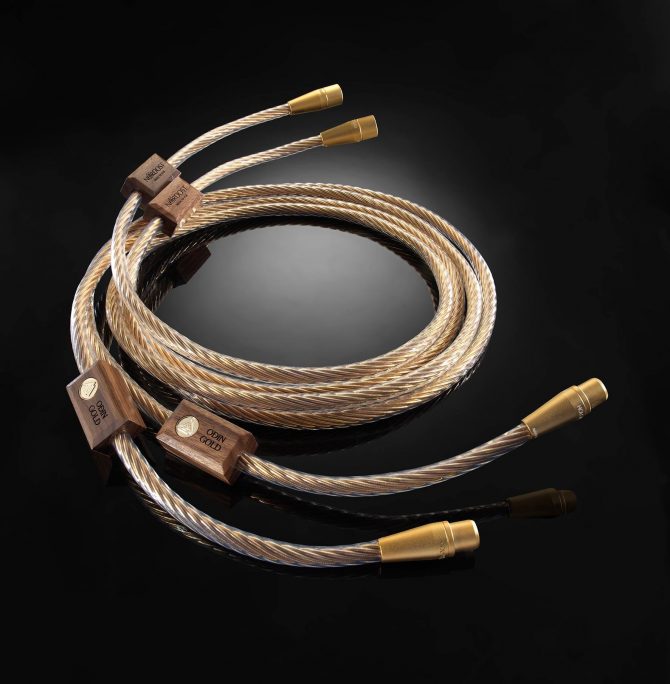

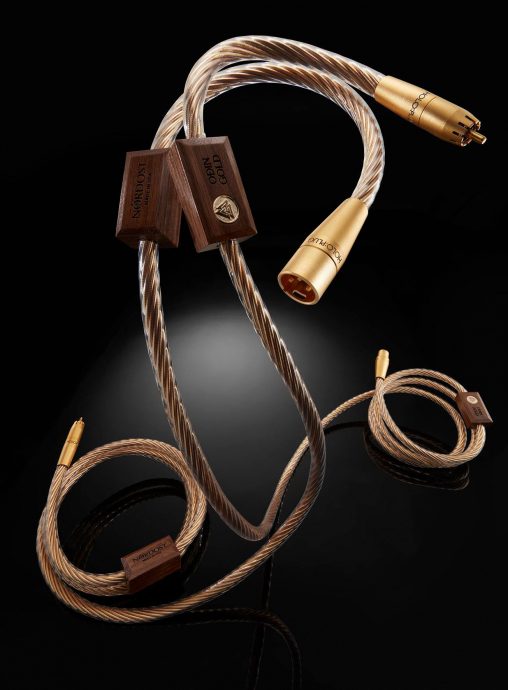

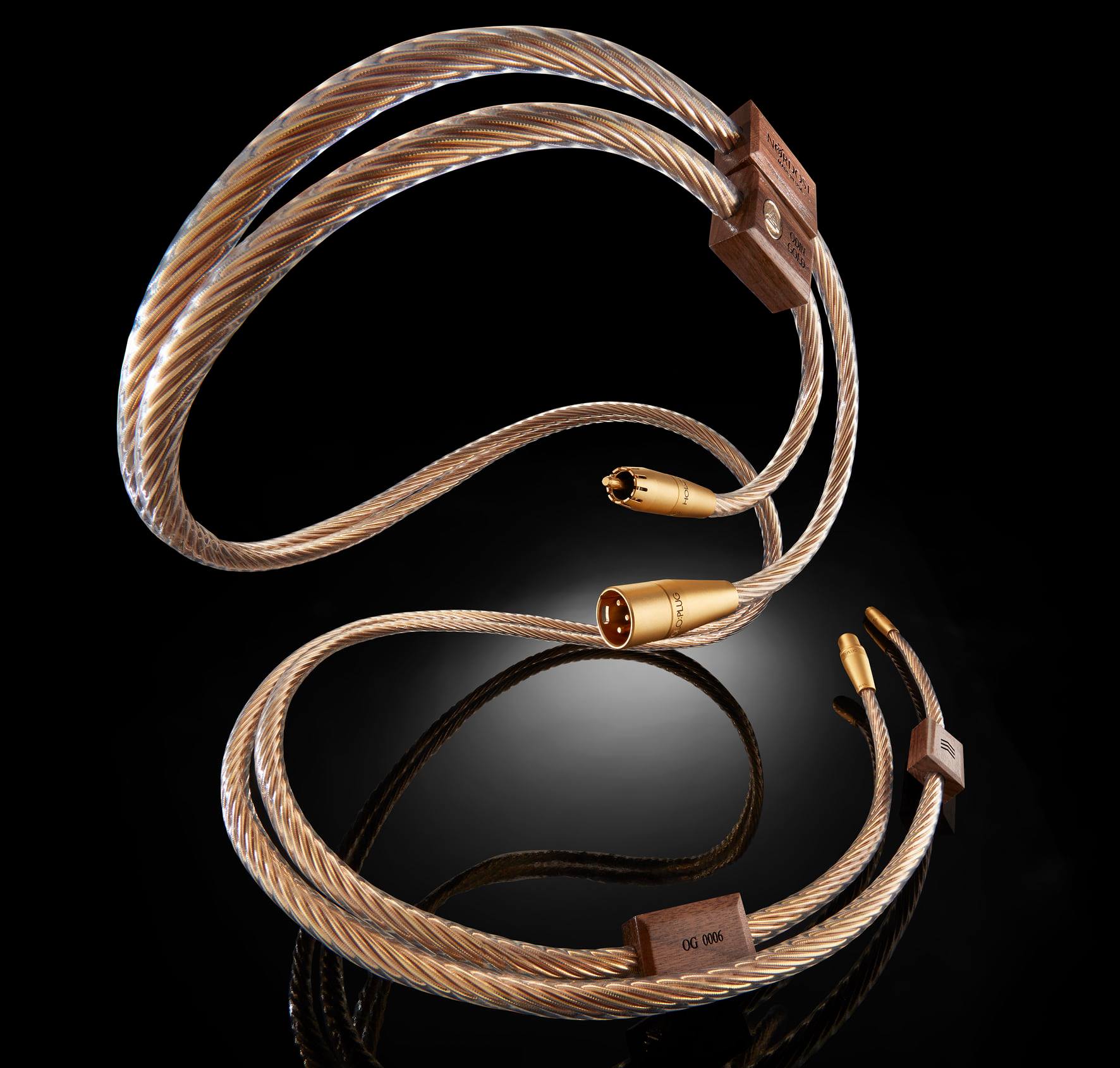

ODIN Analog Signal Line
ODIN GOLD ANALOG INTERCONNECTS
Insulation material: High purity 1.003 grade extruded FEP
Structure: Mechanically tuned pitch/length, double/single ribbon spiral shock absorbers, full signal control
Number of conductors: 10 x 23 gauge
Conductor quality: 8N (99.999999%) single OFC pure copper gold plated
Capacitance value: 18.5pF per foot
Inductance value: 0.05μH per foot
Shielding coverage area: 100% individual shielding, gold plated, full coverage
Transmission speed: 90% speed of light level
Connectors: HOLO:PLUG® gold plated RCA, HOLO:PLUG® gold plated XLR

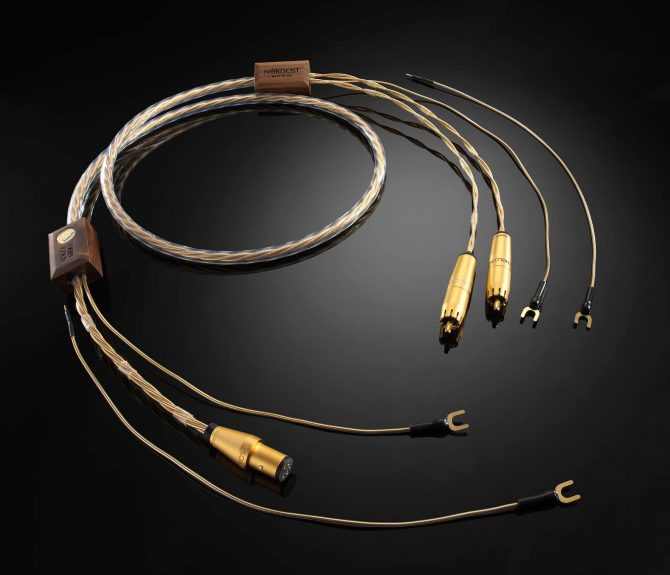

ODIN Gold Enhanced Edition Turntable Signal Cable
ODIN GOLD TONEARM CABLE +
Insulation material: High purity 1.003 grade extruded FEP
Construction: Mechanically tuned pitch/length, double/single ribbon spiral shock, full signal control
Number of conductors: 4 x 23 gauge
Positive/negative conductor quality: 8N (99.999999%) single OFC pure copper gold plated
Ground wire and detachable auxiliary shield ground wire quality: 23 gauge single OFC pure copper plated (double / single wire with spiral shock)
Capacitance: 9.75pF per foot (RCA), 23.5pF per foot (XLR)
Inductance: 0.11μH per foot (RCA), 0.0611μH per foot (XLR)
Shielding coverage: 100% individual shielding, gold plated, full coverage
Transmission speed: 90% speed-of-light level
Connectors: HOLO:PLUG® gold plated vertical or 90 degree 5-pin DIN with RCA or XLR plug

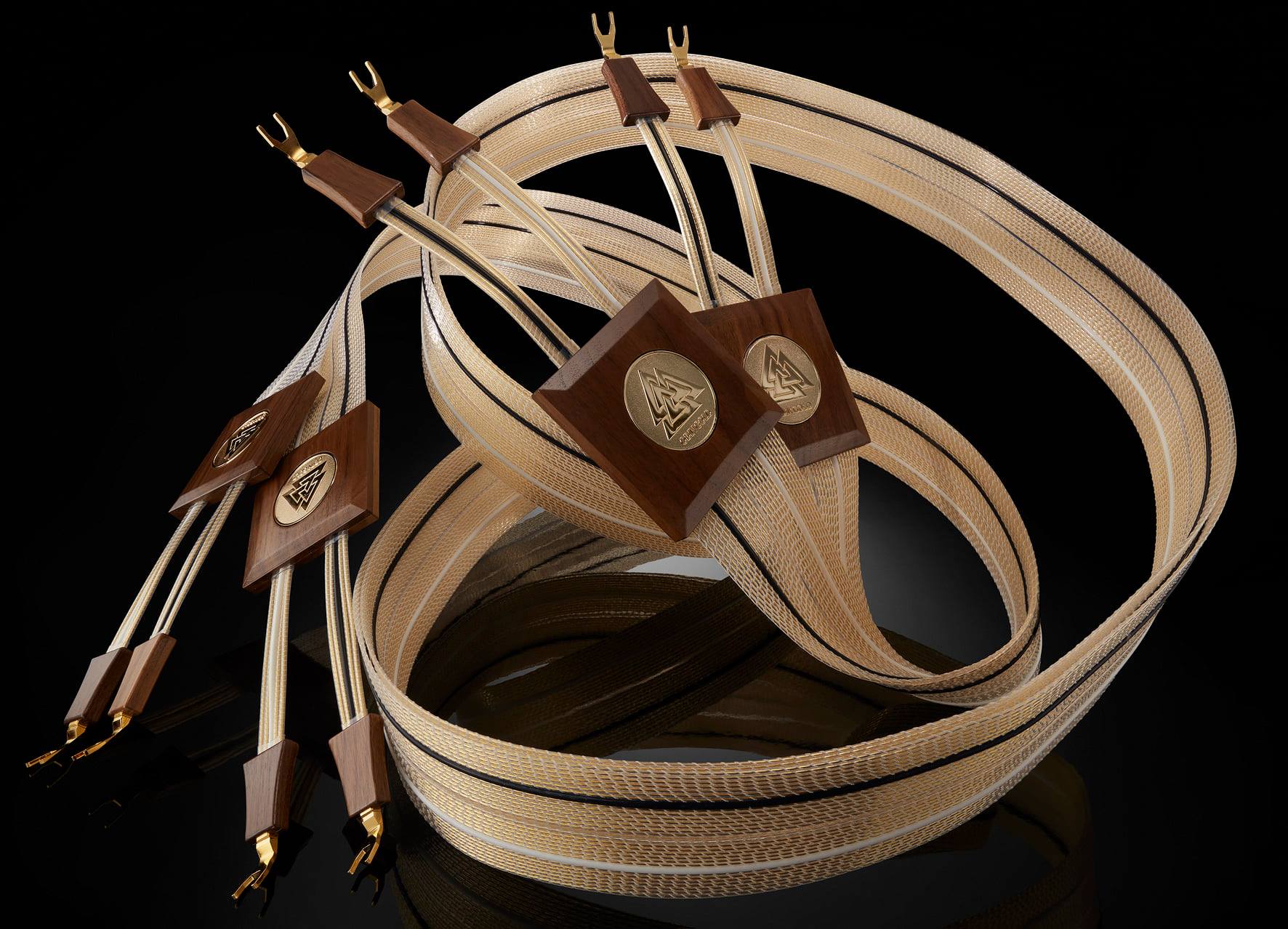

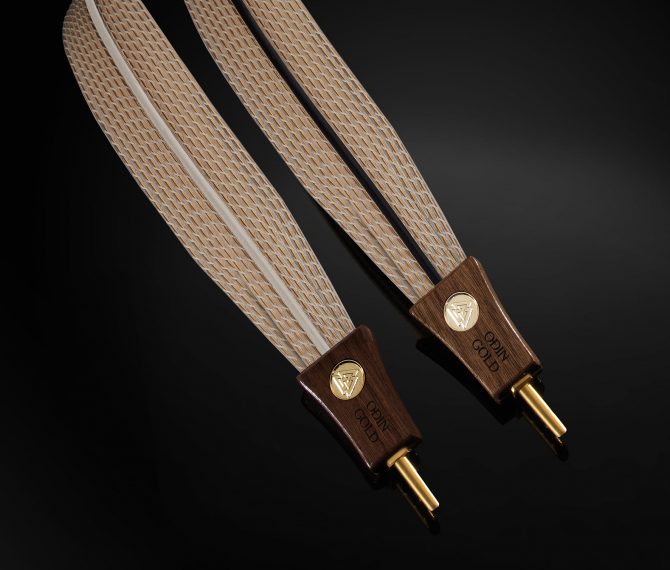

Gold Odin Speaker Cable
ODIN GOLD LOUDSPEAKER CABLES
Insulation material: High purity 1.003 grade extruded FEP
Structure: Mechanically tuned pitch/length, double/single ribbon spiral shocks
Number of conductors: 20 x 28 gauge, 8 x 14 gauge (connection terminal interface position)
Conductor quality: 8N (99.999999%) single OFC pure copper gold plated
Capacitance value: 8pF per foot
Inductance: 0.125μH per foot
Transmission speed: 98% light speed level
Connection terminal: Odin Gold dedicated HOLO:PLUG® gold plated Y type or light weight Z-plug banana type
Odin Gold Horn Jumper
ODIN GOLD BI-WIRE JUMPERS
Insulation material: High purity 1.003 grade extruded FEP
Structure: Mechanically tuned pitch/length, double/single ribbon spiral shocks
Number of conductors: 14 pieces of 20 gauge
Conductor quality: 8N (99.999999%) single OFC pure copper gold plated
Capacitance value: 8pF per foot
Inductance value: 0.125μH per foot
Transmission speed: 98% light speed level
Connection terminal: Odin Gold dedicated HOLO:PLUG® gold plated Y type or light mass Z-plug banana type
