MSB S202 Stereo Amplifierの詳細を発表!!
MSB S202 Stereo Amplifier
U.S. Retail of $29,500 USD

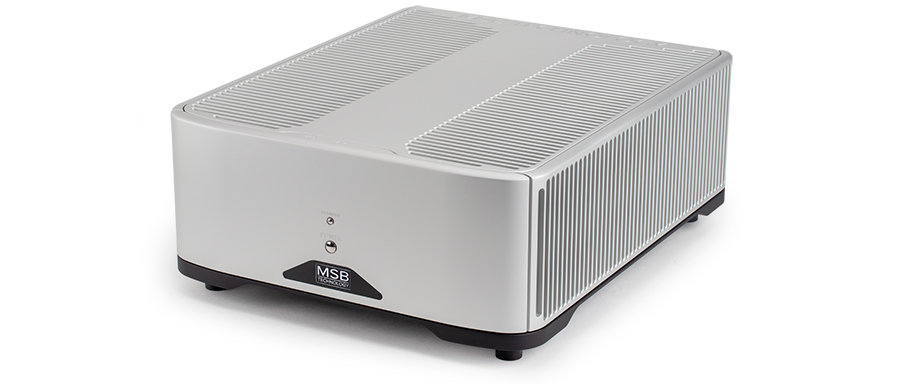

![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Front-ISO-White-Main-Website-Page-900px-670x286.jpg)
Innovation. Redefined.
After the astounding success and performance of the S500 Stereo Amplifier, we set our sights on expanding that sound to more systems. Trickle-down technologies incorporated into a more compact, lower-power framework resulted in the S202. It’s capable of meeting our DAC’s ultra high dynamic range head-on with optimized architecture in the critical areas of audio performance, power supplies, and ultra low-noise design. The S202 includes a fully modular design, matched impedance input stage and an all billet CNC case. The highest value amplifier we’ve ever created, the S202 redefines excellence and sets a new bar in the industry.
Design without compromise.

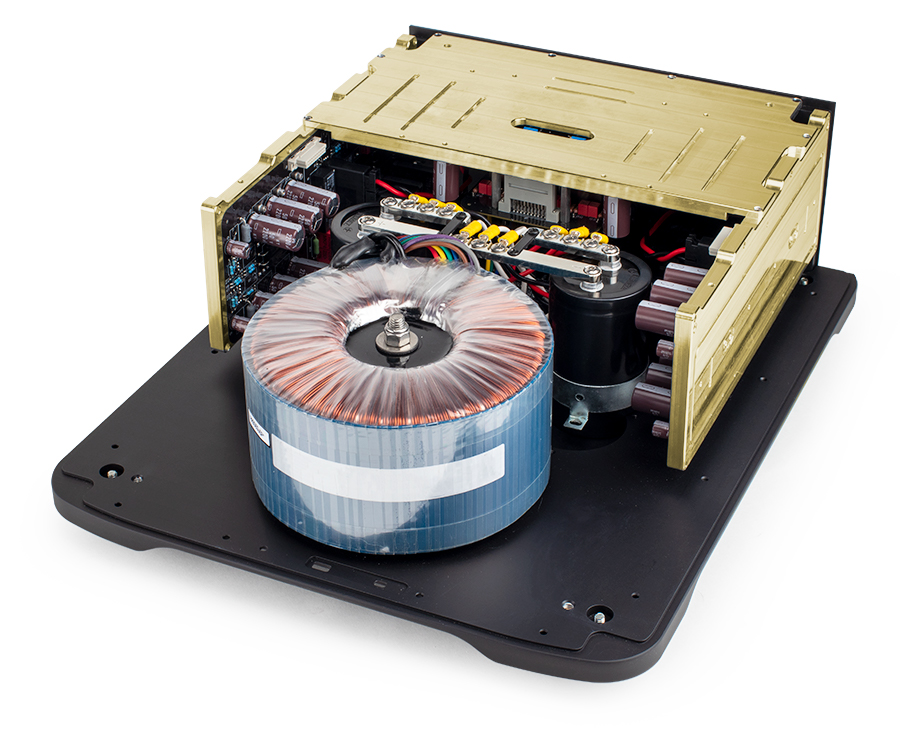

The S202 features a discrete design with a Class-A matched impedance input stage. The result is a product with minimized signal reflections, input noise, and distortion, while also maximizing power transfer and dynamic range in a zero negative feedback design. Thanks to a massive custom low-noise high-current toroidal transformer and rugged high-current output buffers, the S202 provides a transparent, holographic listening experience that’s completely fatigue free. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.
![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Internal-Core-900px-670x545.jpg)
Billet CNC chassis.

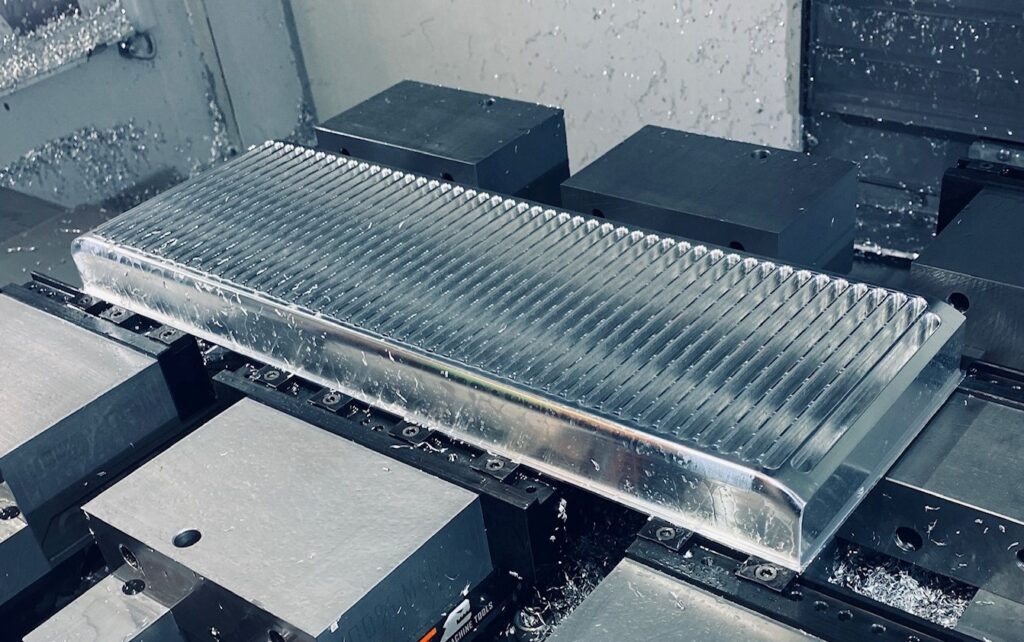

The S202 amplifier is designed and lovingly crafted in our factory based in California. After 14 hours of CNC machining, a complete chassis of billet aluminium components are ready, maximizing heatsink area with a stunning visual profile. This high-efficiency design provides a surface area of over 3,000 in² per amplifier. High-power heat pipes distribute heat evenly for optimal thermal and electrical performance.
![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Heatsink-1024x642-670x420.jpg)
Core values.

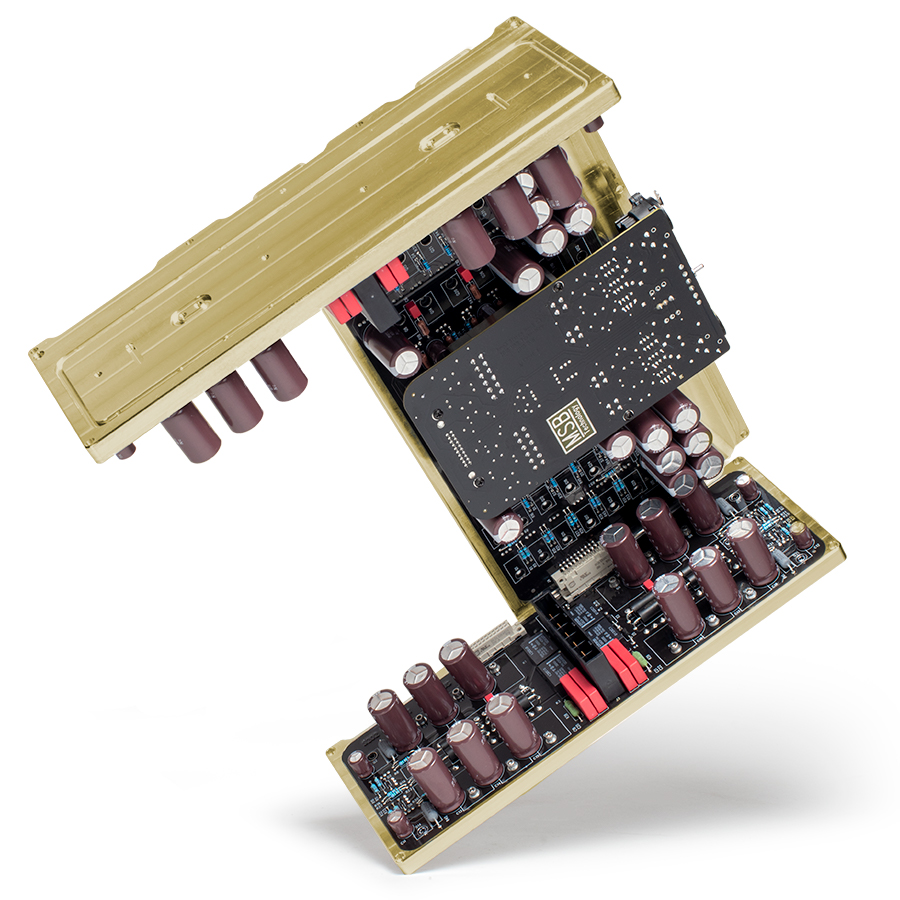

Building the S202 amplifier with a core enclosure greatly improves its reliability and performance. Upon completion, the cores are rigorously tested and stocked for orders, ensuring the highest quality product is ready at a moment’s notice. With this segmentation, your system is optimized for performance and resilience.
![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Board-Core-Assembly-900px-1-670x670.jpg)
Smart control features.

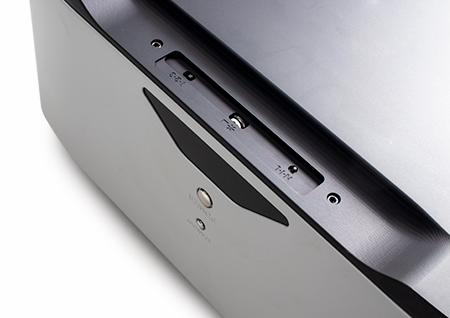

The S202 is equipped with a simple, user-friendly control interface. Intuitive push buttons, remote commands, and the 12V triggers guarantee control over power and standby modes. Further control of amplifier “power on” timers and soft-start circuits allow a multi-amplifier system to power up without putting strain on your listening room’s electrical system.
![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Bottom-Controls-Close-Up-White-450px.jpg)
Powerful configurations.

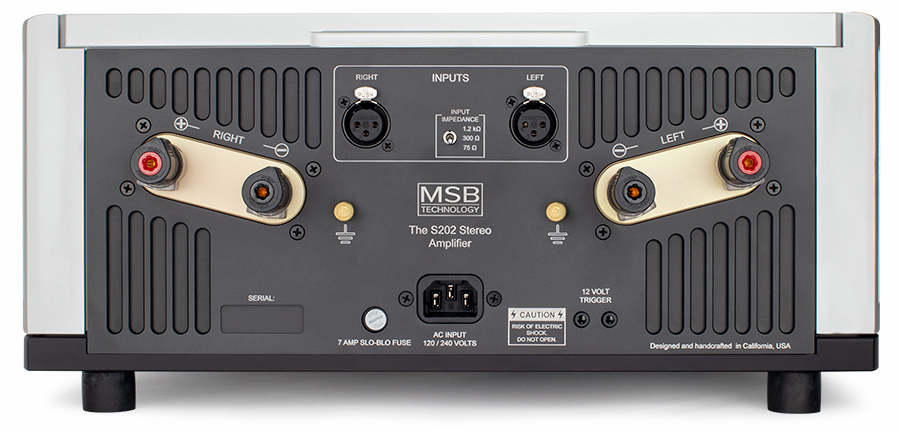

Intuitively oriented speaker lugs direct your speaker cables in the right direction without strain. Multiple ground posts enable EMI reduction strategies, including shielded cables and system star grounds.
![](http://www.avcat.jp/main/avnews/files/2020/05/S202-Jack-Panel-White-670x322.jpg)
Anodized finishes.
Available in matte silver or matte black.
Options and Accessories:
The S202 Stereo Amplifier
Includes:
XLR Inputs
Stock Colors: Silver and Black
The 12V Trigger Adapter
The 12V trigger adapter provides a multitude of ways for connecting your MSB product with other 12V trigger systems.
Specifications:
The S202 Stereo Amplifier
Technical Specifications
Static Power Consumption 90 Watts On
Standby power less than 2 watts
Operating Voltage Range 100V or 105-130V/210-260V configured at the factory.
Fuse 1/4″x1-1/4″ 10A 250V Slow Blow
Input 2x XLR Input
Output 1x Binding post set per channel
Controls Input Impedance Switch
On/Off Button
Standby Button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port
Continuous Power Output (8Ω) < 1% distortion 200 W Continuous Power Output (4Ω) < 1% distortion 350 W Frequency Response (20 to 20kHz) ±0.058dB Signal to Noise (20 to 22kHz) >133dB (>135dBA)
Equivalent Input Noise (22kHz BW) 0.55μV
Crosstalk @ 2kHz >110dB
Gain (150Ω source impedance) 23.8dB
Input Impedance (User Selectable) 75Ω / 300Ω / 1.2kΩ
Output Impedance (20 to 20kHz) 0.01Ω
Chassis Dimensions
Width: 16 in (404 mm)
Depth: 19 in (483 mm)
Height: 6.5 in (165 mm) Without Feet
7 in (178 mm) With Feet
Weight: lbs ( kg)
Product Feet: M6X1 Thread
3 or 4 Foot Configuration
Shipping Dimensions
Width: in ( mm)
Depth: in ( mm)
Height: in ( mm)
Weight: lbs ( kg)
Included Accessories
User Manual
Power Cord
4X Rubber Feet
