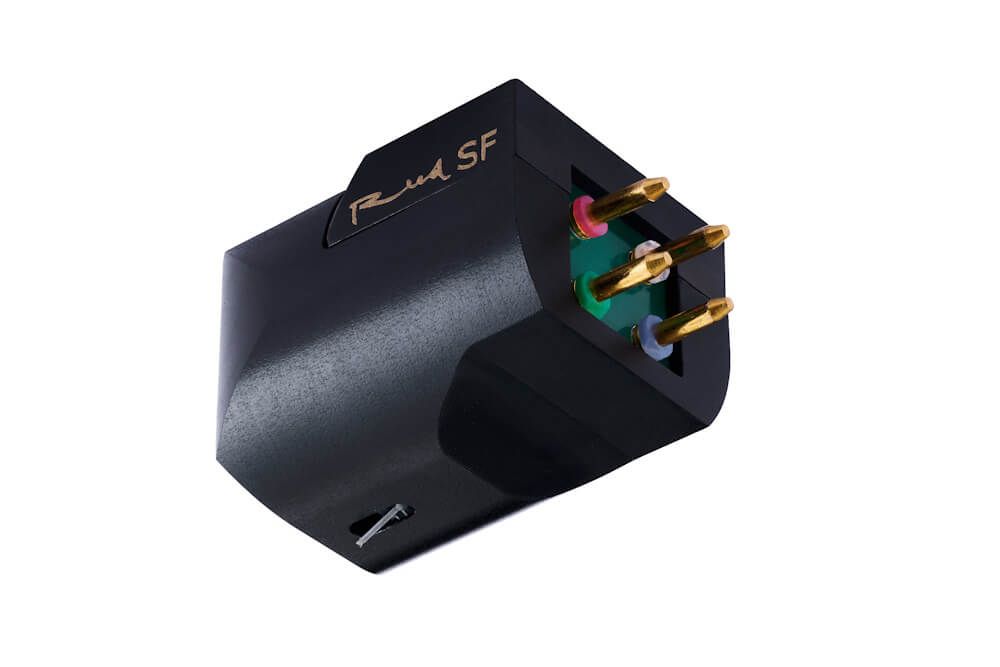

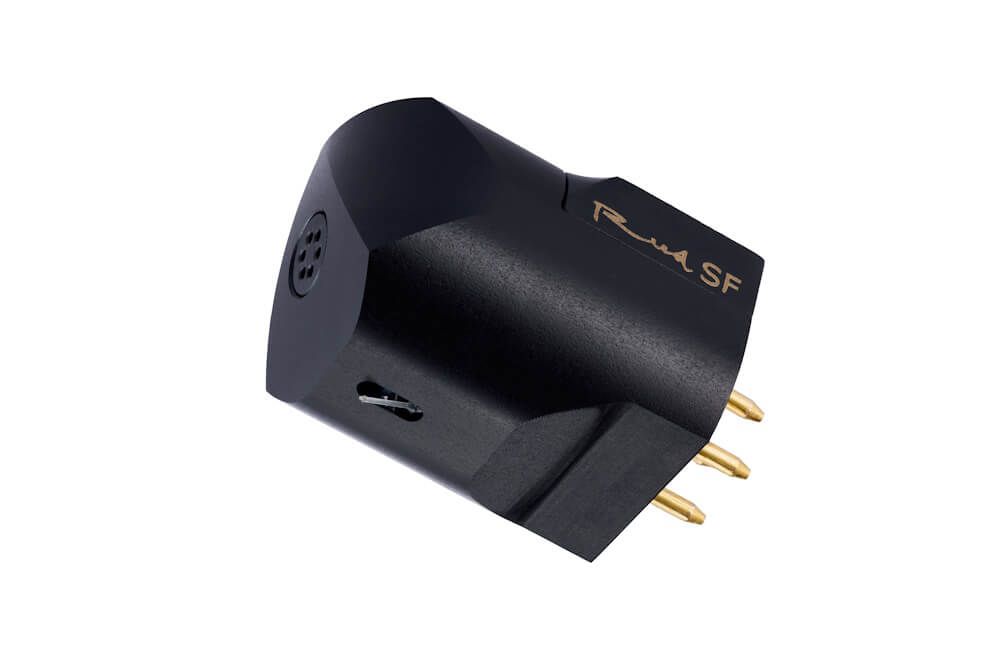

We are proud to present our latest project — the Reed SF optical cartridge, developed in collaboration with the renowned Japanese company DS Audio.

Unlike traditional MC or MM cartridges, optical cartridge technology offers unique advantages that elevate the listening experience. Free from magnetic resistance and characterized by an exceptionally low moving mass, the stylus moves with remarkable smoothness and precision. These features result in superior sonic performance — something every vinyl enthusiast will appreciate.

To fully harness the potential of this technology, we placed great emphasis on selecting the optimal housing material, focusing on acoustic neutrality and effective vibration damping.

The cartridge body material must be acoustically passive, homogeneous, and exhibit high damping across the entire operational range. To identify the most suitable option, we conducted a comparative study of three materials: aluminum, Panzerholz (tankwood), and 100% HD phenolic resin. Each material sample, identical in shape, was subjected to shock waves of equal amplitude. The decay times of induced acoustic signals were then measured at a fixed distance from the impact point.

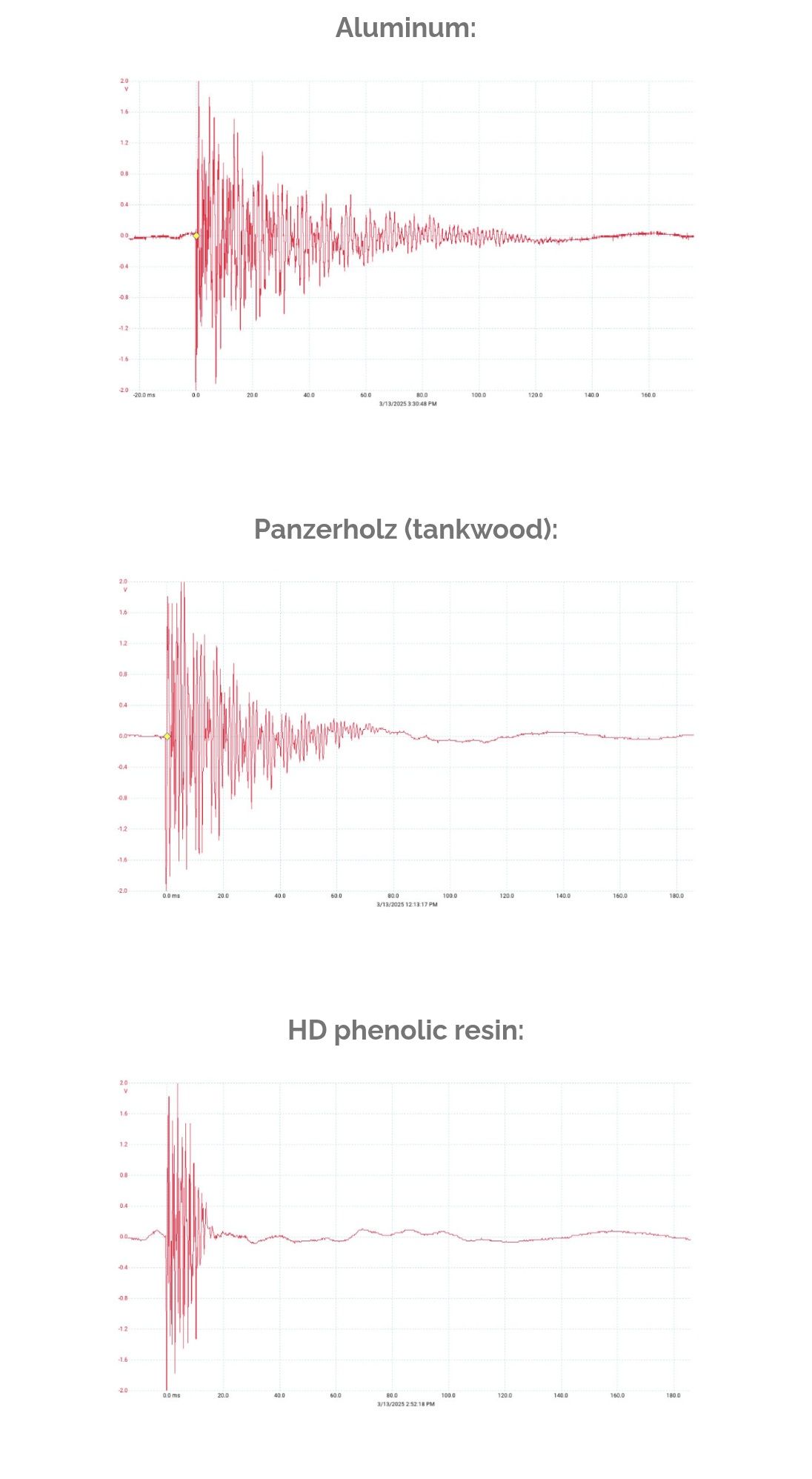

The results were conclusive:

• Aluminum: sound dissipated after ~120 ms
• Panzerholz: ~70 ms
• 100% HD phenolic resin: just ~15 ms

Given these findings, along with the resin’s additional benefits — including low surface roughness, high density, and excellent elasticity — we chose 100% HD phenolic resin as the material for the Reed SF cartridge body.

To ensure durability and consistent performance, the cartridge housing was also engineered to minimize dust intrusion. Any dust that does enter can be easily removed through a specially designed access point, ensuring a long service life.

SPECIFICATIONS

Signal outputPhoto-electric ConversionChannel separation27 dB more（1kHz）Weight9.8 gOutput signal level70 mVCanti-leverSapphireBody materialHD phenolic resin / aviation aluminumNeedle pressure2.0 g～2.2 g (2.1 g is recommended)StylusMicro Ridge

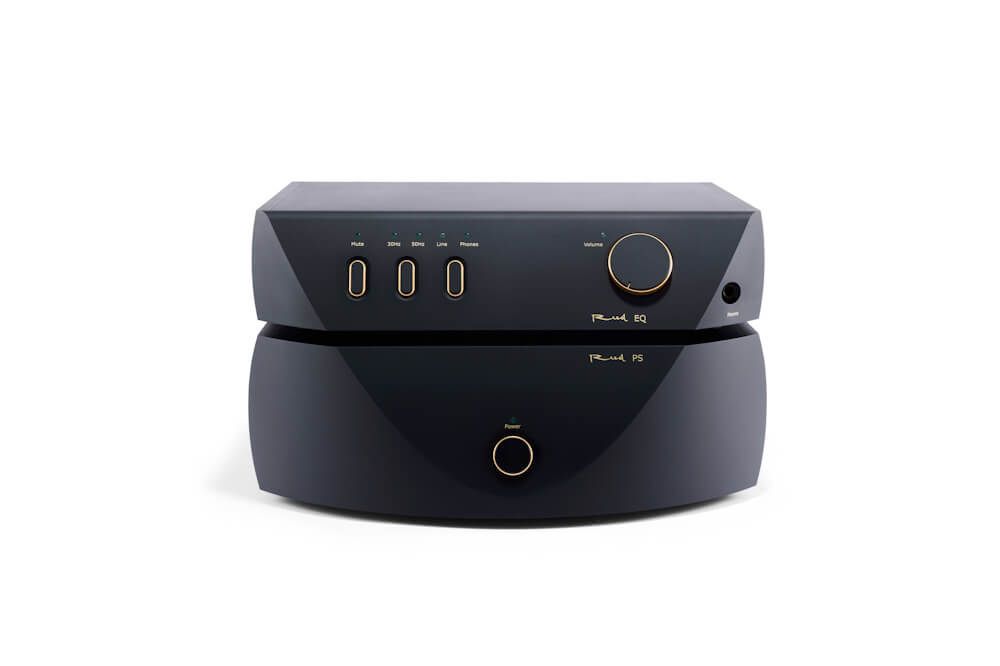

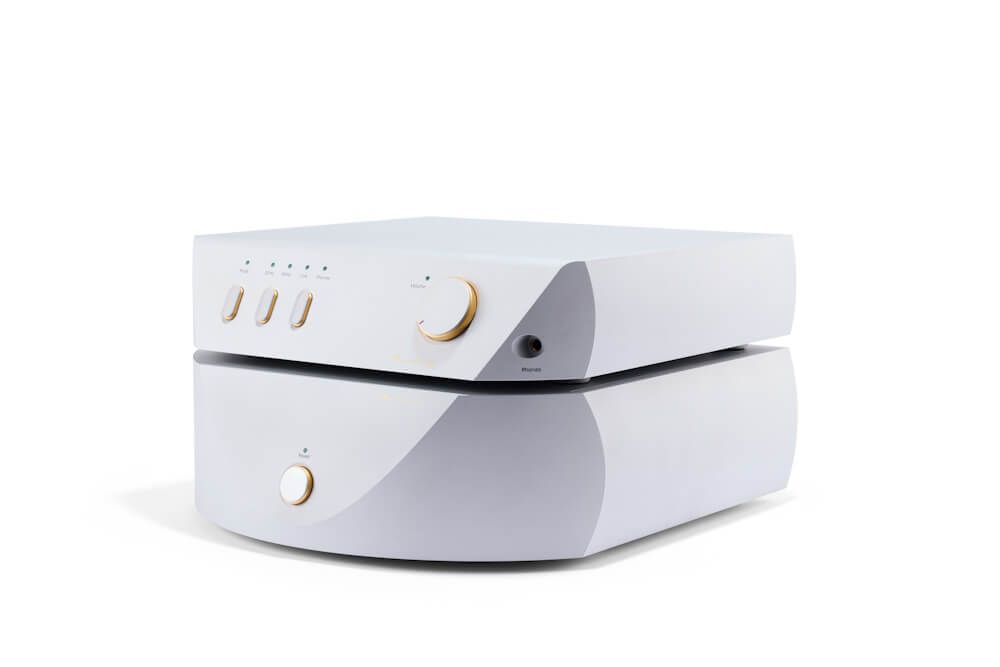

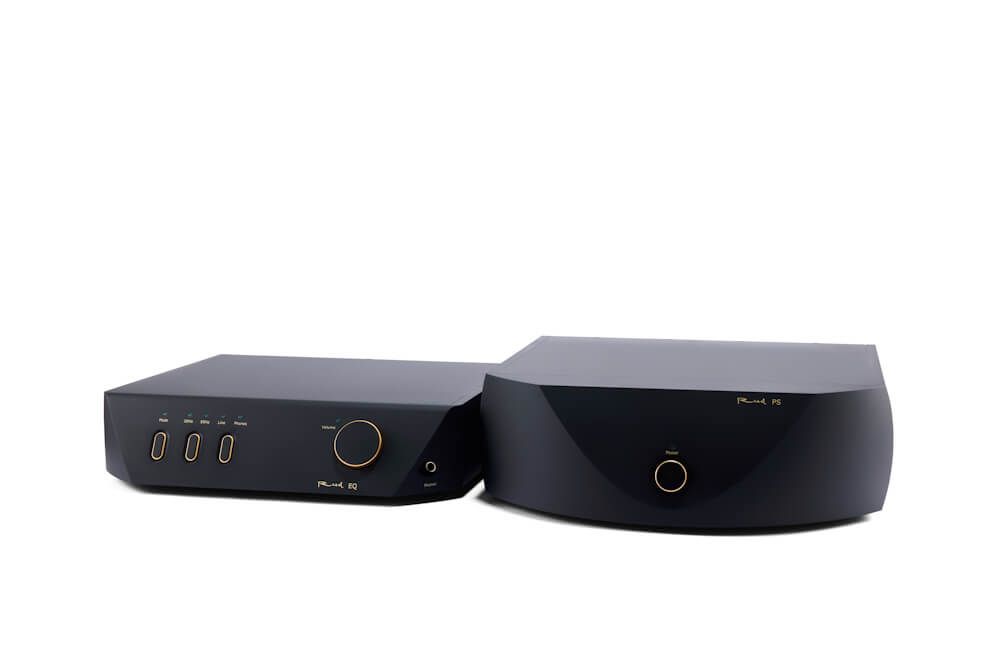

The Reed EQ is expertly engineered to receive the signal from the Reed optical cartridge with full capacity, ensuring optimal performance. We have crafted an equalizer that reflects our deep knowledge of high-end audio equipment design principles and techniques. The result is an audio experience that delivers unmatched quality, clarity, and immersion — the unique benefits that only an optical cartridge can provide.

Before you experience the sound, you first need to see and handle the equipment. Both the equalizer and its power supply — inseparable as a product — are crafted from machined aluminum. Their substantial weight and solid construction provide a premium feel, while the anodized surface offers protection from damage. The option to choose between Seashell White and Black versions ensures a seamless match with the rest of your audio equipment.

We follow a distinct electronics design philosophy that we have carefully implemented in our product. We believe that signal integrity, channel symmetry, and noise reduction are essential factors in amplifier design. To ensure the highest performance, we use only the finest components for signal processing. For example, one of the key components is a discrete audio op-amp, which benefits from lower distortion due to minimal thermal coupling between the op-amp components and ensures class A output stage. Additionally, the use of high-quality inductors in the equalizing circuit contributes to better stability, consistency, a more linear response, and lower losses.

The power supply also features several unique innovations. One standout is the use of batteries to supply power to the cartridge LEDs. This fully isolates the LED power supply from the rest of the system, ensuring the lowest possible noise levels. The batteries charge autonomously, without user intervention, and provide an uninterrupted experience. One battery pack is always charging while the other powers the LEDs, with seamless automatic switching. The power supply also incorporates three separate power transformers to power different modules, further isolating the electronic circuits to minimize interference.

The equalizer features RCA (single-ended) input and output connectors, as well as XLR (differential) output connectors. The control panel includes the following:

1. Mute switch – Removes the signal from the output, useful when mounting or adjusting the cartridge.
2. Filter switch (30Hz/50Hz) – Selects the high-pass filter cut-off frequency, allowing for better compatibility with different tonearm parameters.
3. Line/Phono switch – Switches between line and headphone output.

For occasions when listening through loudspeakers is not possible, we’ve included a headphone amplifier with a 6.35mm output socket.

To sum up, we are confident that our equalizer will offer a unique listening experience, allowing the listener to discover a whole new frontier in vinyl playback and shed new light on old records.

SPECIFICATIONS

Reed EQ unitOutput voltage600mV at 1kHz with Reed SF cartridge connectedInput terminalRCA TerminalsOutput terminalRCA Terminals, XLR TerminalsSize330Wx330Dx80H mmOutput impedance47 ΩWeight5.3 kgCompatible headphone impedance32 – 600 ΩReed PS unitSize340Wx330Dx110H mmWeight10.7kg

Reed EQは、Reed光カートリッジからの信号をフルに受信し、最適なパフォーマンスを発揮できるよう、専門的に設計されています。ハイエンドオーディオ機器の設計原理と技術に関する深い知識を結集し、イコライザーを開発しました。その結果、比類のない音質、明瞭度、そして没入感といった、光カートリッジならではのメリットを提供するオーディオ体験が実現しました。

音を体験する前に、まずは実際に機器に触れて確かめてみてください。製品として一体となったイコライザーと電源部は、どちらも削り出しアルミニウム製です。しっかりとした重量感と堅牢な構造が高級感を演出し、アルマイト処理された表面は傷から保護します。シーシェルホワイトとブラックの2色からお選びいただけるため、他のオーディオ機器とのシームレスなマッチングを実現します。

Reedは、独自のエレクトロニクス設計哲学に基づき、製品に綿密に反映させています。アンプ設計において、信号の整合性、チャンネルの対称性、そしてノイズ低減は重要な要素であると考えています。最高のパフォーマンスを実現するために、信号処理には最高品質の部品のみを使用しています。 例えば、主要コンポーネントの一つであるディスクリートオーディオオペアンプは、オペアンプ部品間の熱結合を最小限に抑えることで歪みを低減し、A級出力段を実現しています。さらに、イコライザー回路に高品質のインダクタを使用することで、安定性、一貫性、よりリニアな応答、そして損失の低減を実現しています。

電源部にも独自の革新技術がいくつか採用されています。中でも注目すべきは、カートリッジLEDへの電源供給にバッテリーを採用していることです。これにより、LED電源がシステムの他の部分から完全に分離され、ノイズレベルが最小限に抑えられます。バッテリーはユーザーの介入なしに自動的に充電されるため、途切れることのない再生体験を提供します。1つのバッテリーパックが常に充電中、もう1つのバッテリーパックがLEDに電力を供給し、シームレスな自動切り替えが行われます。また、電源部には3つの独立した電源トランスが組み込まれており、それぞれ異なるモジュールに電力を供給します。これにより、電子回路間の干渉をさらに低減し、回路間の干渉を最小限に抑えています。

イコライザーには、RCA（シングルエンド）入出力コネクタとXLR（差動）出力コネクタが搭載されています。 コントロールパネルには以下の機能が搭載されています。

ミュートスイッチ – 出力から信号をカットします。カートリッジの取り付けや調整時に便利です。

フィルタースイッチ (30Hz/50Hz) – ハイパスフィルターのカットオフ周波数を選択し、様々なトーンアームパラメータとの互換性を高めます。

ライン/フォノスイッチ – ライン出力とヘッドフォン出力を切り替えます。

スピーカーで聴くことができない場合のために、6.35mm出力ソケットを備えたヘッドフォンアンプを搭載しています。

つまり、このイコライザーは他に類を見ないリスニング体験を提供し、リスナーにレコード再生の全く新しい境地を発見させ、古いレコードに新たな光を当てると確信しています。

仕様

リードEQユニット：出力電圧600mV @ 1kHz（リードSFカートリッジ接続時）入力端子：RCA端子、出力端子：RCA端子、XLR端子サイズ：330W x 330D x 80H mm出力インピーダンス：47Ω重量：5.3kg対応ヘッドホンインピーダンス：32～600ΩリードPSユニット：サイズ：340W x 330D x 110H mm重量：10.7kg

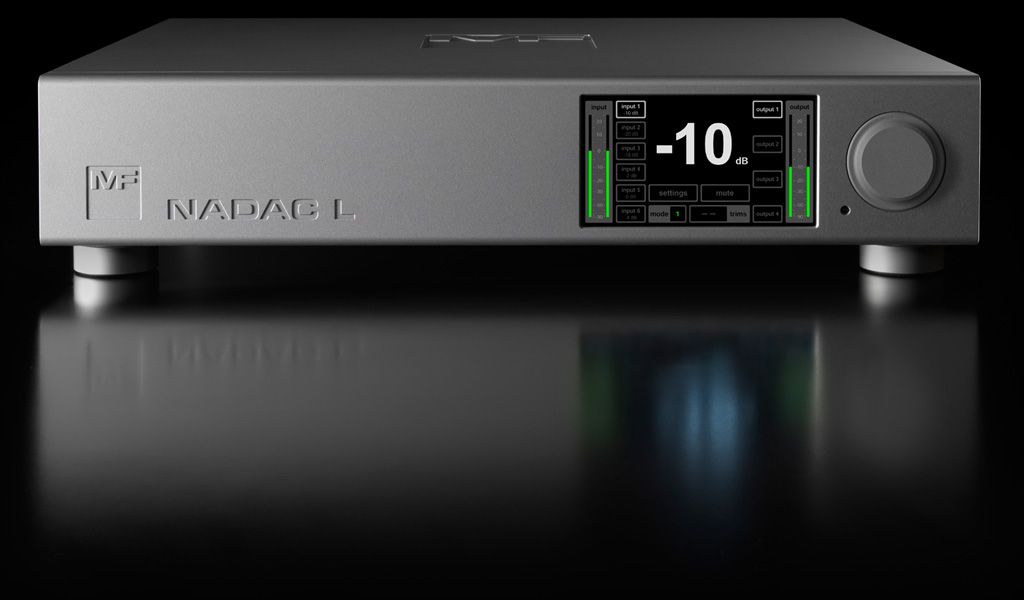

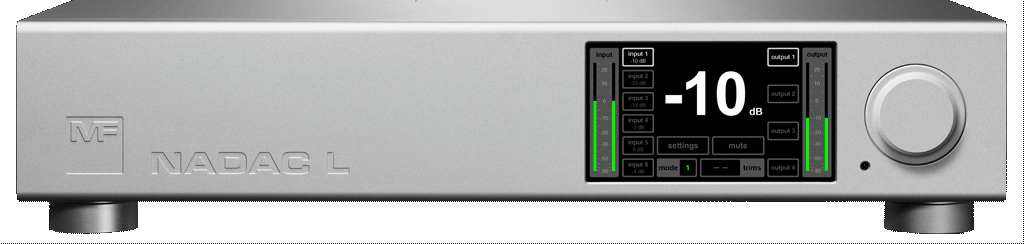

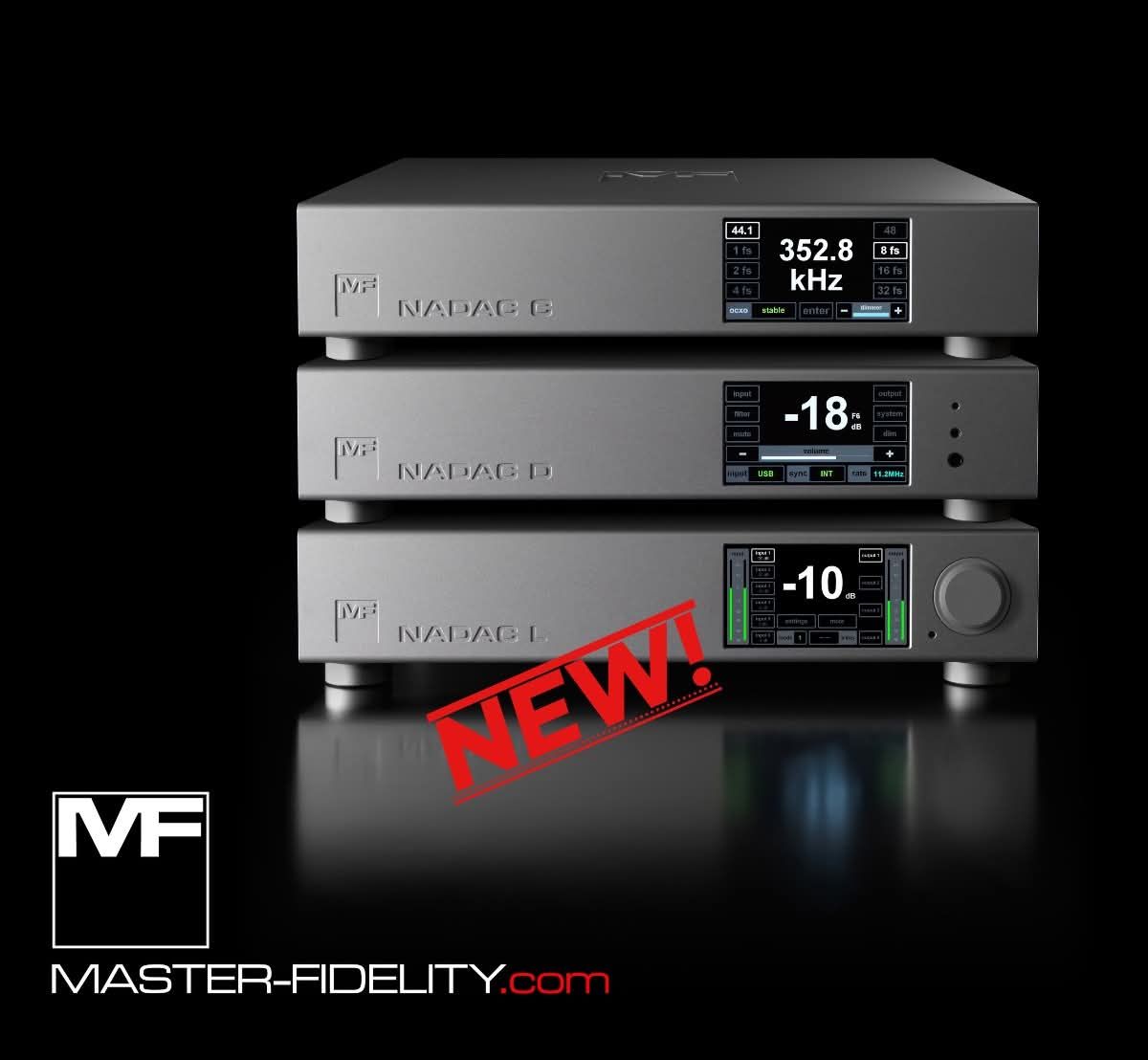

A unique no compromise design Line Stage Preamplifier to accompany and magnify
the revolutionary True 1 Bit NADAC D and unmatched precision NADAC C performances

Lossless Precision Analog Attenuator
Custom ASIC Volume Control

Based on NADAC D experience of designing and producing custom components, NADAC L features a dedicated volume control chip jointly developed with a leading semiconductor partner, using a JFET-like custom CMOS ASIC architecture. This advanced analog attenuation system delivers:

• Click noise free operation
• Channel imbalance less than 0.1dB
• Ultra-low THD+n and high SNR
• 1dB steps from 0dB to –60dB

The NADAC L exclusive chip continues Master Fidelity’s design philosophy first incarnated in the NADAC D proprietary DAC chip co-developed in-house. By designing at the silicon level, both NADAC L and NADAC D achieve performance by far beyond what standard components can offer. This integrated engineering approach is a key advantage that sets the NADAC system apart from any other high-end audio products.

True Dual-Mono Architecture

Completely isolated left and right audio channels, from power supply to signal processing. This dual-mono layout minimizes crosstalk to a negligible level, ensuring superior imaging, ultra-precise channel separation, and an incredible stable soundstage.

No-Compromise Component Selection

Similarly and to continue on the NADAC C philosophy this time, only ultra-precision 2ppm resistors are used throughout the audio signal path to maintain consistency and ultra-low noise over time. Coupling capacitors are high-quality hybrid types, chosen for their transparency and musical tonality.

Super Linear Power Supply Architecture

At the heart of the NADAC L’s power system is a custom-made toroidal transformer. Each core is hand-selected from only the highest-performing segment of premium-grade material, with each roll sufficient for just 10 NADAC L units. This is paired with:

• Ideal rectification design to minimize AC-DC conversion loss
• High-capacity, tonally-neutral capacitor arrays for ample energy reserves
• Multi-stage linear regulators that optimize both noise floor and transient response

The result is a dynamic, noise-free power delivery suitable for the most demanding musical passages.

In addition to the unique and dramatic technological assets of the NADAC L design, Master Fidelity craftsmanship DNA has been exploited to its maximum to ensure that traditional components are integrated at their best to achieve an uncompromised piece of jewelry.

High-Performance Input and Output Stages

• True differential design for all XLR inputs/outputs
• True single-ended circuitry for all RCA inputs/outputs
• High linearity current-driver output stages maintain musical integrity under all conditions

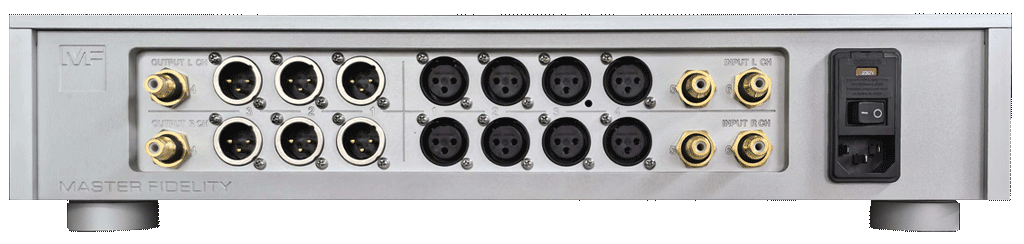

Flexible Input/Output Configuration

• 4 balanced (XLR) + 2 single-ended (RCA) inputs, with one selectable at a time
• 3 balanced (XLR) + 1 single-ended (RCA) outputs with independent control

Full Galvanic Isolation Between Analog and Control Domains

Both analog audio circuitry and digital control system are fully galvanically isolated to eliminate interference and preserve signal purity.

High-Precision Peak Level Meters

The front-panel meters offer true analog-style peak monitoring with an accuracy of ±0.05dB, providing reliable visualization of real-time audio dynamics and aiding in system tuning.

Specifications

Typical Specification, Room TemperatureInput/Output Configuration4 balanced (XLR) + 2 single-ended (RCA) inputs, with one selectable at a time
3 balanced (XLR) + 1 single-ended (RCA) outputs with independent controlBalanced Input10Vrms MaxSingle-Ended Input3Vrms MaxTHD+n0.00012% @ 0dB Gain / 1kHz Tone / 10Hz–20kHz BW
0.0006% @ -26dB Gain / 1kHz Tone / 10Hz–20kHz BWSNR132dBA @ 0dB Gain /10Hz – 20kHz BW / A-Weight
116dBA @ -26dB Gain /10Hz – 20kHz BW / A-WeightFlatness< ±0.05dB @ 10Hz – 100kHzAnalog Gain1dB Step @ 60-StageChannel Gain Error< 0.1dB @ Any Gain StageChannel Phase Error< 0.1Deg @ 10Hz – 20kHzChannel Separation< 140dB @ 10Hz – 20kHzPower Consumption50W Max
20W Typical

2.70 meters tall, weighing about 1 ton per speaker

The diameter of the superspherical horn is 170 centimeters

A seven-octave frequency range can be reproduced with just one driver

Eight 15-inch bass drivers are used per channel

Retail price Switzerland: CHF 67’500 (inc. VAT 8.1%)
Production start expected for Q4/2025

What a difference accurate tracking makes!

787 soulution’s new linear tracking reference turntable, engineered for audiophiles who demand nothing less than perfection.

Highlights
The 787 turntable features linear tracking with a moving platter and a minimal excursion pivoted tonearm. The tracking error is thus reduced to max. < 0.15°. The 8” tonearm, also compatible with high compliance cartridges, is mounted on an isolated, resonance controlled sub-chassis. The platter slides laterally to keep the pivoted tonearm aligned with a linear tracking path. The 787’s architecture eliminates the friction and unbalanced forces inherent with linear tracking tonearms where the arm is pulled toward the inner grooves by lateral forces on the outer edge of the record’s groove. The 787 provides all the benefits of low friction pivoted tonearms, but without the issues of skating forces, tracking error, and alignment challenges of traditional pivoted tonearms.

Platter
The complete platter subassembly consisting of the platter, the sub-platter with a high precision low friction sintered magnetic bearing and the platter drive motor with precious metal brushes, slides laterally underneath the tonearm on polished axles and ensures that the tracking error remains minimal from the outermost to the innermost groove of the vinyl record.

Tonearm
The tonearm combines the merits of linear and pivoted tonearms and thus provides the best from both worlds. There are no tracking forces exerted on the tonearm neither are there any issues with skating forces or tracking errors etc. Ultra precise inductive proximity sensors monitor the tonearm position and control the motor for the lateral movement of the platter which ensures that the tracking error always remains below +/- 0.15°. The tonearm features precious metal alloy tonearm cables and is adjustable for VTA and azimuth. When the platter moves into parking position the tonarm swivels out for comfortable exchange of the vinyl record.

Power supply
A switched mode power supply with highly efficient DC-DC converters and extremely low-noise and fast linear regulators generate the voltages required for the operation of the 787 turntable.

Specifications

Mains
100– 240 V (50 – 60 Hz)

Power consumption< 0.5 W standby, 10W in operation

Outputs1 pair of RCA

Speed33rpm, 45rpm

Dimensions480 × 450× 250 mm
(W × D × H)Weightapprox. 36kg

正確なトラッキングがもたらす違いは計り知れません！

787 soulutionの新しいリニアトラッキング・リファレンス・ターンテーブルは、完璧さを求めるオーディオファンのために設計されました。

ハイライト
787ターンテーブルは、可動式プラッターと最小限のエクスカーションを実現するピボット式トーンアームによるリニアトラッキングを特徴としています。これにより、トラッキングエラーは最大0.15°未満に抑えられています。 8インチトーンアームは、高コンプライアンスカートリッジにも対応し、独立した共振制御サブシャーシに搭載されています。プラッターは横方向にスライドし、ピボットトーンアームをリニアトラッキングパス上に維持します。787の構造は、レコード溝の外側のエッジからの横方向の力によってアームが内側の溝に引っ張られるリニアトラッキングトーンアーム特有の摩擦とアンバランス力を排除します。787は低摩擦ピボットトーンアームの利点をすべて備えながら、従来のピボットトーンアームに見られるスケーティングフォース、トラッキングエラー、アライメントの問題といった問題がありません。

プラッター
プラッター、高精度低摩擦焼結磁気ベアリングを備えたサブプラッター、貴金属ブラシを備えたプラッター駆動モーターで構成されるプラッターサブアセンブリ全体が、研磨された軸上でトーンアームの下を横方向にスライドし、レコードの最も外側の溝から最も内側の溝まで、トラッキングエラーを最小限に抑えます。

トーンアーム
このトーンアームは、リニアトーンアームとピボットトーンアームのメリットを融合させ、両方の長所を兼ね備えています。トーンアームにはトラッキングフォースが作用せず、スケーティングフォースやトラッキングエラーなどの問題もありません。超高精度の誘導型近接センサーがトーンアームの位置を監視し、プラッターの横方向移動用のモーターを制御することで、トラッキングエラーを常に+/- 0.15°以下に抑えます。トーンアームには貴金属合金製のトーンアームケーブルが採用され、VTA（垂直方向角度）とアジマス調整が可能です。プラッターがパーキングポジションに移動すると、トーンアームは回転し、レコードの交換を容易にします。

電源
高効率DC-DCコンバーターと超低ノイズ・高速リニアレギュレーターを備えたスイッチング電源が、787ターンテーブルの動作に必要な電圧を生成します。

High End Munich World Premiere

We’re celebrating 30 years of CANOR with something truly special—meet the anniversary model TP101 A30. A tribute to our roots, reimagined for today.

It will premiere at High End Munich 2025, where you will also have the opportunity to hear it in action!

A New Force In Audio

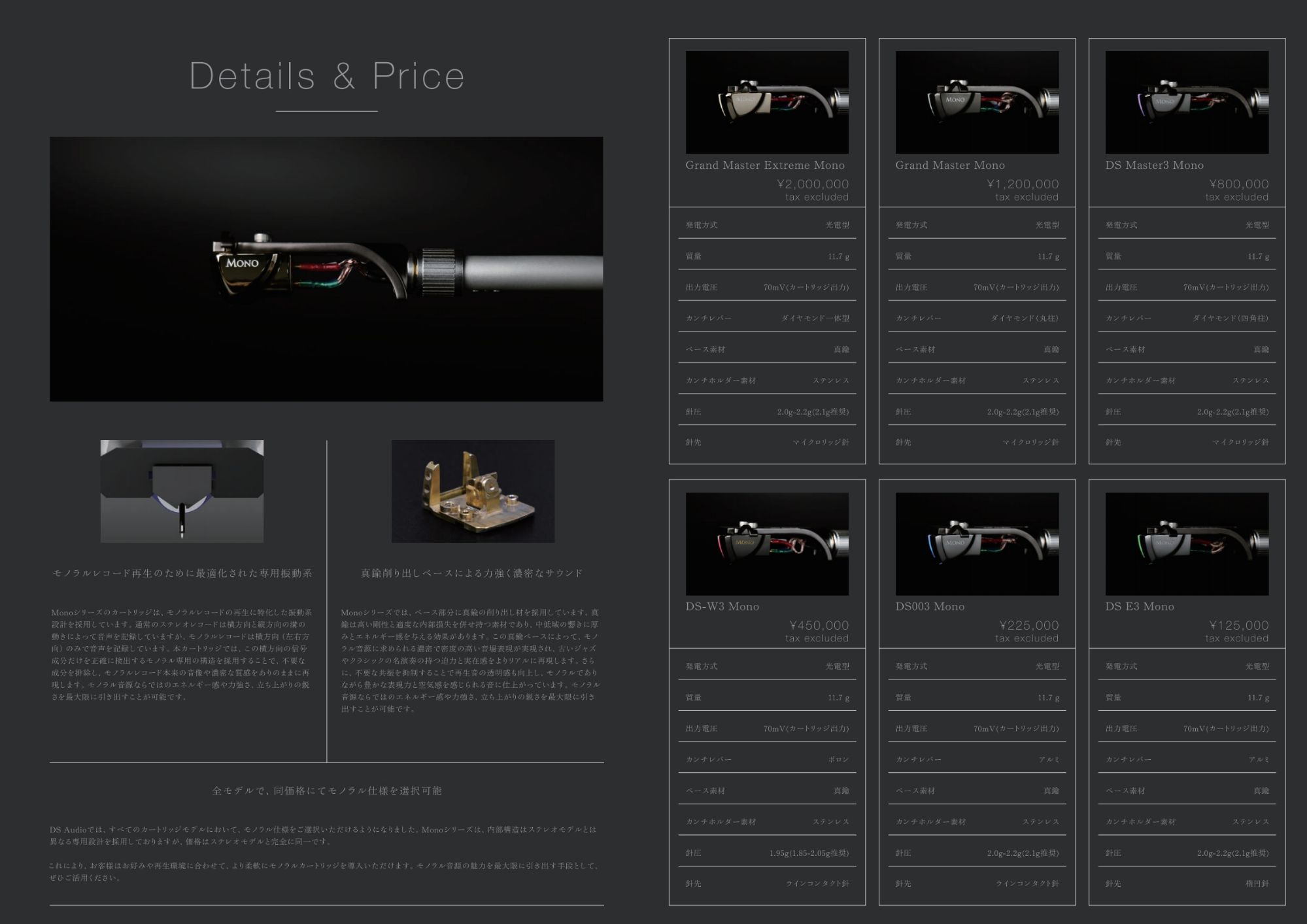

Grand Master Extreme Mono
¥2,000,000 tax excluded
Grand Master Mono
¥1,200,000 tax excluded
DS Master3 Mono
¥800,000 tax excluded
DS-W3 Mono
¥450,000 tax excluded
DS 003 Mono
¥225,000 tax excluded
DS-E3 Mono
¥125,000 tax excluded

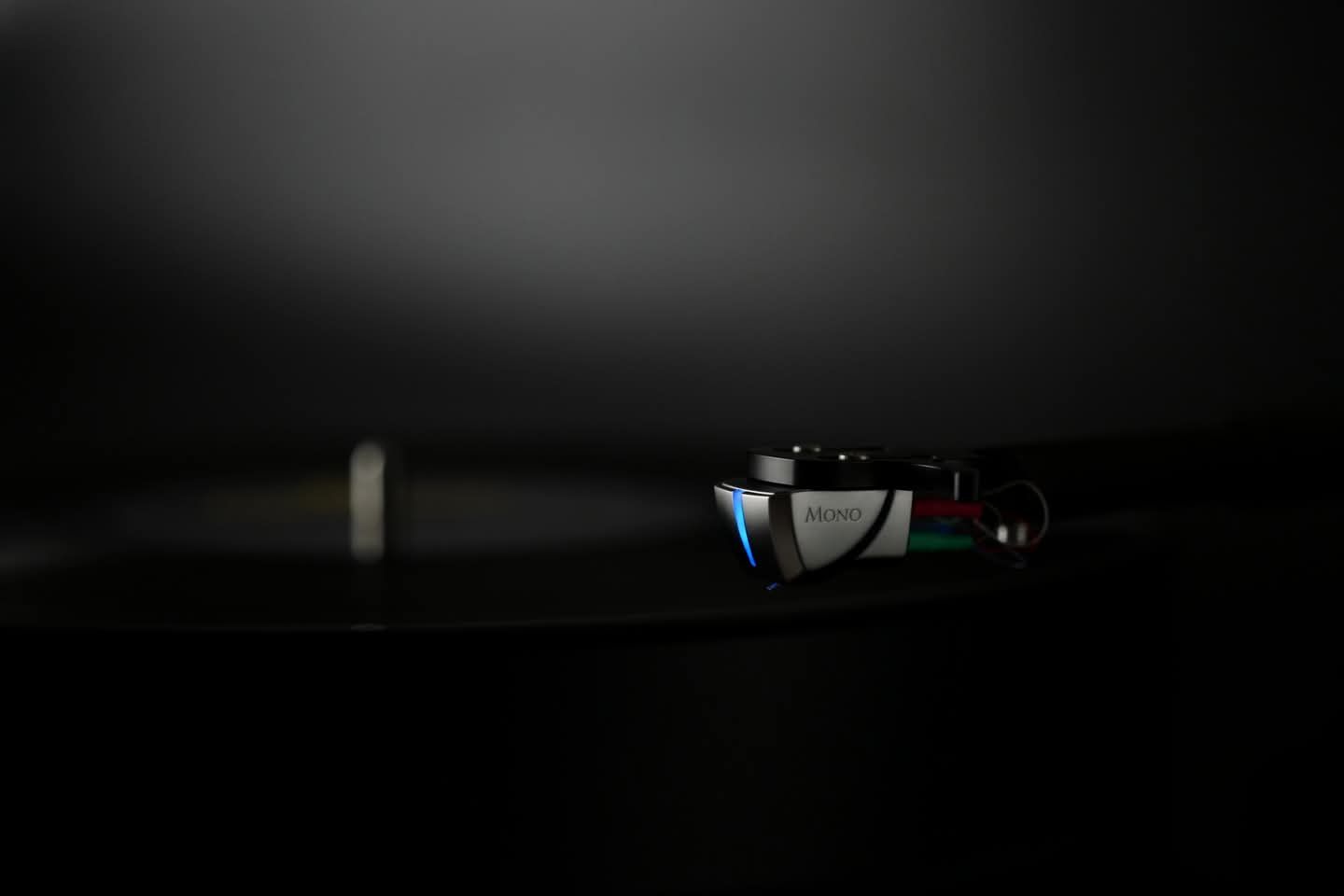

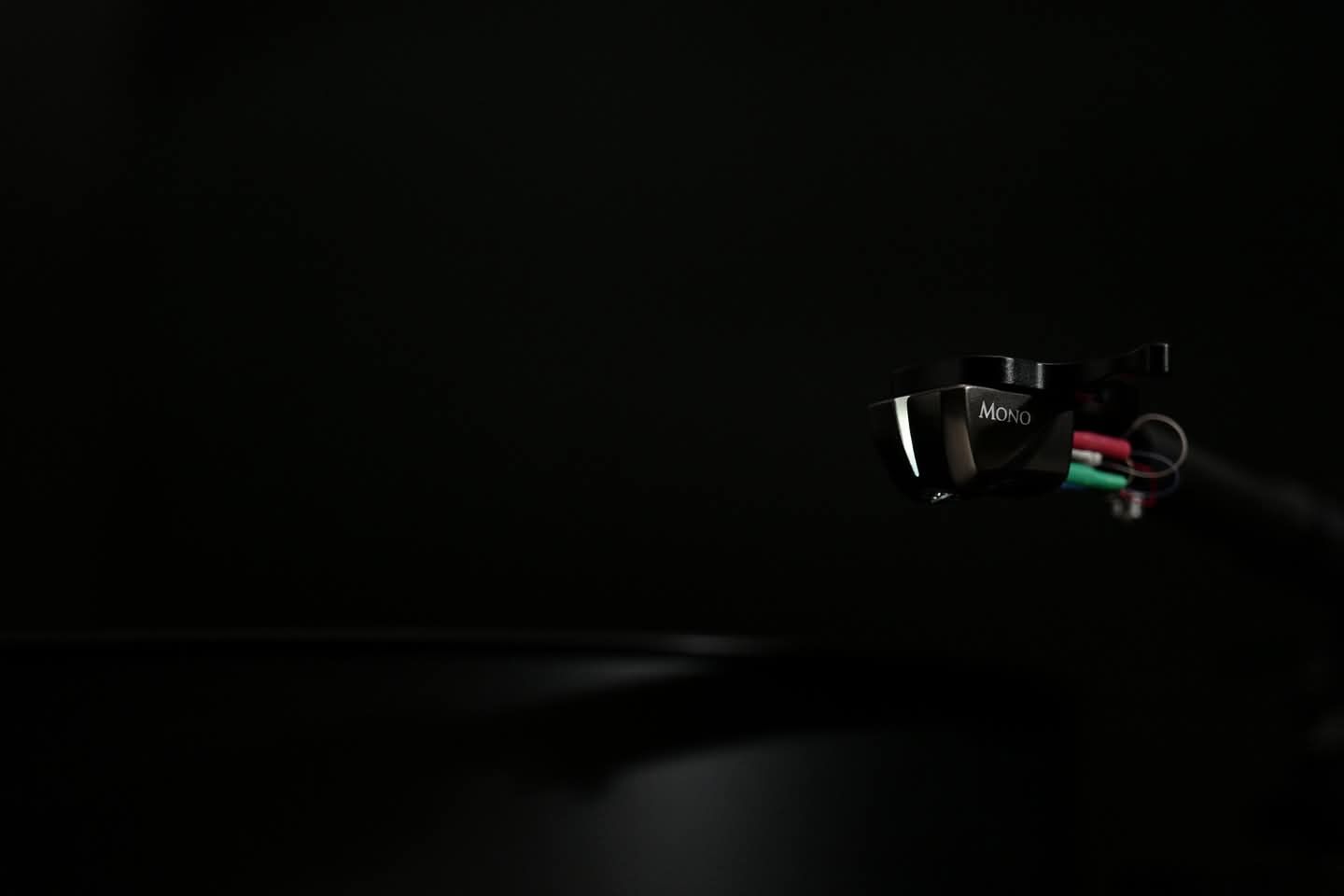

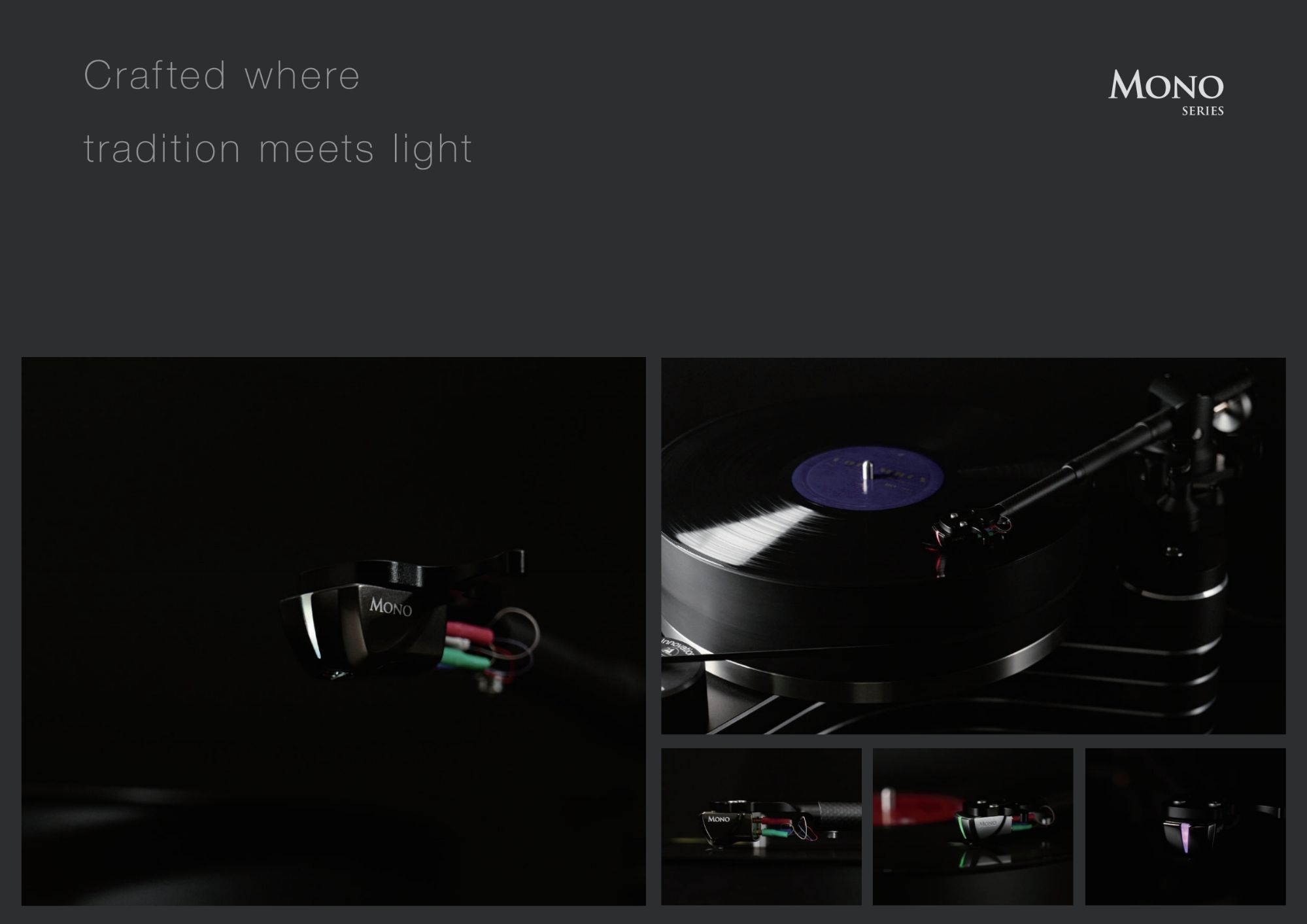

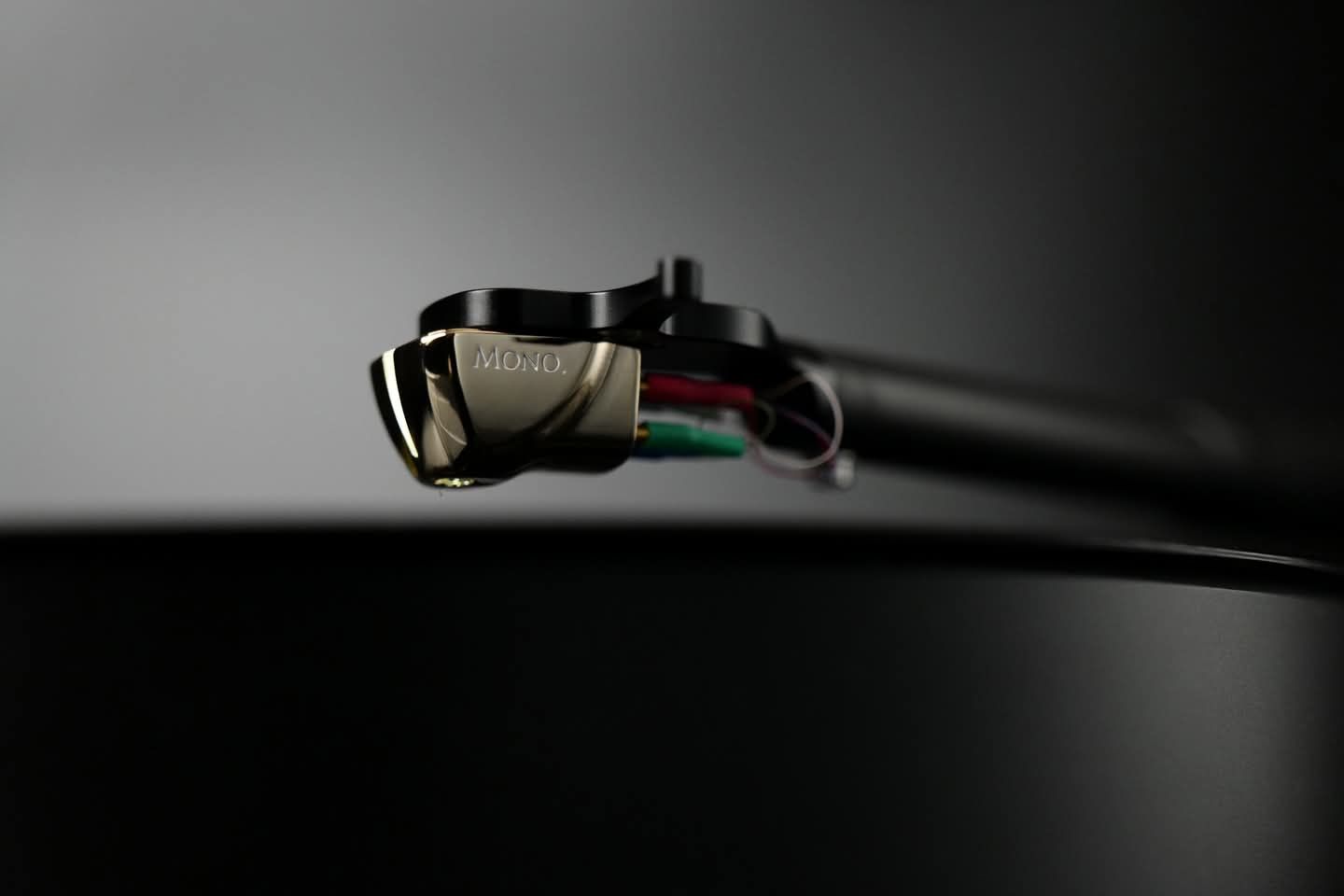

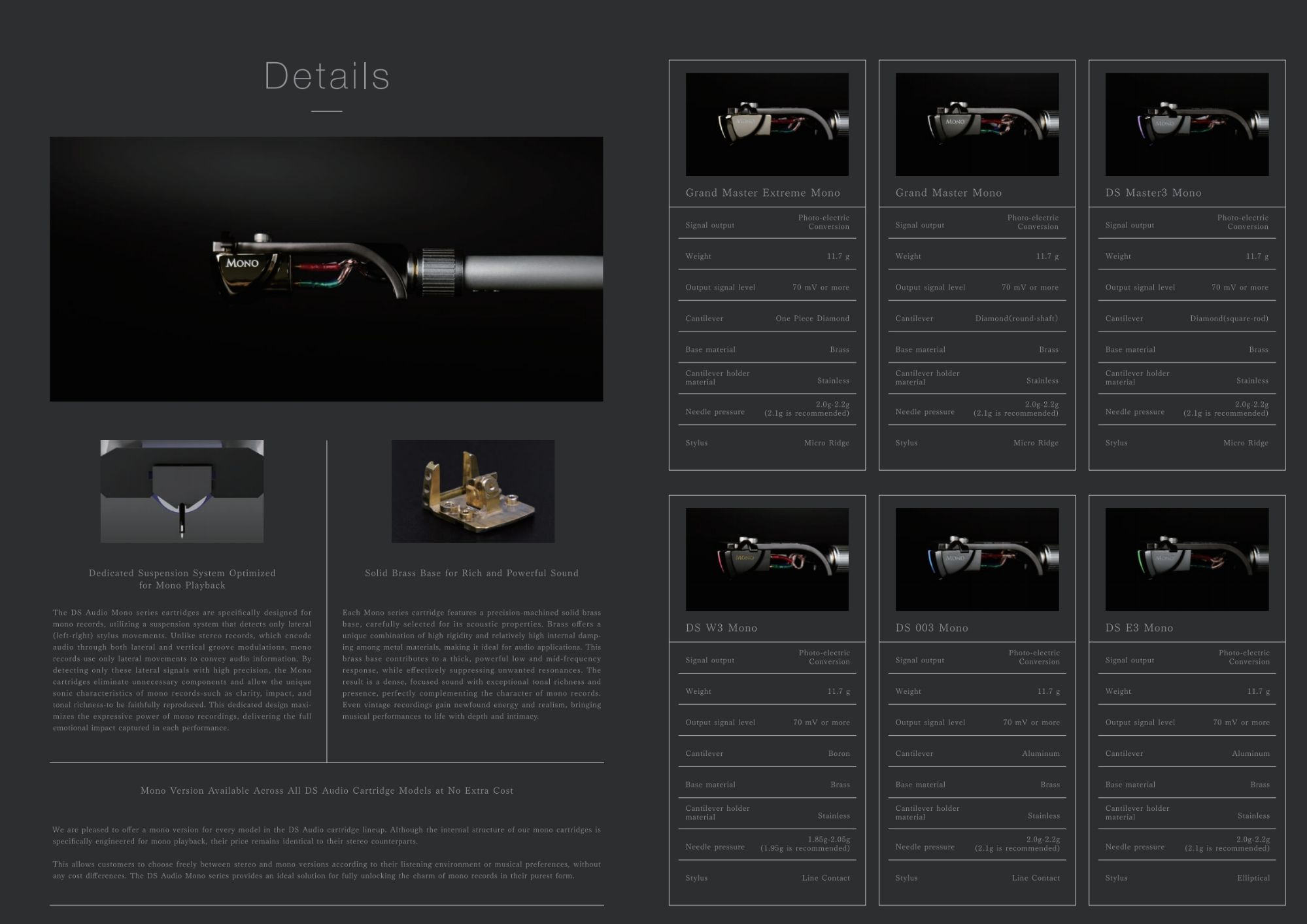

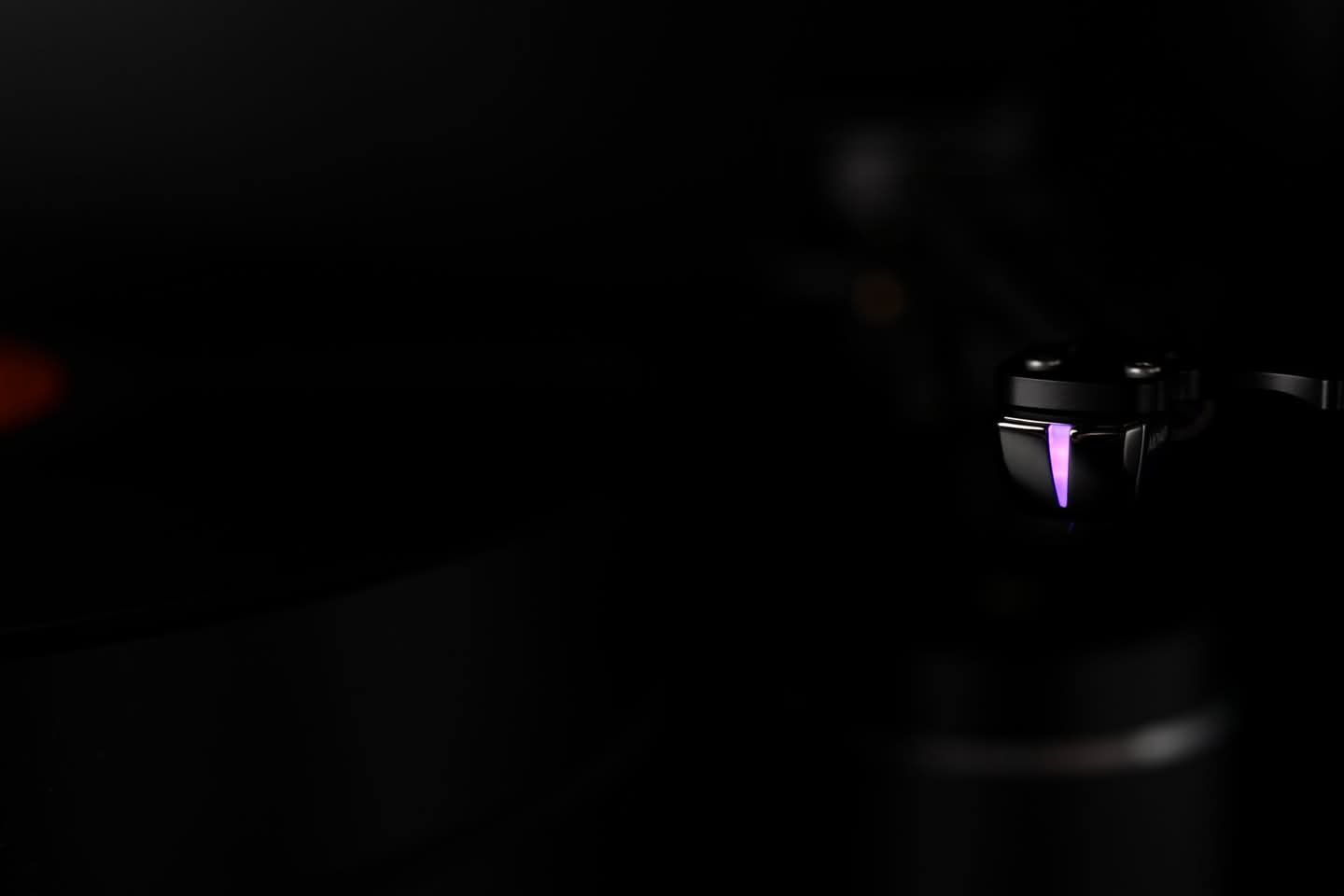

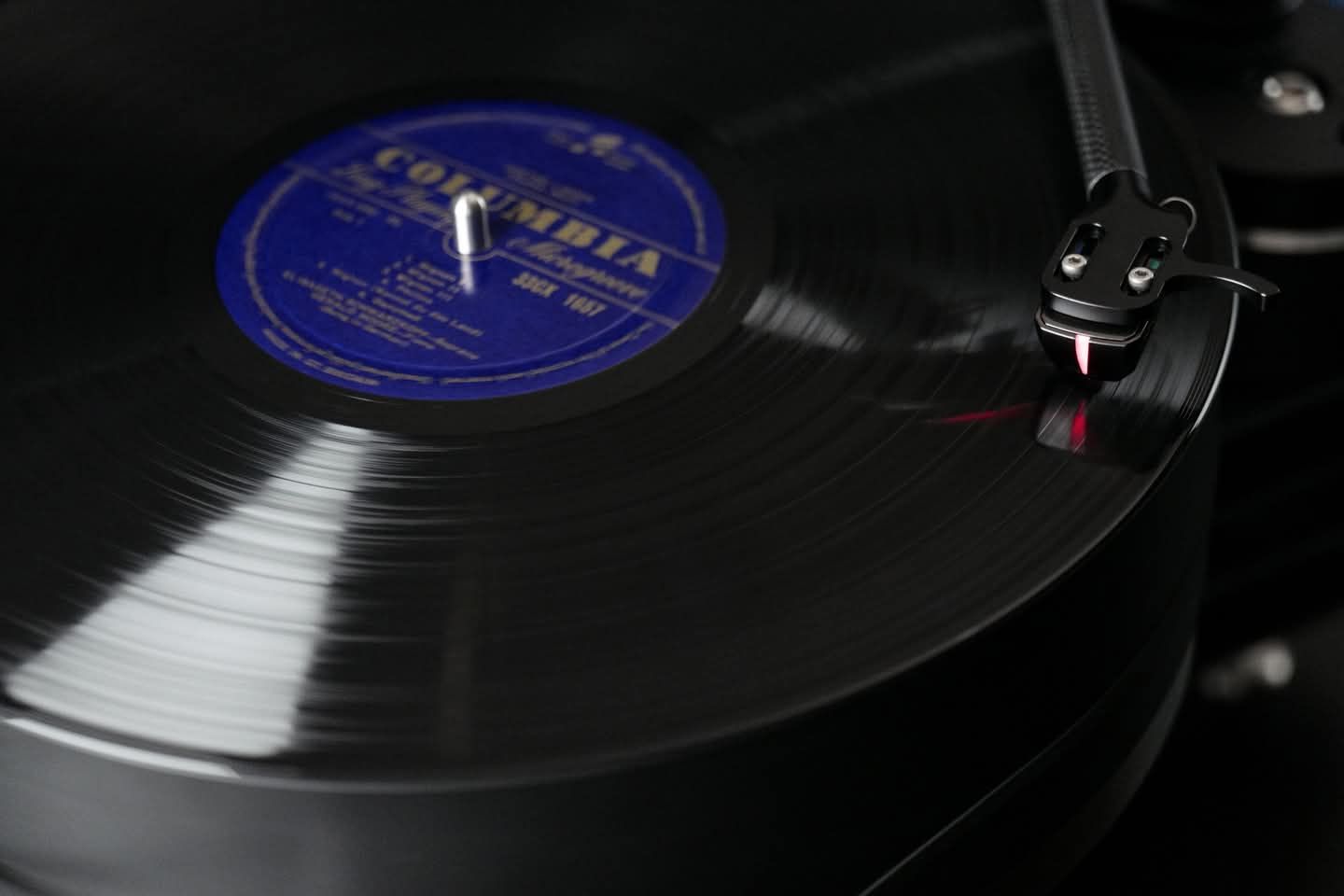

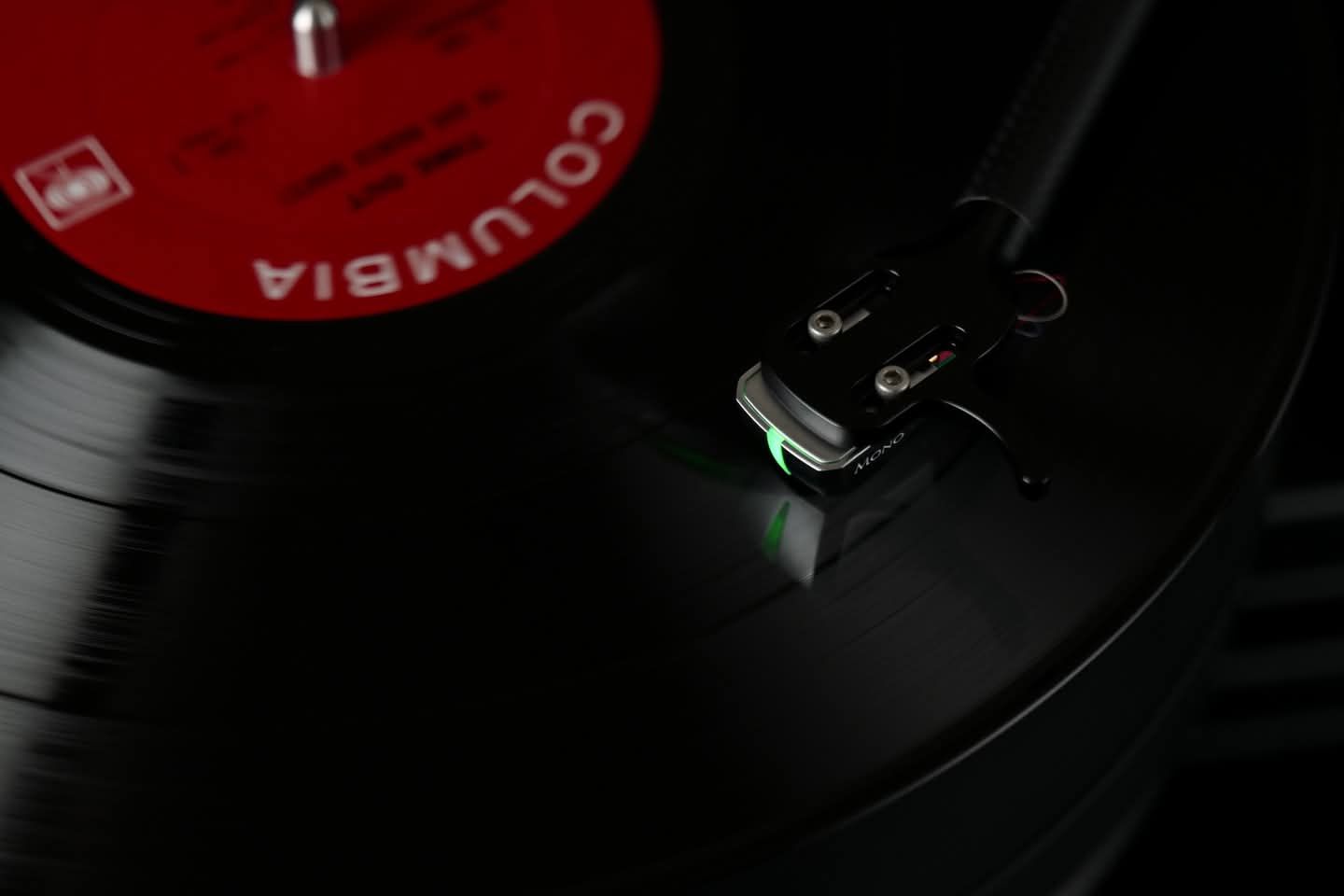

DS Audio Mono Cartridge Series
DS Audio’s first mono cartridges are now available across all current models.Featuring a mono-specific design and solid brass base, they deliver rich, lifelike sound for vintage jazz and classical music.

DS Audio モノラルカートリッジシリーズ
DS Audio初のモノラルカートリッジが登場しました。現行モデルすべてにモノラル仕様をラインナップ。モノラル再生専用に設計された振動系と真鍮製ベースにより、ヴィンテージジャズやクラシックの名演奏を濃密かつリアルに再現します。

The flagship ES-002 Reference,
¥550,000 tax excluded

The more affordable ES-002 Core
¥350,000 tax excluded

The ES-002 Core offers the same eccentricity detection functionality as the Reference model, but at a price approximately 40% lower.

Further Pursuit of Perfection in the ES-002

The ES-001 eccentricity detection stabilizer earned high praise from analog audio enthusiasts. Inheriting its core design, the ES-002 introduces carefully considered improvements to achieve a higher level of perfection. Enhancements in structure, materials, and balance ensure superior reliability and ease of use in practical applications. The ES-002 is a meticulously refined evolution of the ES-001, enhancing durability, reliability, and operability in every aspect. The difference is in the details.
• Simplified and Robust Construction
The number of components has been reduced, resulting in a more streamlined and reinforced design. This simplicity contributes to improved reliability and structural stability.
• Improved Housing Durability
The battery compartment has been redesigned, and new materials have been adopted for the sensor unit, further enhancing durability during extended use.
• Optimized Center of Gravity for Greater Stability
The internal configuration has been rebalanced to achieve ideal rotational performance. This refinement enables the stabilizer to deliver smoother, more natural operation.

ES-002 Reference (Reference Model)

Building upon the design philosophy of the ES-001, the ES-002 Reference is a reference model that pursues an even higher level of refinement. Prioritizing sound quality above all, it is constructed using only the finest grade components.
Combining outstanding audio performance with highly accurate eccentricity detection, this model represents the culmination of DS Audio’s stabilizer technology.

ES-002 Core (Core Model)

Offering the same measurement accuracy and core functionality as the Reference model, the ES-002 Core is a practical option designed with cost-efficiency in mind.
By replacing the most expensive tungsten components with brass, using resin for internal parts, and simplifying the accessories, it maintains identical performance while being more accessible.Both models deliver the same high level of measurement precision and detection performance, ensuring reliable and consistent operation.

World premiere that will redefine what you thought possible in HiFi speakers

High End Munich

NEW: Gryphon Antileon REVELATION

First introduced in 1991 as the DM-100, this amplifier established the DNA of all future Gryphon amplifiers: dual-mono design, pure Class A circuit topology, high-current output, and the ability to drive virtually any loudspeaker.

In honor of the brand’s 40th anniversary, the ANTILEON Revelation will debut at Highend 2025.

Based on its predecessors, the ANTILEON REVELATION inherits the transistors of the flagship APEX and delivers the deep bass reproduction, extended, airier highs, and even more transparent midrange that only a pure Class A circuit can deliver.

REVELATION STEREO
Power: 2 x 160W @ 82, 2 x 320W @ 42, 2 x 640W @ 22 at 115V/230Vac in pure Class A
Output impedance: 0.040
Bandwidth (-3dB): 0.3 Hz to 350KHz
Power supply capacity: 2 × 335,000pF
Gain: +31.0dB
Input impedance, balanced (20-20,000Hz): 20KΩ
40 high-current bipolar transistors
Power sockets: 2 x IEC C19
Dimensions: 57 cm x 26 cm x 60 cm (W x H x D), 84 kg

REVELATION MONO
Power: 1 x 180W @ 80, 1 x 360W @ 42, 1 x 720W @ 20 at 115V / 230Vac
Output impedance: 0.020
B (-3dB): 0.3Hz to 350KHz
Power supply capacity: 2 x 670,000pF
Gain: +31.0dB
Input impedance, balanced (20-20,000Hz): 10KΩ
2 x 40 high-current bipolar transistors
Mains socket: 1 x IEC C19 / unit
Dimensions: 57 cm x 26 cm x 60 cm (W x H x D), 84 kg per unit

Métronome Technologie will unveil the DSAS (Digital Sharing Audio Server) at the Munich High End!

This is the brand’s very first music server, powered entirely by the Audirvāna software suite. This all-in-one server combines hardware and software to manage all your music, whether local or streaming, from a single device.
Compact and elegant, it offers 2TB of storage space, expandable up to 4TB. Operating as a pure digital transport, it requires an external DAC, such as the DSC mini from the same series.

The DSAS comes with a permanent Audirvāna Origin license for local music playback, as well as a three-year subscription to Audirvāna Studio.

Technical specifications:

• Storage capacity: 2 to 4 TB SSD
• USB ports for external drives or USB flash drives
• Digital outputs: USB (DAC), Ethernet & Wi-Fi (UPnP), Chromecast
• Network: Wi-Fi, Ethernet
• Supported audio formats: PCM & DSD
• Built-in HD streaming: Qobuz, Tidal, HRA, Presto Music
• Internet radio
• Online metadata retrieval (excluding cover art)
• Mixed playlists and favorites
• Folder display
• High-quality upsampling (SoX, R8brain) up to DSD1024
• 10-band parametric equalizer
• Built-in audio analysis

A Deeper Connection With Your Music

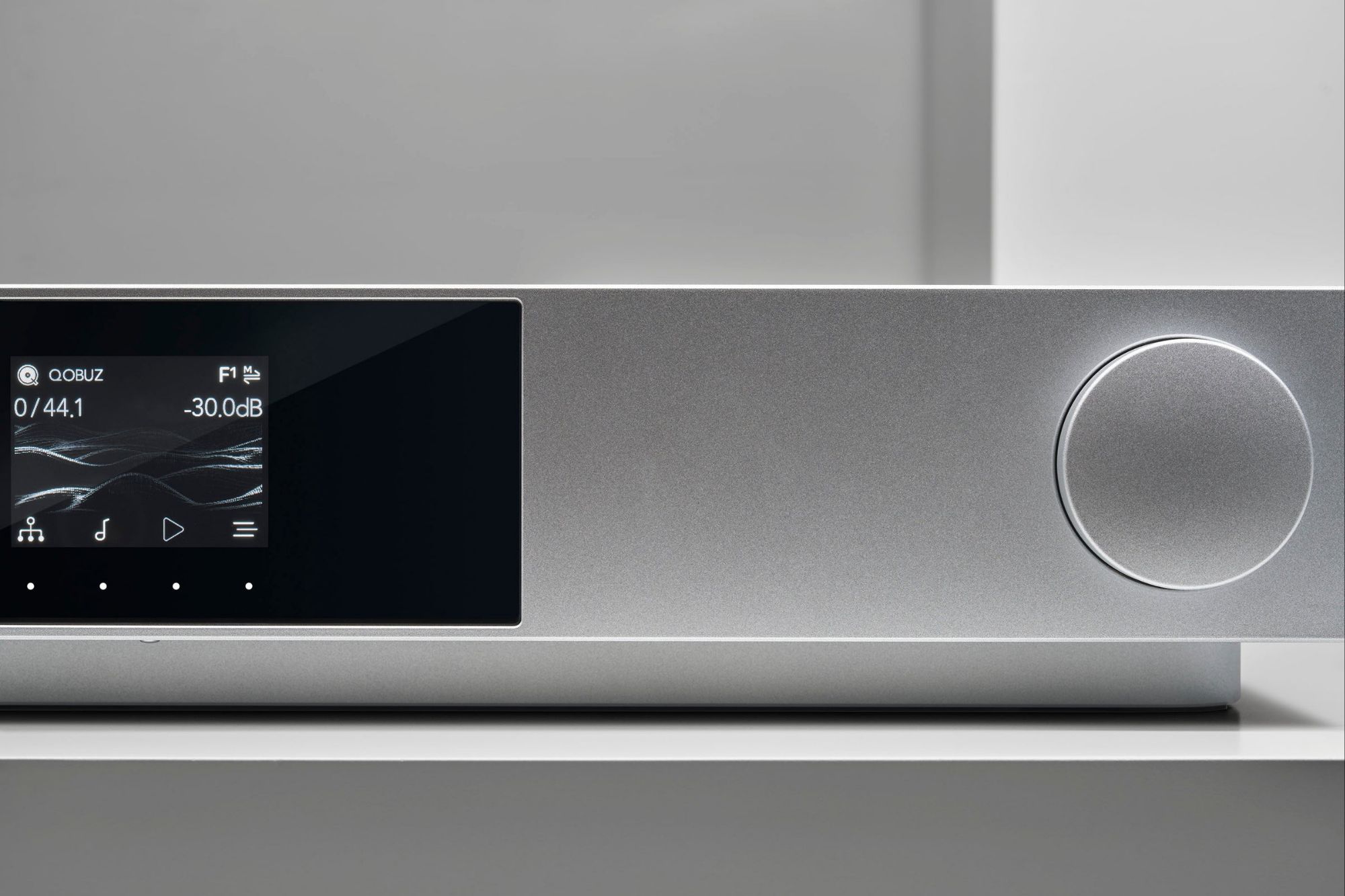

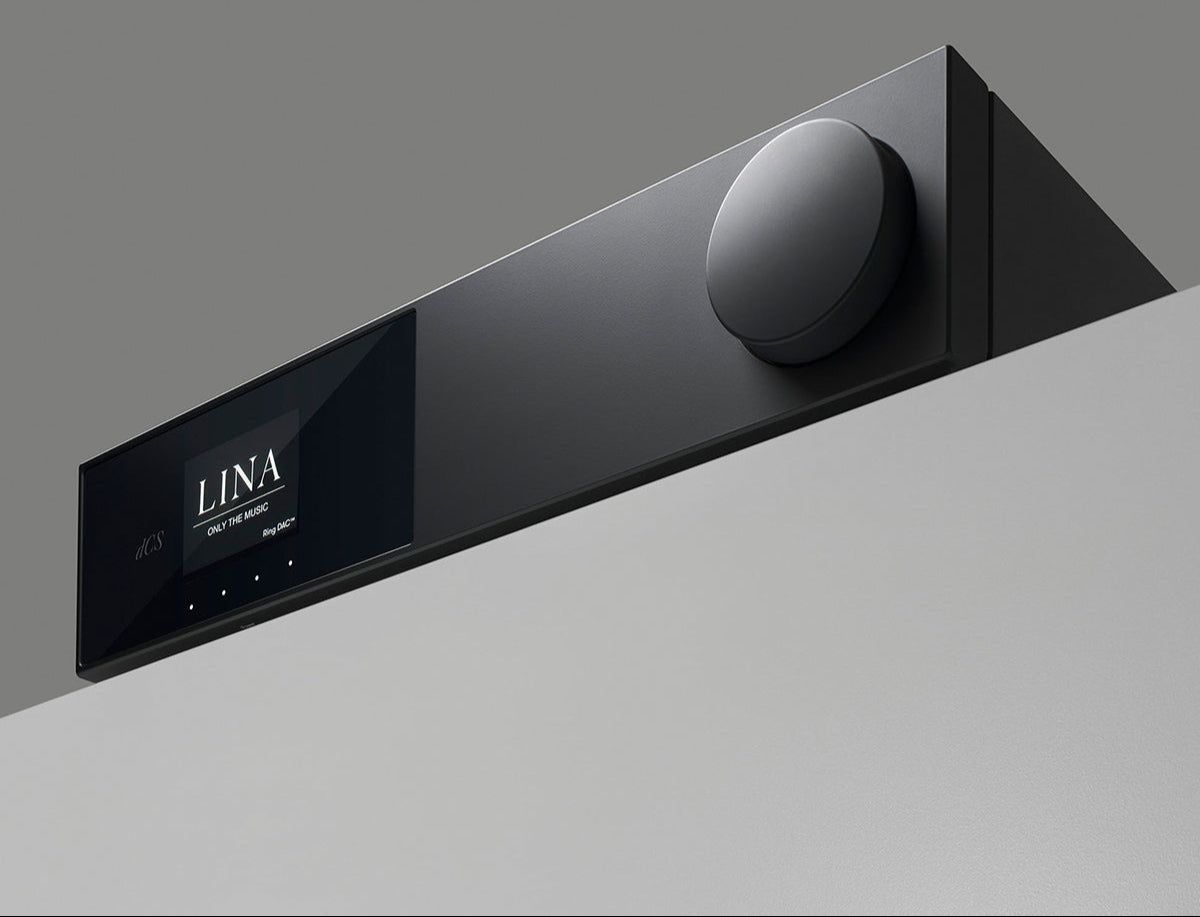

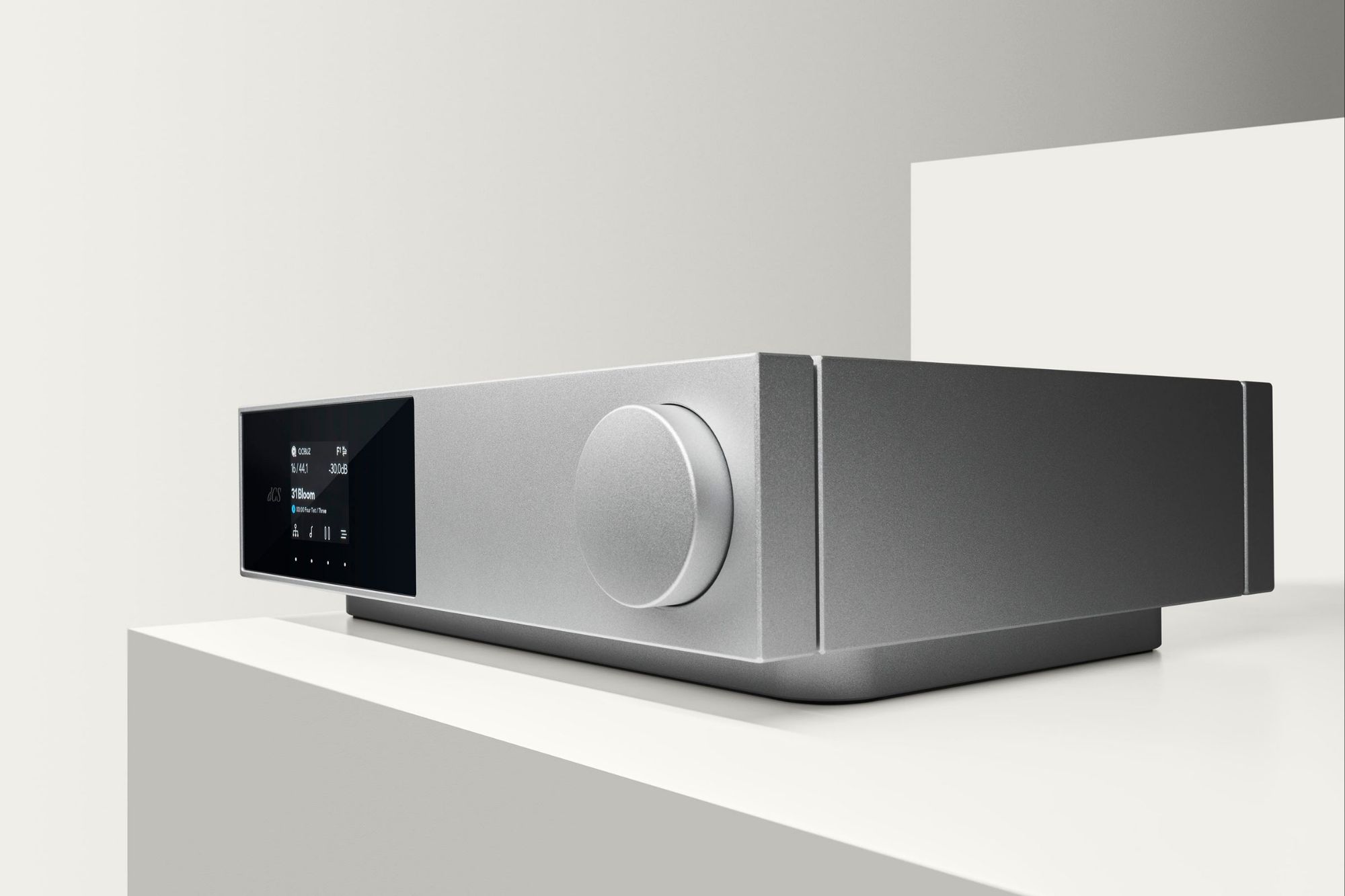

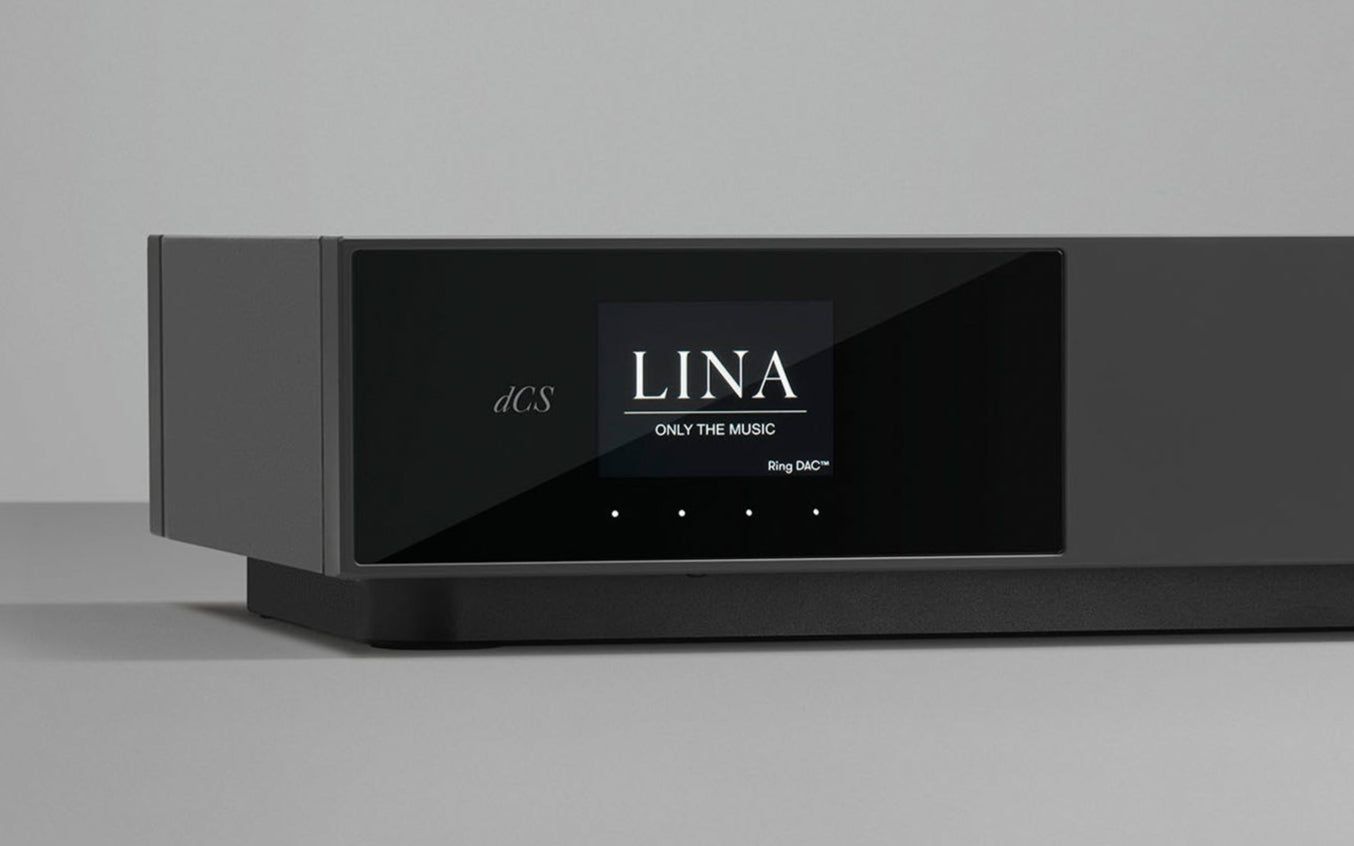

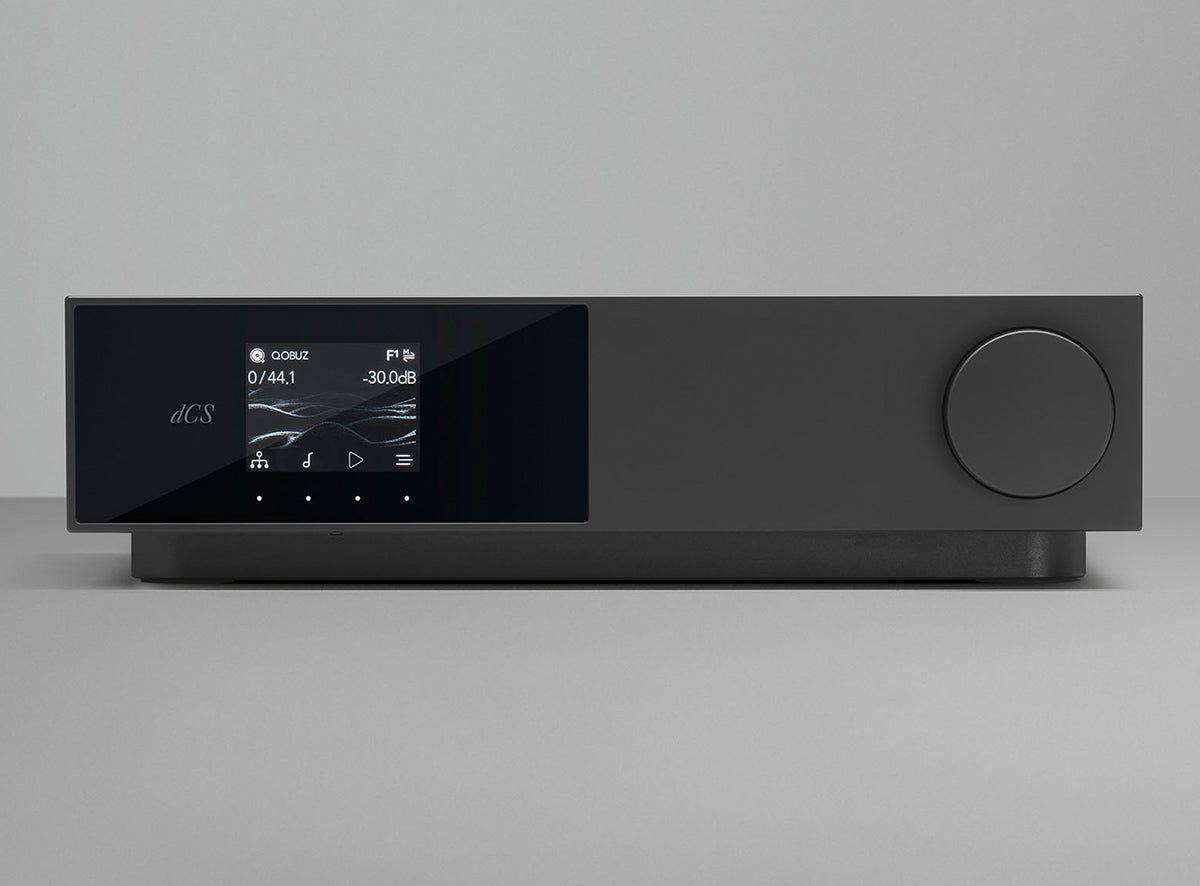

Lina DAC X is designed to reveal the full impact of your music. It presents all aspects of a recording – from individual sounds to the subtle timing and spatial cues that bring us a sense of space and depth – with remarkable clarity, for an exhilarating and immersive sonic experience.

Effortless
Hi-Res Streaming & Playback

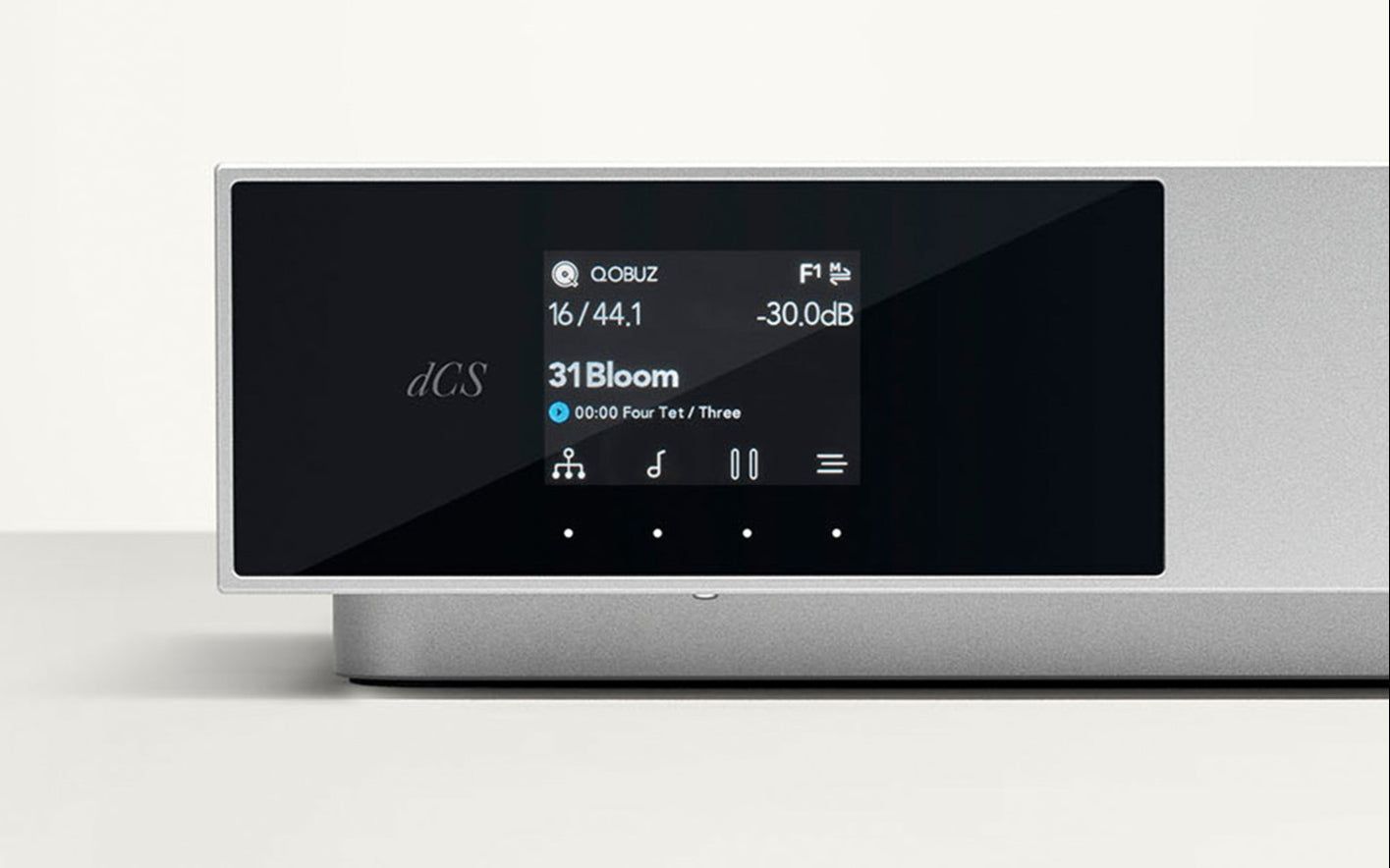

Lina DAC X reflects our vision to deliver incredible sound and a convenient, intuitive playback experience. It streams hi-res audio from all major platforms and plays files from various digital sources including computers, storage drives and CD Transports.

Award-Winning Performance

Lina DAC X is the latest addition to a product series that has won numerous awards worldwide for its sonic capabilities. It delivers all the qualities listeners have come to expect from dCS – including outstanding resolution and fidelity, meticulous craftsmanship, and a wide range of inputs and streaming options – to ensure an outstanding performance and seamless integration with existing audio equipment.

A flexible architecture that evolves

We enhance dCS products throughout their lifespan, delivering new features and upgrades via simple software updates. This is made possible through a flexible architecture that provides unlimited scope for upgrades, allowing listeners to benefit from our latest innovations as we develop them, and enjoy state-of-the-art performance for years to come…

Designed,
hand-assembled & tested in the UK

Each Lina DAC X is hand-assembled and tested at our Cambridgeshire headquarters. We use custom built equipment to rigorously check performance across all possible configurations, and conduct numerous inspections to ensure each unit meets our strict build and test criteria.

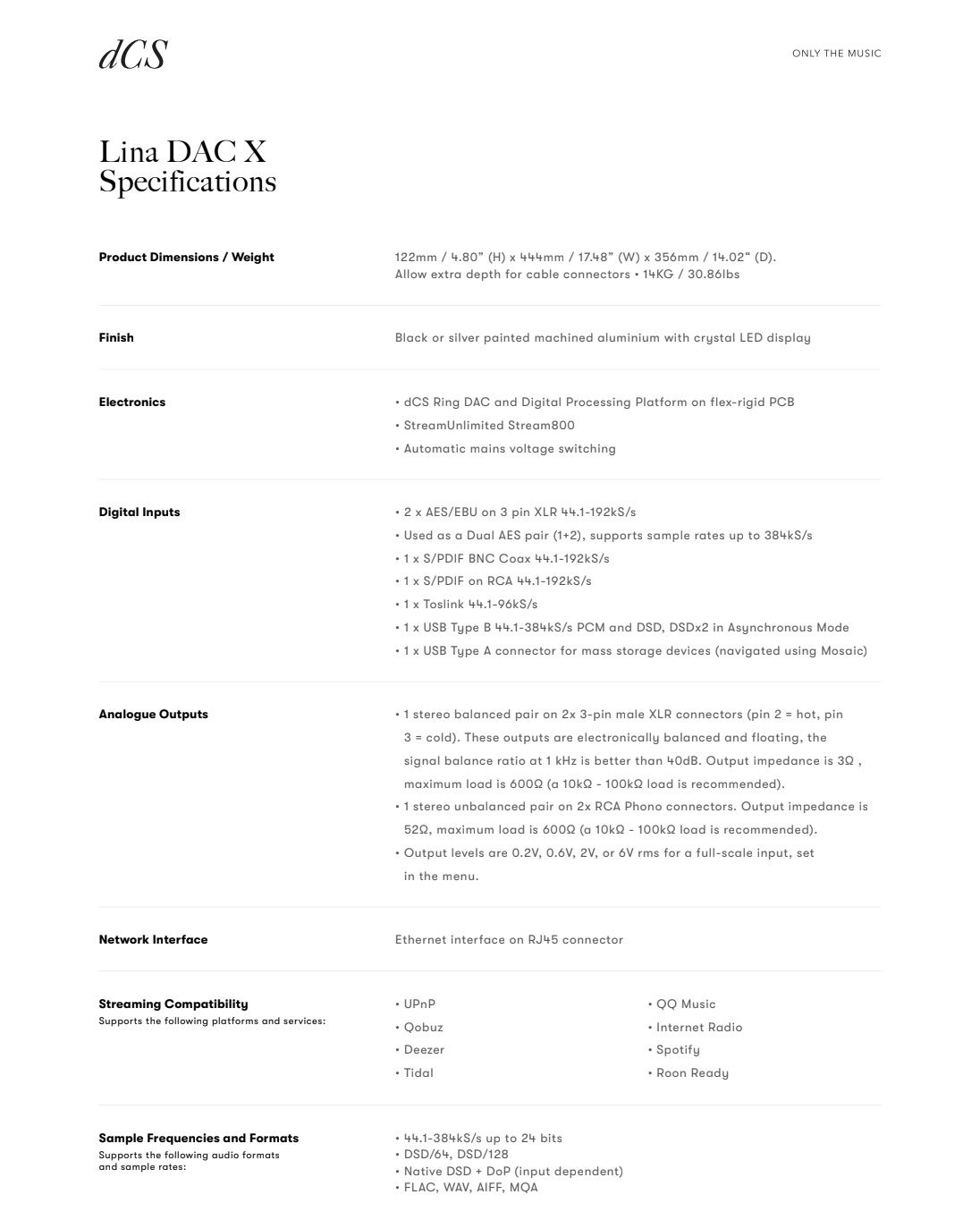

Highlights

• Built in streamer supports hi-res streaming from all major platforms – including Spotify, Qobuz, TIDAL & QQ Music

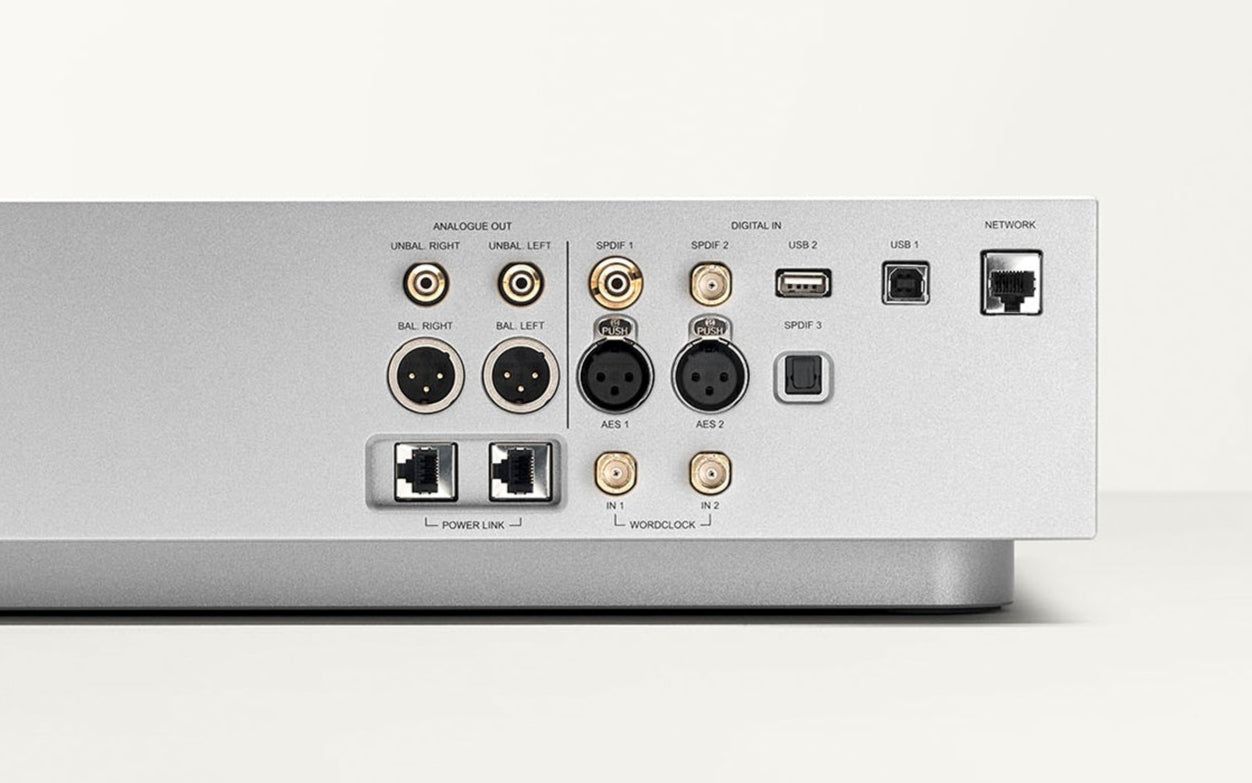

• Extensive range of digital inputs supports playback from TVs (via TOSLINK), computers, servers, CD transports & more

• Flexible output voltages and volume control allow connection to any type of amplifier, including directly to power amplifiers or active speakers

• Flexible architecture provides unlimited scope for new features, upgrades and enhancements

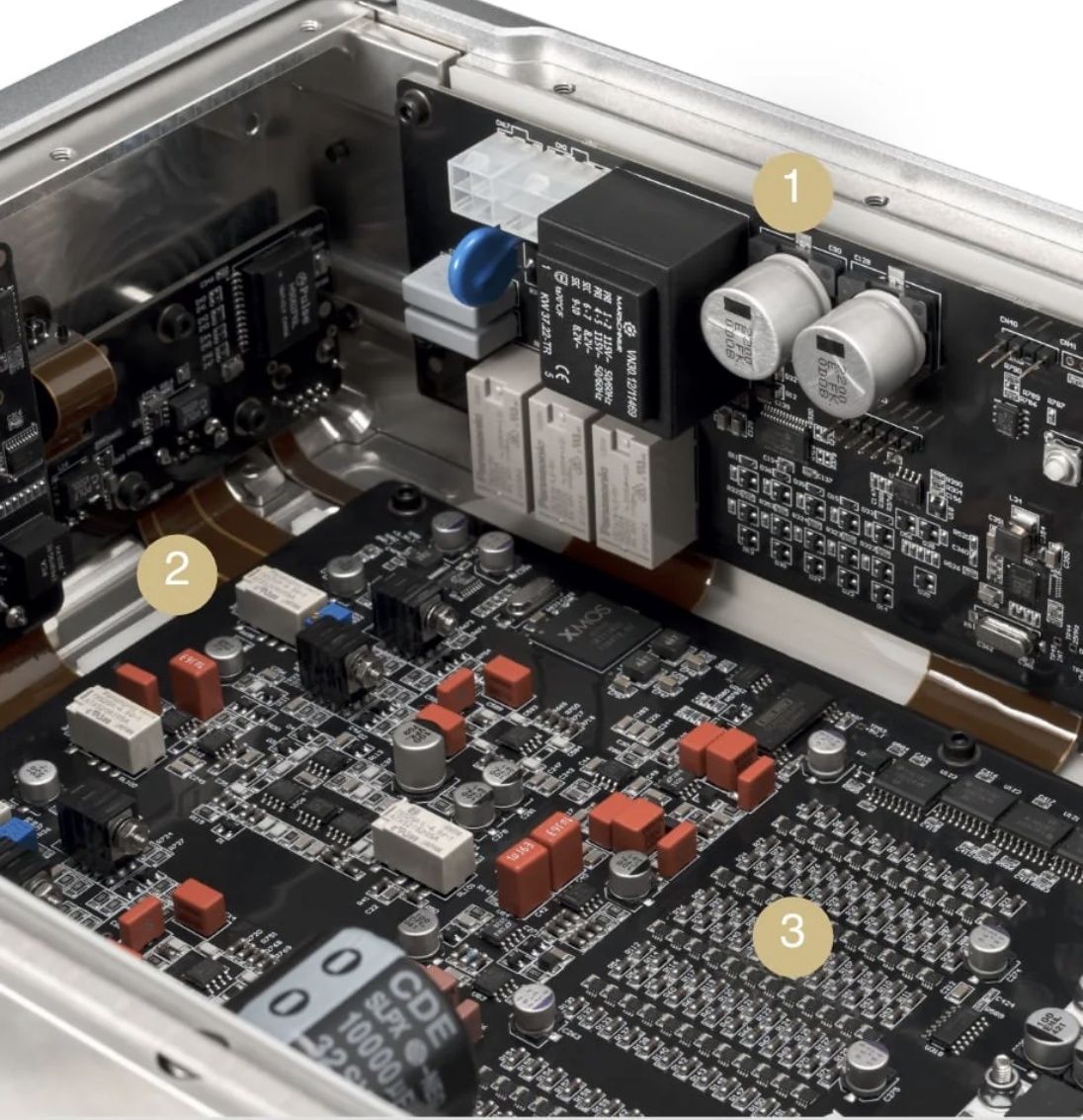

• Single flex-rigid PCB design – unique to dCS in audio, and also seen in the dCS Varèse Music System – ensures clean signal path and optimal performance

• dCS Ring DAC™ preserves all aspects of musical signal – including low-level detail – whilst reducing noise and distortion to vanishing levels

World Premiere High End Munich

Up to 280 watts of power
Pure Class A fascination

A new era begins: With the Jubilee Class A, Octave showcases the fusion of technical mastery and musical soul.
An amplifier that combines the power of push-pullwith the elegance of single-ended Class A-
uncompromisingly musical, visionary design by Andreas Hofmann.

Phono equalizer
With headphone jack
Power supply to the cartridge is provided by the battery inside the power supply unit
