GOLDMUND TELOS440 国内導入予定！！

未分類

GOLDMUND TELOS440
MONO POWER AMPLIFIER
が国内輸入される予定とのことです。

SPECIFICATIONS
OUTPUT POWER
Maximum power (IEC60065): 285 Wrms on 8 Ω / 1 % THD.

DAMPING FACTOR
400 at 1 kHz / 8 Ω.

OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 20 μV from 20 Hz to 20 kHz.

GAIN
35 dB.

DISTORTION
IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.

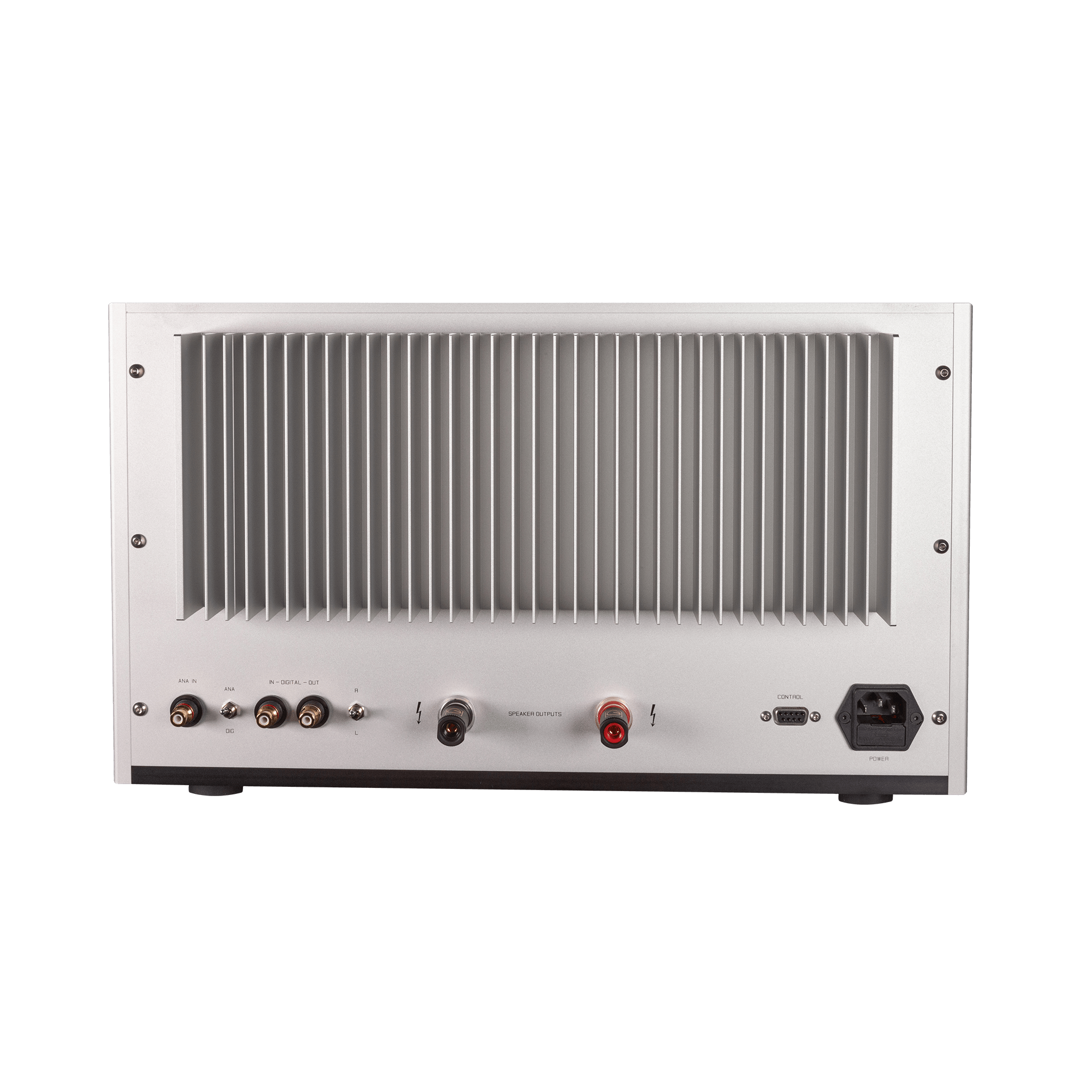

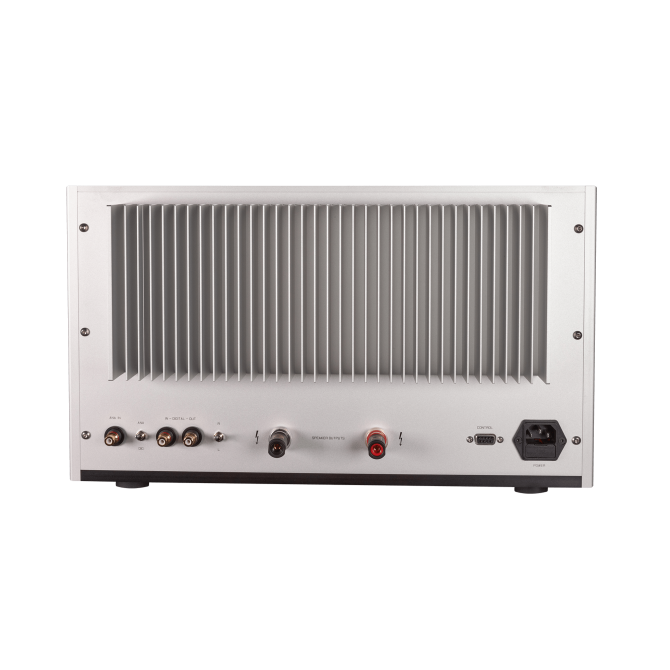

REAR PANEL
Power cord: universal socket 3 lugs.
Main fuse (8 A slow-blow for 115 V and 230 V).
1x pairs binding post (red & black).
Analog RCA input (unbalanced connector).
Digital S/PDIF input and output RCA connectors.
Switch between analog or digital input.
Switch right or left channel selection from the S/PDIF input.
RS232 command connector for programming.

INPUT
Max level before clipping:
Analog input: 1 Vrms.
Digital input: -6.6 dBFS.

OUTPUT
Max level before clipping:
1 % THD, unloaded: 158 Vpp.

RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 150 W.

POWER SUPPLY
Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.

DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 100 dB.

DIMENSIONS & WEIGHT
44 W x 26.8 H x 40.5 D x (cm).
24 kg.

WARRANTY
3 years parts and labor.
