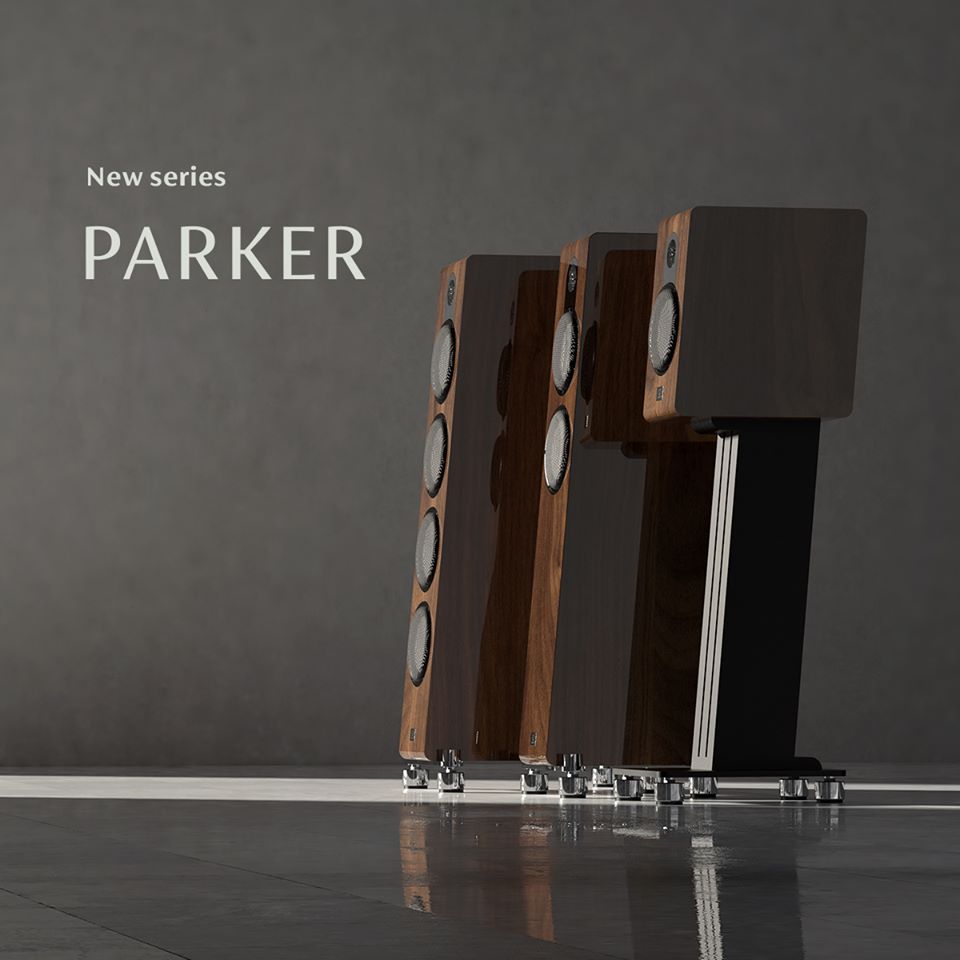

Martenから、PAKERシリーズ登場!!
Marten
Parker Quintet
Parker Trio
Parker Duo

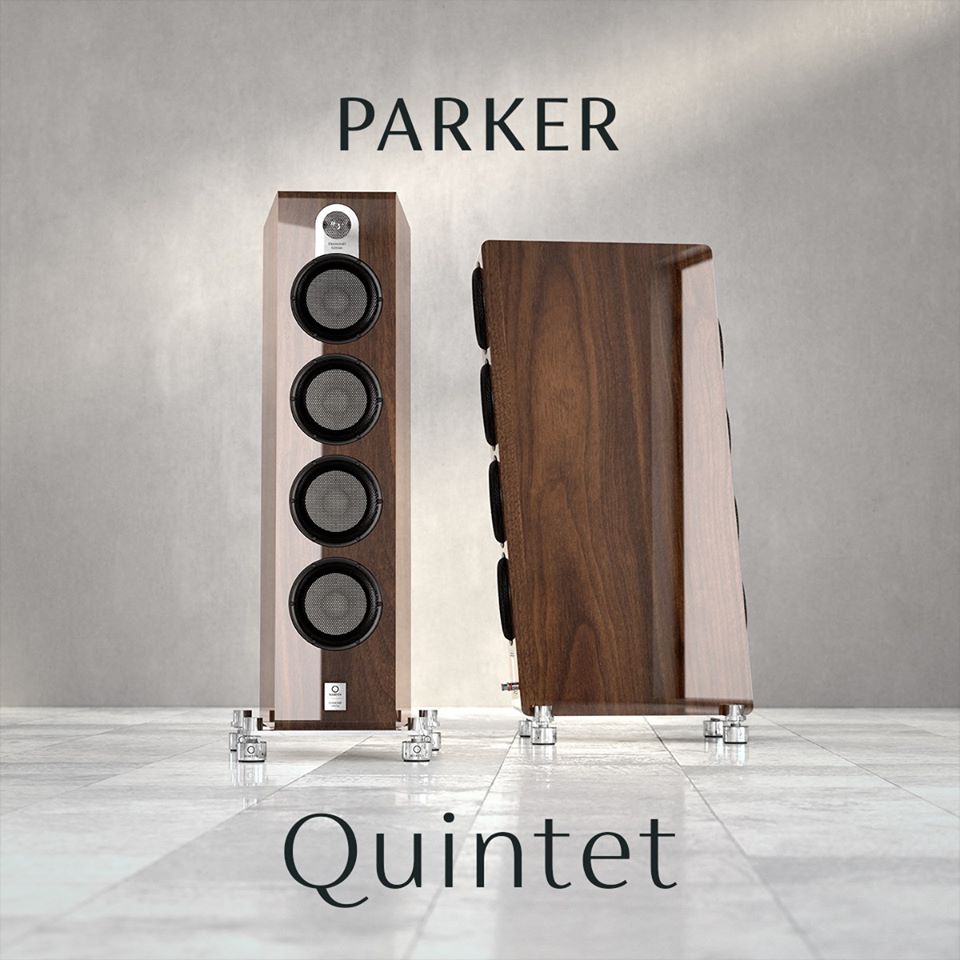

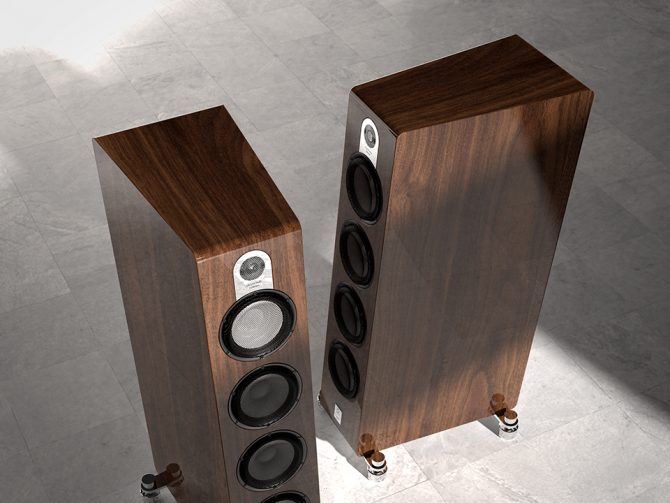

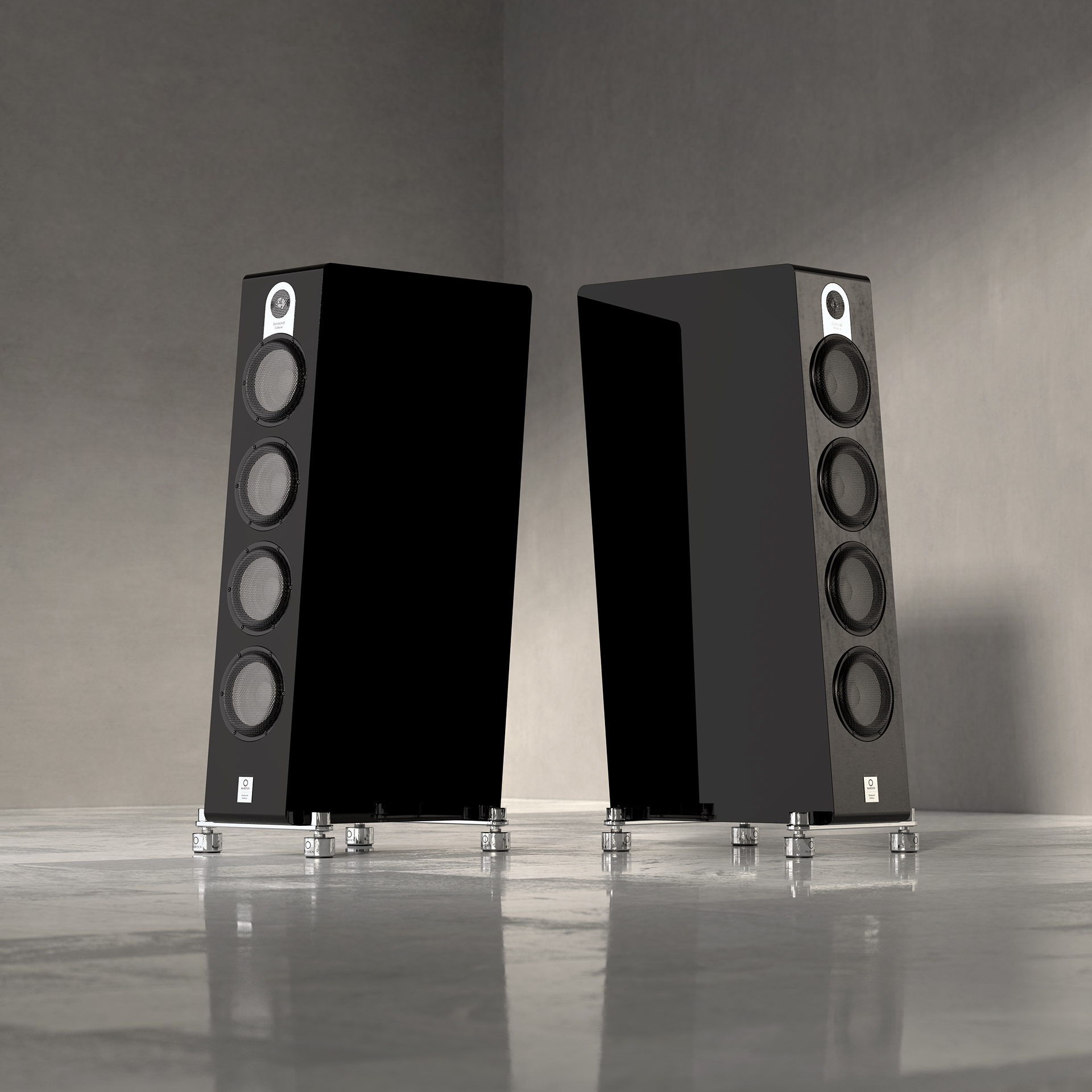

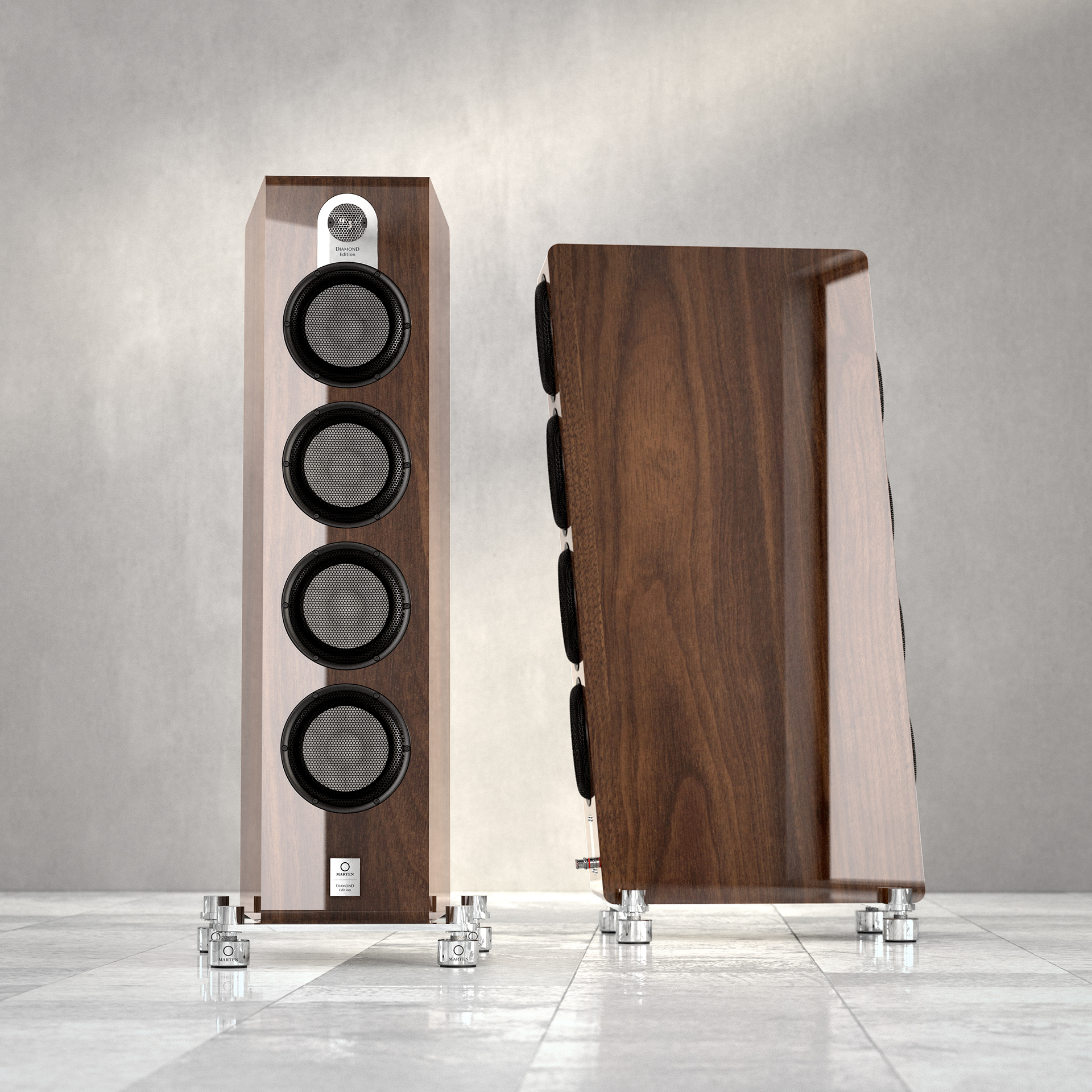

Parker Quintet
Parker Quintet is the flagship loudspeaker of the Parker series. New for 2020, the series sits squarely in the middle of our product range – a position which has long been held by our Heritage series. Parker elevates our loudspeakers in this class to a whole new level.
WHAT YOU GET
Same team. New players.
With custom designed technology and perfectly balanced build techniques, Parker Quintet is new in every way, but remains faithful to the Marten way of recreating sound as it is in life. With extreme resonance reduction, the cabinet is truly free of the soundstage, letting music and emotion take centre stage.
2.5-way floor-standing
Brand new custom designed drivers
4x bass/midrange drivers
Multi-diverse crossover technique
High sensitivity: 93 dB
CABINETS
Distortion free; pure and powerful.
The cabinet features sleek, tapering sides created from M-board, a multi-layered material offering extreme resonance reduction. Parker Quintet is so resonance-free, it completely disappears within the soundstage. The newly designed cabinet balances visual appeal with low-impact on sound.

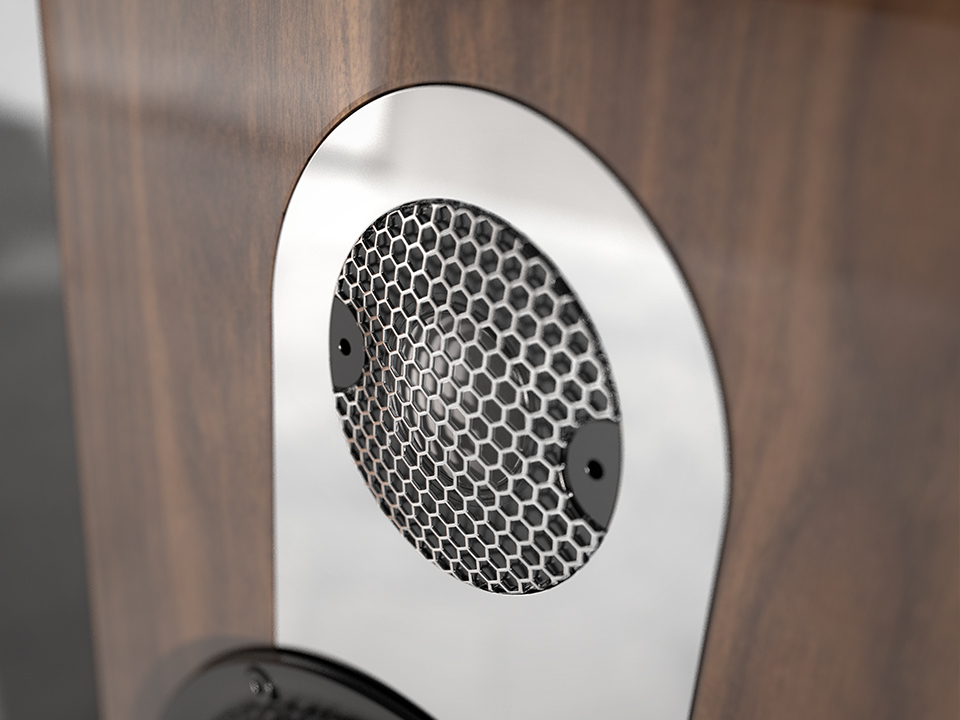

CERAMIC DRIVERS
Smaller scale design for bigger results.
Ceramic drivers are custom designed by Leif Olofsson to meet the needs of a loudspeaker in this class. Each unit has a very long linear excursion and utilises the powerful Neodynium magnet system for control. Custom designed components allows a more holistic way of building a system, making Parker Quintet a super-refined Marten speaker.

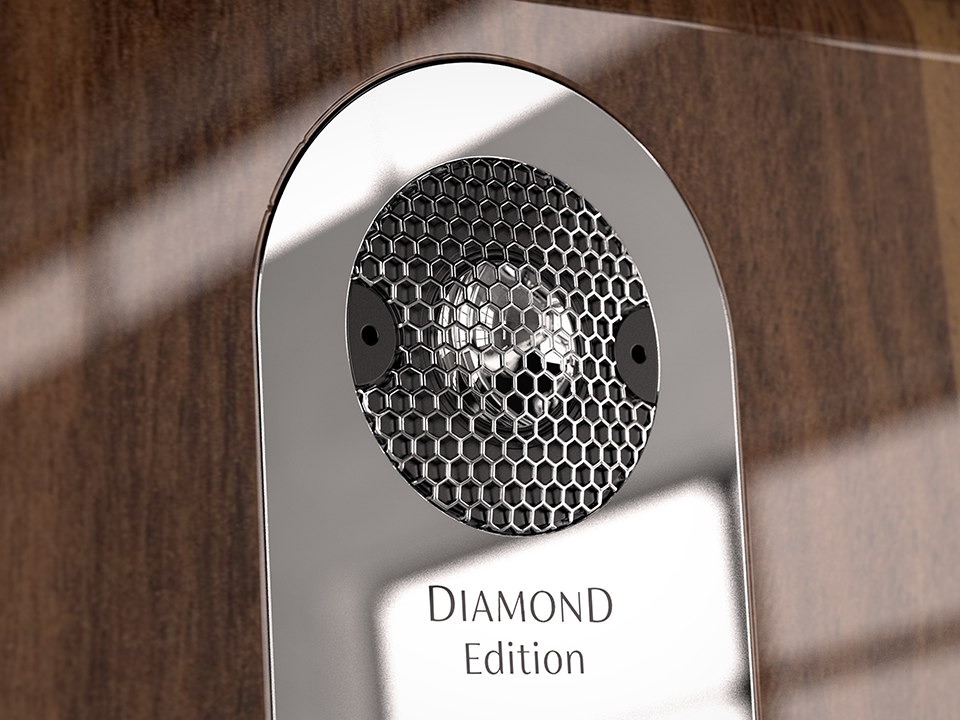

DIAMOND EDITION
Upgrade to elite.
Parker Quintet can be upgraded to Diamond Edition, featuring a pure Diamond tweeter, Jorma Statement internal cables, more advanced crossover components and improved terminals. All Parker models can be elevated to the ultimate in premium loudspeakers.
BASS AND MIDRANGE
Full. Controlled. Dynamic.
Designed for the system, four 7.5” bass/midrange ceramic drivers offer a large surface area resulting in a large, precise soundstage and great dynamics. While passive radiators give the control and dynamics needed for Parker Quintet. A speaker of this class demands the ultimate in bass response.
CROSSOVER
A harder working crossover.
A multi-diverse crossover technique was developed through hours of listening and testing, plus rigorous simulation, calculation and measurement. We’ve really put the work in with this crossover, using the best components and precisely tuning it to work with the system.
INTERNAL WIRING
Premium cables for purer sound.
We use Jorma Design internal wiring, for its exemplary quality and performance. Handmade in Sweden, the cables use separate + and – for enhanced shielding and the highest quality Copper. This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our precision design and build. Jorma Design delivers exactly what a Marten speaker demands.

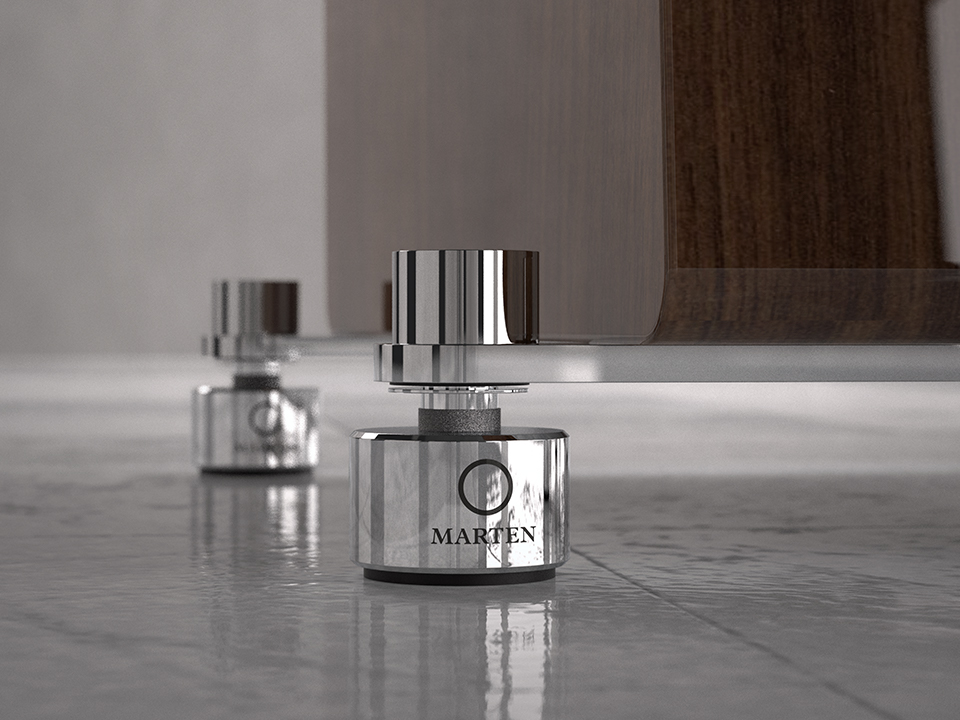

FEET
A new level of isolation.
The Marten IsoPucks by ISO Acoustics reduce resonance, freeing the speaker of the soundstage while delivering controlled sound and detailed, rich bass.
TECHNICAL SPECIFICATIONS
Speaker (front)
1” pure ceramic tweeter (upgradable to Diamond)
4 x 7.5” ceramic bass/midrange

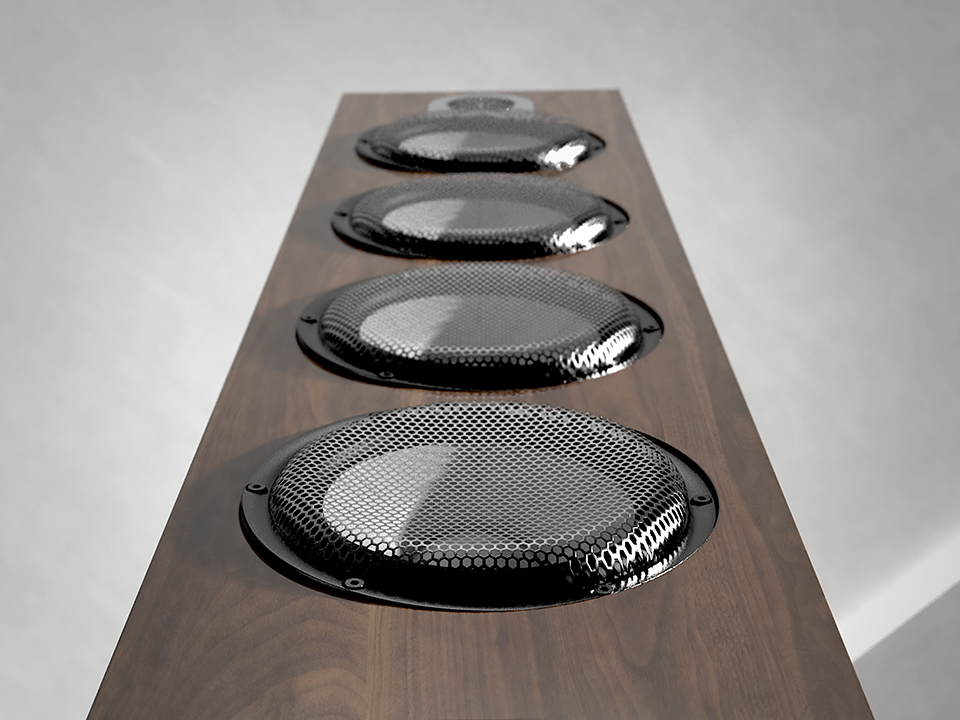

Speaker (back)
4 x 9” Aluminium passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
24-40000 Hz +-2dB
Power rating
350 W
Sensitivity
93 dB/2.83 V
Impedance
4 ohms (2.7 Ohms min)
Type
2.5-way
Crossover frequency
Multi diverse order,
2200 Hz

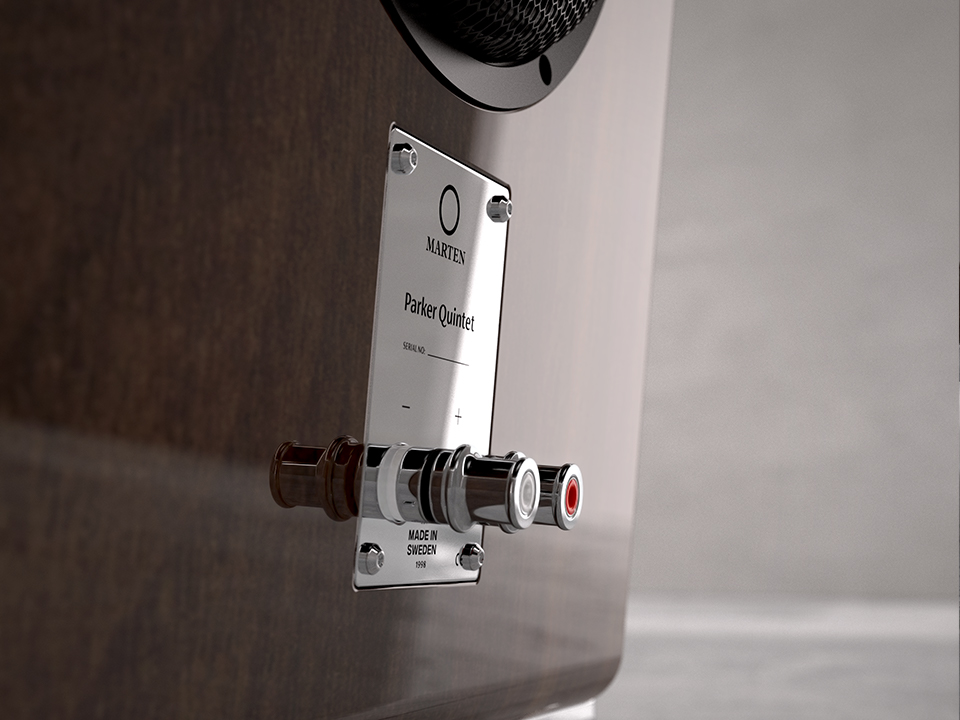

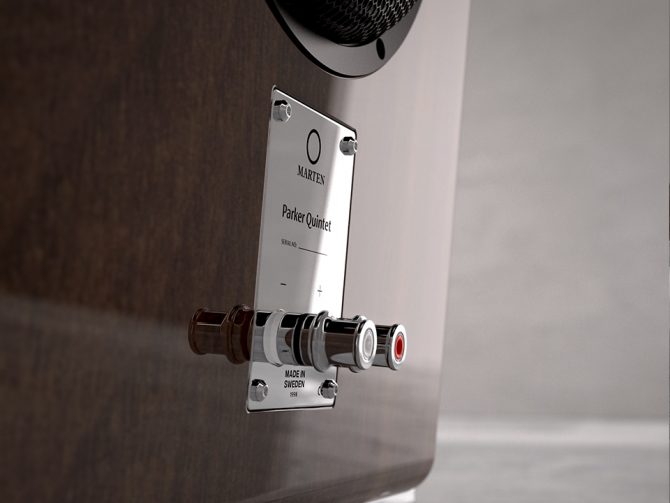

Terminals
Single-wiring
WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M-board
Piano Walnut, Matte Walnut or Piano Black
Stands and feet
Mirror polished stainless steel with Marten IsoPucks
Dimensions W x H x D
24 – 33 x 117 x 54 cm
(9.4″ – 13” x 46″ x 21.3″)
Net weight
60 kg (133 lbs)

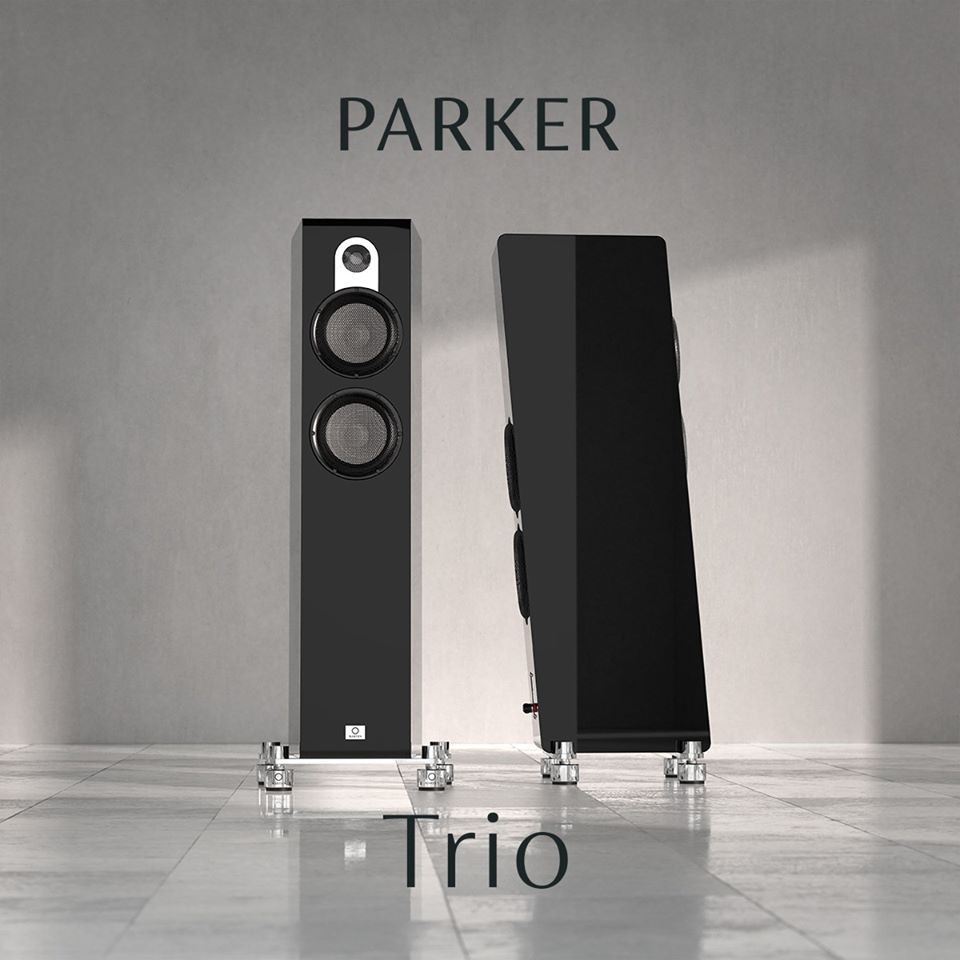

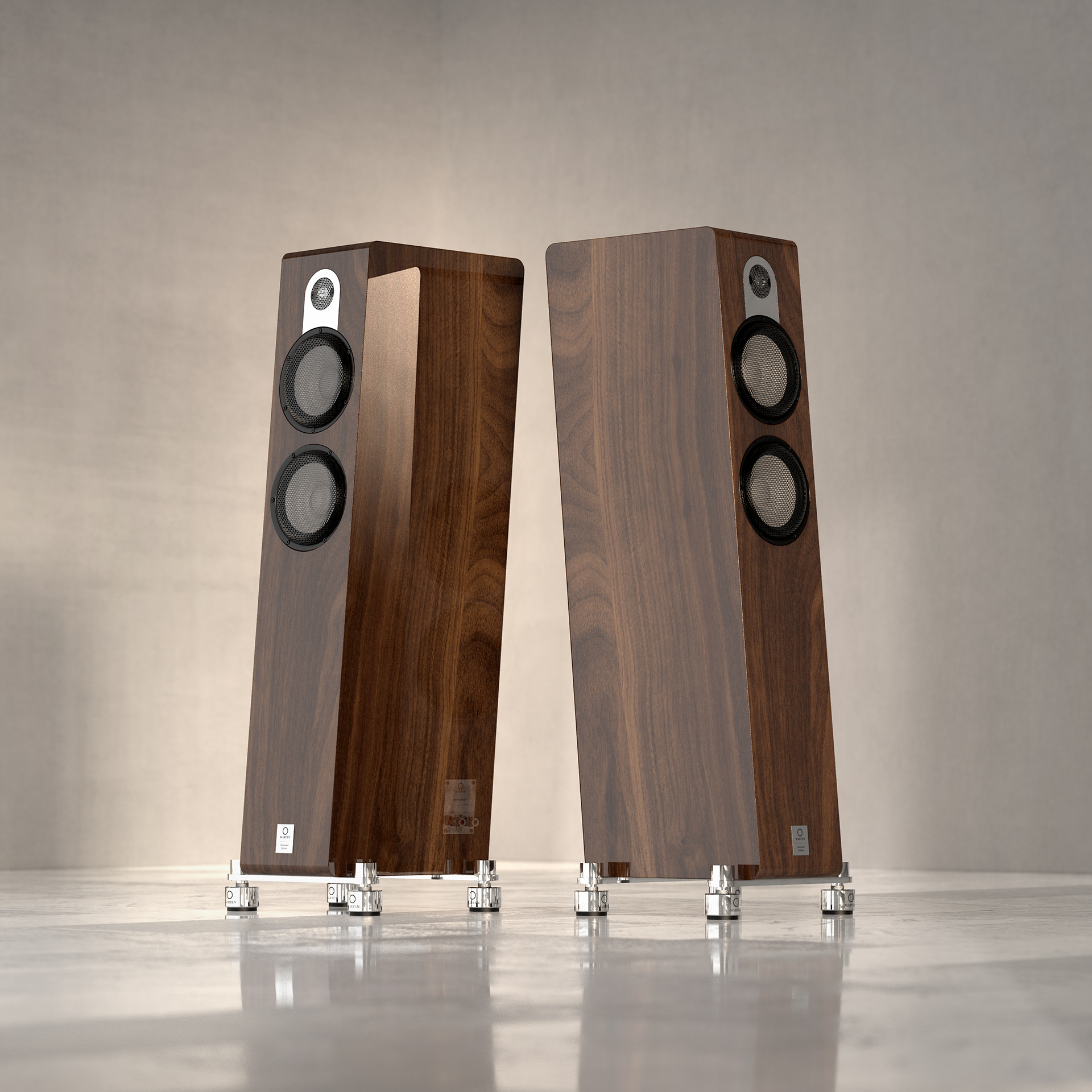

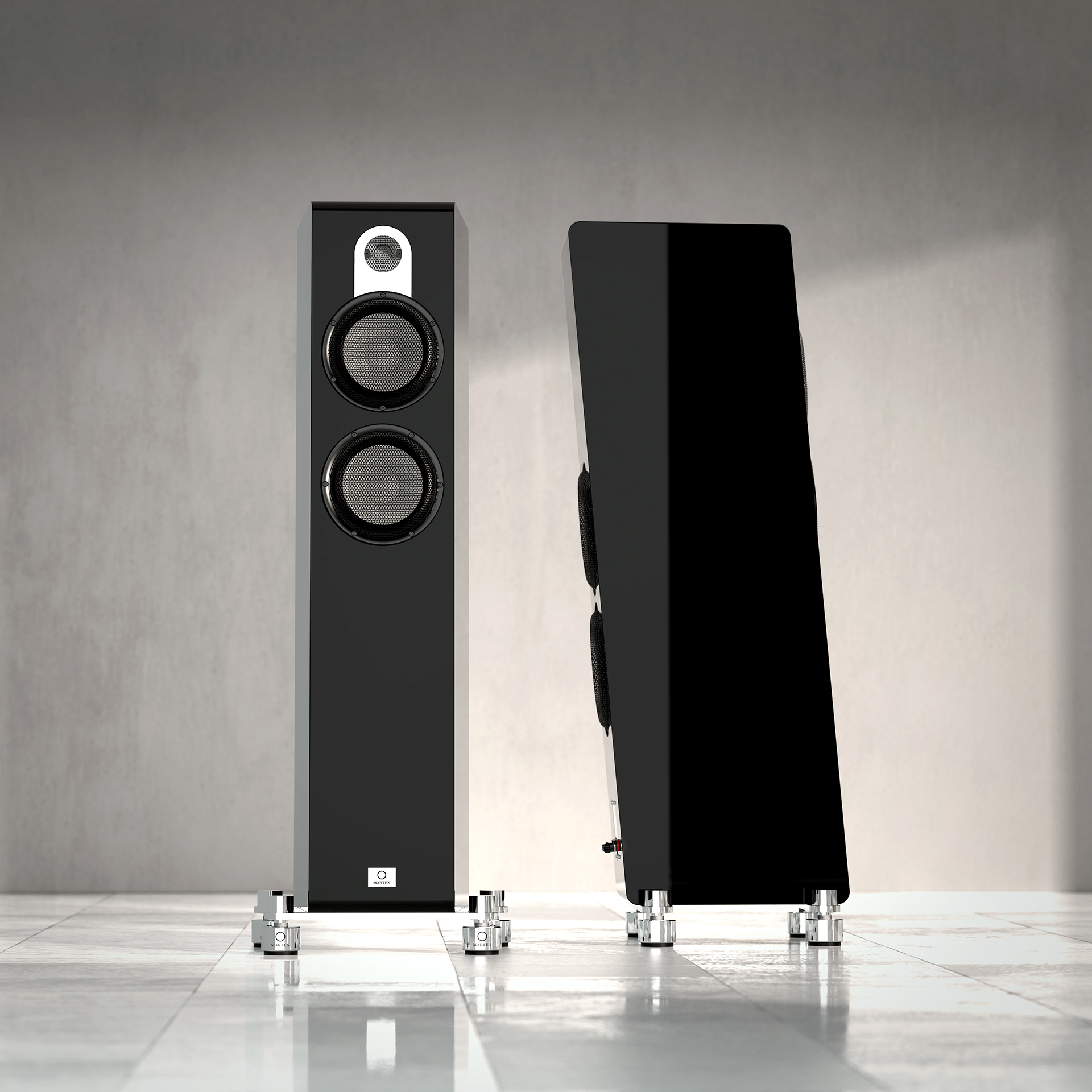

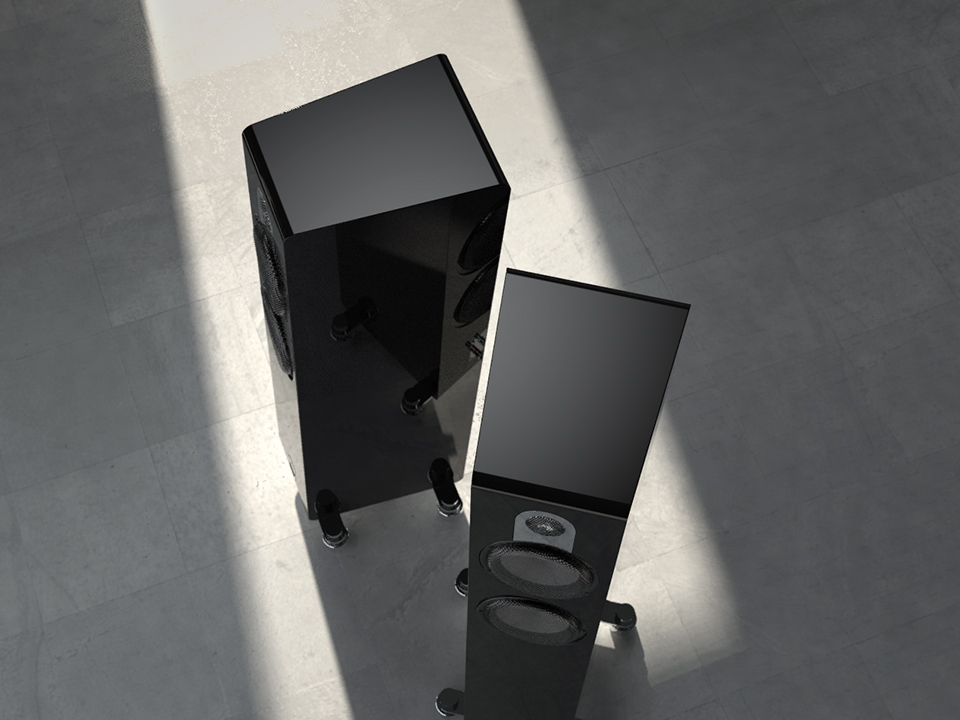

Parker Trio
Parker Trio is a floor standing loudspeaker of the Parker series. New for 2020, the series sits squarely in the middle of our product range – a position which has long been held by our Heritage series. Parker elevates our loudspeakers in this class to a whole new level.
WHAT YOU GET
Same team. New players.
With custom designed technology and perfectly balanced build techniques, Parker Trio is new in every way, but remains faithful to the Marten way of recreating sound as it is in life. With extreme resonance reduction, the cabinet is truly free of the soundstage, letting music and emotion take centre stage.
2.5-way floor-standing
Brand new custom designed drivers
2x bass/midrange drivers
Multi-diverse crossover technique
High sensitivity: 91 dB
CABINETS
Distortion free; pure and powerful.
The cabinet features sleek, tapering sides created from M-board, a multi-layered material offering extreme resonance reduction. Parker Trio is so resonance-free, it completely disappears within the soundstage. The newly designed cabinet balances visual appeal with low-impact on sound.

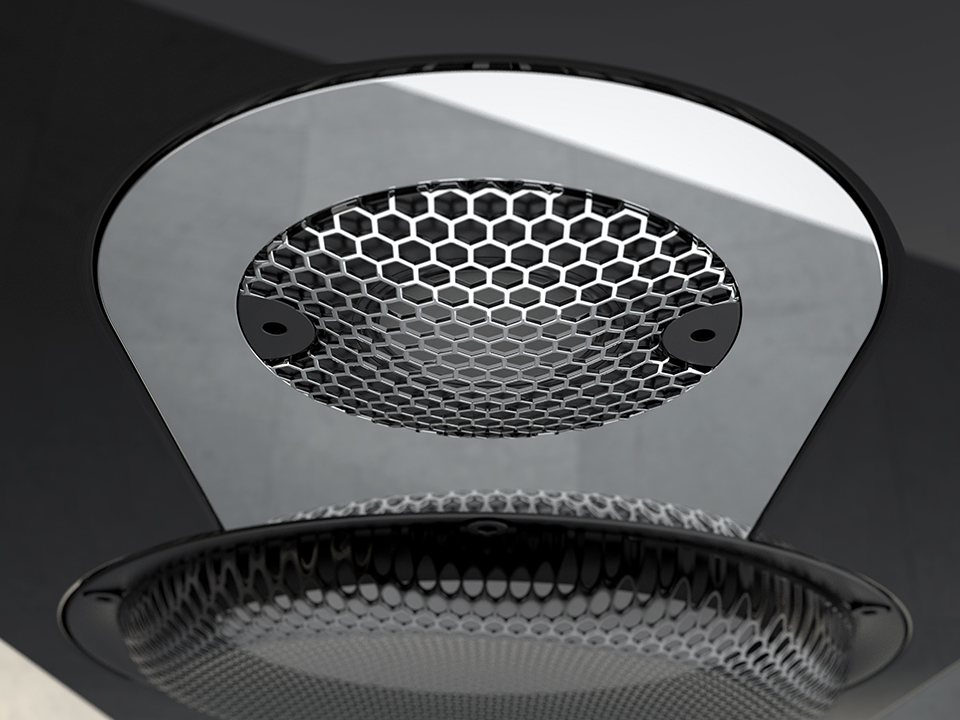

CERAMIC DRIVERS
Smaller scale design for bigger results.
Ceramic drivers are custom designed by Leif Olofsson to meet the needs of a loudspeaker in this class. Each unit has a very long linear excursion and utilises the powerful Neodynium magnet system for control. Custom designed components allows a more holistic way of building a system, making Parker Trio a super-refined Marten speaker.

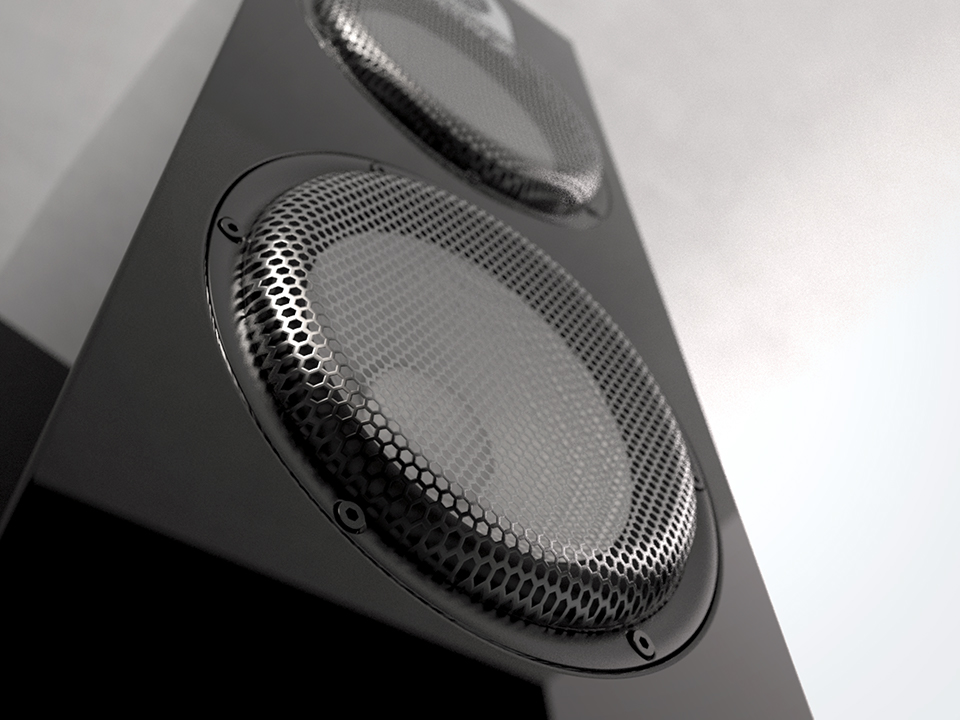

BASS AND MIDRANGE
Full. Controlled. Dynamic.
Designed for the system, two 7.5” bass/midrange ceramic drivers offer a large surface area resulting in a large, precise soundstage and great dynamics. While passive radiators give the control and dynamics needed for Parker Trio. A speaker of this class demands the ultimate in bass response.
CROSSOVER
A harder working crossover.
A multi-diverse crossover technique was developed through hours of listening and testing, plus rigorous simulation, calculation and measurement. We’ve really put the work in with this crossover, using the best components and precisely tuning it to work with the system.

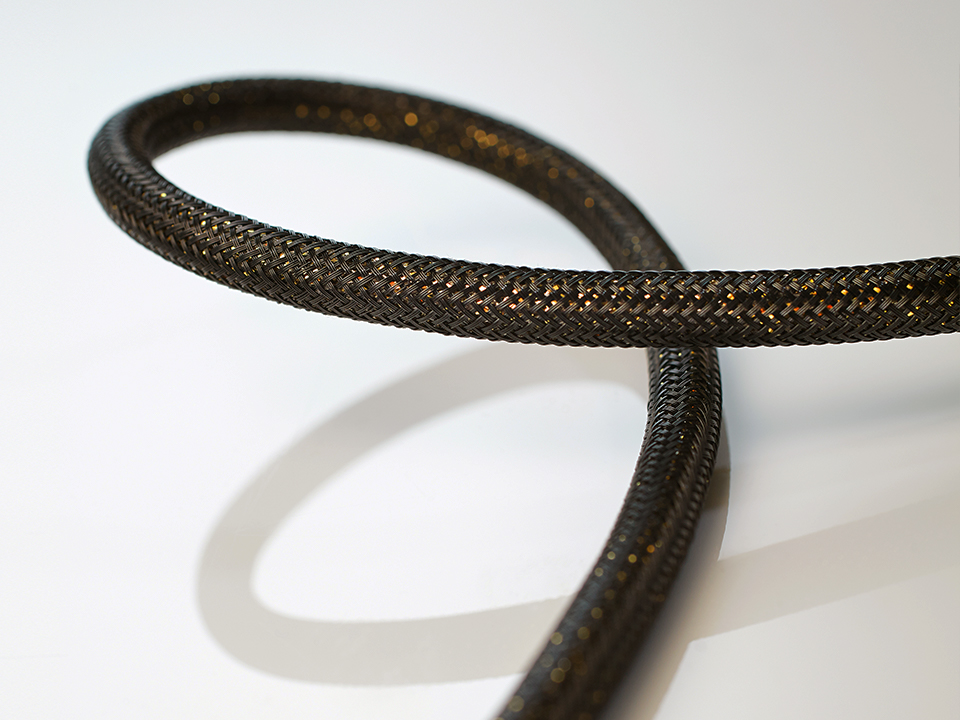

INTERNAL WIRING
Premium cables for purer sound.
We use Jorma Design internal wiring, for its exemplary quality and performance. Handmade in Sweden, the cables use separate + and – for enhanced shielding and the highest quality Copper. This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our precision design and build. Jorma Design delivers exactly what a Marten speaker demands.

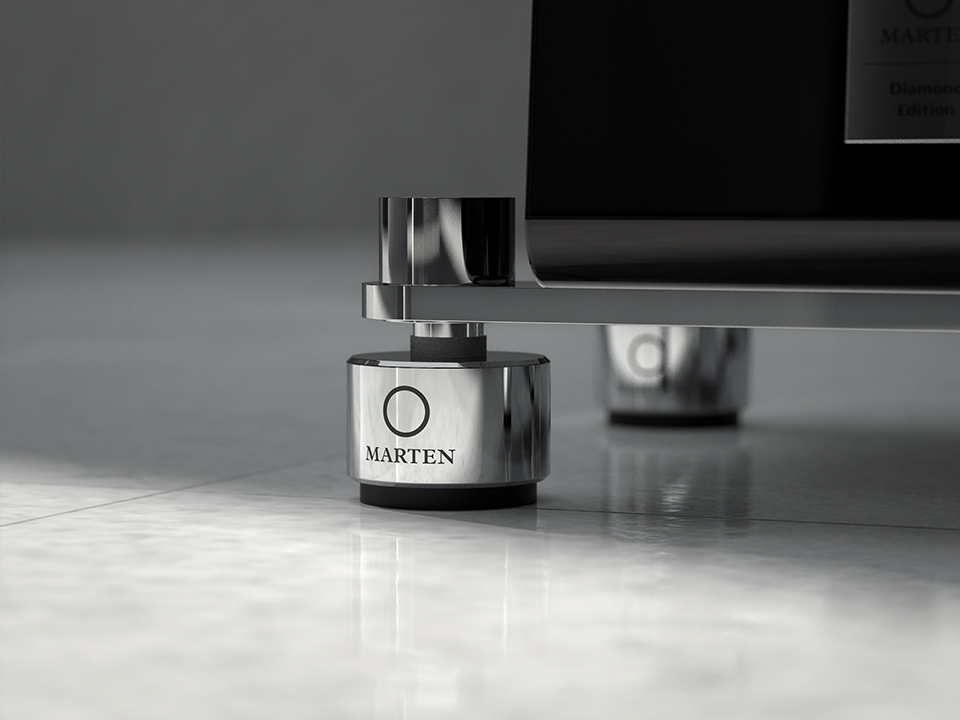

FEET
A new level of isolation.
The Marten IsoPucks by ISO Acoustics reduce resonance, freeing the speaker of the soundstage while delivering controlled sound and detailed, rich bass.

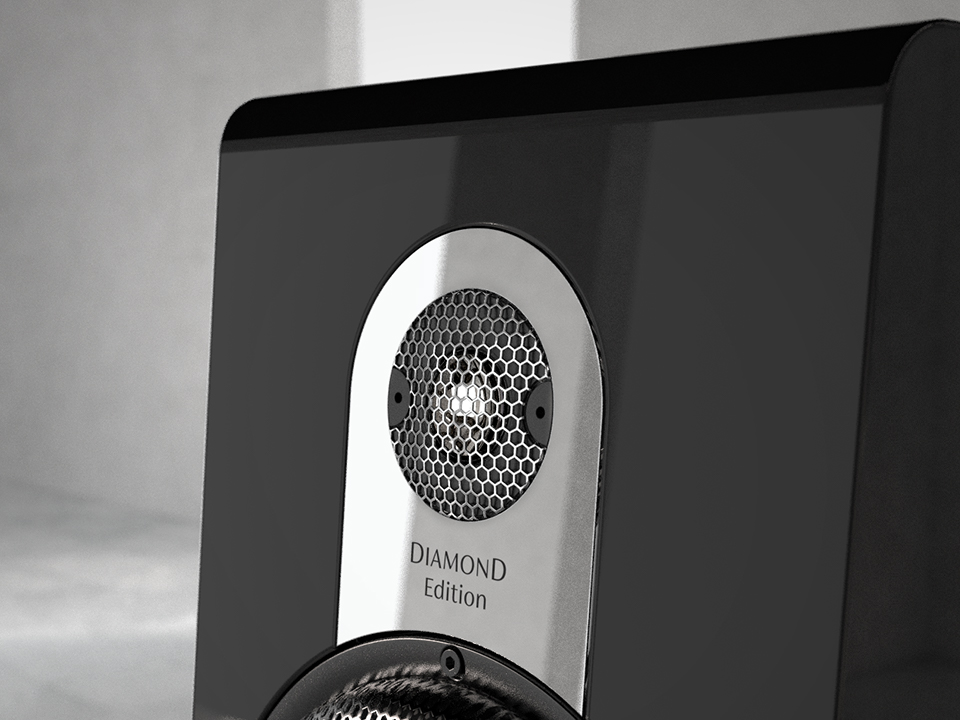

DIAMOND EDITION
Upgrade to elite.
Parker Trio can be upgraded to Diamond edition, featuring a Diamond tweeter, more advanced crossover components, improved terminals and Jorma Statement internal cables. All models in the Parker series can be elevated to the ultimate in premium loudspeakers.
Technical specifications
Speaker (front)
1” pure ceramic tweeter (upgradable to Diamond)
2 x 7.5” ceramic bass/midrange
Speaker (back)
2 x 9” Aluminium passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
26-40000 Hz +-2dB
Power rating
300 W
Sensitivity
91 dB/2.83 V
Impedance
6 ohms (3.1 Ohms min)
Type
2.5-way
Crossover frequency
Multi diverse order,
2200 Hz

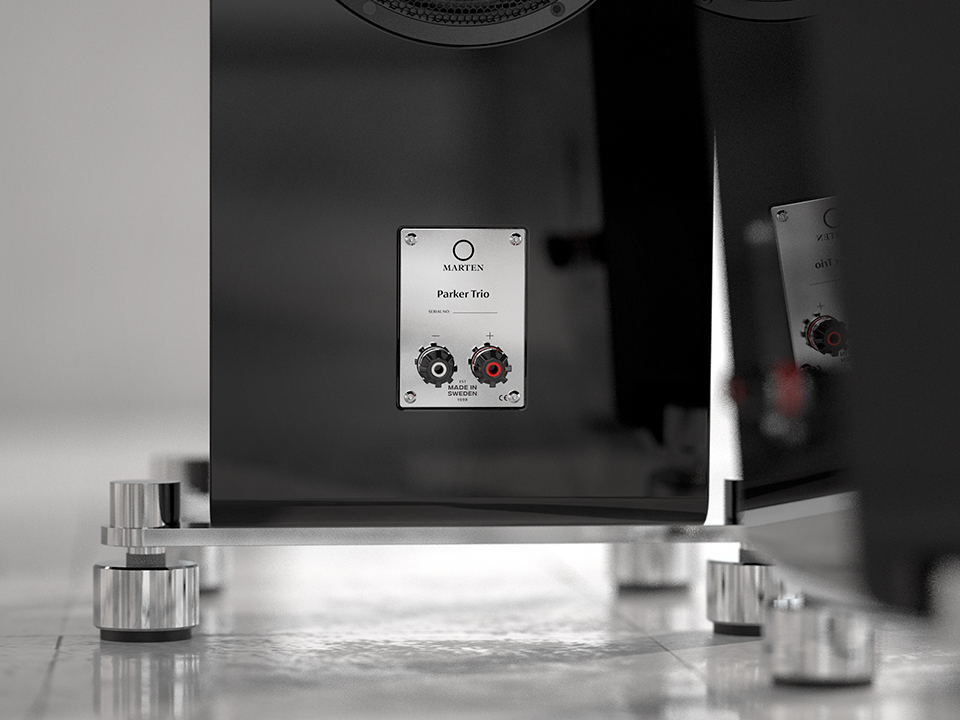

Terminals
Single-wiring
WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M-board
Piano Walnut, Matte Walnut or Piano Black
Stands and feet
Mirror polished stainless steel with Marten IsoPucks
Dimensions W x H x D
22 – 28 x 117 x 36 cm
(8.7″ – 11” x 46″ x 14.2″)
Net weight
40 kg (89 lbs)

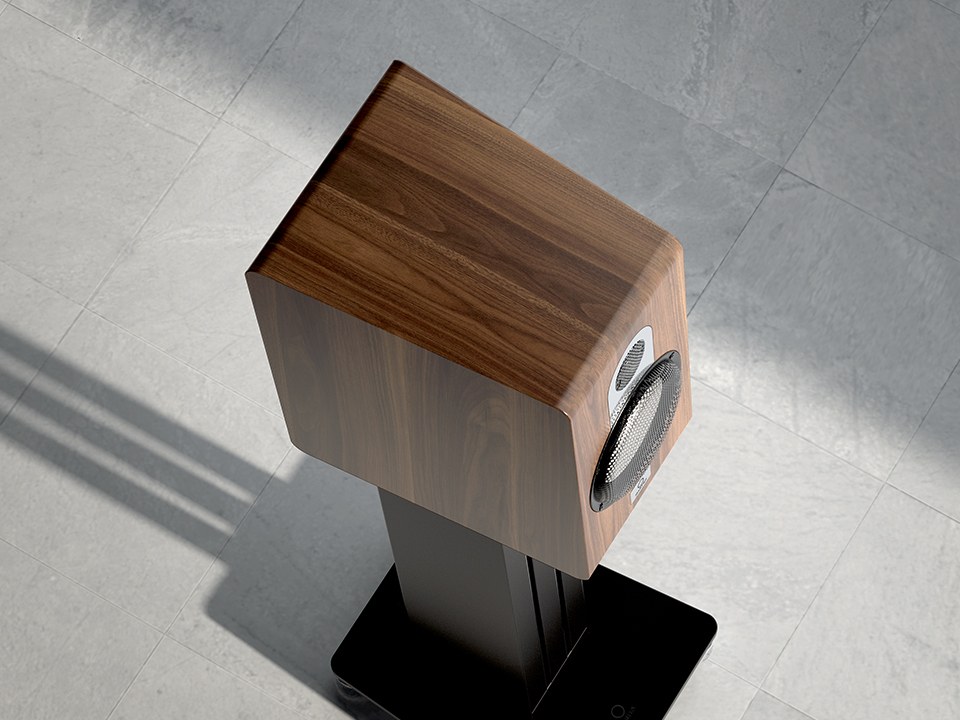

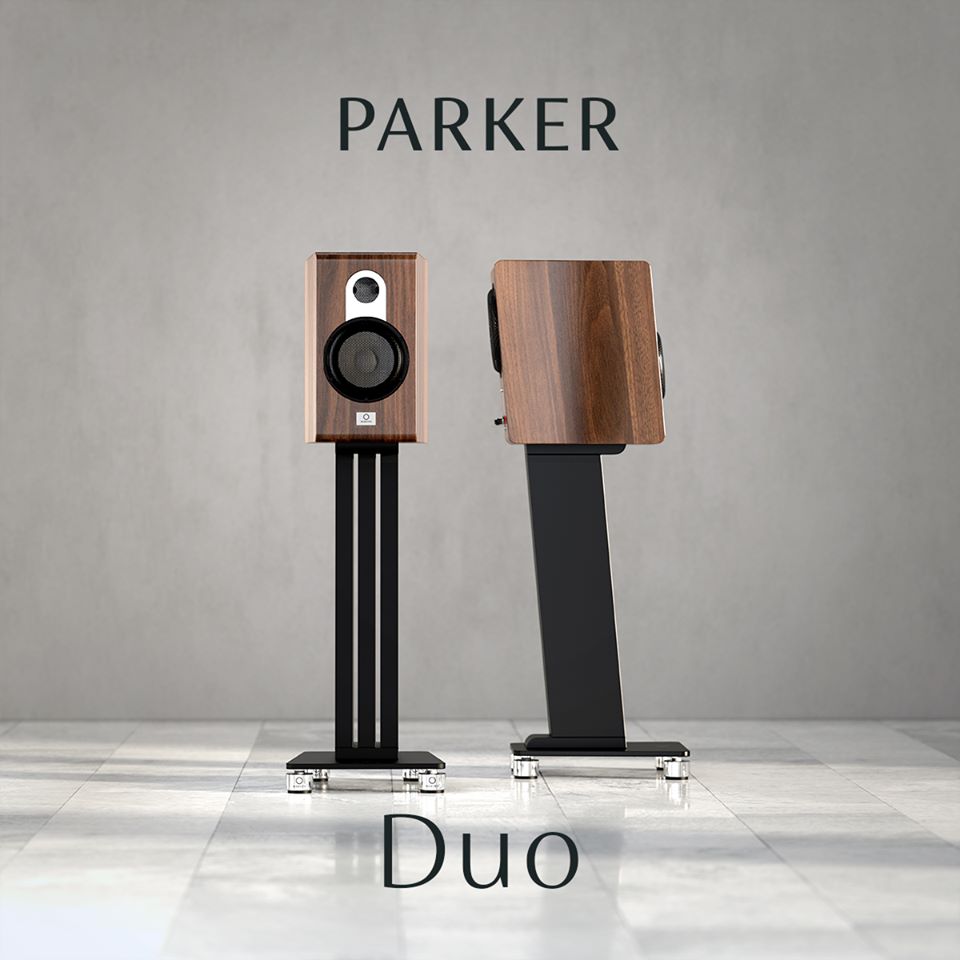

Parker Duo
Parker Duo is the stand speaker of the Parker series. New for 2020, the series sits squarely in the middle of our product range – a position which has long been held by our Heritage series. Parker elevates our loudspeakers in this class to a whole new level.
WHAT YOU GET
Same team. New players.
With custom designed technology and perfectly balanced build techniques, Parker Duo is new in every way, but remains faithful to the Marten way of recreating sound as it is in life. With extreme resonance reduction, the cabinet is truly free of the soundstage, letting music and emotion take centre stage.
2-way stand speaker
Brand new custom designed drivers
Multi-diverse crossover technique
High sensitivity: 88 dB
Marten custom stand (optional)
CABINETS
Distortion free; pure and powerful.
The cabinet features sleek, tapering sides created from M-board, a multi-layered material offering extreme resonance reduction. Parker Duo is so resonance-free, it completely disappears within the soundstage. The newly designed cabinet balances visual appeal with low-impact on sound.

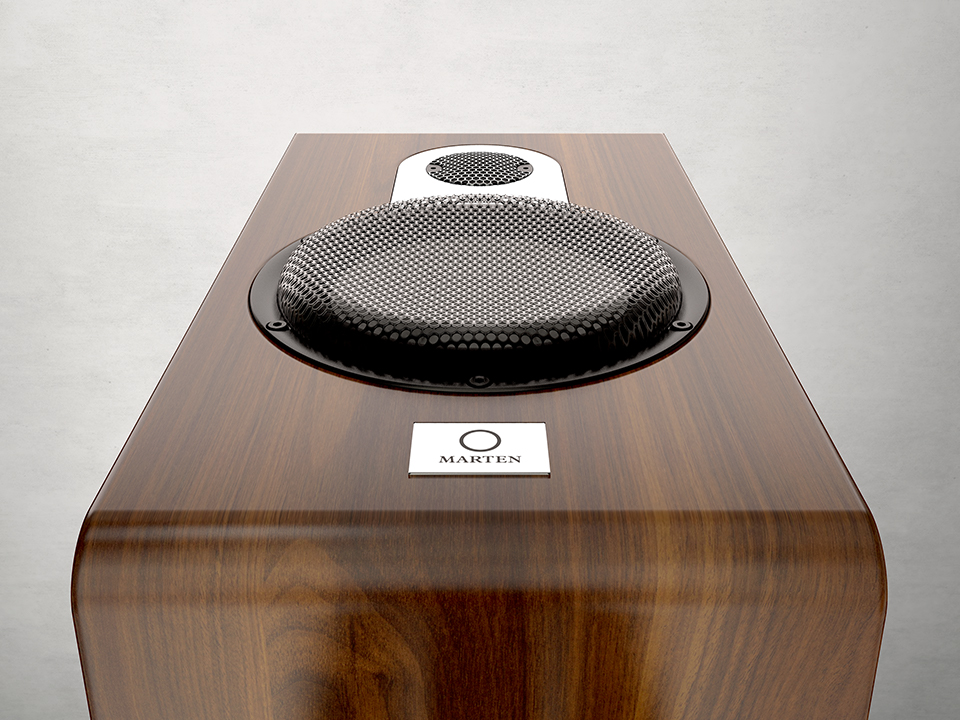

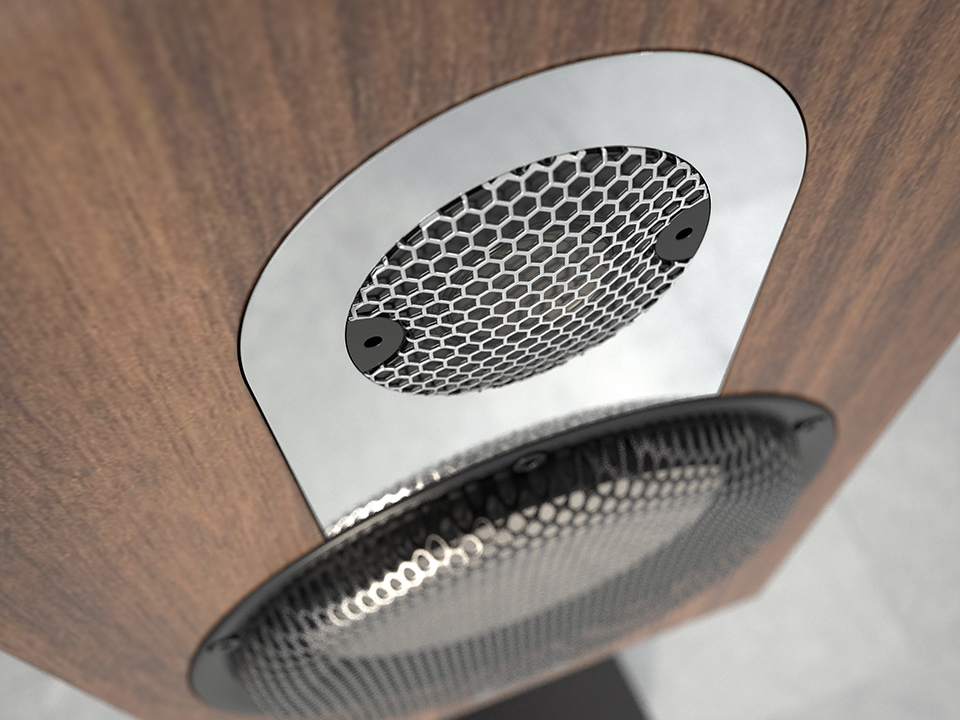

CERAMIC DRIVERS
Smaller scale design for bigger results.
Ceramic drivers are custom designed by Leif Olofsson to meet the needs of a loudspeaker in this class. Each unit has a very long linear excursion and utilises the powerful Neodynium magnet system for control. Custom designed components allows a more holistic way of building a system, making Parker Duo a super-refined Marten speaker.
BASS AND MIDRANGE
Full. Controlled. Dynamic.
Designed for the system, the 7.5” bass/midrange ceramic driver offers a large surface area resulting in a large, precise soundstage and great dynamics. While the passive radiator gives the control and dynamics needed for Parker Duo. A speaker of this class demands the ultimate in bass response.
CROSSOVER
A harder working crossover.
A multi-diverse crossover technique was developed through hours of listening and testing, plus rigorous simulation, calculation and measurement. We’ve really put the work in with this crossover, using the best components and precisely tuning it to work with the system.
INTERNAL WIRING
Premium cables for purer sound.
We use Jorma Design internal wiring, for its exemplary quality and performance. Handmade in Sweden, the cables use separate + and – for enhanced shielding and the highest quality Copper. This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our precision design and build. Jorma Design delivers exactly what a Marten speaker demands.

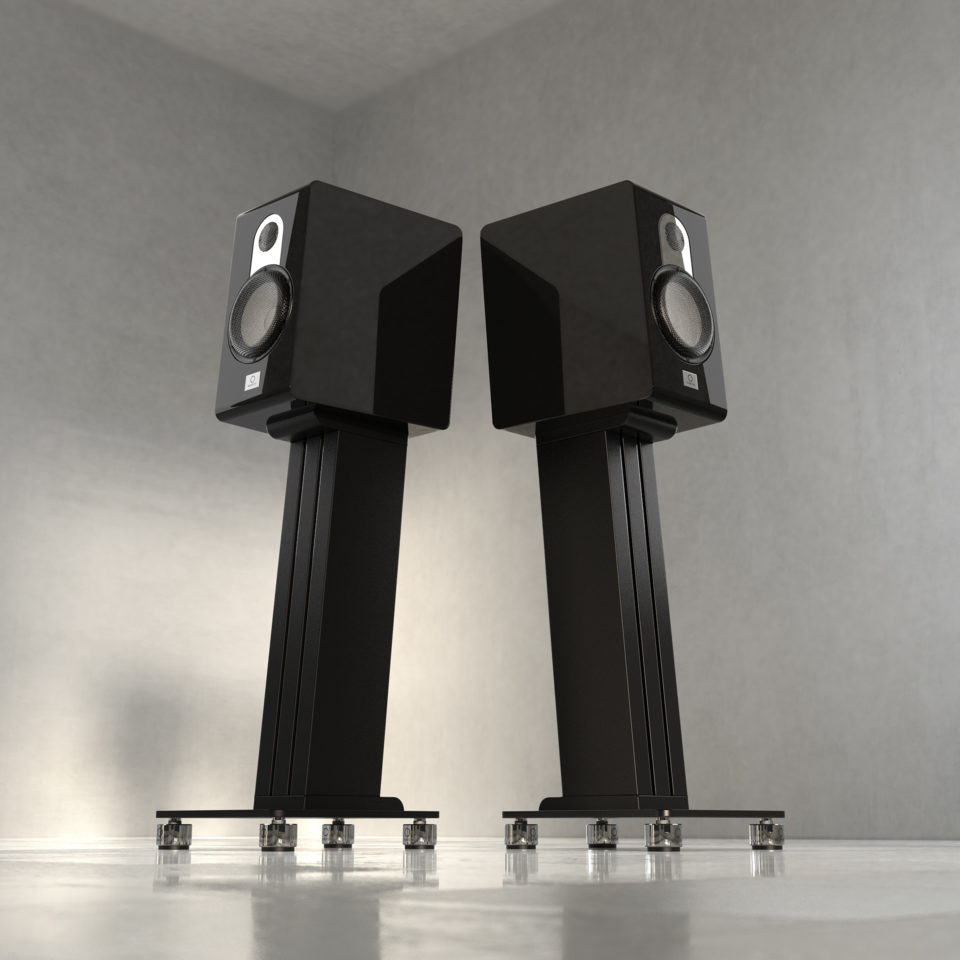

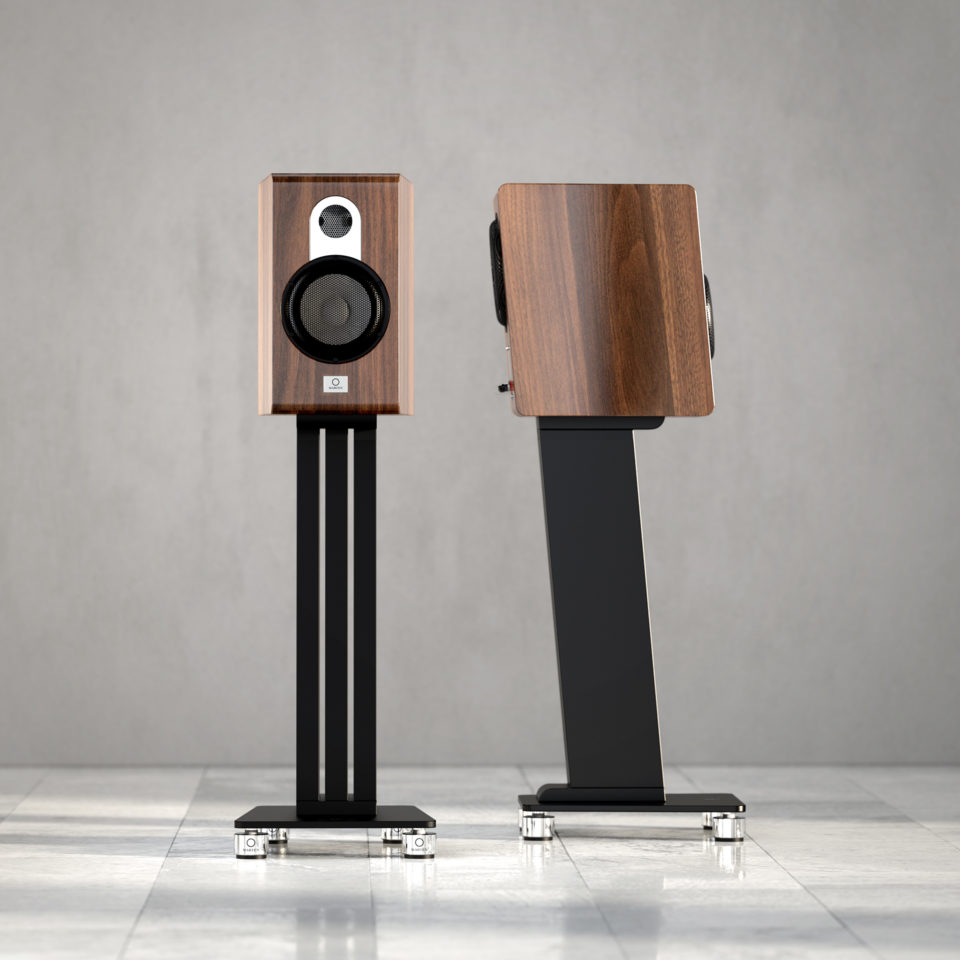

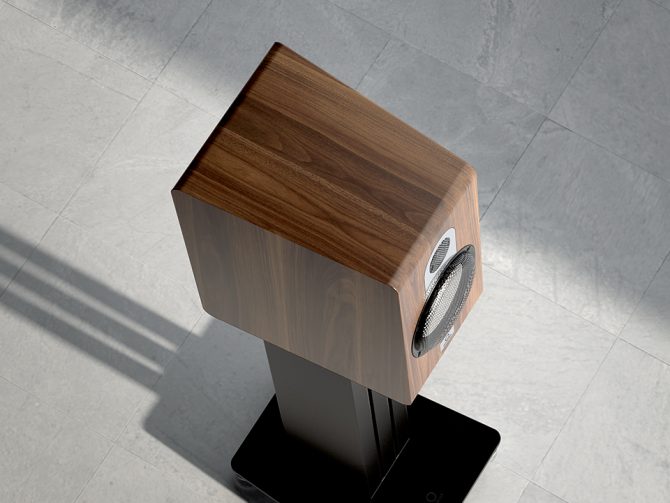

STANDS AND FEET
A new level of isolation.

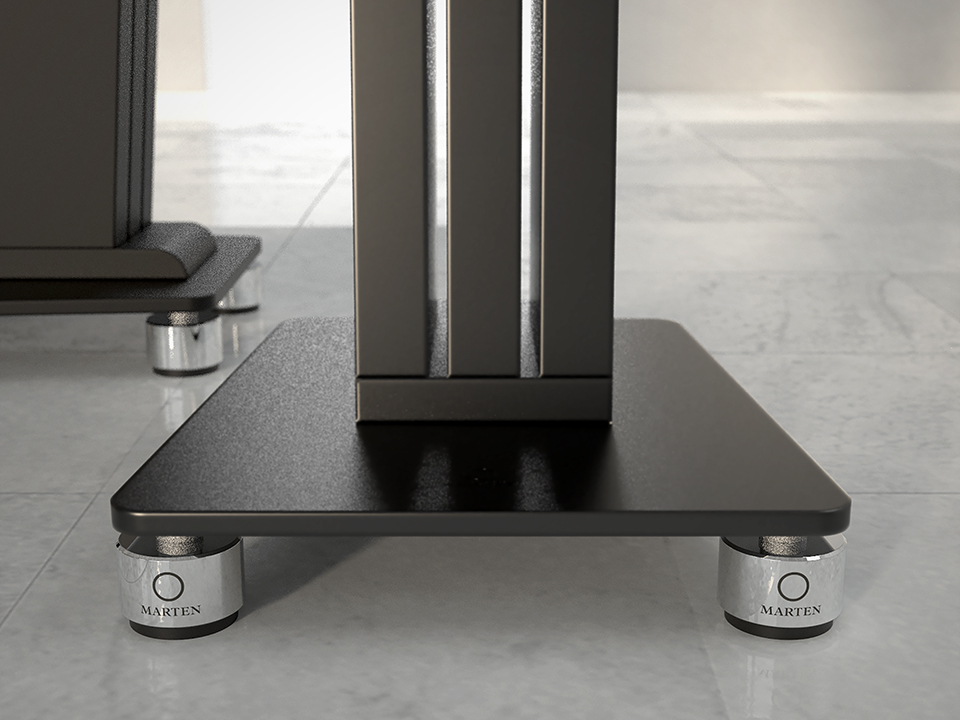

The optional stand is Marten designed so it works in concert with Parker Duo. Three extremely rigid pillars are mounted on a steel base plate which is weighted for stability.
The Marten IsoPucks by ISO Acoustics reduce resonance further, freeing the speaker of the soundstage while delivering controlled sound and detailed, rich bass.

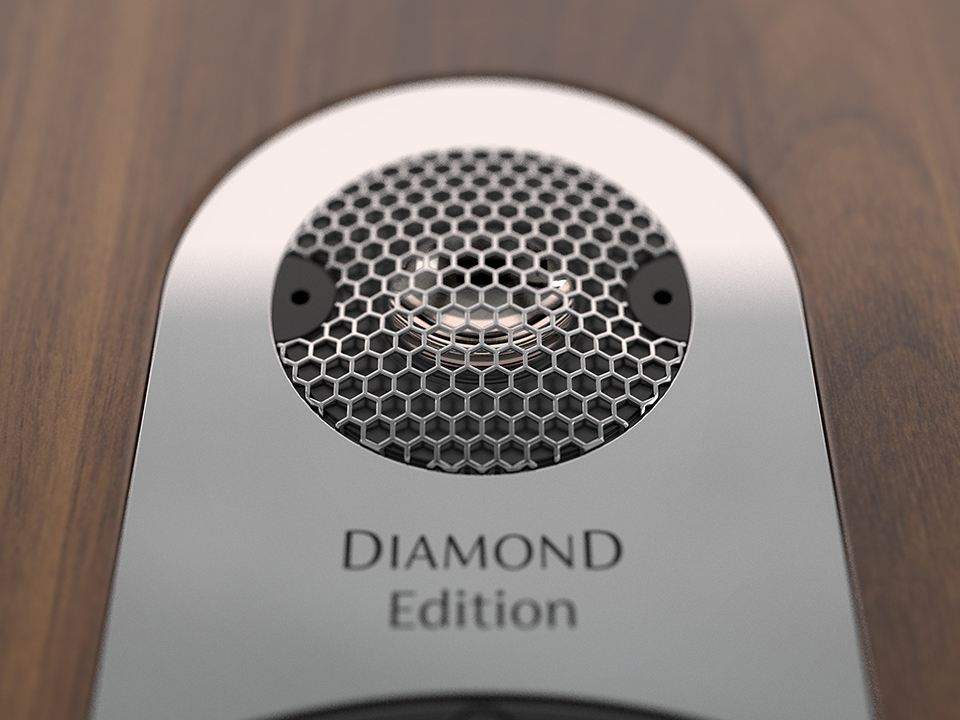

DIAMOND EDITION
Upgrade to elite.
Parker Duo can be upgraded to Diamond edition, featuring a Diamond tweeter, more advanced crossover components, improved terminals and Jorma Statement internal cables. All models in the Parker series can be elevated to the ultimate in premium loudspeakers.
TECHNICAL SPECIFICATIONS
Speaker (front)
1” pure ceramic tweeter (upgradable to Diamond)
7.5” ceramic bass/midrange
Speaker (back)
9” Aluminium passive radiator
Crossover components
Ceramic version
Polypropylene capacitors and copper foil inductors
Diamond edition
Copper foil capacitors and copper foil inductors
Frequency range
36-40000 Hz +-2dB
Power rating
200 W
Sensitivity
88 dB/2.83 V
Impedance
6 ohms (3.1 Ohms min)
Type
2-way
Crossover frequency
Multi diverse order,
2200 Hz

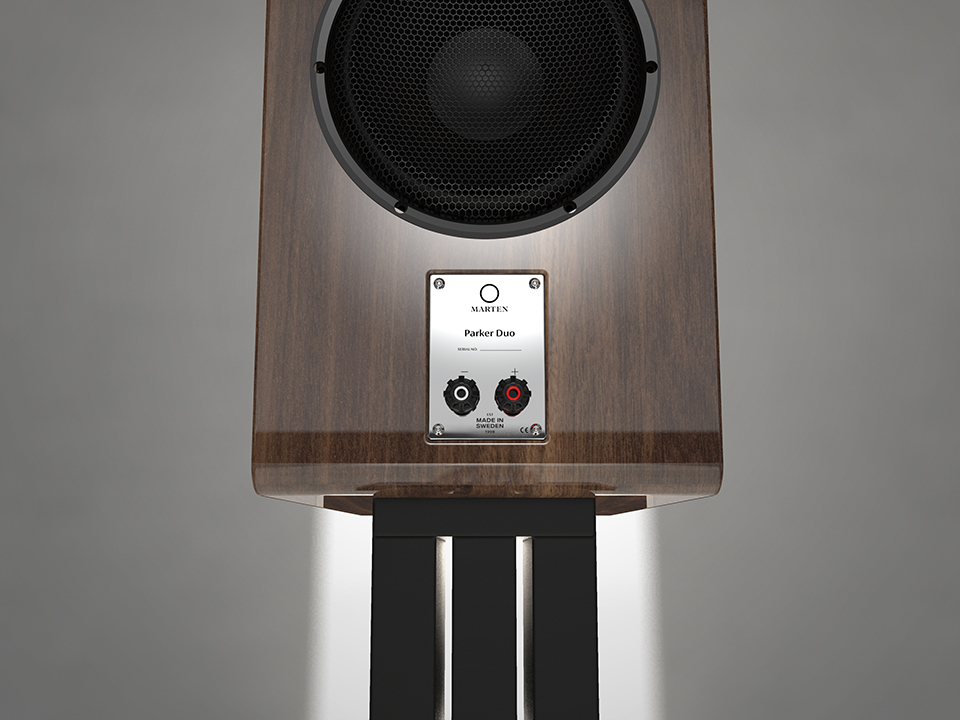

Terminals
Single-wiring
WBT Nextgen
Internal wiring
Jorma Design
Cabinet
35 mm M-board
Piano Walnut, Matte Walnut or Piano Black
Stands and feet (optional)
Matte Black with mirror polished Marten IsoPucks
35 – 28 x 75 x 40 cm
(13.8″ – 11” x 29.5”” x 15.7″)
21 kg (46 lbs)
Dimensions W x H x D
22 – 28 x 42 x 36 cm
(8.7″ – 11” x 16.5”” x 14.2″)
Net weight
18 kg (40 lbs)
