ELAC Concentro S 507
11,000euro
2020年1月発売

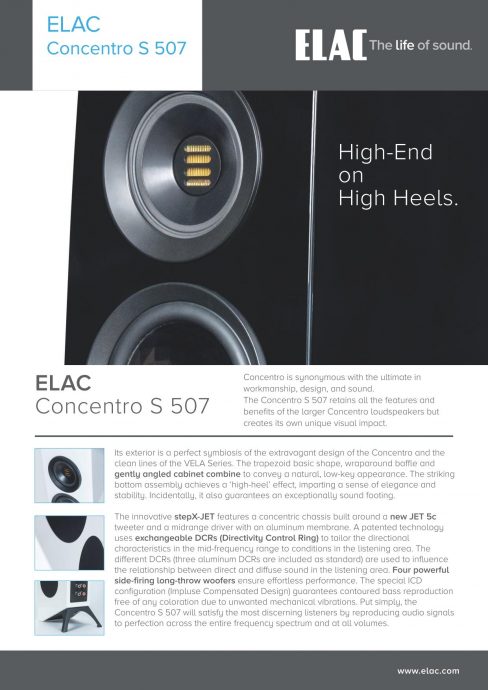

Concentro is synonymous with the ultimate in workmanship, design, and sound. The Concentro S 507 retains all the features and benefits of the larger Concentro loudspeakers but creates its own unique visual impact.

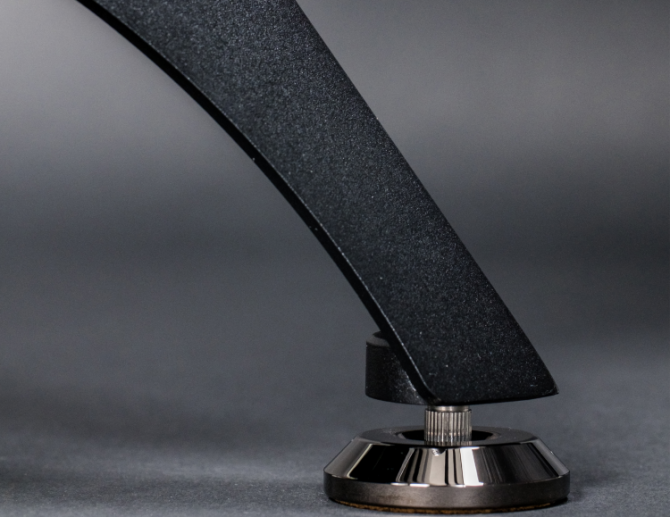

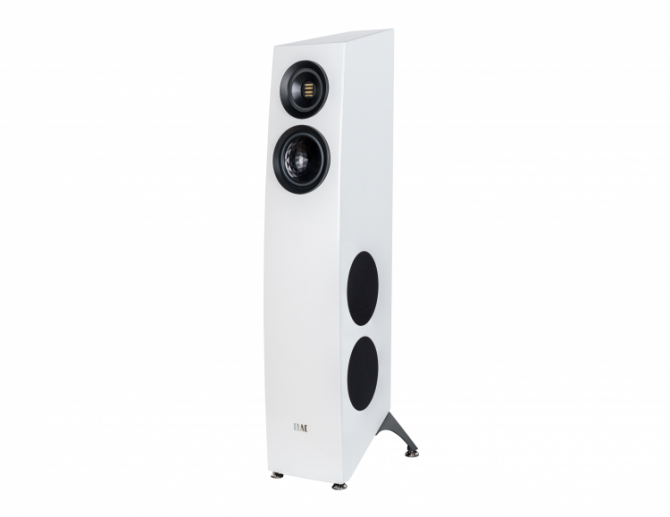

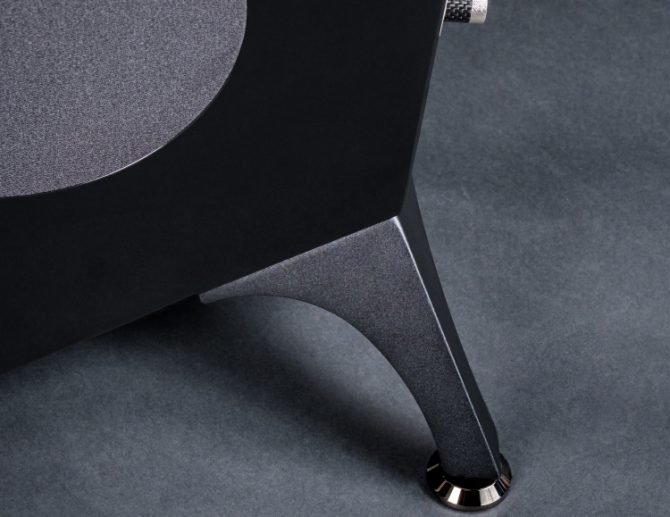

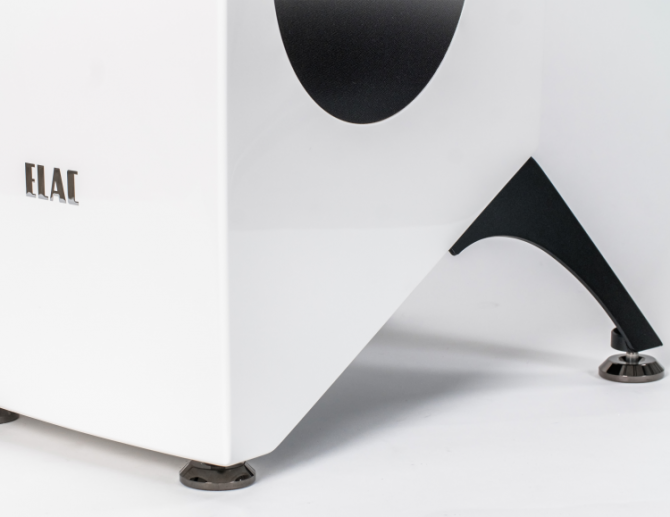

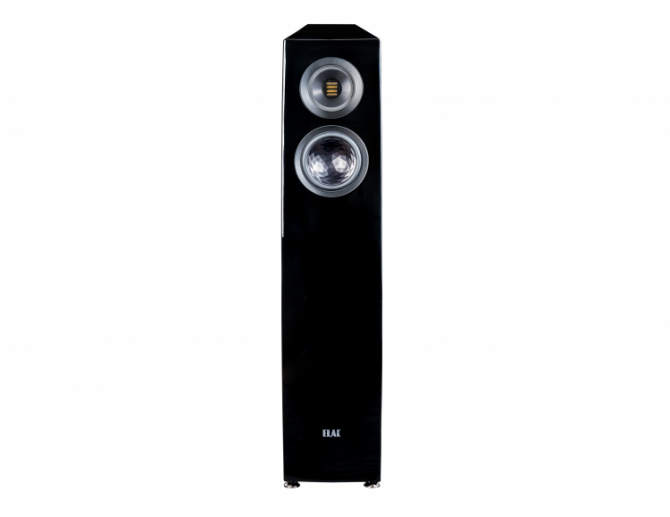

Its exterior is a perfect symbiosis of the extravagant design of the Concentro and the clean lines of the VELA Series. The trapezoid basic shape, wraparound baffle, and gently angled cabinet combine to convey a natural, low-key appearance. The striking bottom assembly achieves a ‘high-heel’ effect, imparting a sense of elegance and stability. Incidentally, it also guarantees an exceptionally sound footing.

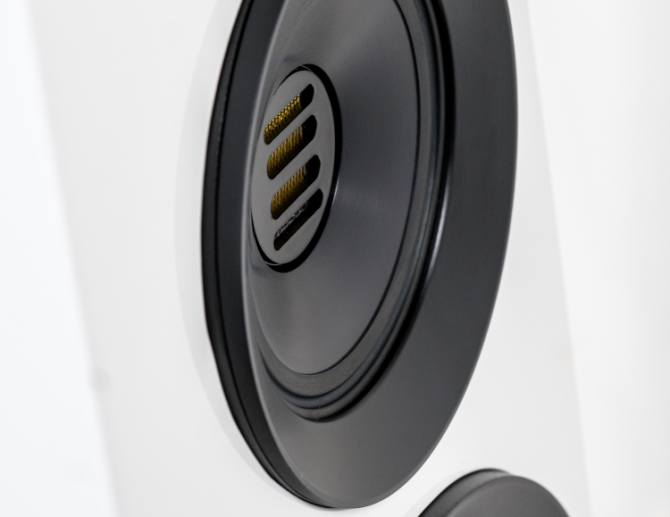

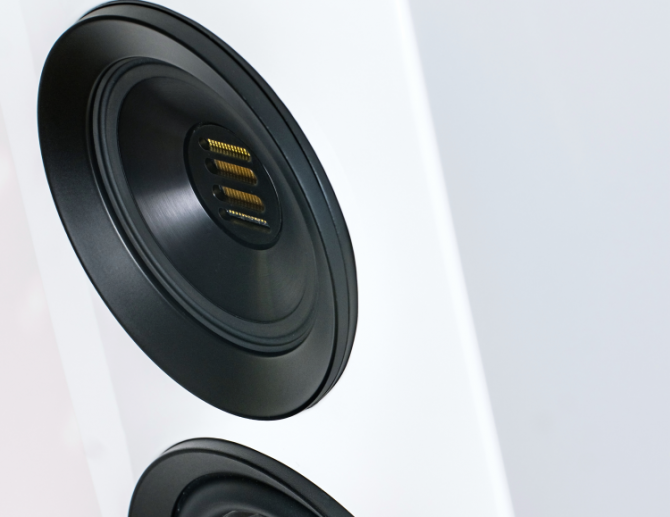

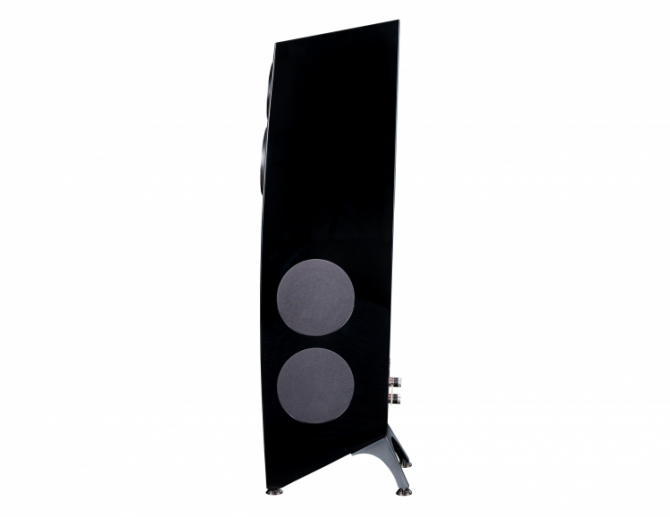

The innovative step X-JET features a concentric chassis built around a new JET 5c tweeter and a midrange driver with an aluminum membrane. The patented technology uses exchangeable DCRs (Directivity Control Ring) to tailor the directional characteristics in the mid-frequency range to conditions in the listening area. The different DCRs (three aluminum DCRs are included as standard) are used to influence the relationship between direct and diffuse sound in the listening area. Four powerful side-firing long-throw woofers ensure effortless performance. The special ICD configuration (Impluse Compensated Design) guarantees contoured bass reproduction free of any coloration due to unwanted mechanical vibrations. Put simply, the Concentro S 507 will satisfy the most discerning listeners by reproducing audio signals to perfection across the entire frequency spectrum and at all volumes.

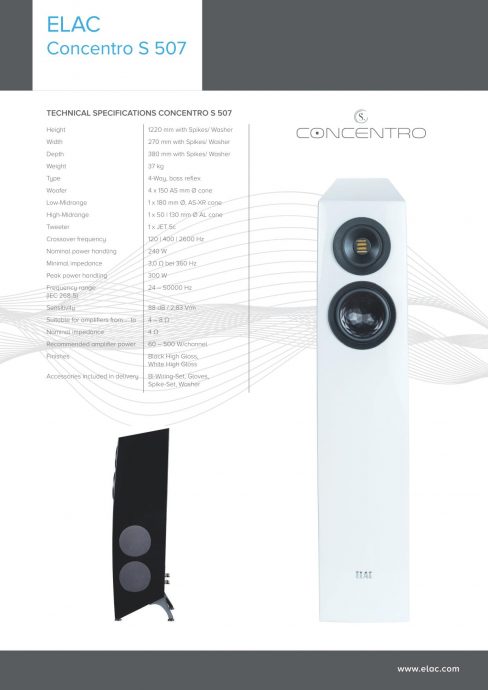

SPECIFICATIONS
Height: 1220mm with Spikes/Washer
Width: 270mm with Spikes/Washer
Depth: 380mm with Spikes/Washer
Weight: 37 kg
Type: 4-Way, Bass Reflex
Woofer: 4 x 150mm AS Cone
Low-Midrange: 1 x 180mm AS-XR Cone
High-Midrange: 1×50|130mm AL Cone
Tweeter :1 x Jet 5c
Crossover Frequency: 120 | 400 | 2600 Hz
Nominal power handling: 240 Watts
Minimum Impedance: 3.0 Ohms @ 360 Hz
Peak Power Handling: 300 Watts
Frequency Range: 24 – 50,000 Hz
Sensitivity: 88 dB / 2.83V/m
Suitable for Amplifiers: 4 – 8 ohms
Nominal Impedance: 4 Ohms
Recommended amplifier power: 60 – 500 Watts per channel
Finishes: Black High Gloss, White High Gloss

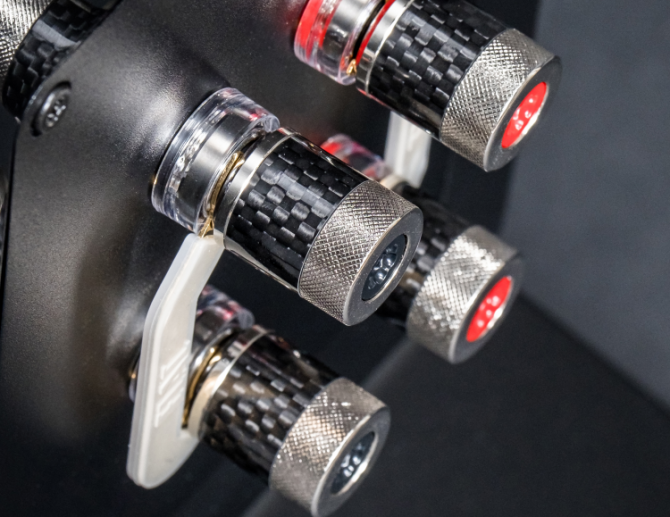

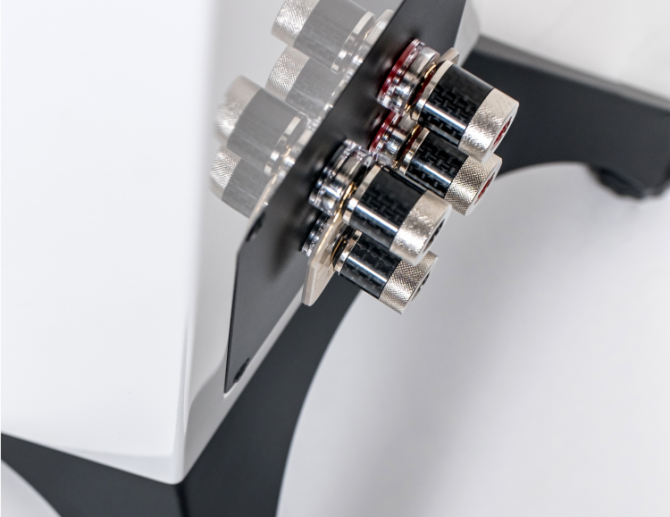

Accessories Included: Bi-Wiring Set, Gloves, Spike Set, Washer


« »
