YG Acoustics INVINCIBLE の詳細発表!!!

海外ニュース速報 [World] 新製品速報

YG Acoustics

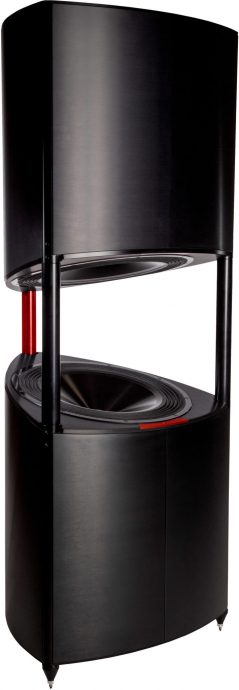

InVincible Signature Red Edition

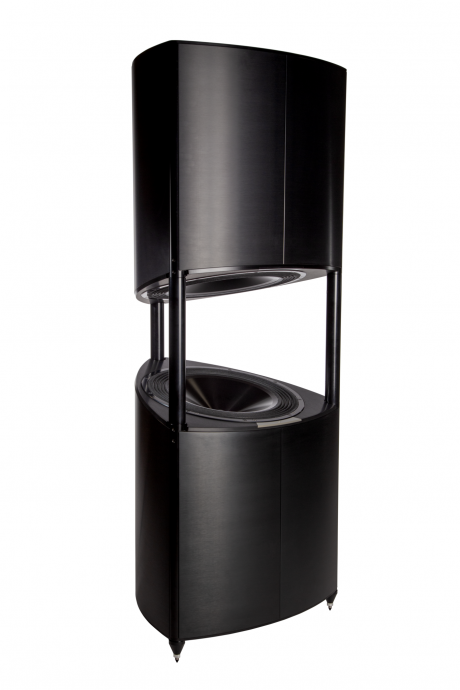

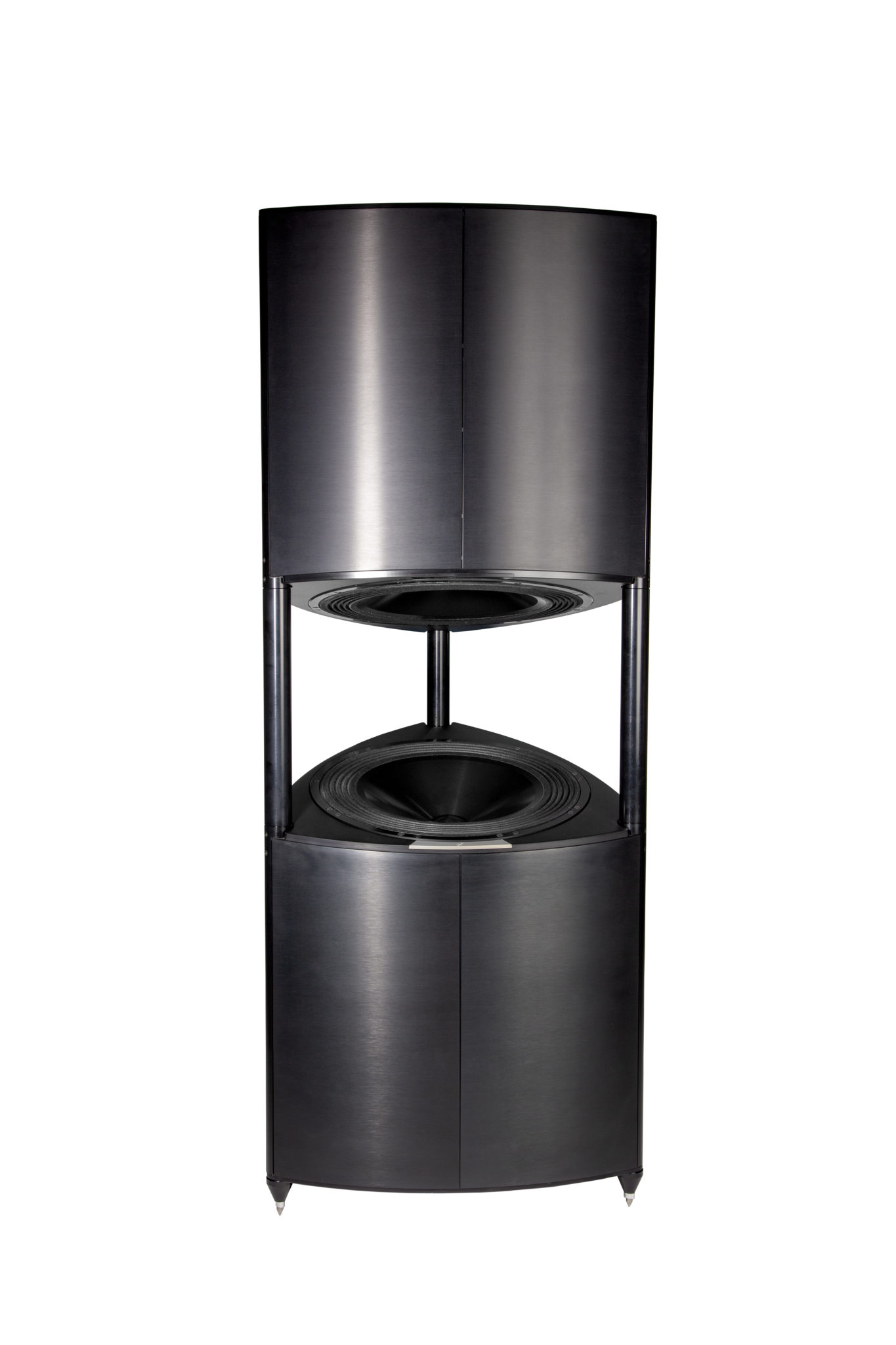

InVincible 21.2 (上下2ユニット)

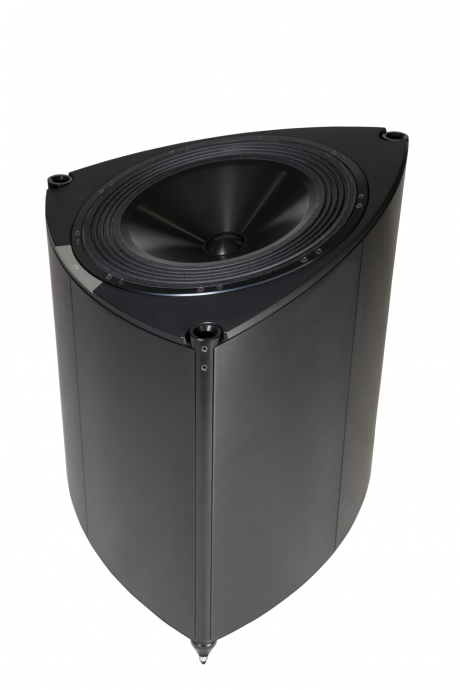

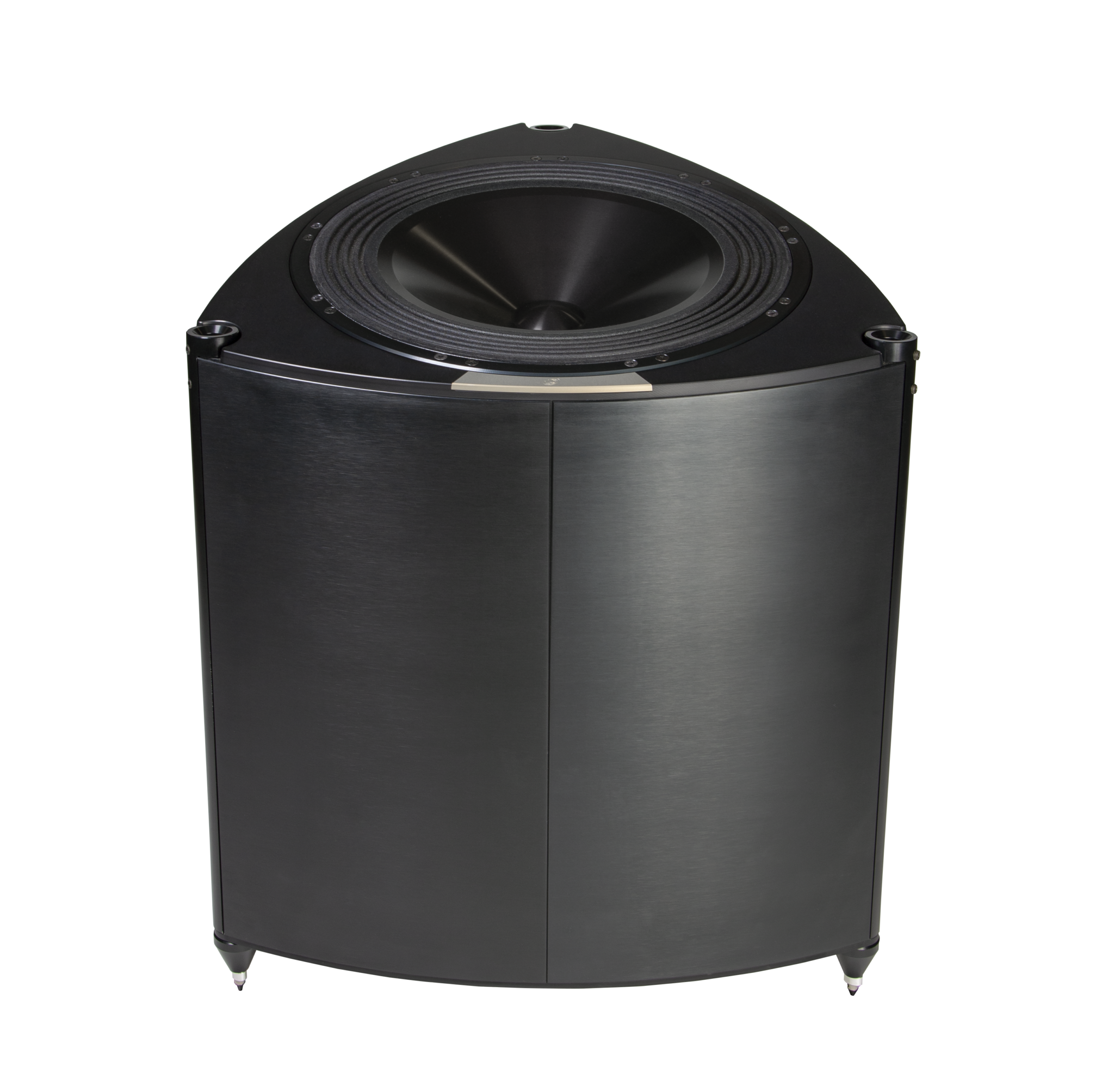

InVincible 21.1 (下1ユニット)

InVincible™ is the world’s first hyper-high-end sub-bass speaker. It was created
to solve a specific problem: owners of the world’s finest flagship speakers often
felt that adding a subwoofer to their system caused more drawbacks than
improvements. YG Acoustics™ addressed the issue by creating a truly extreme
solution, a no-holds-barred assault on everything deemed possible in the
sub-bass realm. InVincible – pure authority, handmade in U.S.A.

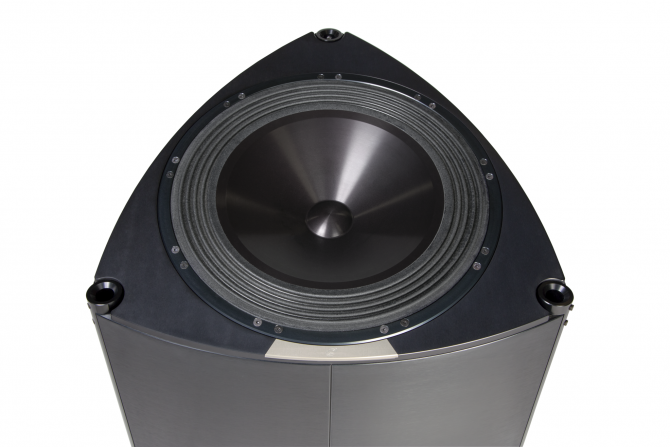

Innovations include, first and foremost, the largest BilletCore™ driver ever made
at 53 cm diameter (21”). The cone is machined from a massive 30 kg (66 lb) slab
of aircraft-grade aluminum. When finished it weighs 411 grams (14.5 oz). The
basket is also CNC-machined in-house, then precisely assembled from 238 parts
using lab-grade alignment and tolerances.

The dedicated built-in amplifier boasts up to 6,000 watts of RMS power for
unrestricted dynamics. In a world filled with offshore-outsourced electronics, this
amplifier stands out by incorporating a real high-end, custom, U.S.-made class D
module.

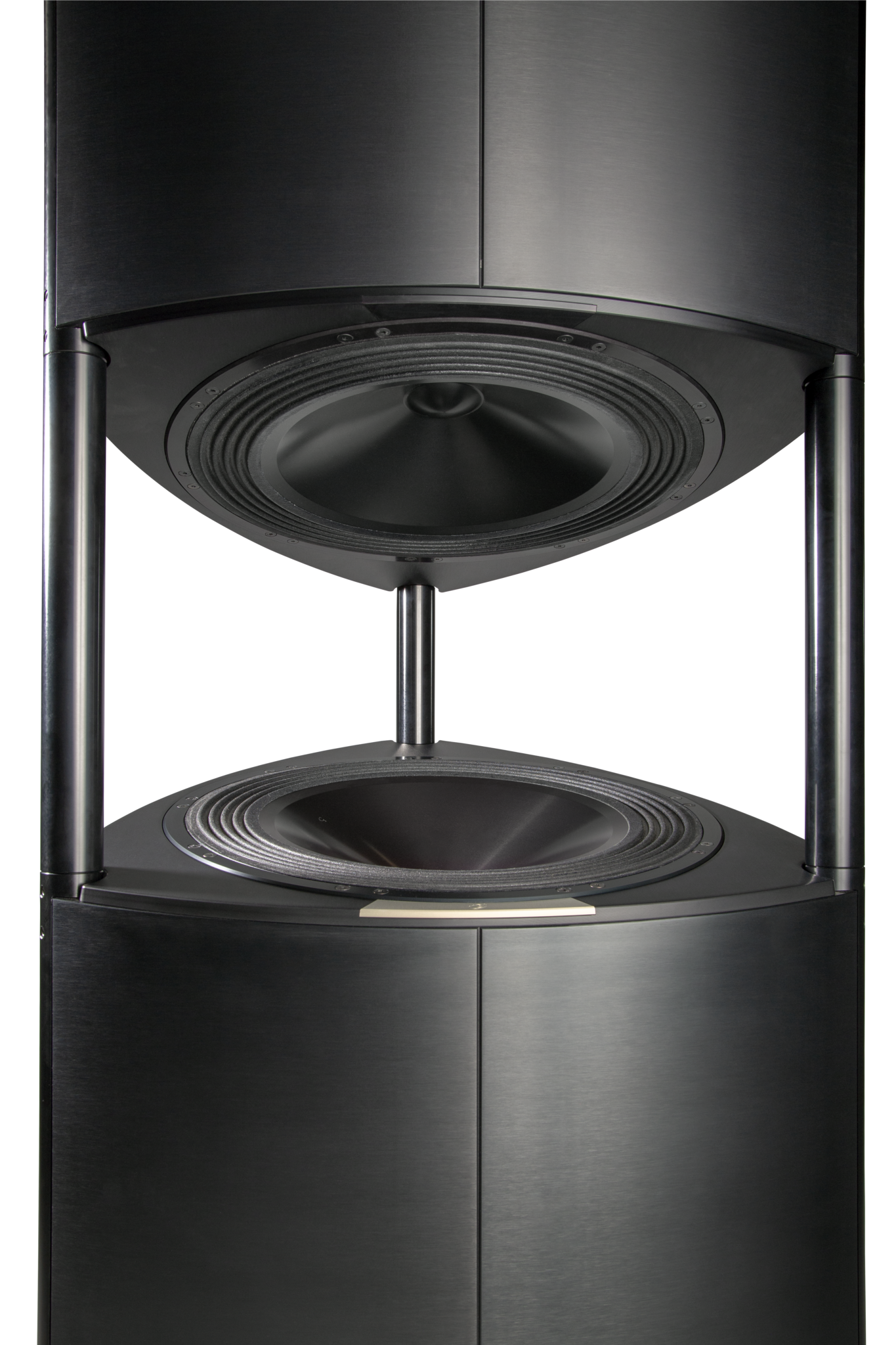

The unique layout sports dual, opposing-yet-tilted drivers. It combines the
freedom from vibration of a push-push setup, with the ease of room-integration
typically associated with front-firing subwoofers. The “flipped” arrangement, with
enclosures on both ends rather than in-between the woofers, minimizes their
spacing thus further easing room-placement.

The cabinet is precisely CNC-machined from solid aluminum billet. Like YG
Acoustics™’ flagship Sonja™ XV and Sonja™ 2 series, its construction is a “box
within a box”, to minimize vibration. A sealed alignment eliminates port-issues
and the time-delays associated therewith. FocusedElimination™ is used to
minimize loss.

The built-in DSP crossover offers extensive options for matching with most
high-end speakers. Furthermore, when mating InVincible™ with a YG
Acoustics™ speaker, the guesswork is entirely eliminated. InVincible™ is
pre-programmed for precise matching with any current YG Acoustics™ speaker
and many legacy models, using a foolproof process inspired by the famous
DualCoherent™ technology.

Key Technology
BilletCore™
DualCOherent™ inspired DSP
Cabinet Technology with proprietary driver-layout
Focused Elimination



Bandwidth
Truly full output (-0 dB), even anechoically, to below 20 Hz
Usable output extends below 15 Hz

Drivers
BilletCore™ ultra-high-rigidity subwoofer(s) with a diameter of 53 cm (21”)
InVincible™ 21.1 – single driver
InVincible™ 21.2 – dual drivers

Amplifier
Up to 6,000 watts RMS (requires a 230 Volt AC hookup, otherwise 3,000 watts)

DSP
Proprietary DualCoherent™-inspired crossover with user-controllable frequency
Designed using software developed in-house
Pre-programmed for precise matching with YG Acoustics™ speakers
Extensive options for matching with third-party speakers

Dimensions
75x68x68 to 177x68x68 cm (30x27x27 to 70x27x27”) depending on configuration

Weight
111 to 210 kg (244 to 462 lbs) unpackaged, depending on configuration





« »
