LINNから、「 Selekt DSM 」登場！！

海外ニュース速報 [World] 新製品速報

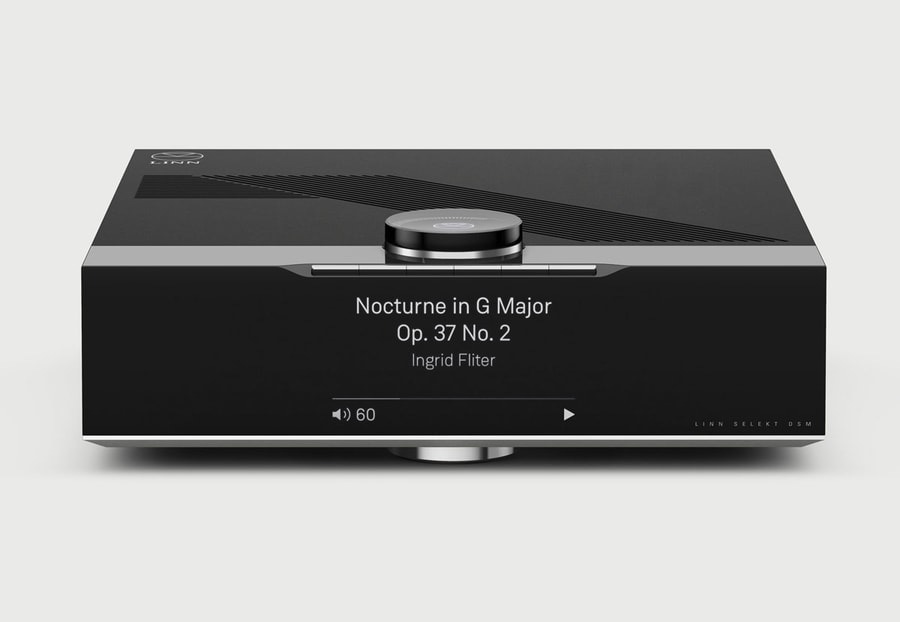

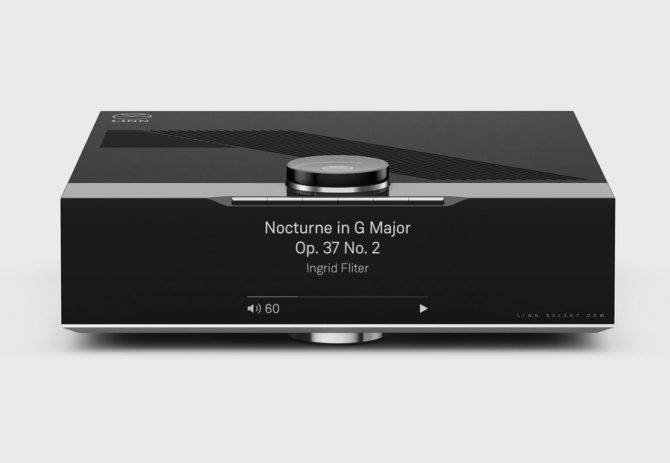

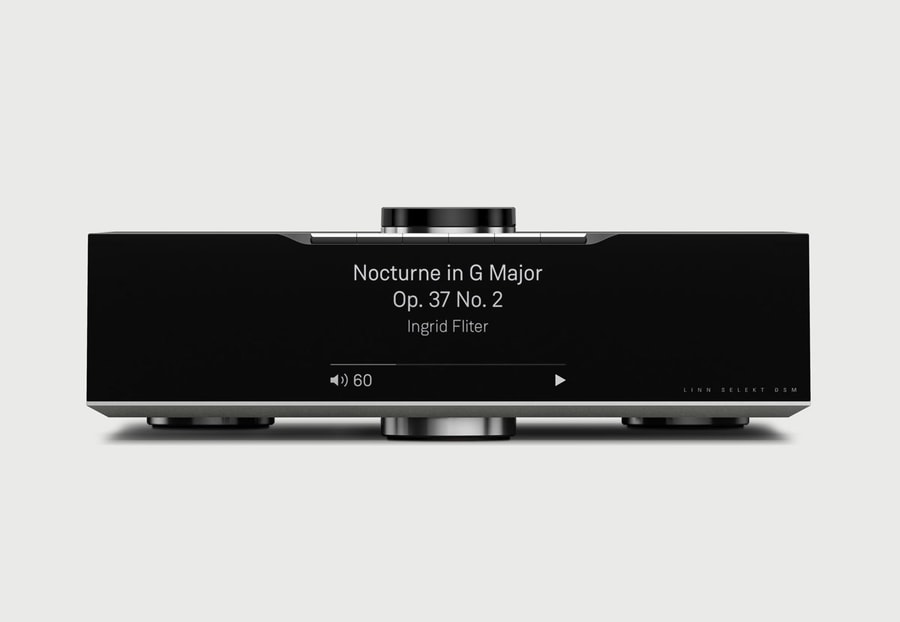

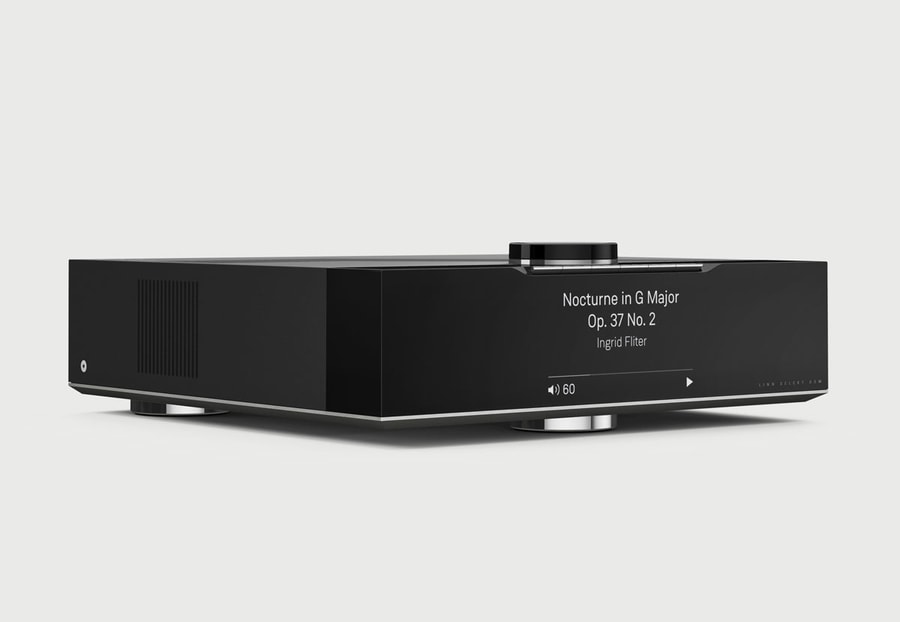

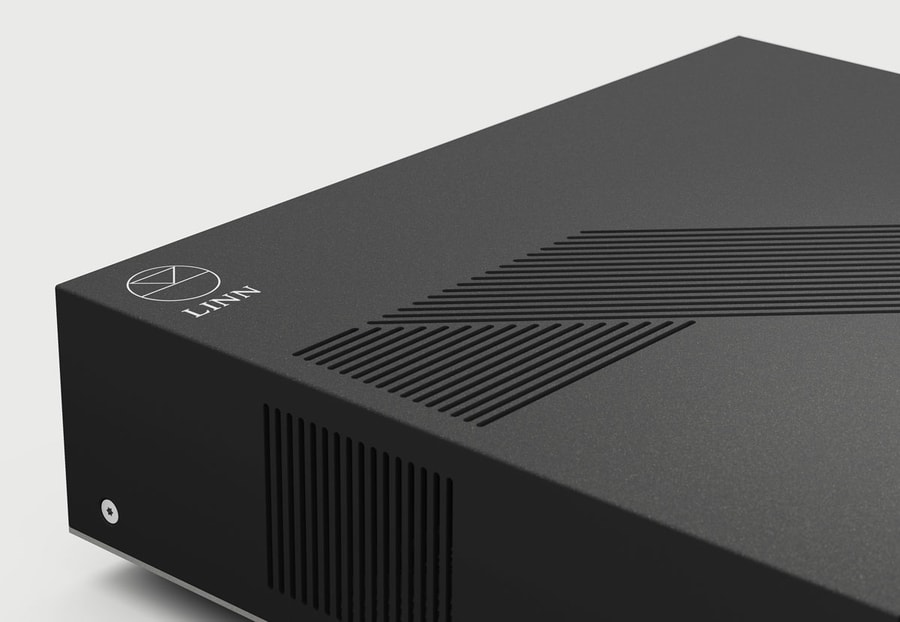

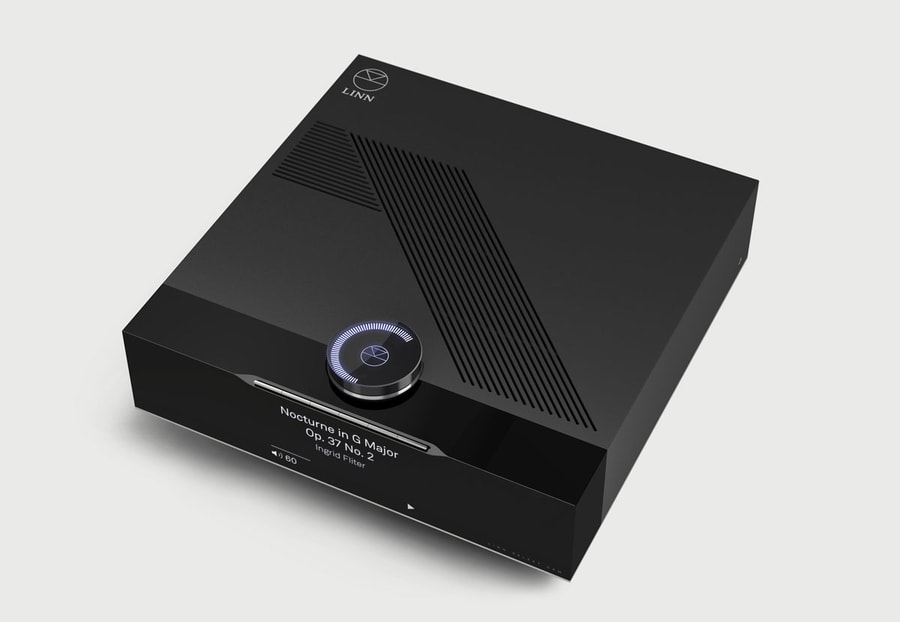

LINN Selekt DSM

Selekt DSM                                                           £4000
Selekt DSM with integrated power amp                   £5250
Selekt DSM with Katalyst                                       £5500
Selekt DSM with integrated amp and Katalyst          £6750

Delivery will be in October 2018.

Selekt DSM Technical Specification

DAC
Type:  Switched-capacitor DAC  with low-noise reference voltage.
THD+N :  0.0002% (1kHz 0dBFS at volume 80)
Dynamic Range:  114dB (Measured at Line-out module XLR output with AES17 measurement filter)

Katalyst DAC upgrade
Type:  Katalyst DAC architecture
THD+N :  0.0002% (1kHz 0dBFS at volume 80)
Dynamic Range:  117dB (Measured at Line-out module XLR output with AES17 measurement filter)

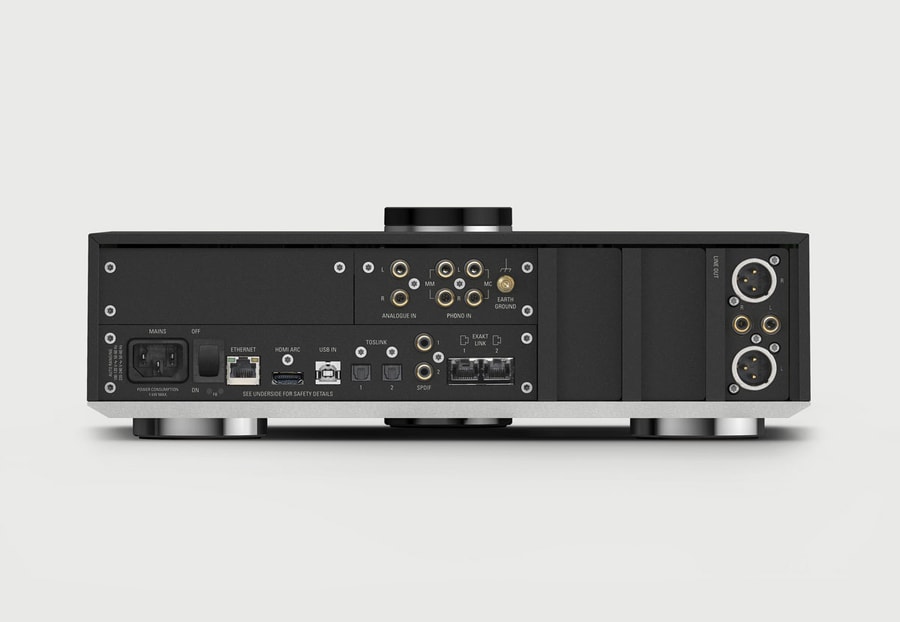

Digital inputs
Type:  FPGA based SPDIF receiver with digital PLL.
SPDIF x2 | Toslink x2 | HDMI ARC x1
Supported sample rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192

USB input
Type:  USB Audio Class 2 endpoint.
Supported sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192

Analogue inputs
Type:  Digitizing analogue input stage with independent analogue phono preamps for MM and MC cartridges.
ADC Sample rate/resolution: 192kHz/24 bits
Line-in (RCA):          Max input voltage :  4.25Vrms
MM Phono (RCA):   Max input voltage (1kHz):  67mVrms
MC Phono (RCA):    Max input voltage (1kHz):  5.5mVrms

Audio processing
Space Optimisation |Exakt crossover filtering (option) | Upsampling to 768kHz/32 bits |
Digital Volume Control
Line-out module
Type:  Direct-coupled output stage with balanced and unbalanced outputs.
Output Level:  2Vrms (RCA), 4Vrms (XLR) @volume 80
Output Impedance: 300 Ohms (RCA), 600 Ohms (XLR)

Power amplifier upgrade
Type:  Bridged Class-D amplifier with post-filter feedback. A bespoke design that provides maximum performance in minimum space and with minimum heat dissipation. Applies an additional feedback loop around the low-pass filter to significantly improve performance.

Max output power: 100W/channel into 4 Ohms,   50W/channel into 8 Ohms

THD+N (Measured with AES17 measurement filter):
<0.01% (1kHz, 100W into 4 Ohms)
<0.001% (1kHz, 12.5W into 4 Ohms)
<0.005% (1kHz, 50W into 8 Ohms)
<0.001% (1kHz, 6.25W into 8 Ohms)

Exakt Link
2 Exakt Link ports to allow connection to:
Exakt speakers | Exaktboxes | Urika II

Ethernet
10/100 Base-T RJ45 Socket
