Abendrot Audioから、「 HENGST DAC 」登場!!

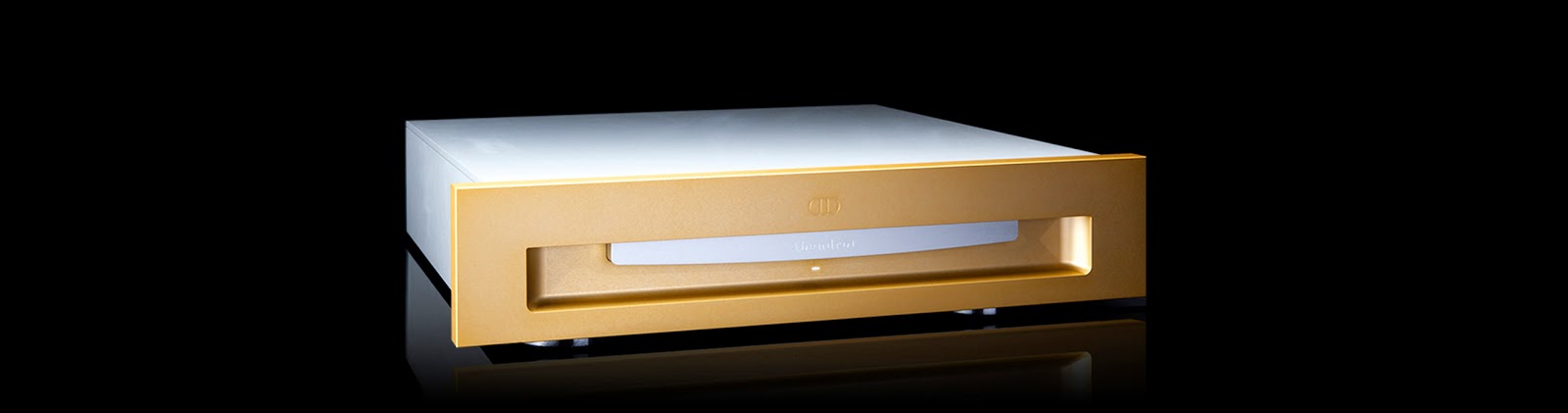

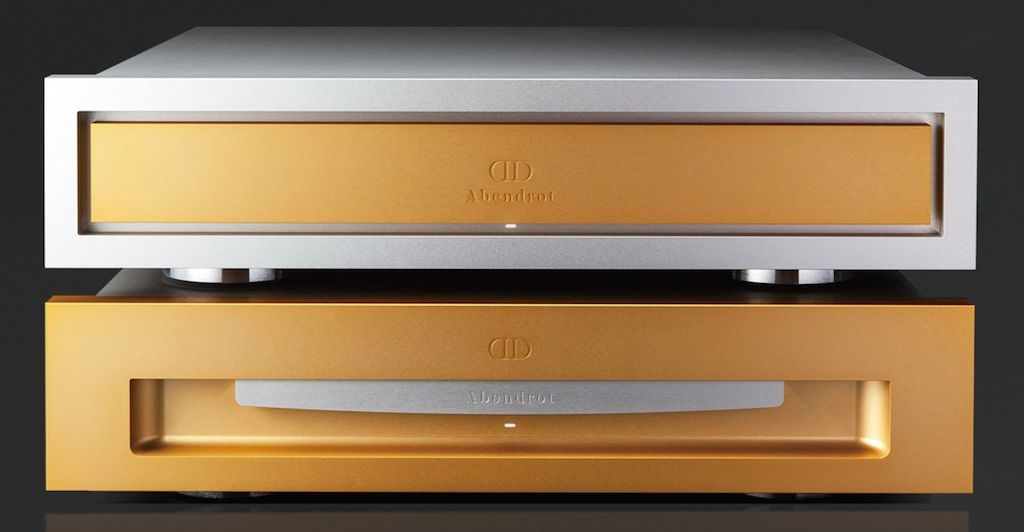

Abendrot Audio HENGST DAC
$36,000

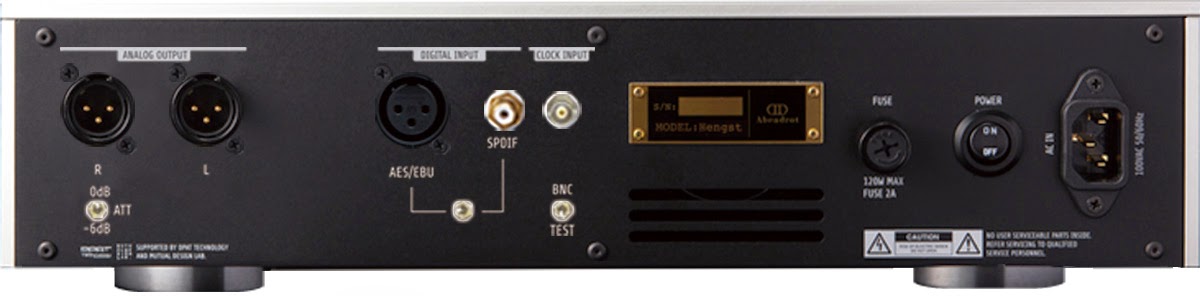

Digital Input
Input 1 AES/EBU XLR 110Ω x1
Input 2 SPDIF Coaxial RCA 75Ω x1
Sampling Rate 16-24bit 44.1kHz-192kHz
Analog Output
Converter Type : Complete Balanced Dual Mono Wide Dynamic Range Topology
Output : XLR Balanced L/R
Output Amplifier : High Voltage Buffered Wide Range DC Amp
Output Impedance : 100Ω (ATT 0dB)
Output Signal Level :
9VRMS Hi-Z weighted (ATT 0dB)?/?4.5VRMS Hi-Z weighted(ATT -6dB)
Output Attenuator : 0dB/-6dB Hi-Z wighted
SN Ratio : better than 115dB TYPE
THD+N : better than 0.002%
Clock Synchronized Circuit
Input : 10MHz 1V RMS 50Ω/5V P-P Hi-Z
BNC : x1 (Auto Synchronize Connection)
Internal Test Clock : 10MHz
TEST Switch : TEST(internal) / BNC(External)
Electrical
Input Voltage : 115V / 230V , 50-60Hz
Wattage 30W(typical)
Environmental
Operating temperature Range 5℃~ 35℃
Relative humidity : 35~85%RH(non-condensing)
Miscellaneous
Size : 440 x 420 x 90mm (W x D x H), Weight : 11.5kg
Price
$36,000,00
