Accumulated Goldmund’s technology excellence and design effort, the new Goldmund Telos Headphone Amplifier 3 NextGen (THA3 NextGen) is aiming to elevate the originally reference level headphone amplifier to a new level. The THA3 NextGen maintains all the signature traits, including adjustable gain for driving all kinds of headphone cross sensitivities, adapting to any impedance, with great dynamics. One crucial factor that made THA3 NextGen with supreme performance is that the internal circuitry was derived directly from the renowned Goldmund Telos amplifier circuitry. The headphone users can thus experience the transparency, energy, linearity, and openness from Goldmund’s legendary Telos line of amplifiers.
POWER SUPPLY:
•Nominal line voltage: 115 V or 230 V.
•Input voltage range: +/- 15 %.
RATED POWER CONSUMPTION:
•IEC 60065, 1/8 Output Power at 50 Ω: 30 W.
REAR PANEL:
•Power cord: universal socket 3 lugs, 16 A.
•ON/OFF Power Switch Key
•RS232 command connector.
•1 x Analog RCA (left & right): ADC conversion for DSP.
•1 x Toslink Optical or Digital S/PDIF coaxial RCA 75 Ohms.
•1x USB input: Audio Class 2.0 (no driver required on Mac OS X as of v.10.6.4 nor on Linux, driver required only for Windows).
•Sample rate up to 384 kHz/Bit depth up to 32.
•DSD over PCM capabilities.
FRONT PANEL:
•Input selectable through front panel switch.
•Binaural mode switch according to the publication “Improved Headphone Listening” of Siegfried Linkwitz.
•Volume control.
OUTPUT:
•Maximum power (IEC60065): 2 x 2220 mWrms on 50 Ω / 1%THD.
GAIN:
•Gain adjustable for low/high sensitivity headphones (adjustable internally).
•6 dB low gain.
•15 dB high gain.
DIMENSIONS & WEIGHT:
•30 W x 10 H x 35 D (cm), 12 kg
Brand-new Cerotar tweeter
A brand-new 28mm Ferrite+ soft-dome tweeter inspired by Special Forty and Confidence
New Esotec+ woofers
New long-throw designs for improved frequency response and low-frequency dynamics
Danish design
Timeless, honest and beautiful: subtly curved MDF with hidden screws and four beautiful, clean finishes
Evoke
Evoke is for you. It’s for living rooms. Home cinema rooms. Listening rooms. Even bedrooms. It’s serious hi-fi, everywhere.
This brand-new speaker range takes advanced technology directly from our top-of-the-range speakers – including finishes, driver technology and design. And that means each of the five Evoke models can vibe with you, grow with you, and stay with you – however you listen.
Every single part has been looked at from the ground up. Every driver has been optimised in Dynaudio’s state-of-the-art Jupiter measuring lab. And every finish has been painstakingly formulated and executed to reflect those on our most exclusive speakers.
Music should last a lifetime. With Evoke, it will.
A brand-new Dynaudio speaker range
Creating an entirely new family of loudspeakers is something our designers and engineers relish. At the start the whole process is a sandbox – one that’s full of out-there ideas, wishlists and ingenious solutions that had been percolating in brains and notebooks.
And because they have four decades of established research and legendary products to draw on, our engineers know they’re on pretty much the right track before they even put the first prototype together.
With Evoke, they landed right in the Goldilocks zone. After months of intense R&D it became a five-strong family of speakers. All that experience meant the team could combine cutting-edge technology directly from the Contour and all-new Confidence ranges – not to mention ultra-high build and finish quality and traditional, elegant cabinets designed to look great in any listening environment – with exceptional value for money.
Listen to your favourite album for the first time. Again.
We created Evoke because we want everyone to be able to enjoy genuine hi-fi – the thing we all aspire to – without having to rearrange rooms, replace much-loved equipment, or agonise over the price.
We created Evoke for the people who agonise over what to listen to next.
And when they finally decide, we know they’ll hear something new in their favourite music. It could be the tiniest sound of a hand moving up the neck of a nylon-string guitar in an LA recording studio, or the shuffle of a cello player’s feet on-stage at the Berliner Philharmonie. It might be a backing vocal that suddenly makes that pre-chorus sparkle, or that extra bit of heavy-metal punch that makes the hairs on the back of your neck stand up (and sets off the neighbour’s dog).
Listen to Evoke and you’ll rediscover everything you love about music. Use them in stereo. Use them as part of a multi-channel home cinema system. Add one of our optional subwoofers. The family is designed to grow and change with you.
“I didn’t know there was a tambourine part in that song”
How do we do it? Experience, technology, intensive analysis in our Jupiter measuring facility… and good, old-fashioned listening. Hundreds of hours of it.
The entire range uses trickle-down technology from our top-of-the-line loudspeakers.
Take the Cerotar tweeter, which makes its debut in Evoke. It’s a brand-new, ground-up design based on our award-winning Esotar Forty anniversary tweeter and the mighty Esotar3 found in the new, money-no-object Confidence series. Underneath the 28mm soft-dome diaphragm sits the Hexis inner dome (something you’ll currently only find in Confidence). This refines the airflow behind the tweeter’s playing surface to smooth-out its frequency response and eliminate unwanted resonances. Behind it all, the new motor system uses strontium carbonate Ferrite+ ceramic magnets to further increase tweeter sensitivity.
It all took a very long time (and more than one effervescent ‘discussion’) to refine and tune the Cerotar. But we think you’ll agree it was time well spent. Its developments give you a detailed and natural high frequency response that’s smooth enough to take you through many albums’ worth of music in one sitting without feeling tired. Exactly as it should be.
Ace of bass
The Esotec+ woofers use MSP (Magnesium Silicate Polymer) in their diaphragms – just like all Dynaudio speakers have done since we started in 1977.
The versions used in Evoke 10, 20, 30 and 25C use new surrounds and improved Ferrite+ magnet systems to extend their throw, their frequency response and their low-frequency dynamics – all while maintaining stellar midrange performance. And the 18cm driver in Evoke 50 borrows technology from both the Contour and Confidence ranges to deliver eyebrow-raising low-frequency dynamics and timing.
You’ll hear that as full, precise bass with all the clarity you could want. Perfect for anything from intimate classical music to full-throttle rock or dance.
The Evoke 50’s midrange driver is directly derived from the design developed for the renowned Contour 60. It uses a powerful neodymium magnet, plus lightweight materials (including an aluminium voice-coil) specifically optimised for midrange duties.
It’s all marshalled by high-grade crossovers between the tweeter, midrange and low-frequency drivers.
But we can’t perfect all that without some seriously long listening sessions. And that, for us, is the key: we listen like you do. No song is off-limits. Nothing is too cheesy, or too high-brow. We love music, so there’s no other way we can design our speakers other than for fellow music-lovers.
What will music sound like in 30 years? Awesome.
Evoke is built to last. Each of the simple, elegant cabinets (themselves the result of months of painstaking prototyping, refinement and care), is available in four finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood.
New lacquering techniques mean the gloss versions have a stunning, almost glass-like finish, while the wood versions have open veneers for a warm, natural feeling. And they’ll only look better over time.
Our designers wanted Evoke to be the kind of speaker you take with you from student residence, to apartment, to house. The kind of speaker you’ll rediscover your favourite music with – and then pass it on.
Evoke50
Sensitivity: 87dB (2.83V/1m)
IEC power handling: 260W
Impedance: 4 Ω (3 Ω minimum @100Hz)
Frequency response (±3dB): 35Hz–23kHz
Box principle: Bass reflex rear ported
Crossover: 3-way
Crossover frequency: 430/3500Hz
Crossover topology: 3rd/2nd order
Specification sheet for Evoke part 1
Woofer: 2x18cm MSP cone
Midrange: 15cm MSP
Tweeter: 28mm Esotec + with Hexis
Weight: 26.9kg/59.3lb
Dimensions (W x H x D): 215x1140x307mm
8.5×44.9×12.1in
Dimensions with feet/grille (W x H x D): 305x1162x373mm
12.0×45.7×14.7in
Evoke 30
Sensitivity: 88dB (2.83V/1m)
IEC power handling: 200W
Impedance: 4 Ω
Frequency response (±3dB): 40Hz–23kHz
Box principle: Bass reflex rear ported
Crossover: 2.5-way
Crossover frequency: 1200/2300Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 2x15cm MSP cone
Tweeter: 28mm Esotec+ with Hexis
Weight: 15.5kg/34.2lb
Dimensions (W x H x D): 180x900x267mm
7.1×35.4×10.5in
Dimensions with feet/grille (W x H x D): 268x920x342mm
10.6×36.2×13.5in
Evoke 20
Sensitivity: 86dB (2.83V/1m)
IEC power handling: 180W
Impedance: 6 Ω
Frequency response (±3dB): 40Hz–23kHz
Box principle: Bass reflex rear ported
Crossover: 2-way
Crossover frequency: 3200Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 18cm MSP cone
Tweeter: 28mm Esotec + with Hexis
Weight: 9.9kg/21.8lb
Dimensions (W x H x D): 215x380x307mm
8.5×15.0x12.1in
Dimensions with feet/grille (W x H x D): 215x380x317mm
8.5×15.0x12.5in
Evoke10
Specification sheet for Evoke part 2
Sensitivity: 84dB (2.83V/1m)
IEC power handling: 180W
Impedance: 6 Ω
Frequency response (±3dB): 47Hz–23kHz
Box principle: Bass reflex rear ported
Crossover: 2-way
Crossover frequency: 1400Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 15cm MSP cone
Tweeter: 28mm Esotec+ with Hexis
Weight: 6.7kg/14.8lb
Dimensions (W x H x D): 180x315x266mm
7.1×12.4×10.5in
Dimensions with feet/grille (W x H x D): 180x315x277mm
7.1×12.4×10.9in
InVincible Signature Red Edition
InVincible 21.2 （上下２ユニット）
InVincible 21.1 （下１ユニット）
InVincible™ is the world’s first hyper-high-end sub-bass speaker. It was created
to solve a specific problem: owners of the world’s finest flagship speakers often
felt that adding a subwoofer to their system caused more drawbacks than
improvements. YG Acoustics™ addressed the issue by creating a truly extreme
solution, a no-holds-barred assault on everything deemed possible in the
sub-bass realm. InVincible – pure authority, handmade in U.S.A.
Innovations include, first and foremost, the largest BilletCore™ driver ever made
at 53 cm diameter (21”). The cone is machined from a massive 30 kg (66 lb) slab
of aircraft-grade aluminum. When finished it weighs 411 grams (14.5 oz). The
basket is also CNC-machined in-house, then precisely assembled from 238 parts
using lab-grade alignment and tolerances.
The dedicated built-in amplifier boasts up to 6,000 watts of RMS power for
unrestricted dynamics. In a world filled with offshore-outsourced electronics, this
amplifier stands out by incorporating a real high-end, custom, U.S.-made class D
module.
The unique layout sports dual, opposing-yet-tilted drivers. It combines the
freedom from vibration of a push-push setup, with the ease of room-integration
typically associated with front-firing subwoofers. The “flipped” arrangement, with
enclosures on both ends rather than in-between the woofers, minimizes their
spacing thus further easing room-placement.
The cabinet is precisely CNC-machined from solid aluminum billet. Like YG
Acoustics™’ flagship Sonja™ XV and Sonja™ 2 series, its construction is a “box
within a box”, to minimize vibration. A sealed alignment eliminates port-issues
and the time-delays associated therewith. FocusedElimination™ is used to
minimize loss.
The built-in DSP crossover offers extensive options for matching with most
high-end speakers. Furthermore, when mating InVincible™ with a YG
Acoustics™ speaker, the guesswork is entirely eliminated. InVincible™ is
pre-programmed for precise matching with any current YG Acoustics™ speaker
and many legacy models, using a foolproof process inspired by the famous
DualCoherent™ technology.
Bandwidth
Truly full output (-0 dB), even anechoically, to below 20 Hz
Usable output extends below 15 Hz
Drivers
BilletCore™ ultra-high-rigidity subwoofer(s) with a diameter of 53 cm (21”)
InVincible™ 21.1 – single driver
InVincible™ 21.2 – dual drivers
Amplifier
Up to 6,000 watts RMS (requires a 230 Volt AC hookup, otherwise 3,000 watts)
DSP
Proprietary DualCoherent™-inspired crossover with user-controllable frequency
Designed using software developed in-house
Pre-programmed for precise matching with YG Acoustics™ speakers
Extensive options for matching with third-party speakers
Dimensions
75x68x68 to 177x68x68 cm (30x27x27 to 70x27x27”) depending on configuration
Weight
111 to 210 kg (244 to 462 lbs) unpackaged, depending on configuration

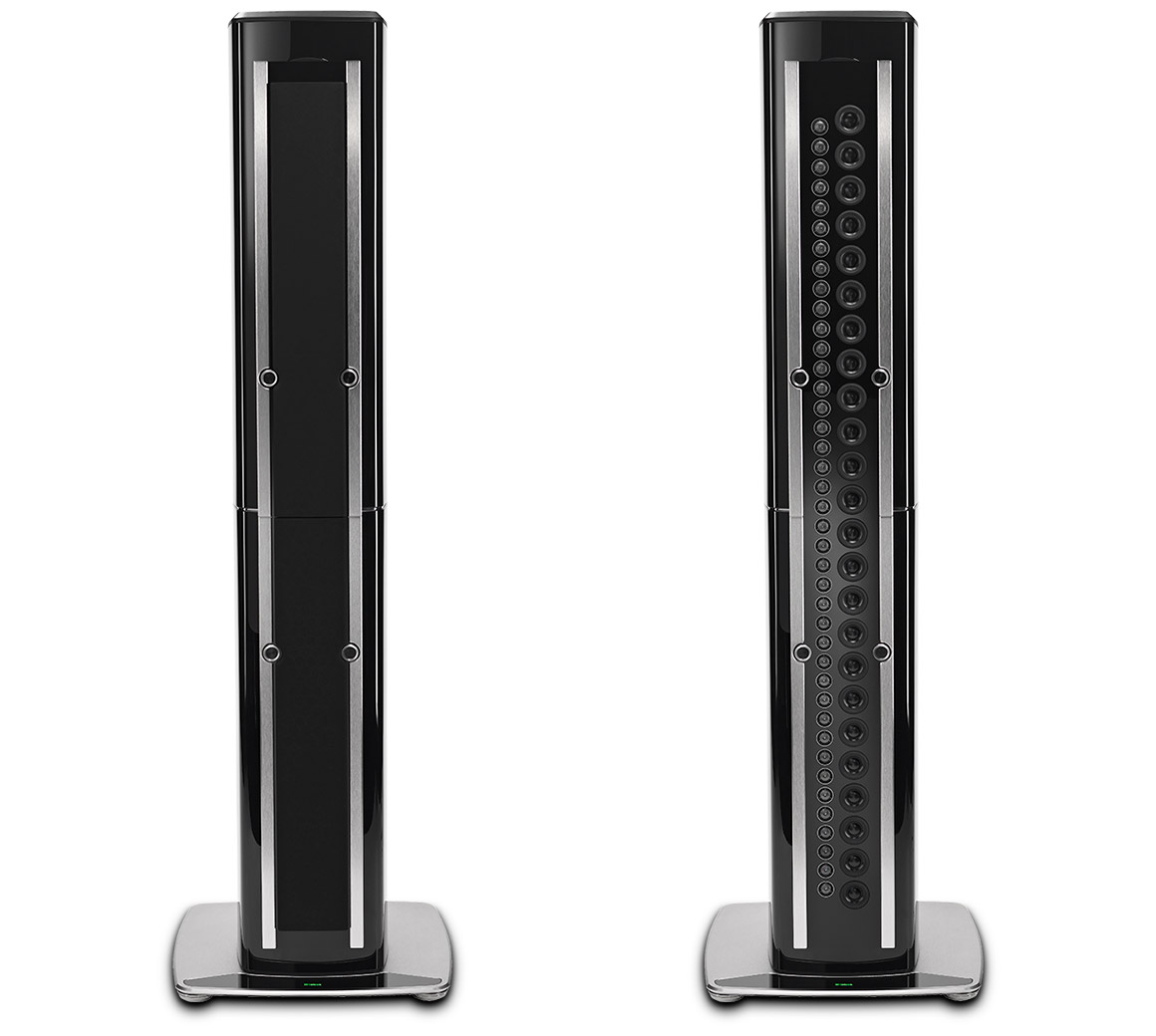

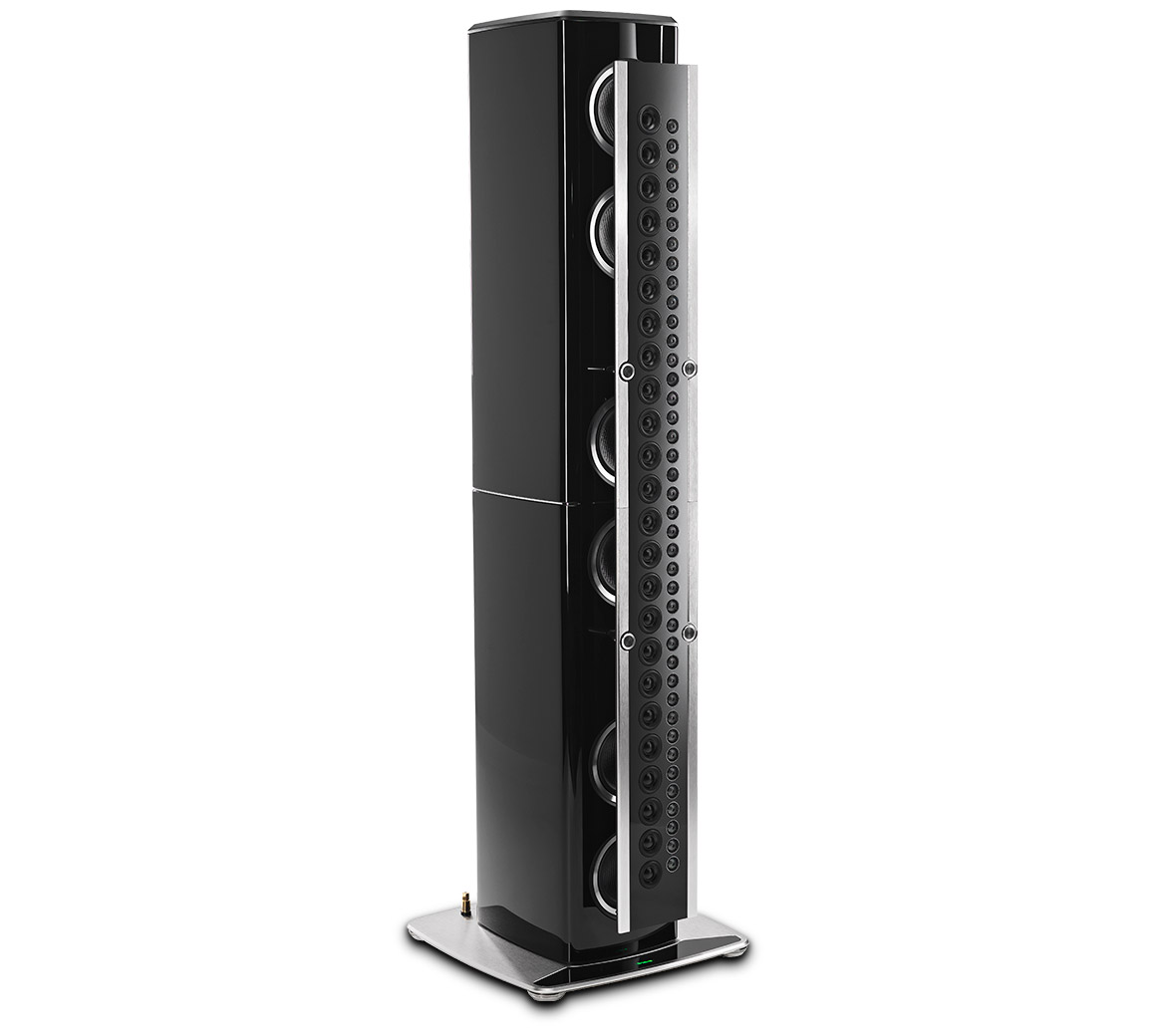

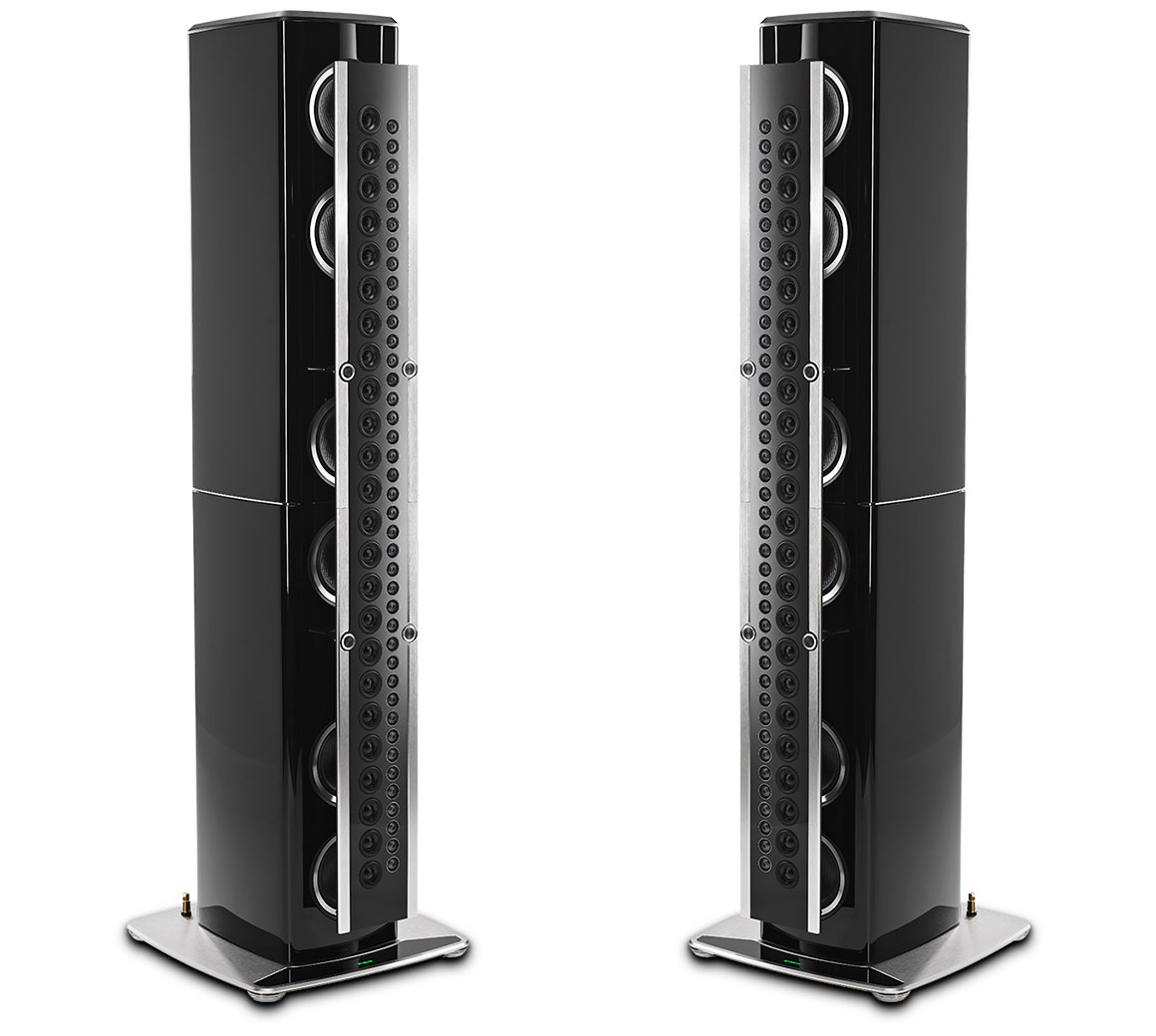

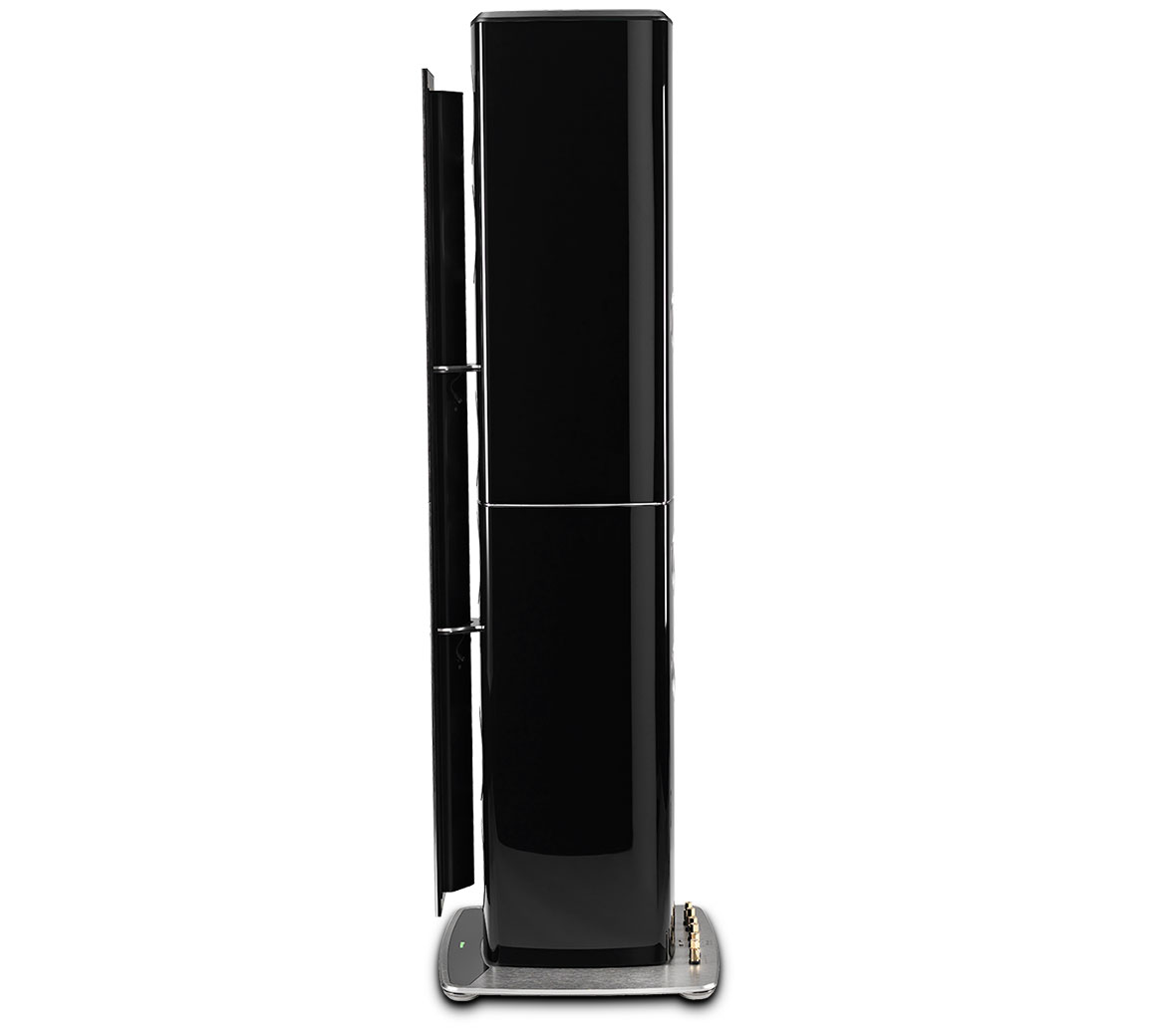

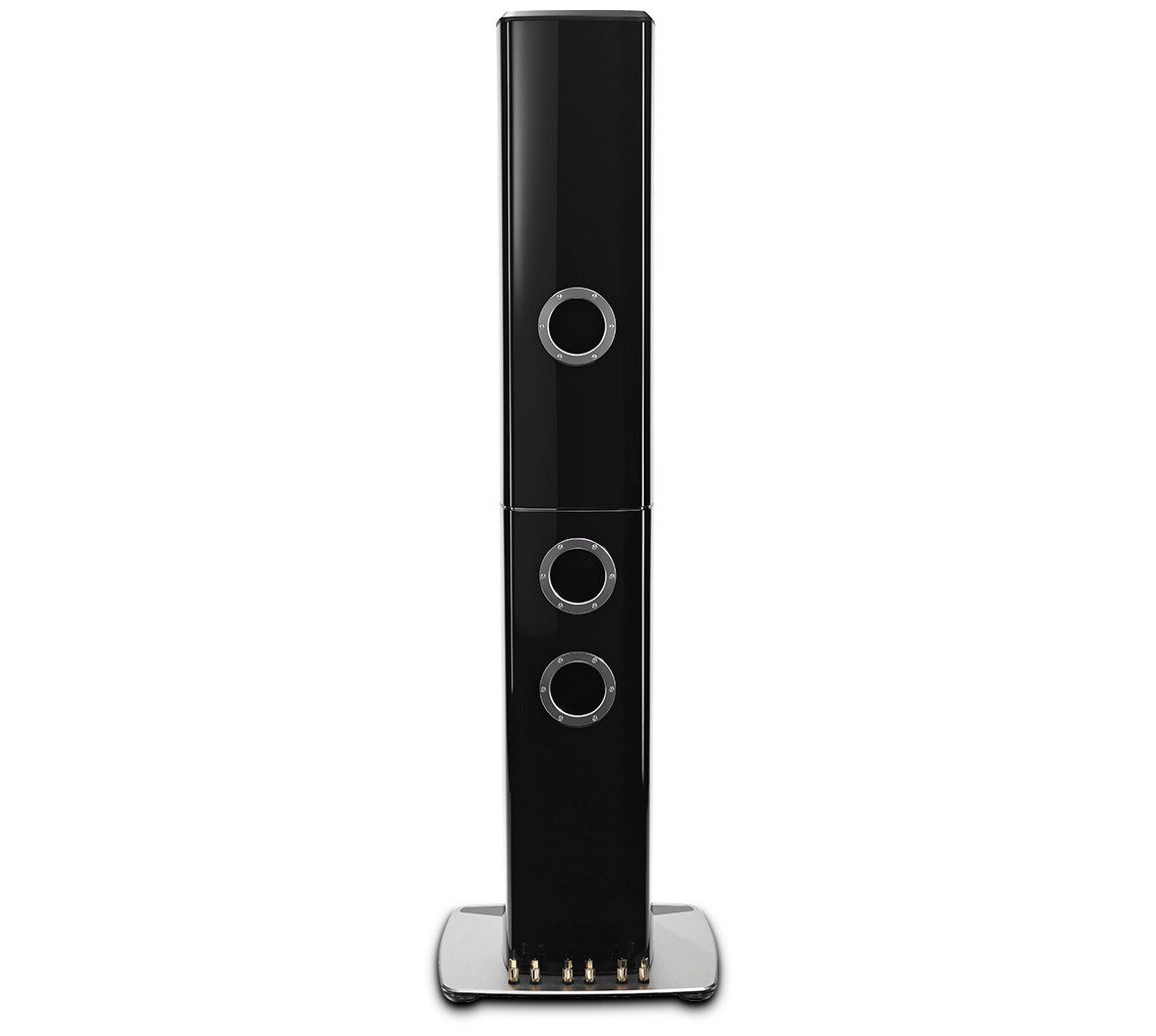

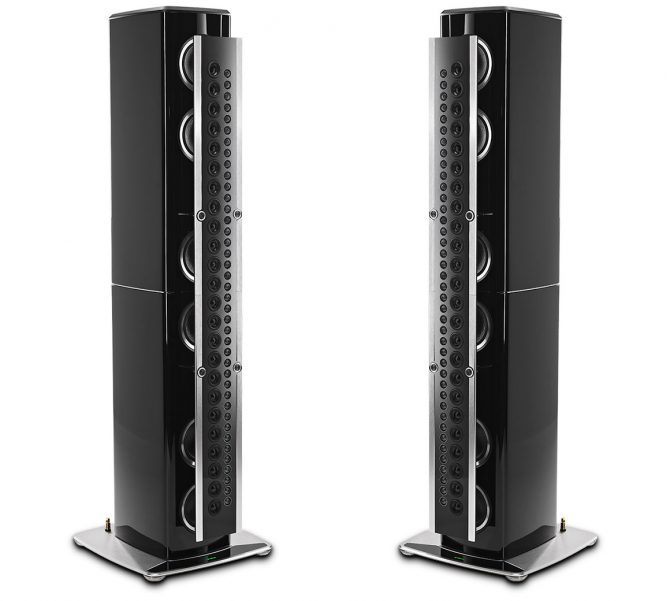

Following in the footsteps of the larger-than-life XRT2.1K is the equally impressive but more accessibly sized XRT1.1K Loudspeaker. Featuring a 1,200 Watt power rating, the full range XRT1.1K is an exceptional speaker in its own right. With its more user-friendly size that is 14″ (35 cm) shorter and 173 lbs (78 kg) lighter than the XRT2.1K, the XRT1.1K can comfortably fit in a wider variety of home environments. While not as large as the XRT2.1K, the XRT1.1K is still an extraordinary loudspeaker that produces a powerful aural experience and sonic performance that can easily fill a room with astonishing musicality.

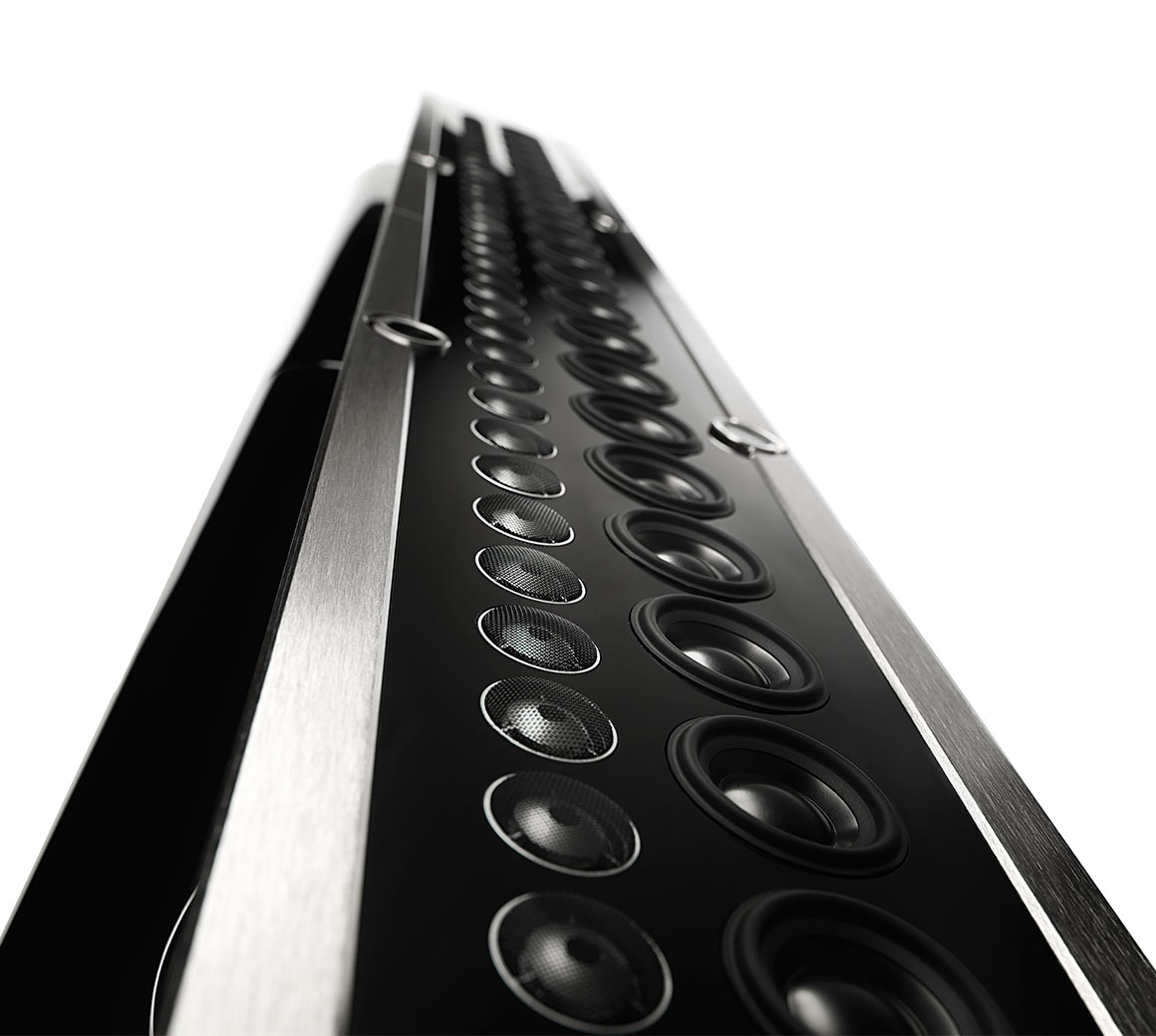

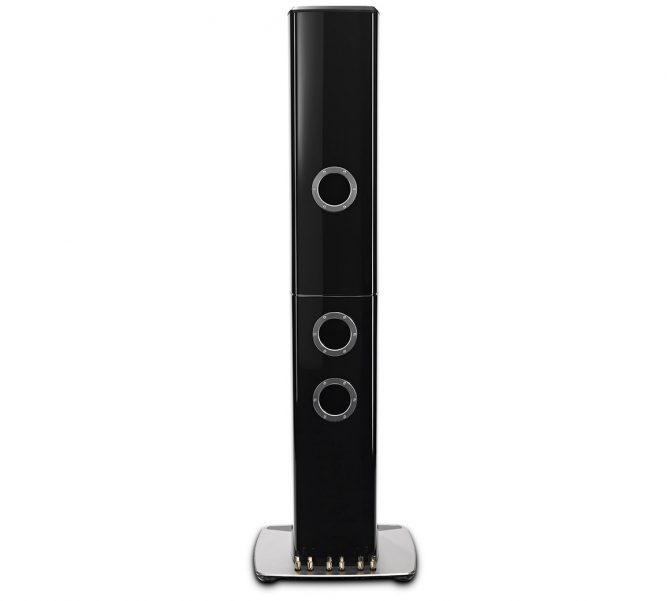

The ported, 4-way XRT1.1K speaker uses our line array design to yield an even and wide sound field, producing exceptional stereo imaging in nearly all listening positions. With our line array speaker design, listeners closer to the XRT1.1K will not be overpowered by extremely high volumes as they will only be on axis to a portion of the drivers; listeners farther away will be on axis to more of the drivers and will be able to easily hear the music without any large drop off in sound level or quality.

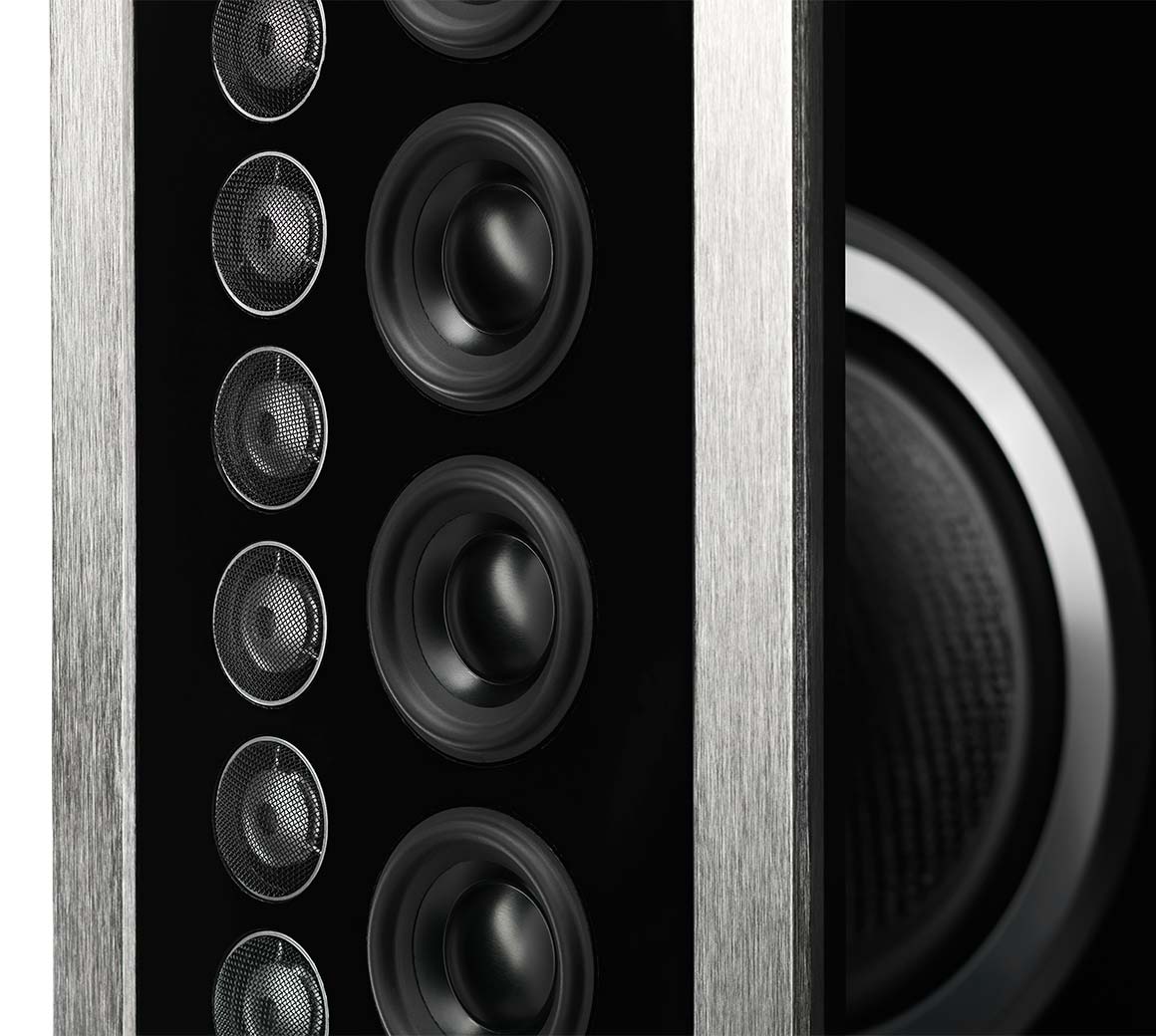

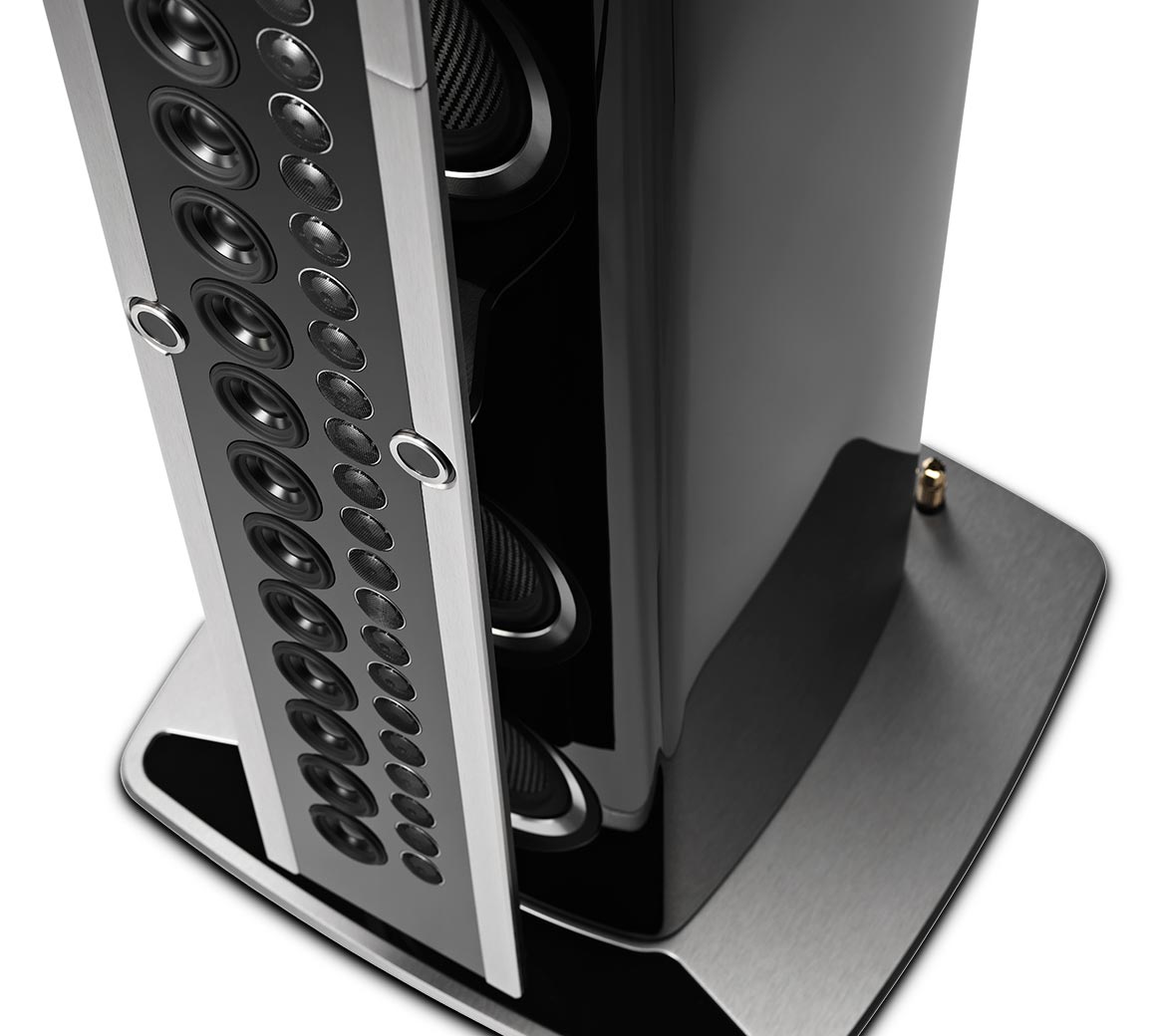

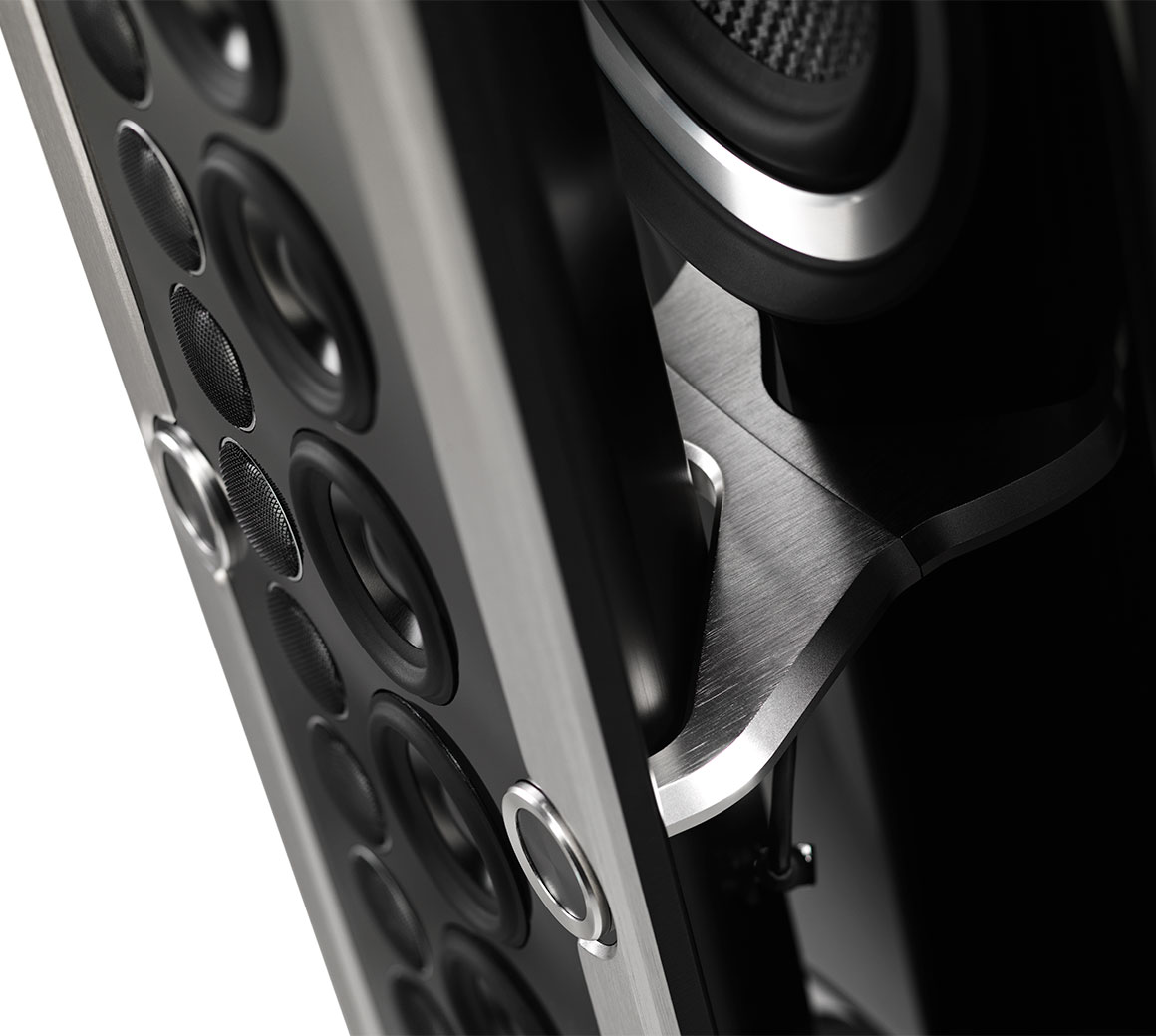

The XRT1.1K uses a total of 70 individual drivers consisting of (4) 6.5” woofers, (2) 6.5” low frequency midranges, (24) 2” upper frequency midranges and (40) ¾” tweeters. The woofer and low frequency midrange drivers that were first designed for the XRT2.1K have been incorporated into the XRT1.1K. They are housed in the large bass enclosure cabinet located behind the line array. Their diaphragms are extremely stiff yet lightweight and their long throw design produces amazing bass extension. In front of the bass cabinet is the line array where the upper frequency midranges and tweeters, which were also first developed for the XRT2.1K, are found.
Utilizing capacitors and inductors with low loss and high current capacity, the crossover network is engineered to ensure an even frequency response over the entire audible range. The type of inductor used in each section of the network has been specially chosen for high linearity, even at high power levels. This prevents distortion of the music at any frequency. The network also employs self-resetting high current PTC type fuses to provide an extra measure of protection for the drivers.

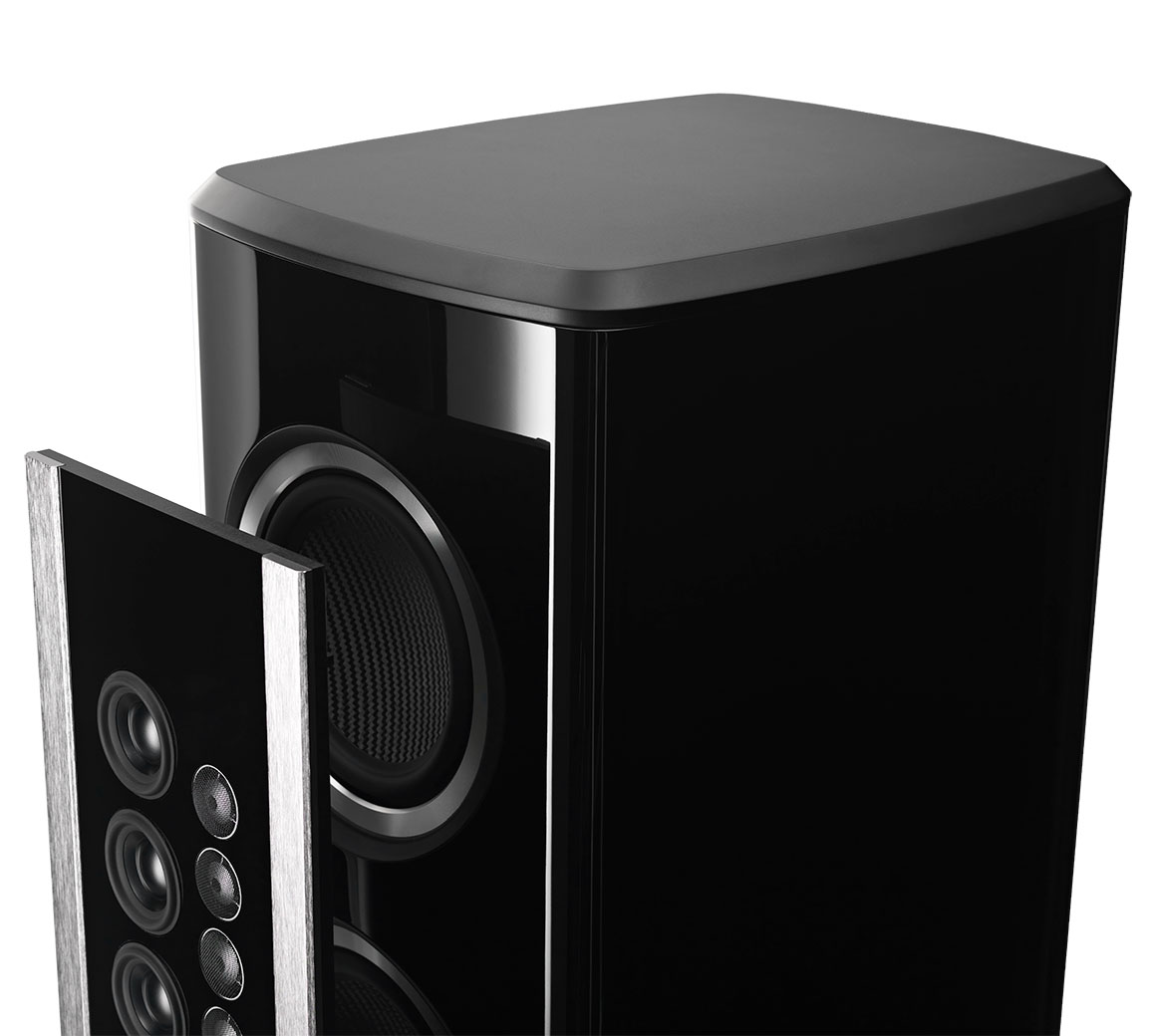

Like the XRT2.1K, the XRT1.1K looks as striking as it sounds. The bass cabinet is finished with 7 layers of high gloss piano black paint and has touches of brushed and black aluminum. The line array features hints of the classic McIntosh front panel with a black center section and silver trim. It is suspended in front of the bass cabinet via steel spiders that are inspired by modern skyscraper construction; they are capped with magnetic covers that mimic the look of McIntosh control knobs. The speaker grilles feature black knit cloth with high gloss trim; if you prefer to have the drivers visible, the grilles are easily removed via their magnetic fasteners. The base plate is made of machined aluminum and glass. It has 4 adjustable feet that allow the speaker to make perfect contact with your floor, thus eliminating a possible source of distortion or vibration.

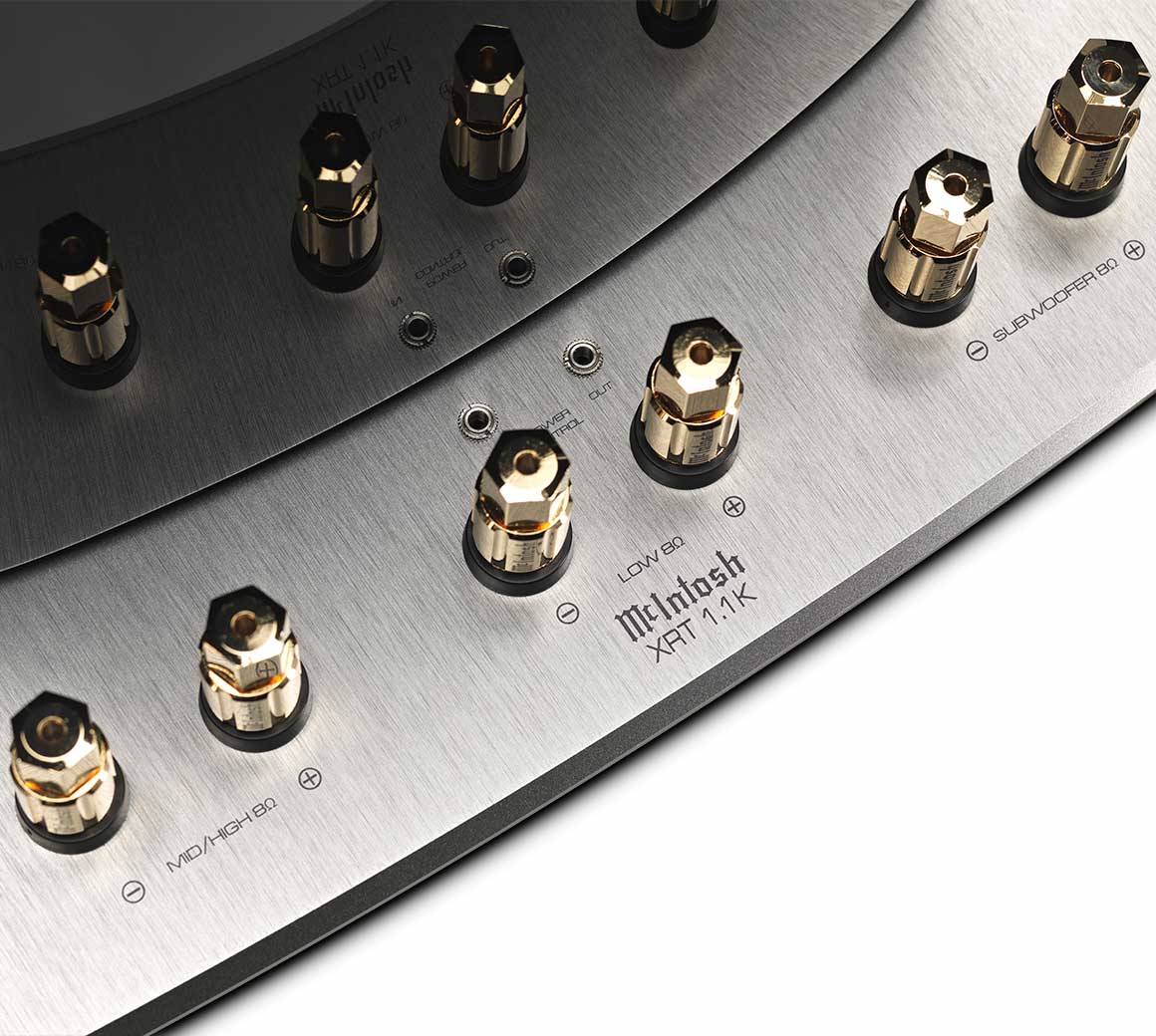

Your speaker cables are securely attached via our gold-plated Solid Cinch™ speaker binding posts that prevent the cables from coming loose. Separate pairs of binding posts are available for the mid/high, low and subwoofer frequencies to allow for tri-amping or tri-wiring if so desired. The McIntosh logo on the base can be illuminated with the use of our Power Control technology found in our amplifiers, preamplifiers, integrated amplifiers and other products. Contact your local dealer to learn more.
ELECTRONIC SPECIFICATIONS
Impedance Nominal
8 Ohms
Power Rating
1,200 Watts
Frequency Response
16Hz – 45kHz
Sound Pressure Level, 2.8V/1m
89dB
Crossover
150Hz, 400Hz, 2kHz
DRIVER SPECIFICATIONS
Number of Woofers
4
Woofer Size
6.5″
Woofer Type
Nanocarbon Fiber/Nomex Honeycomb Long Throw
Number of Midranges
Low Frequency: 2
Upper Frequency: 24
Midrange Size
Low Frequency: 6.5″
Upper Frequency: 2″
Midrange Type
Low Frequency: Nanocarbon Fiber/Nomex Honeycomb Long Throw
Upper Frequency: Aluminum–Magnesium Dome
Number of Tweeters
40
Tweeter Size
3/4″
Tweeter Type
Aluminum–Magnesium Dome
GENERAL SPECIFICATIONS
System Type
Ported 4-Way Floor Standing
Grille
Black knit cloth, magnetically attached
Available Finishes
Piano Black
WEIGHTS & DIMENSIONS
Dimensions (W x H x D)
21-7/32″ (53.89cm) x 70-23/32″ (179.65cm) (including feet) x 21-7/32″ (53.89cm)
Weight
181 lbs (82 kg)
Shipping Weight
319 lbs (145 kg)
