GOLDMUND から TELOS 300 STEREO AMPLIFIER 登場！！

未分類

GOLDMUND

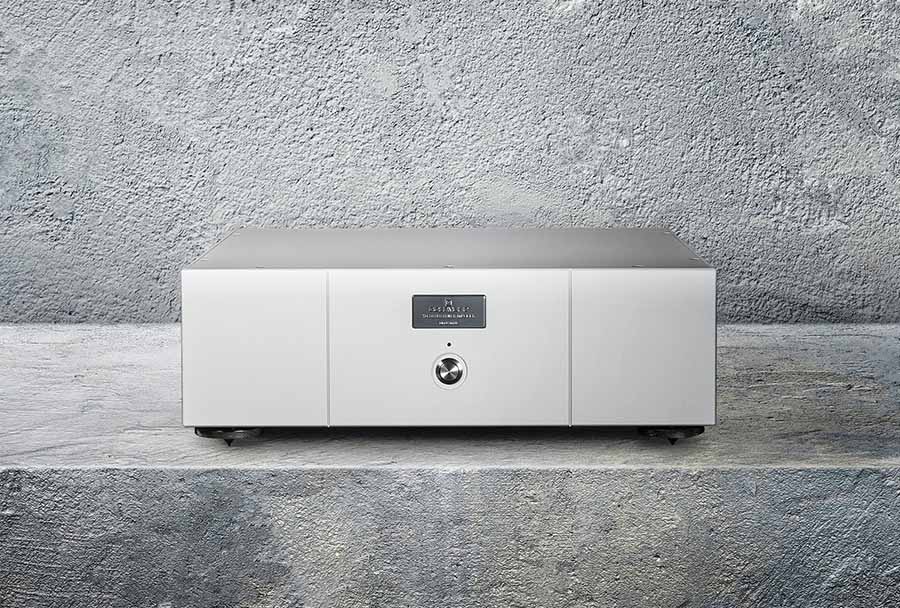

TELOS 300 STEREO AMPLIFIER

・Class AB power amplifier
・Telos amplification technology

SPECIFICATIONS
OUTPUT POWER
Maximum power (IEC60065): 2 x 225 Wrms on 8 Ω / 1 % THD.

DAMPING FACTOR
173 at 1kHz / 8 Ω.

GAIN
35 dB.

DISTORTION
IMD (SMPTE), unloaded: < 0.04 %.
THD+N, unloaded: < 0.04 % from 20 Hz to 20 kHz at 20 Vrms output.

MAX POWER CONSUMPTION
IEC 60065 at 8 Ω /1 % THD: 300 W.

RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 70 W.

INPUT
Max level before clipping, Analog input: 1 Vrms.

OUTPUT
Max level before clipping, 1 % THD, unloaded: 153 Vpp.

OUTPUT LEVEL
Maximum voltage before clipping: 153 Vpp.

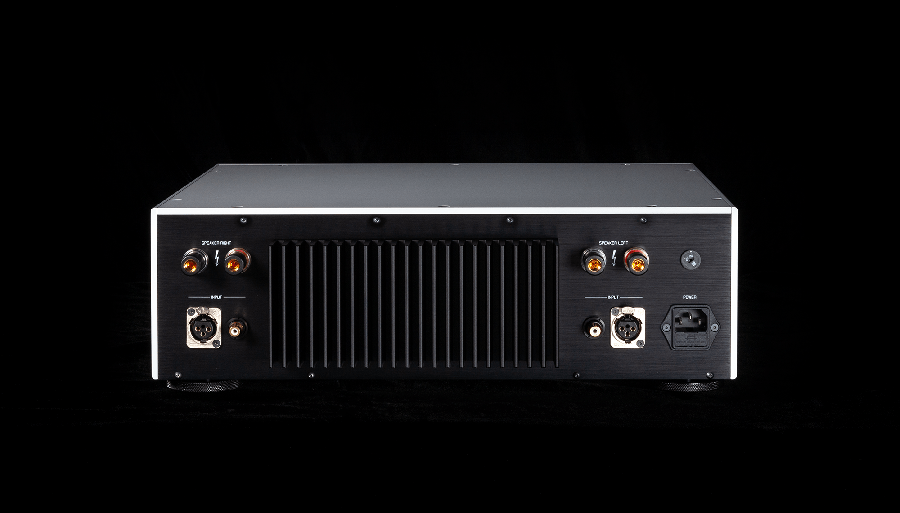

REAR PANEL
2 x output binding posts (left & right).
2 x RCA Analogue Input (left & right).
2 x XLR Analogue Input (left & right).
Input Voltage selector.

OUTPUT NOISE FLOOR
Analogue input terminated with RCA Shorting Caps, unloaded: < 1.5 μV from 20 Hz to 20 kHz.

DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 118 dB.

POWER SUPPLY
Nominal line voltage: 115 V or 230 V (+/- 15 %).
Fuse: 8 A.

DIMENSIONS & WEIGHT
44 W x 40.4 D x 15.5 H (cm).
15 kg.
