LINNから、新 KLIMAX DSM 登場!!

未分類

Klimax DSM will be available in April this year.
Klimax DSM (Audio / AV) £30,000
Klimax System Hub £15,000
Klimax System (Hub + Klimax 350 with Organik DAC)
Klimax Exaktbox with Organik DAC £15,000
Klimax 350 speakers with Organik DAC £57,500

Organik DAC Upgrade for Klimax Exaktbox £5,400
Organik DAC Upgrade for Klimax 350 Speakers £10,800

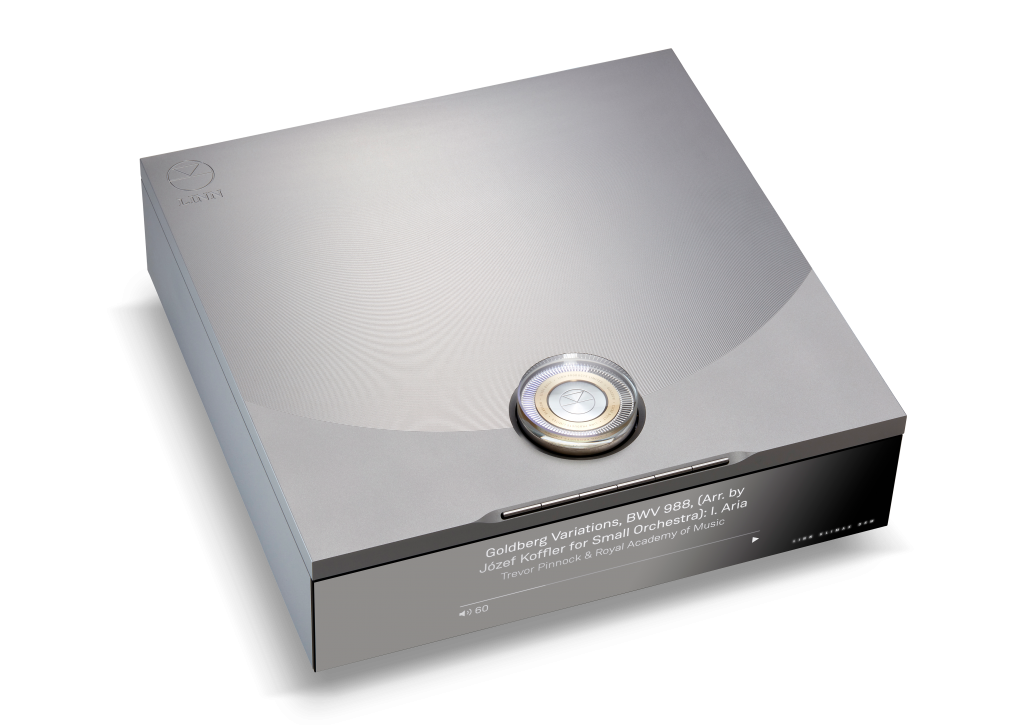

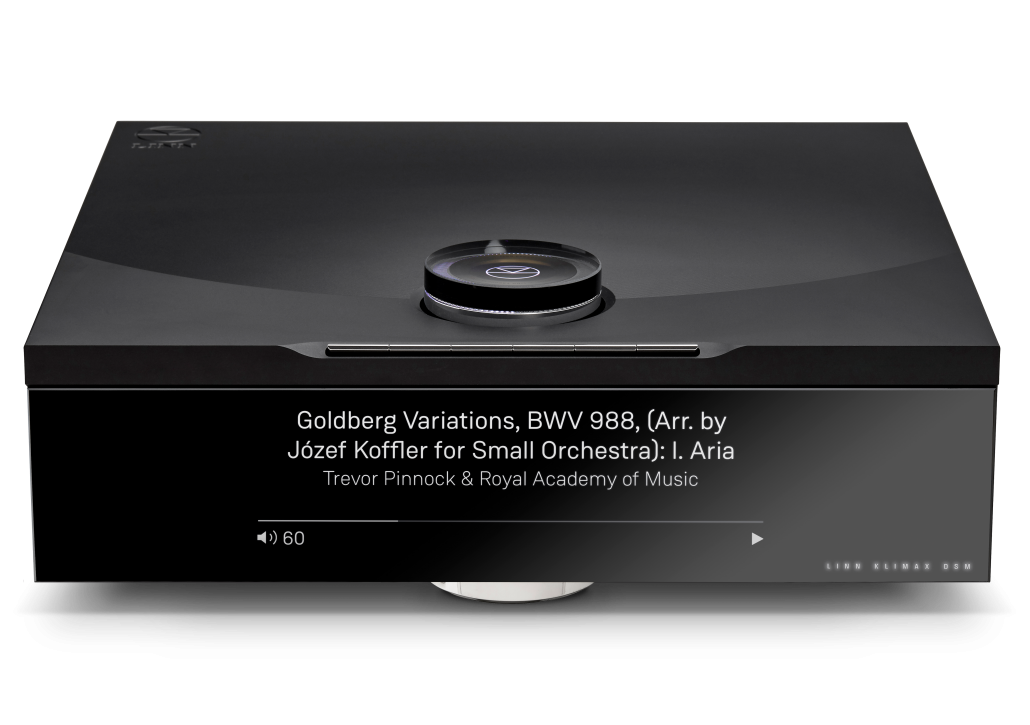

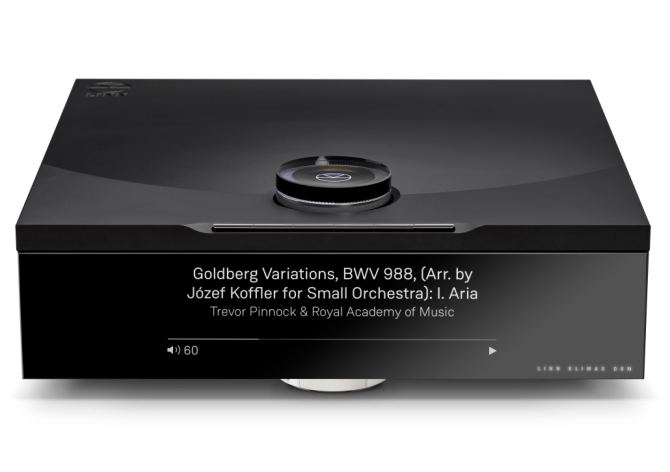

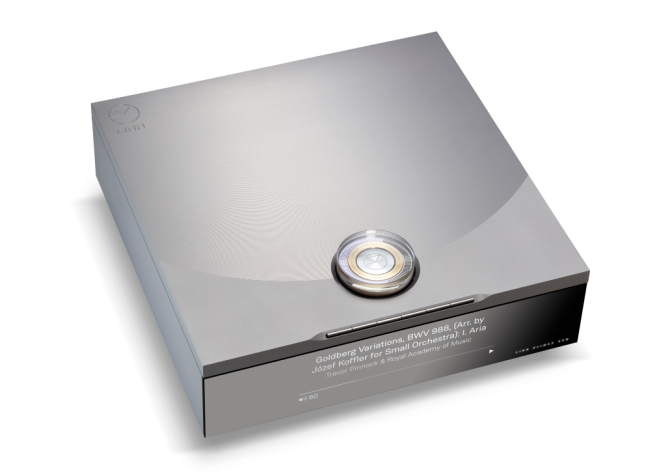

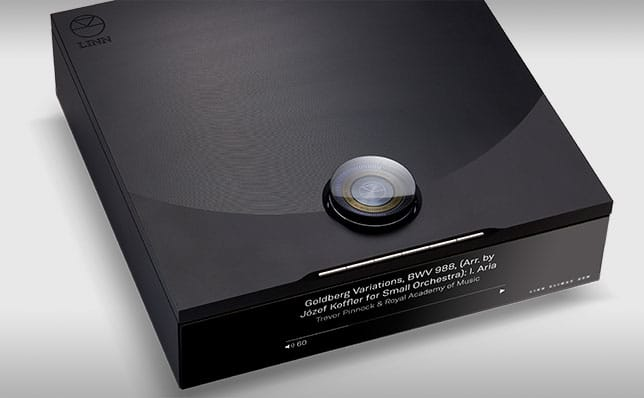

New Klimax DSM
Key features
Features Organik DAC, enabling our most natural sound ever
Available in two variants: Audio for music source connection; AV with the addition of HDMI connectivity for movie sources
Streams virtually any digital source over a standard network
Supports formats up to 24-bit 384kHz with the addition of DSD256
Integrates seamlessly with Tidal & Qobuz lossless streaming
Plays Internet radio via TuneIn & Calm Radio
Analogue, digital and wireless connectivity for performance and convenience
HDMI 2.0 connections (4K compatible) including eARC for Smart TV connection – AV variant only
New lowest distortion ADC gets the most from connected analogue sources
Exakt Links for connection of Klimax LP12, Urika II, Exaktbox or integrated Exakt speakers
Distortion-free digital volume control
Surround Sound Processing available with upgrade – AV variant only
Space Optimisation built-in (requires configuration by Linn Specialist)

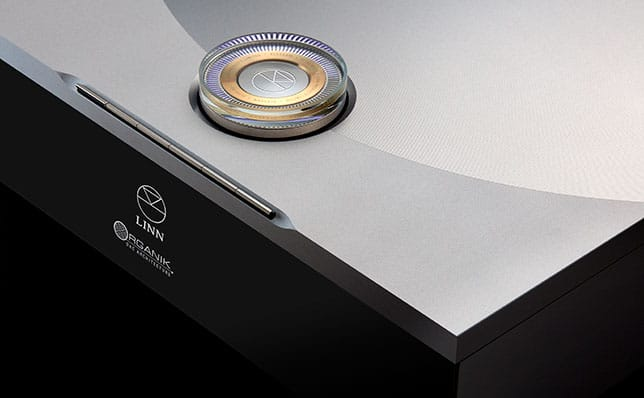

Organik DAC: the beating heart of Klimax DSM

Next-generation Klimax DSM contains features and technology developed by our engineers across years of industry-leading research and development, including the ground-breaking new Organik DAC.

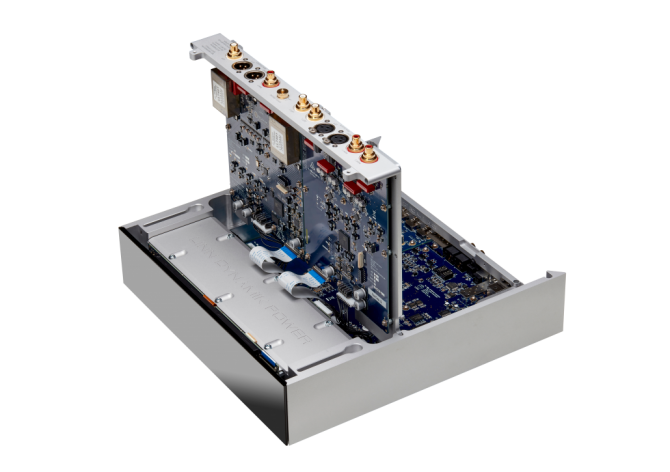

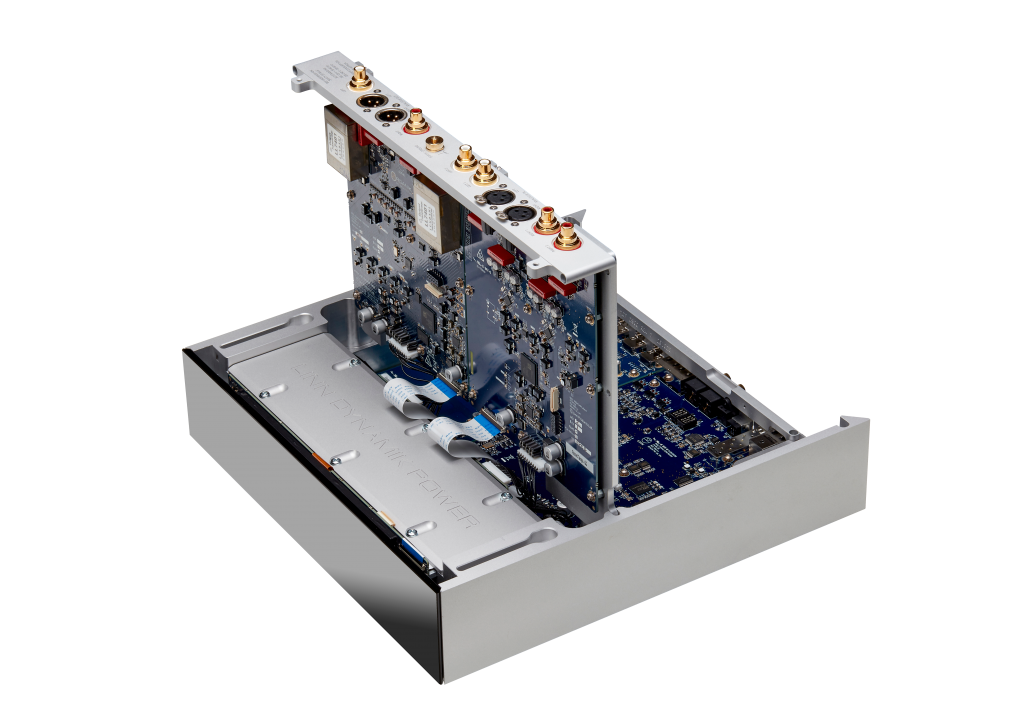

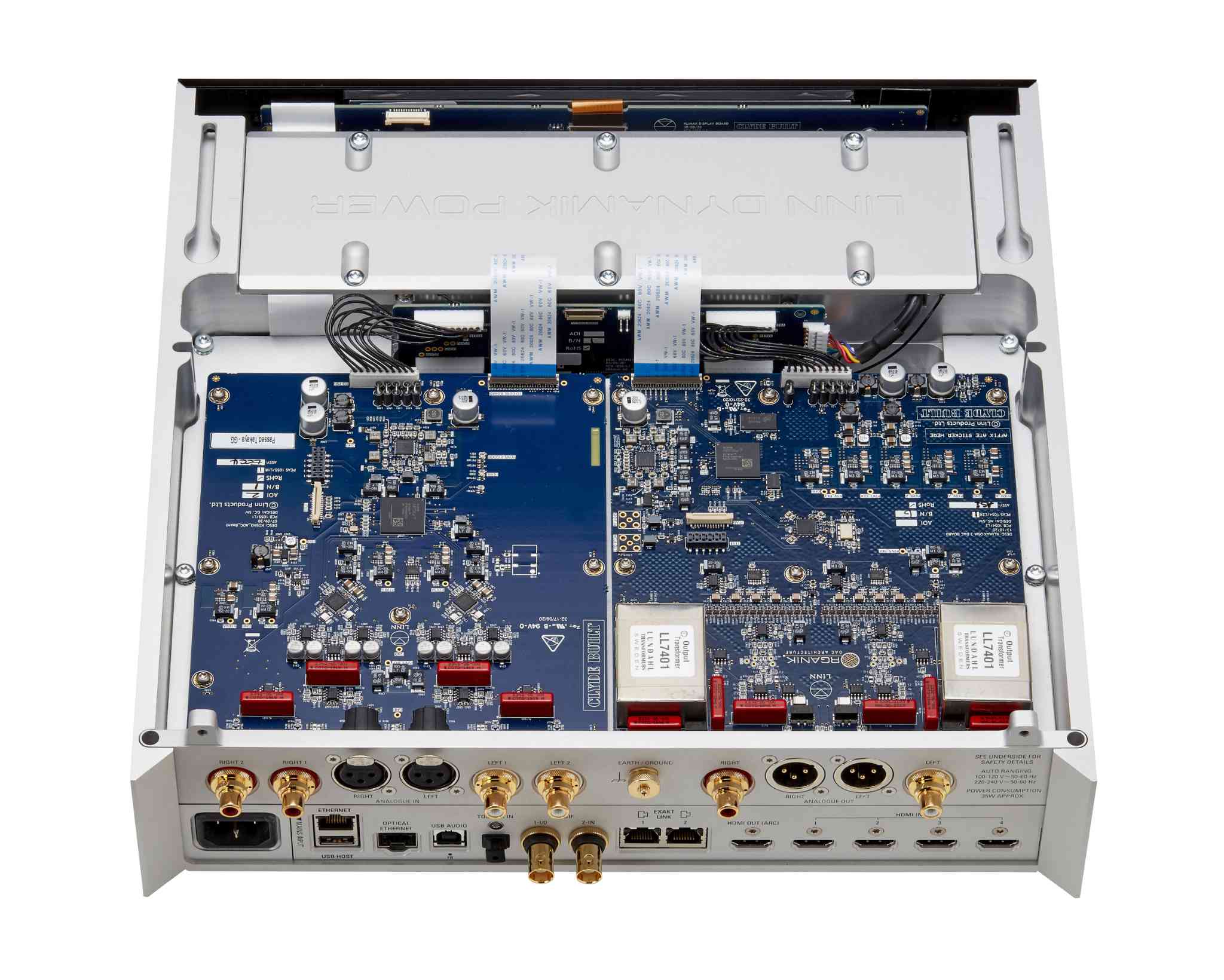

Designed without compromise and manufactured entirely in-house, the home-grown all-Linn Organik DAC combines FPGA processing with a discrete conversion stage, enabling us to precisely control and optimise every stage of the digital to analogue conversion process for the first time.

The first ever, all-Linn, digital to analogue converter
Designed and manufactured entirely in-house, Organik DAC is the first ever, all-Linn, digital to analogue converter.

With Organik DAC, Linn handles every element of the digital to analogue conversion process using a combination of FPGA processing and a discrete conversion stage.

These are designed to work together in perfect harmony. They’re precisely controlled and relentlessly optimised for exceptional audio performance.

Klimax DSM Technical Specification
Network music player and integrated pre-amplifier with inputs for additional digital and analogue sources

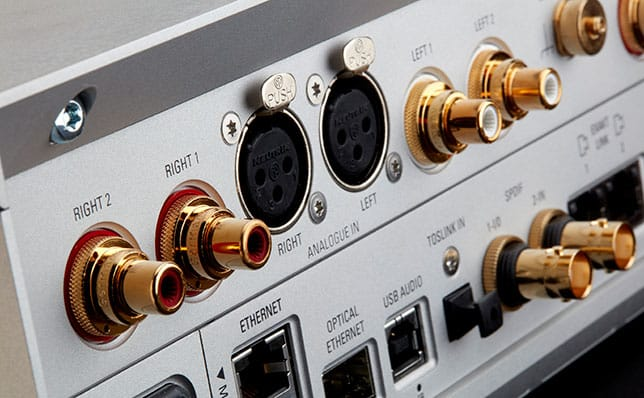

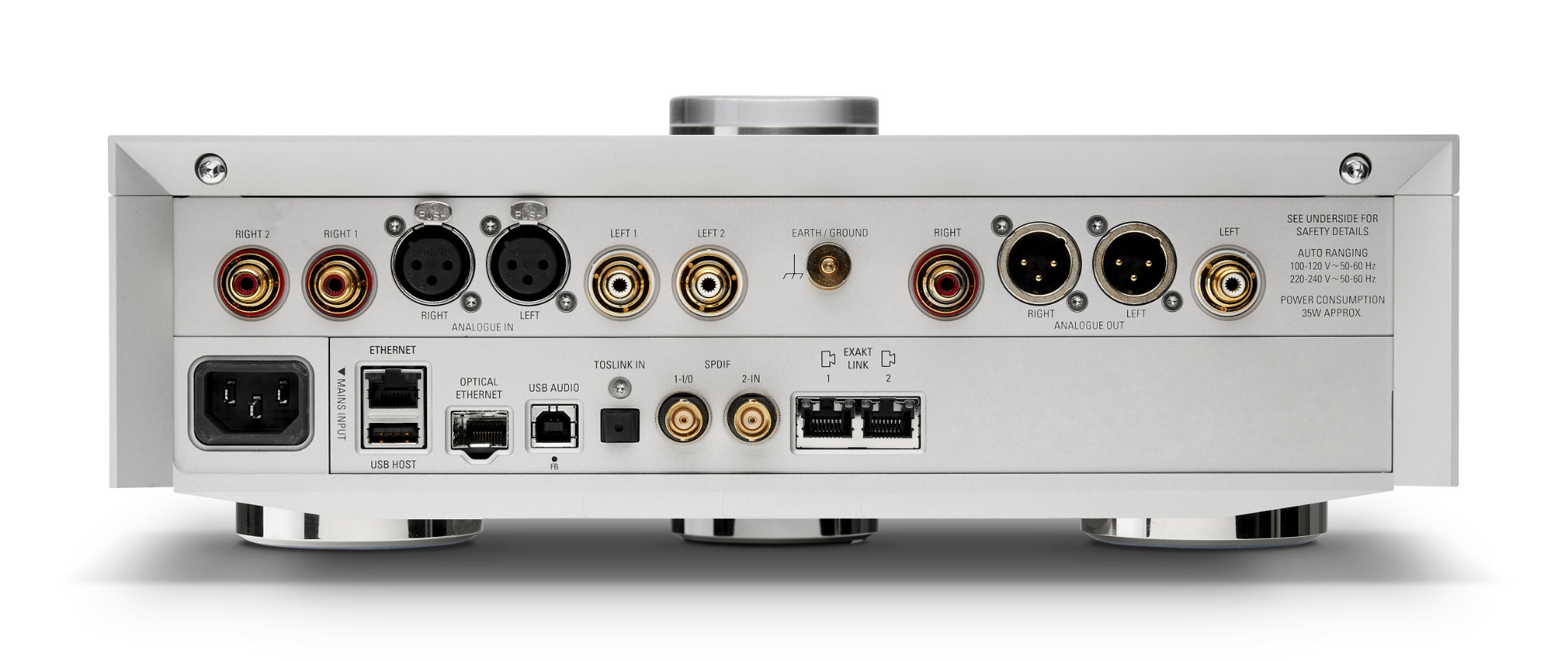

Inputs
Toslink x1
SPDIF x2 (one configurable as an output)
Balanced XLR x1
RCA Phono x2 pairs
USB Type B x1
HDMI (AV variant only) x4
HDMI ARC / eARC (AV variant only) x1 (via HDMI output)
Outputs
Balanced XLR x1 pair
RCA Phono x1 pair
HDMI (AV variant only) x1
Specification
Audio Formats FLAC, Apple Lossless, WAV, DSD (64/128/256), MP3, WMA (except lossless), AIFF, AAC, OGG
Resolution Up to 24-bit 384 kHz
Integrated Services Tidal, Qobuz, Spotify Connect, Airplay, Roon, TuneIn, Calm Radio
HDMI Spec (AV variant only) HDMI 2.0 – Supports: 4k resolution @ 60 Hz 4;4;4 HDCP 2;2; HDR; ARC; eARC; CEC
Ethernet x1
Optical Ethernet x1 (SFP socket)
Exakt Link x2
WiFi Yes (802.11ac)
Bluetooth Yes (4.2)

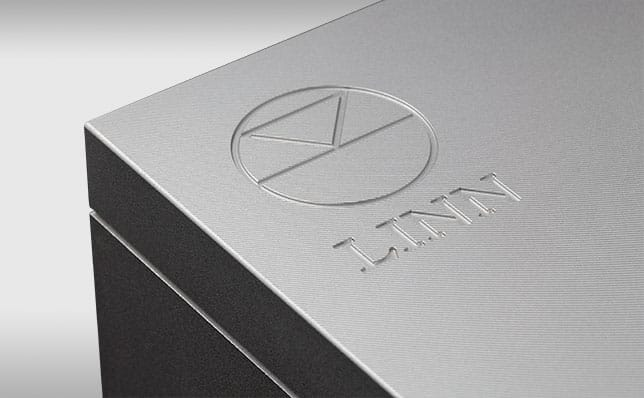

Construction Machined from solid aluminium
Finish Silver or Black anodised
Width 350 mm
Height 126 mm
Depth 350 mm
Weight 16.4 kg

« »
