PMCから、twenty5シリーズ改良モデルとなるtwenty5iシリーズ登場。

未分類

twenty5.21i
twenty5.22i
twenty5.23i
twenty5.24i
twenty5.26i
twenty5.Ci

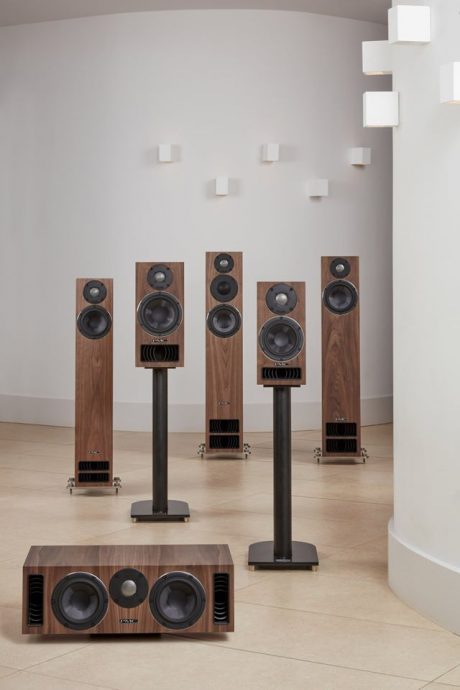

The twenty5i range consists of four two-way loudspeakers ranging from the compact shelf-mounting twenty5i.21 to the floorstanding twenty5i.24, plus the flagship three-way twenty5i.26. There’s also a Centre channel model and the proven subwoofer for use in surround systems.

Our core belief is that the same ultra-high resolution loudspeaker, if properly designed, can be used throughout the entire recording chain. That’s why our designs are employed at every stage of music-making, from film soundtrack composers’ music rooms to recording studios through to the home, preserving the essence of the original performance exactly as the artist intended. Because the characteristics and tonality of all our speakers, from large to small, are essentially the same, it’s a simple matter to mix and match different models to create your perfect i

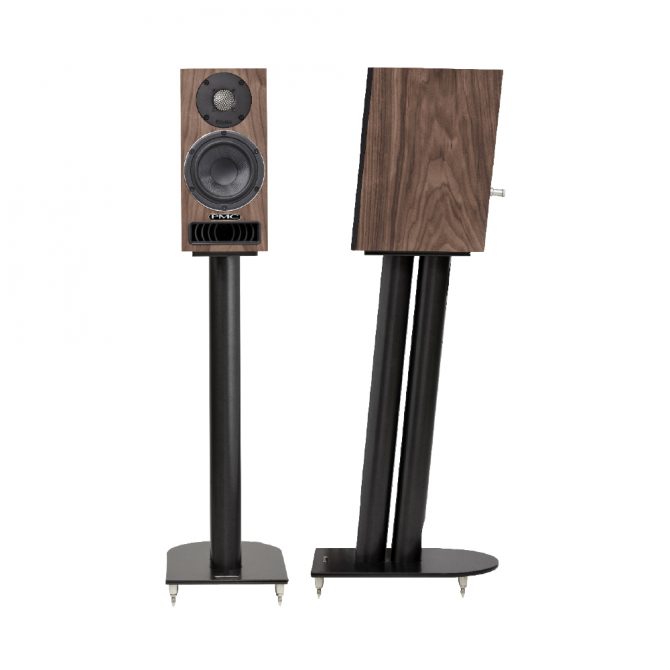

twenty5.21i
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:1.7kHz
Dimensions:H 340mm 13.4” x W 162mm 6.4” x D 284mm 11.2” incl. binding posts (+9mm grille)
Drive Units:LF PMC 5.5”/140mm long-throw g-weave™ cone with cast alloy chassis

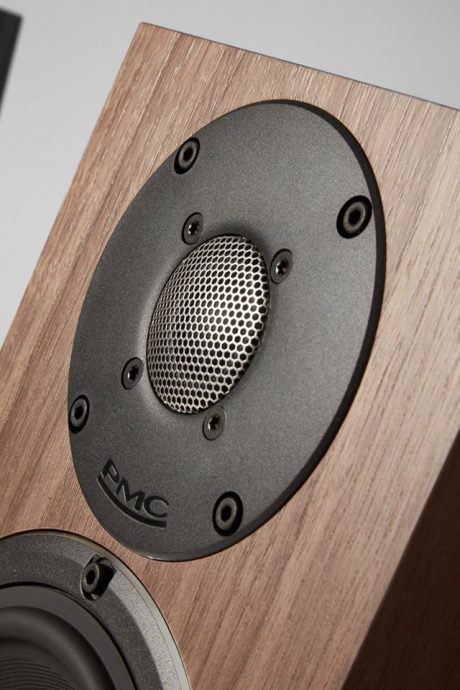

HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille

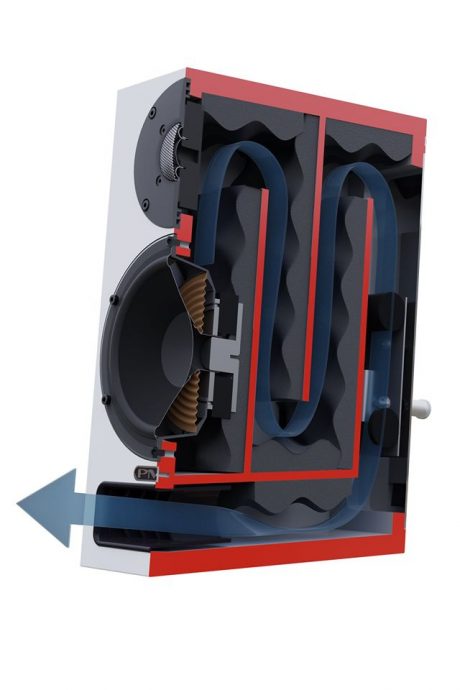

Effective ATL™ Length:1.72m 5.6ft
Frequency Response:46Hz – 25kHz
Impedance:8 Ohm
Input Connectors:One pair 4mm binding posts
sensitivity:86.5dB 1W 1m
Weight:6kg (13.2 lbs ea.)

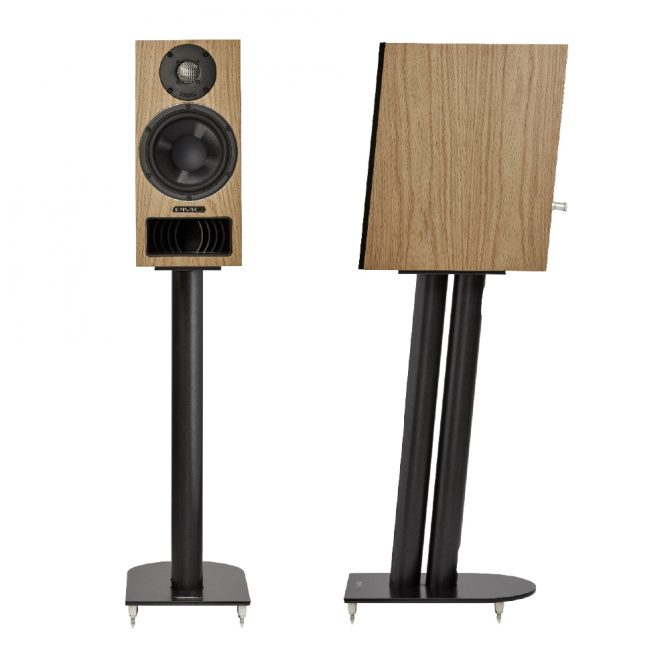

twenty5.22i
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:1.7kHz
Dimensions:H 410mm (16.1”) x W 192mm (7.6”) x D 373mm (14.7”) incl. binding posts (+9mm grille)
Drive Units:LF PMC 6.5”/170mm long-throw g-weave™ cone with cast alloy chassis
HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Effective ATL™ Length:2m (6.5ft)
Frequency Response:39Hz – 25kHz
Impedance:8 Ohm
Input Connectors:One pair 4mm binding posts
sensitivity:89dB 1W 1m
Weight:10kg (22 lbs ea.)

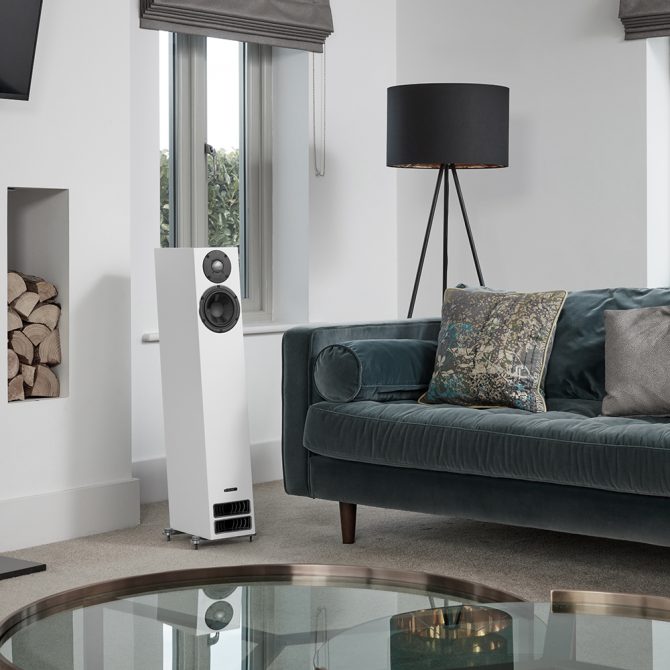

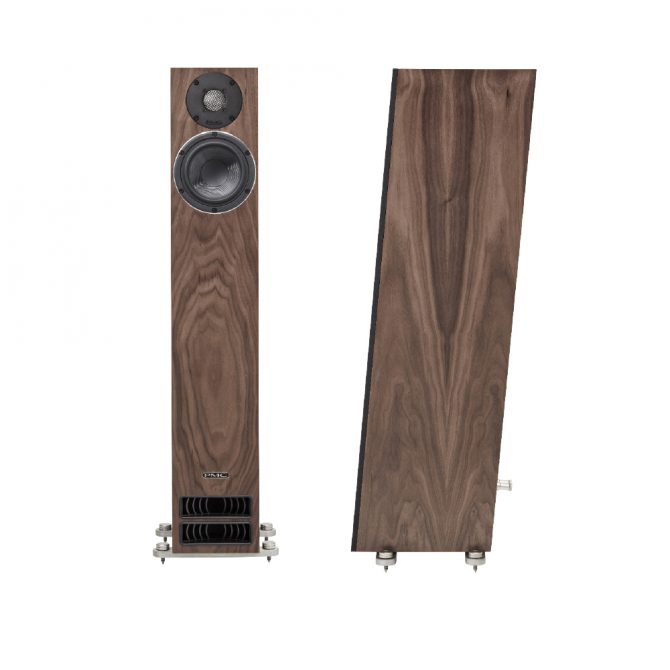

twenty5.23i
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:1.7kHz
Dimensions:H 907mm (35.7”) x W 162mm (6.4”) (238mm incl. plinth bars) x D 330mm (13”) (+9mm grille)
Drive Units:LF PMC 5.5”/140mm long-throw g-weave™ cone with cast alloy chassis
HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Effective ATL™ Length:2.4m (7.8ft)
Frequency Response:28Hz – 25kHz
Impedance:8 Ohm
Input Connectors:One pair 4mm binding posts
sensitivity:86.5dB 1W 1m
Weight:15kg (33 lbs ea.)

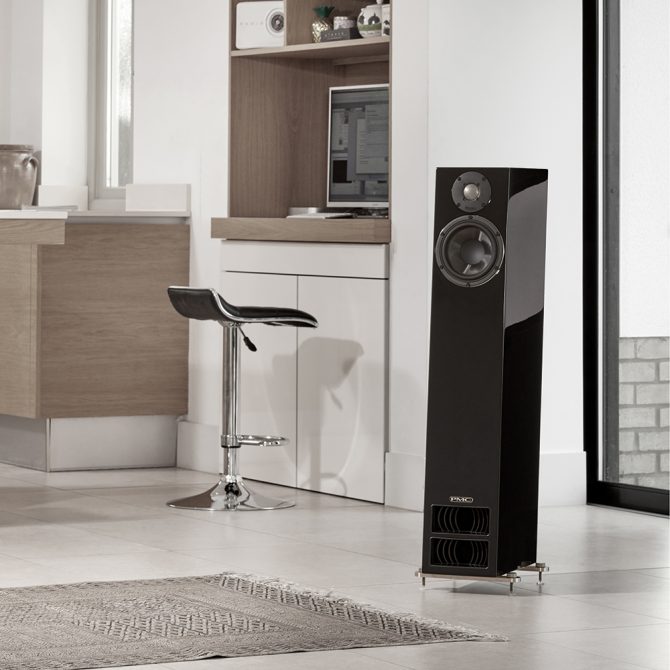

twenty5.24i
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:1.7kHz
Dimensions:H 1015mm (40”) (+20mm spikes) x W 192mm (7.6”) (275mm incl. plinth bars) x D 419mm (16.5”) (+9mm grille)
Drive Units:LF PMC 6.5”/170mm long-throw g-weave™ cone with cast alloy chassis
HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Effective ATL™ Length:3m (9.8ft)
Frequency Response:27Hz – 25kHz
Impedance:8 OhmInput Connectors:One pair 4mm binding posts
sensitivity:89dB 1W 1m
Weight:23kg (50.6 lbs ea.)

twenty5.26i
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:400Hz, 4kHz
Dimensions:H 1040mm (40.9”) (+20mm spikes) x W 192mm (7.6”) (275mm incl. plinth bars) x D 439mm (17.3”) (+15mm grille)
Drive Units:LF PMC 6.5”/170mm long-throw g-weave™ cone with cast alloy chassis
MF PMC 50mm chambered soft dome mid-range
HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Effective ATL™ Length:3.3m (11ft)
Frequency Response:27Hz – 25kHz
Impedance:8 Ohm
Input Connectors:One pair 4mm binding posts
sensitivity:86dB 1W 1m
Weight:25kg (55.1 lbs ea.)

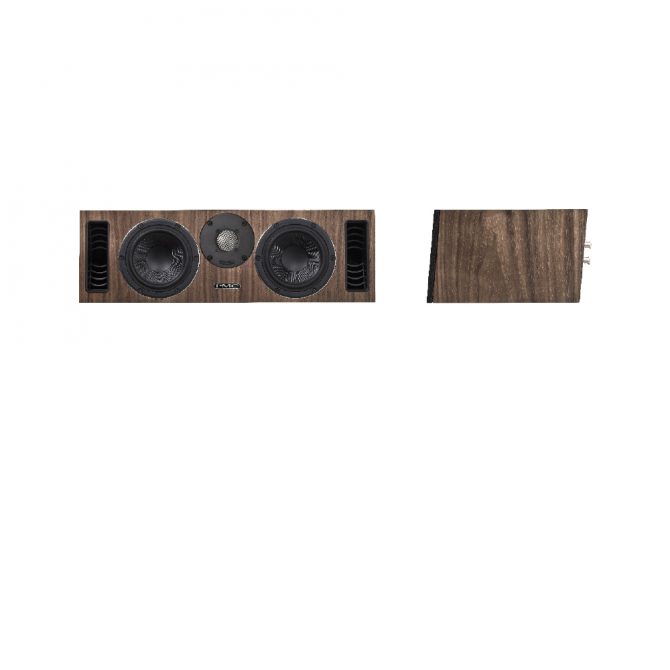

twenty5.Ci
Available Finishes:Walnut, Diamond Black, Oak, White Silk
Crossover Frequency:1.7kHz
Dimensions:H 174mm (6.9”) x W 554mm (21.8”) x D 314mm (12.4”) incl. binding posts (+9mm grille)
Drive Units:LF 2 x PMC 5.5”/140mm long-throw g-weave™ cone with cast alloy chassis
HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille
Effective ATL™ Length:1.8m (5.9ft)
Frequency Response:45Hz – 25kHz
Impedance:6 Ohm
Input Connectors:One pair 4mm binding posts
sensitivity:90dB 1W 1m
Weight:11kg (24.3 lbs ea.)
