Dynaudio 新Confidenceシリーズをいよいよ発売へ。

海外ニュース速報 [World] 新製品速報

Dynaudio 新Confidence シリーズ が昨年のミュンヘンハイエンドショウにて発表されて約１年、いよいよ発売開始されます。

Confidence 60
Confidence 50
Confidence 30
Confidence 20

This is Confidence
Designed and engineered in Denmark
We put Confidence through intensive –and exhaustive –testing in the Jupiter measuring facility at Dynaudio Labs. Hundreds of hours of analysis and listening have resulted in the best speaker we’ve ever created.

Brand-new Esotar3 tweeter
The legend continues. The all-new Esotar3 is optimised for detail, finesse and performance. It includes the ingenious Hexis resonance-defeating inner dome, plus innovations in materials, airflow and more.

Next-gen DDC technology
Dynaudio Directivity Control, our sound-shaping technology platform, has been rebooted, revamped and refined to include the DDC Lens –a unique machined waveguide that focuses your music exactly where it should go: your ears.

NeoTec woofers
We’ve taken our legendary MSP woofers to new heights. A combination of powerful neodymium magnets and aluminium and copper voice-coils mean each driver is individually engineered and tuned for one purpose: unsurpassed quality.

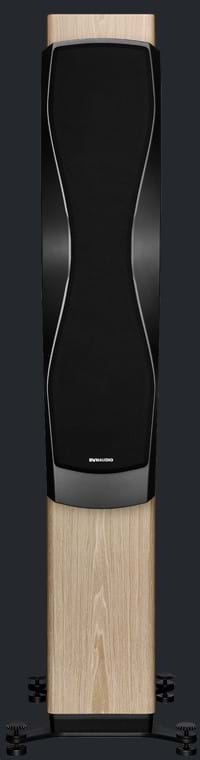

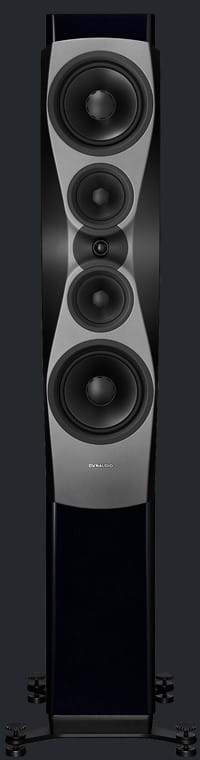

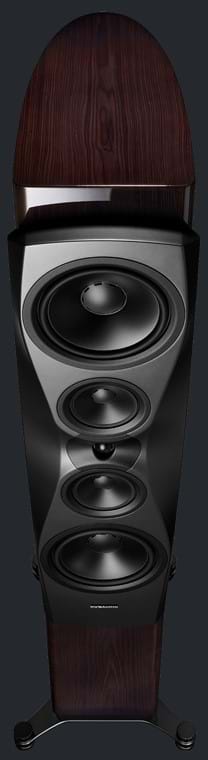

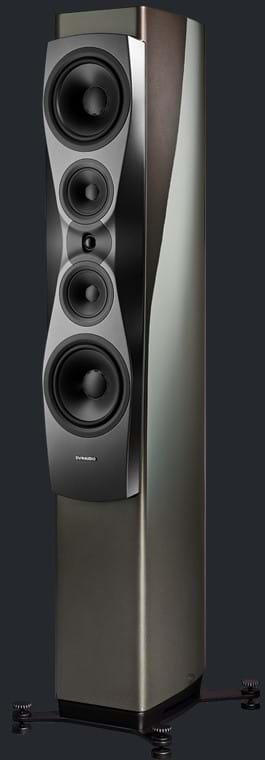

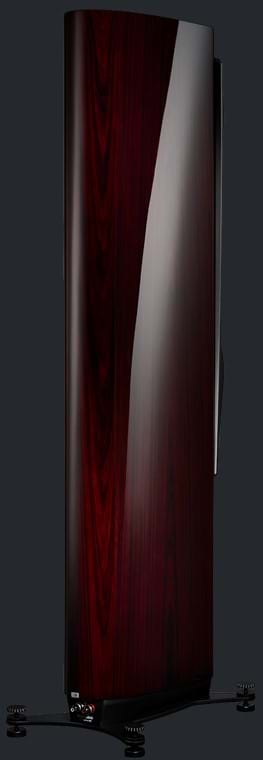

Confidence 60
Specification
Sensitivity: 87dB (2.83V / 1m)
IEC power handling: 600W
Impedance: 4 Ω (Minimum 3.7 Ω @ 71Hz)
Frequency response (± 3 dB): 29Hz–22kHz
Box Principle: Bass reflex, down-firing
Crossover: 3 way
Crossover frequency: 200, 2580Hz
Crossover topology: 2nd/3rd order with DDC
Woofer: 2x23cm MSP
Midrange: 2×15 cm MSP
Tweeter: 28 mm Esotar3
Weight: 66.2 kg/145.9 lbs
Dimensions (W x H x D):: 271 x 1634 x 469 mm  10 43/64 x 64 21/64 x 18 15/32 Inches
Dimensions with feet/grille (W x H x D):: 432 x 1679 x 517 mm  17 1/64 x 66 7/64 x 20 23/64 Inches

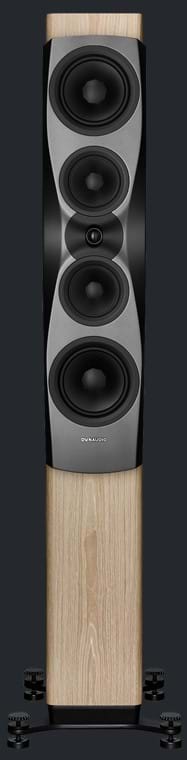

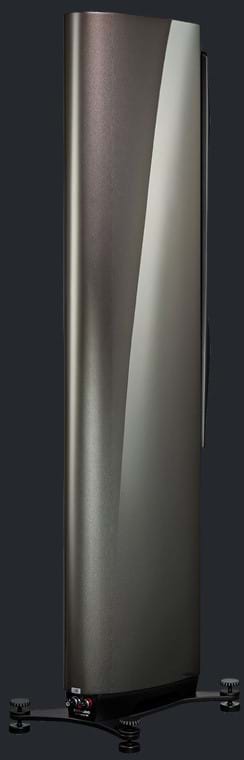

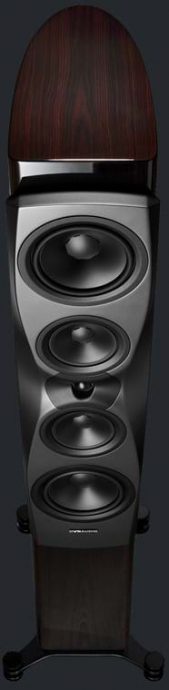

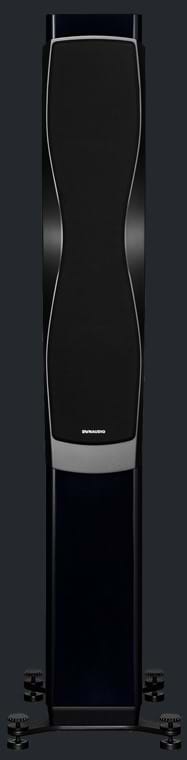

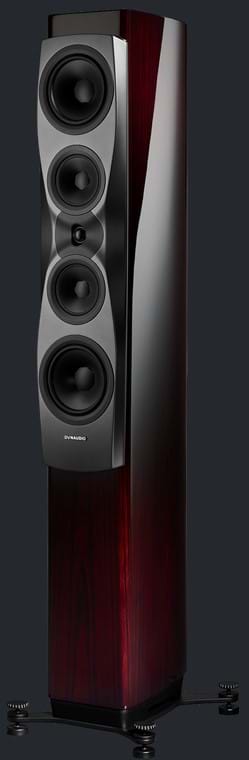

Confidence 50
Sensitivity: 87dB (2.83V / 1m)
IEC power handling: 400W
Impedance: 4 Ω (Minimum 2.7 Ω @ 79Hz)
Frequency response (± 3 dB): 35Hz–22kHzBox
Principle: Bass reflex down-firing port
Crossover: 3 way
Crossover frequency: 200, 2860Hz
Crossover topology: 2nd/3rd order with DDC
Woofer: 2x 18 cm MSP
Midrange: 2x 15 cm MSP
Tweeter: 28 mm Esotar3
Weight: 49.6 kg/109.3 lbs
Dimensions (W x H x D): 218 x 1512 x 399 mm  8 37/64 x 59 17/32 x 15 45/64 Inches
Dimensions with feet/grille (W x H x D): 364 x 1557 x 424 mm  14 21/64 x 61 19/64 x 16 11/16 Inches

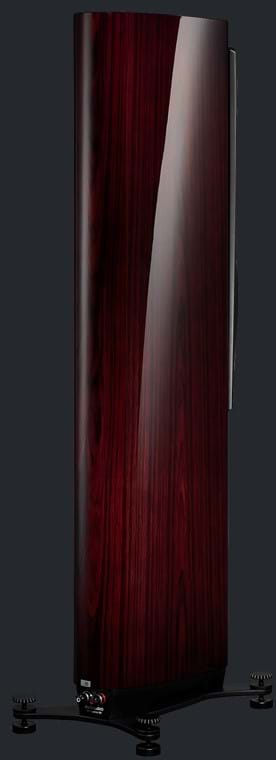

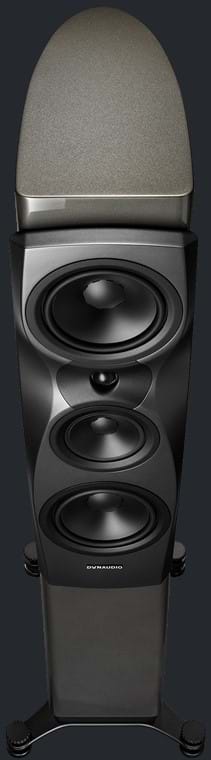

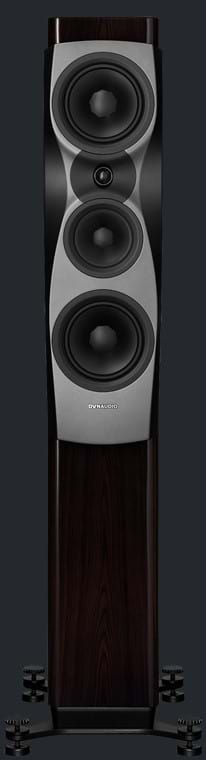

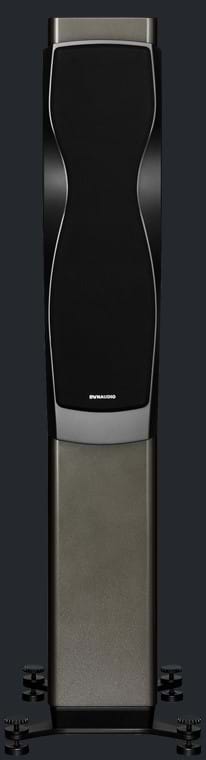

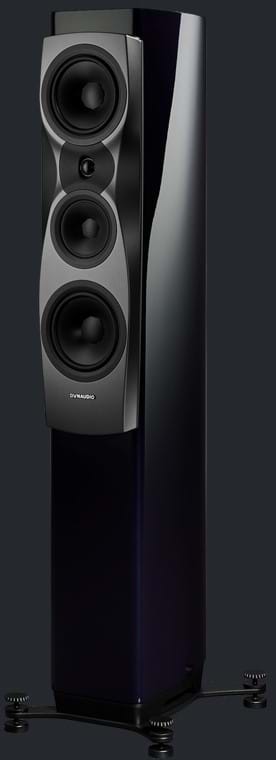

Confidence 30
Sensitivity: 88dB (2.83V / 1m)
IEC power handling: 350W
Impedance: 4 Ω (Minimum 2.8 Ω @ 85Hz)
Frequency response (± 3 dB): 38Hz–22kHz
Box Principle: Bass reflex down-firing port
Crossover: 3 way
Crossover frequency: 290, 3700Hz
Crossover topology: 2nd/3rd order with DDC
Woofer: 2×18 cm MSP
Midrange: 15 cm MSP
Tweeter: 28 mm Esotar3
Weight:: 44.2 kg / 97.4 lbs
Dimensions (W x H x D):: 222 x 1337 x 399 mm  8 47/64 x 52 41/64 x 15 45/64 Inches
Dimensions with feet/grille (W x H x D): 364 x 1382 x 424 mm  14 21/64 x 54 13/32 x 16 11/16 Inches

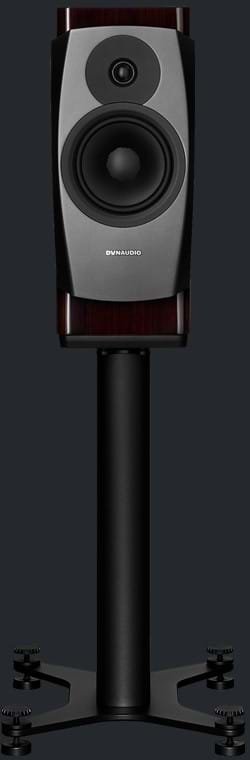

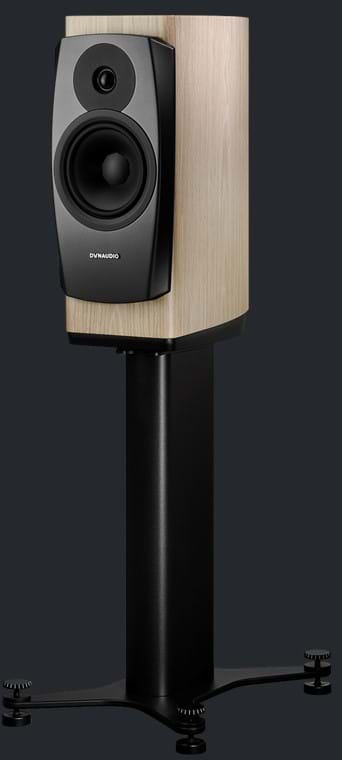

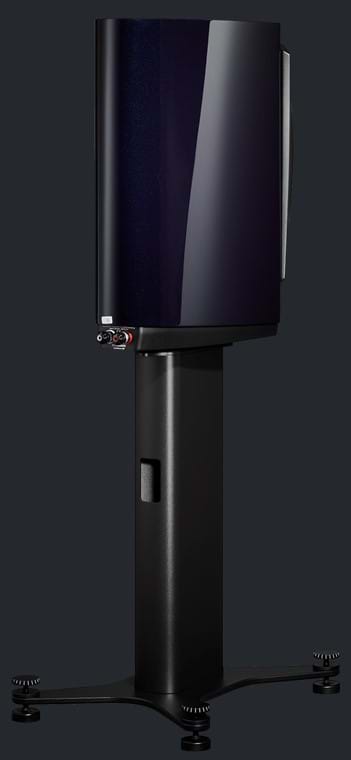

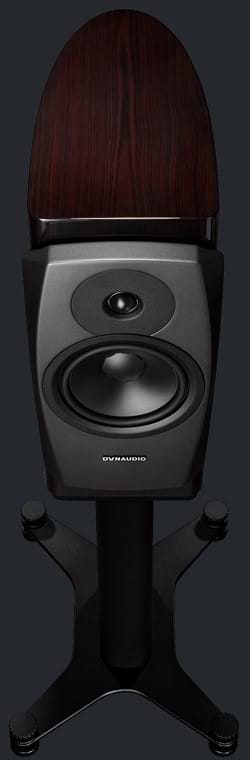

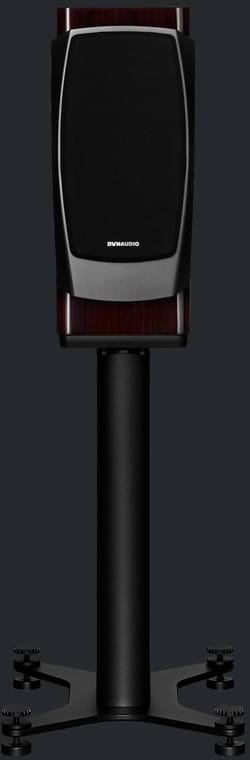

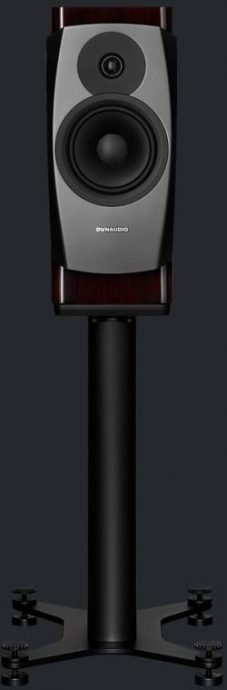

Confidence 20
Sensitivity: 87dB (2.83V / 1m)
IEC power handling: 250W
Impedance: 6 Ω (Minimum 5 Ω @ 155Hz)
Frequency response (± 3 dB): 42Hz–22kHz
Box Principle: Bass reflex down-firing port
Crossover: 2 way
Crossover frequency: 2325Hz
Crossover topology: 2nd order
Woofer: 18cm MSP
Midrange: –
Tweeter: 28 mm Esotar3
Weight: 15.2 kg/33.5 lbs
Weight including stand: 27 kg/59.6 lbs
Dimensions (W x H x D): 223 x 520 x 414 mm  8 25/32 x 20 15/32 x 16 19/64 Inches
Dimensions with feet/grille (W x H x D): 223 x 520 x 444 mm  8 25/32 x 20 15/32 x 17 31/64 Inches
Dimensions including stand: 368 x 1134 x 458 mm  14 1/2 x 44 5/8 x 18 inches
