MonitorAudioから、「 SILVER 6G 」シリーズ登場！！

海外ニュース速報 [World] 新製品速報

MONITOR AUDIO

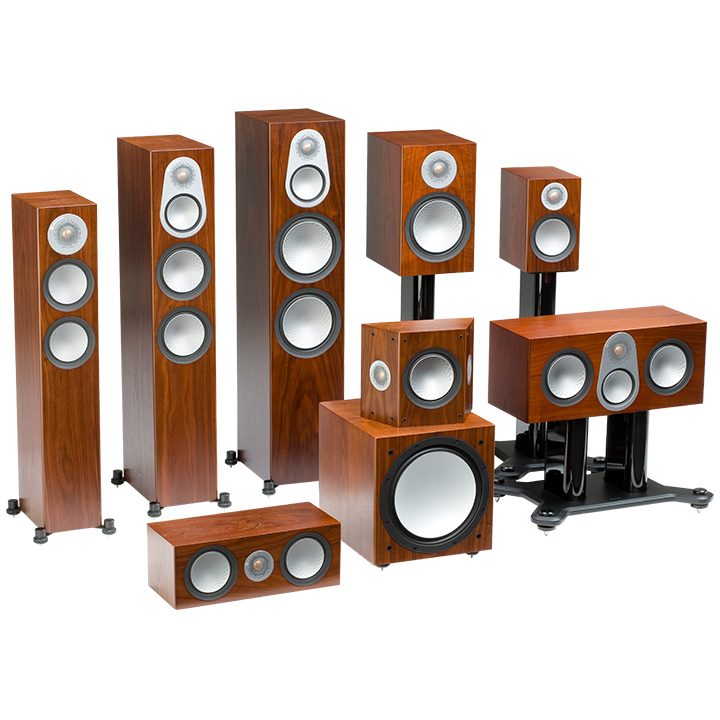

SILVER 6G RANGE

Taking hi-fi and home theatre performance to a new level
Encompassing technological advances from the top-of-the-range Platinum Series II
Featuring a completely redesigned 25 mm Gold Dome tweeter for precise treble
Stunning real wood veneer, piano lacquer and contemporary Satin White finishes to suit every setting
Revered by audiophiles around the globe, Monitor Audio’s award-winning Silver Series enters its sixth generation with a host of new features to make it the best-performing ever.

Sit back and prepare to enjoy this fabulous combination of engineering excellence and fabulous design whatever your hi-fi or home theatre loudspeaker requirements. Choose from stand-mount, floorstanders, centre channel, surround and subwoofer designs to create your perfect home system.

Whatever you choose from the Silver Series you will love the fabulous sound and design, which is the result of over 40 years of loudspeaker development to produce accurate audio with aesthetic perfection. Wallow in abundant dynamics, rich textures and immense detail and enjoy the holographic clarity and pinpoint imaging which every Silver Series model creates. Prepare to re-live your music collection with Silver.

SILVER 500
SILVER 300
SILVER 200
SILVER 100
SILVER 50
SILVER C150
SILVER C350

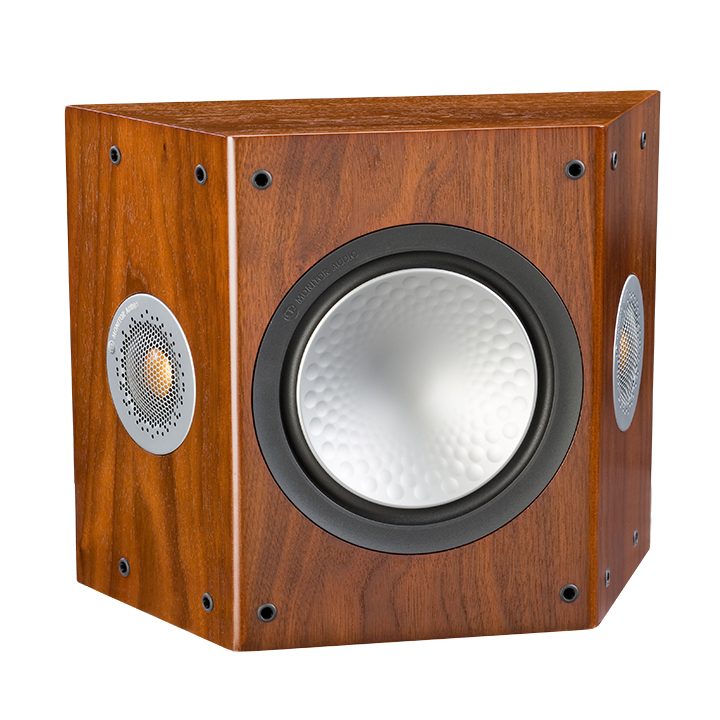

SILVER FX
SILVER W-12

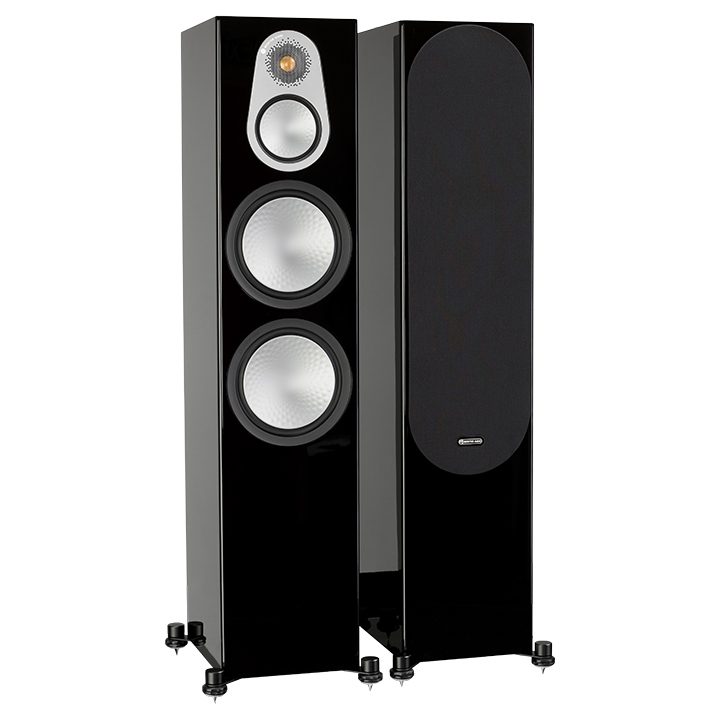

SILVER 500

TECHNOLOGY
・Three-way, four driver configuration (both electrically and acoustically) allows drive units to be optimised to deliver high efficiency and lowest distortion
・New bespoke 25 mm C-CAM, (Ceramic-Coated Aluminium/Magnesium) tweeter featuring vented Neo magnet system optimised for lower distortion and cleaner-sounding highs
・Specially-developed 4-inch mid-range driver with ‘under hung’ voice coil and motor system so the voice coil is always in the magnetic gap ensuring incredibly low distortion
・Dual 8-inch bass drivers with ‘dished’ C-CAM cone profile for better damping and improved mid-range clarity
・RST Cone profile for improved diaphragm rigidity and lower distortion
・Unique-build ring/voice coil-cone coupling mechanism (DCF) optimised to reduce high-frequency cone break-up and increase the critical voice coil circumferential rigidity. Cast polymer driver chassis design – improved rigidity and damping characteristics
・HiVe II port technology means improved transient response and tighter bass, due to smoother airflow
・Pureflow silver-plated OFC copper internal cabling gives highest quality transfer through the signal chain
・High-quality crossovers featuring premium-grade bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors equate to maximum signal transfer and zero distortion
・Rigid 20 mm MDF construction utilising scientifically optimised cabinet bracing
・Single bolt-through driver technology provides increased bracing strength, rigidity and driver/baffle de-coupling
・Ultra-low profile grilles featuring invisible magnetic grille fixings for clean visual styling when fitted
・Bespoke, high quality bi-wire terminals
・Terminal panel located at floor level for easy termination and neat cable access
・Out-rigger feet (spiked, or rubber for hard flooring) provide attractive appearance while taking up less floor space
・Selected, premium-quality wood veneers, high-gloss lacquer and contemporary Satin White finishes.

SPECIFICATION

System Format：3-way
Frequency Response (-6 dB)：30 Hz – 35 kHz
Sensitivity (1W@1M)：90 dB
Nominal Impedance：8 ohms
Minimum Impedance：3.1 ohms @ 2.45 kHz
Maximum SPL：117 dBA (pair)
Power Handling (RMS)：250 W
Recommended Amplifier Requirements：80 – 250 W
Bass Alignment：Bass reflex. HiVe II port system
Crossover Frequency：
LF/MF: 625 Hz
MF/HF: 3.1 kHz
Drive Unit Complement：
2 x 8” RST bass driver 1 x 4” RST mid-range driver
1 x 1” (25 mm) Gold Dome C-CAM tweeter
Cabinet Dimensions (excluding grille and terminals)：1050 x 230 x 300 mm
(41 5/16″ x 9 1/16″ x 7 7/8”)
External Dimensions (including grille and terminals)：1050 x 230 x 329 mm
(41 5/16″ x 9 1/16″ x 12 15/16”)
External Dimensions (including out-rigger plates, feet and spikes)：1083 x 297 x 367 mm
(42 5/8″ x 11 11/16″ x 14 7/16”)
Weight (each)：22.8 kg

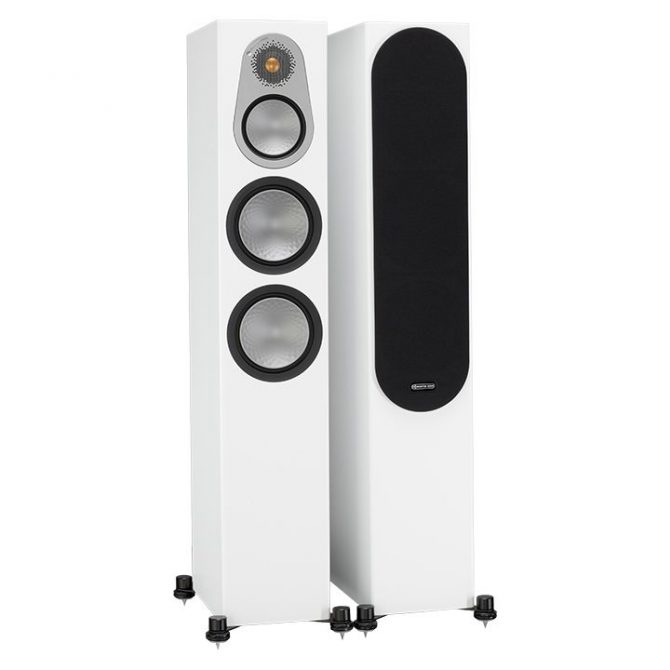

SILVER 300

TECHNOLOGY

・Three-way, four-driver configuration (electrically and acoustically) allows the drivers to be optimised to deliver higher efficiency and lower distortion from a cabinet of this size
・New 25 mm C-CAM, (Ceramic-Coated Aluminium/Magnesium) featuring vented Neo magnet system has been optimised for lower distortion and cleaner-sounding highs
・Specially developed 4-inch mid-range driver with ‘under hung’ voice coil and motor system so the voice coil is always in the magnetic gap, ensuring very low distortion
・Dual 6inch bass drivers with concave ‘dished’ C-CAM cone profile means better damping and improved mid-range clarity
・RST Cone profile for improved diaphragm rigidity and lower distortion
・Unique-build ring/voice coil-cone coupling mechanism (DCF) optimised to reduce high-frequency cone break-up and increasing the critical voice coil circumferential rigidity
・Cast polymer driver chassis design results in improved rigidity and damping characteristics
・HiVe II port technology for improved transient response and tighter bass, due to smoother airflow
・Pureflow silver-plated OFC copper internal cabling gives the highest quality transfer through the signal chain
・High-quality crossovers with premium grade, bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors ensure maximum signal transfer
・Rigid 20 mm MDF construction utilising scientifically-optimised cabinet bracing
・Single bolt-through driver technology provides increased bracing strength, rigidity and driver/baffle de-coupling
・Ultra-low profile grilles featuring invisible magnetic grille fixings for clean visual styling when fitted
・Bespoke, high quality bi-wire terminals
・Terminal panel located at floor level for easy termination and neat cable access
・Out-rigger feet (spiked, or rubber for hard flooring) provide attractive appearance while taking up less floor space
・Selected, premium-quality wood veneers, high-gloss lacquer and contemporary Satin White finishes.

SPECIFICATION

System Format：3-way
Frequency Response (-6 dB)：32 Hz – 35 kHz
Sensitivity (1W@1M)：90 dB
Nominal Impedance：8 ohms
Minimum Impedance：3.5 ohms @ 146 Hz
Maximum SPL：116 dBA (pair)
Power Handling (RMS)：200 W
Recommended Amplifier Requirements：80 – 200 W
Bass Alignment：Bass reflex. HiVe II port system
Crossover Frequency：
LF/MF: 570 Hz
MF/HF: 3.5 kHz
Drive Unit Complement：
2 x 6-inch RST bass driver 1 x 4-inch RST mid-range driver
1 x 1-inch (25 mm) Gold Dome C-CAM tweeter
Cabinet Dimensions (excluding grille and terminals)：1000 x 185 x 300 mm
(393/8 x 75/16 x 1113/16-inch)
External Dimensions (including grille and terminals)：1000 x 185 x 329 mm
(393/8 x 75/16 x 1215/16-inch)
External Dimensions (including out-rigger plates, feet and spikes)：1034 x 252 x 367 mm
(4011/16 x 915/16 x 147/16-inch)
Weight (each)：20 kg

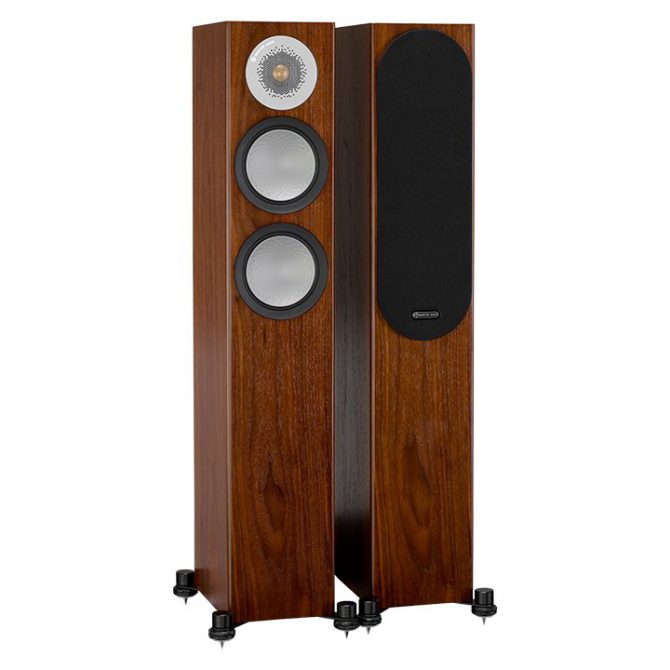

SILVER 200

TECHNOLOGY

・Two-and-a-half-way, three-driver configuration
・Differentially-tuned acoustic system means high efficiency with powerful low-frequency extension
・New 25 mm C-CAM, (Ceramic-Coated Aluminium/Magnesium) tweeter featuring vented Neo magnet system optimised for lower distortion and cleaner sounding highs
・New 5¼-inch bass and 5¼-inch bass/mid drivers with ‘dished’ C-CAM cone profile for better damping and improved mid-range clarity
・RST Cone profile for improved diaphragm rigidity and lower distortion
・Unique-build ring/voice coil-cone coupling mechanism (DCF) optimised to reduce high-frequency cone break-up and increasing the critical voice coil circumferential rigidity
・Cast polymer driver chassis design for improved rigidity and damping characteristics
・HiVe II port technology means better transient response and tighter bass, due to smoother airflow
・Pureflow silver-plated OFC copper internal cabling for the highest quality transfer through the signal chain
・High-quality crossovers utilising premium grade, bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors results in maximum signal transfer
・Rigid 20 mm MDF construction utilising scientifically optimised cabinet bracing
・Single bolt-through driver technology providing increased bracing strength, rigidity and driver/baffle de-coupling
・Ultra low-profile grilles featuring invisible magnetic grille fixings for clean visual styling when fitted
・High-quality crossovers with premium-grade polypropylene film capacitors throughout
・Bespoke, high quality bi-wire terminals
・Terminal panel located at floor level for easy termination and neat cable access
・Out-rigger feet (spiked, or rubber for hard flooring) provide attractive appearance while taking up less floor space
・Selected, premium-quality wood veneers, high gloss lacquer and contemporary Satin White finishes.

SPECIFICATION

System Format：21/2-way
Frequency Response (-6 dB)：38 Hz – 35 kHz
Sensitivity (1W@1M)：89 dB
Nominal Impedance：8 ohms
Minimum Impedance：4.7 ohms @ 182 Hz
Maximum SPL：114 dBA (pair)
Power Handling (RMS)：150 W
Recommended Amplifier Requirements：60 – 150 W
Bass Alignment：Dual chamber bass reflex with differential tuning. Twin HiVe II port system
Crossover Frequency：
LF: 700 Hz
MF/HF: 2.9 kHz
Drive Unit Complement：
1 x 51/4-inch RST bass driver 1 x 51/4-inch RST bass/mid driver
1 x 1-inch (25 mm) Gold Dome C-CAM tweeter
Cabinet Dimensions (excluding grille and terminals)：885 x 165 x 240 mm
3413/16 x 61/2 x 97/16-inch
External Dimensions (including grille and terminals)：885 x 165 x 269 mm
3413/16 x 61/2 x 109/16-inch
External Dimensions (including out-rigger plates, feet and spikes)：918 x 232 x 307 mm
361/8 x 91/8 x 121/16-inch
Weight (each)
14.6 kg

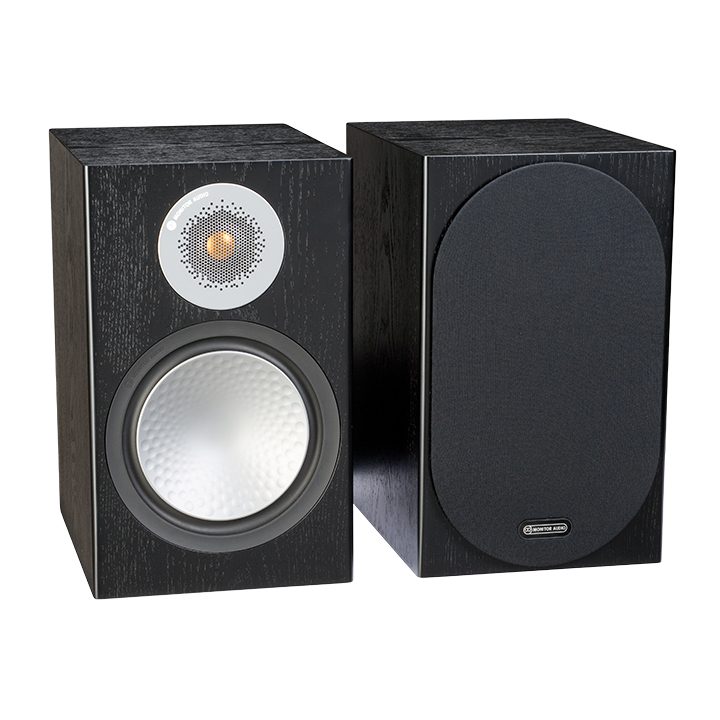

SILVER 100

TECHNOLOGY

・Unique RST Cone profile for best diaphragm rigidity and lowest distortion
・Proprietary-build ring/voice coil-cone coupling mechanism (DCF) optimised to reduce high-frequency cone break-up and increase the critical voice coil circumferential rigidity
・Cast-polymer driver chassis design for improved rigidity and damping characteristics
・HiVe II port technology ensures linear transient response and tighter bass, due to smoother airflow
・Pureflow silver-plated OFC copper internal cabling means the highest-quality transfer through the signal chain
・High-quality crossovers with premium grade, bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors for maximum signal transfer
・Rigid 20 mm MDF construction utilising scientifically-optimised cabinet bracing
・Single bolt-through driver technology provides increased bracing strength, rigidity and driver/baffle de-coupling
・Ultra-low-profile grilles featuring invisible magnetic grille fixings ensure clean visual styling when fitted
・Bespoke, high quality bi-wire terminals
・Selected premium-quality wood veneers, high-gloss lacquer and contemporary Satin White finishes.

SPECIFICATION

System Format：2-way
Frequency Response (-6 dB)：40 Hz – 35 kHz
Sensitivity (1W@1M)：88 dB
Nominal Impedance：8 ohms
Minimum Impedance：4.5 ohms @ 167 Hz
Maximum SPL：112 dBA (pair)
Power Handling (RMS)：120 W
Recommended Amplifier Requirements：40 – 120 W
Bass Alignment：Bass reflex. HiVe II port system
Crossover Frequency：2.8 kHz
Drive Unit Complement：
1 x 8-inch RST bass/mid driver
1 x 1-inch (25 mm) Gold Dome C-CAM tweeter
Cabinet Dimensions (excluding grille and terminals)：375 x 230 x 300 mm
(143/4 x 91/16 x 1113/16-inch)
External Dimensions (including grille and terminals)：375 x 230 x 329 mm
(143/4 x 91/16 x 1215/16-inch)
External Dimensions (including out-rigger plates, feet and spikes)：N/A
Weight (each)：9.3 kg

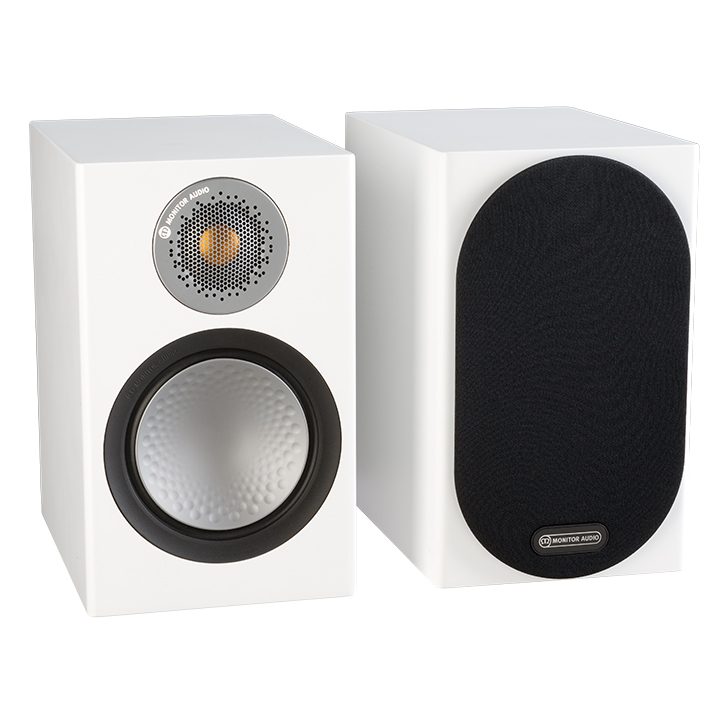

SILVER 50

TECHNOLOGY

・New 25 mm C-CAM (Ceramic-Coated Aluminium/Magnesium) tweeter, featuring vented Neo magnet system, optimised for lower distortion and cleaner sounding treble
・New 5¼-inch bass/mid driver with concave ‘dished’ C-CAM cone profile for optimal damping and improved mid-range clarity
・RST Cone profile for improved diaphragm rigidity and lower distortion
・Unique build ring/voice coil-cone coupling mechanism (DCF), optimised to reduce high-frequency cone break-up and increase the critical voice coil circumferential rigidity
・Cast polymer driver chassis design for improved rigidity and damping characteristics
・HiVe II port technology giving improved transient response and tighter bass, due to smoother airflow
・Pureflow silver-plated OFC copper internal cabling to allow the highest-quality transfer through the signal chain
・High-quality crossover components including premium grade, bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors allowing maximum signal transfer and zero distortion
・Rigid 20 mm MDF construction utilising scientifically-optimised bracing
・Single-bolt-through driver technology pioneered by Monitor Audio, providing increased bracing strength, rigidity and driver/baffle de-coupling
・Ultra-low-profile grilles featuring invisible magnetic grille fixings mean a clean visual styling
・Bespoke, high quality bi-wire terminals
・Selected premium-quality wood veneers, high-gloss lacquer or contemporary Satin White finishes

SPECIFICATION

System Format：2-way
Frequency Response (-6 dB)：52 Hz – 35 kHz
Sensitivity (1W@1M)：87 dB
Nominal Impedance：8 ohms
Minimum Impedance：4.1 ohms @ 220 Hz
Maximum SPL：110 dBA (pair)
Power Handling (RMS)：100 W
Recommended Amplifier Requirements：40 – 100 W
Bass Alignment：Bass reflex. HiVe II port system
Crossover Frequency：3.0 kHz
Drive Unit Complement：
1 x 51/4-inch RST bass/mid driver
1 x 1-inch (25 mm) Gold Dome C-CAM tweeter
Cabinet Dimensions (excluding grille and terminals)：270 x 165 x 240 mm
(105/8 x 61/2 x 97/16-inch)
External Dimensions (including grille and terminals)：270 x 165 x 269 mm
(105/8 x 61/2 x 109/16-inch)
External Dimensions (including out-rigger plates, feet and spikes)：N/A
Weight (each)：6 kg

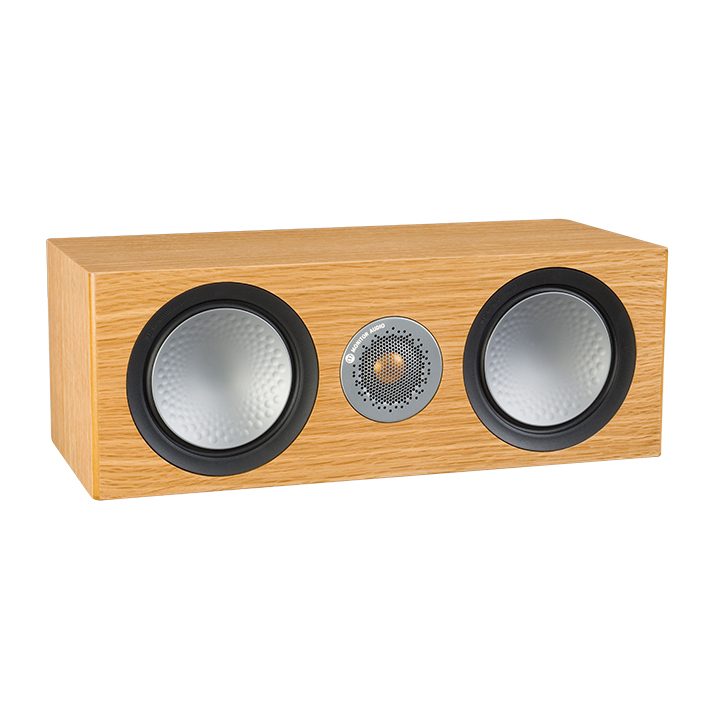

SILVER C150

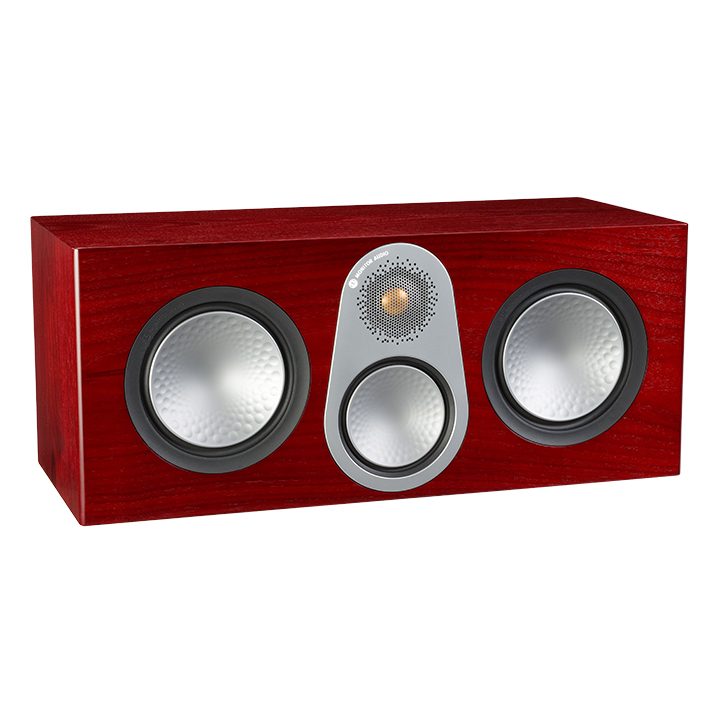

SILVER C350

SILVER FX

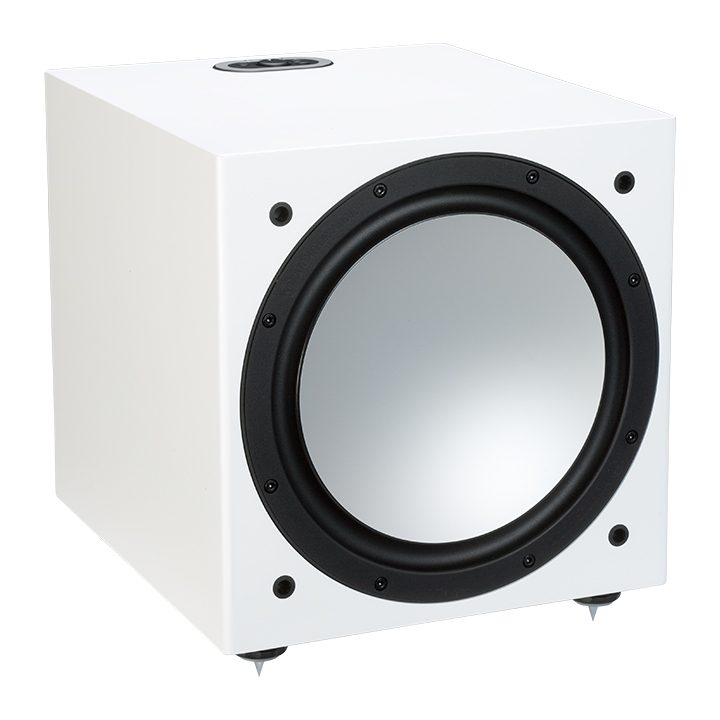

SILVER W-12
