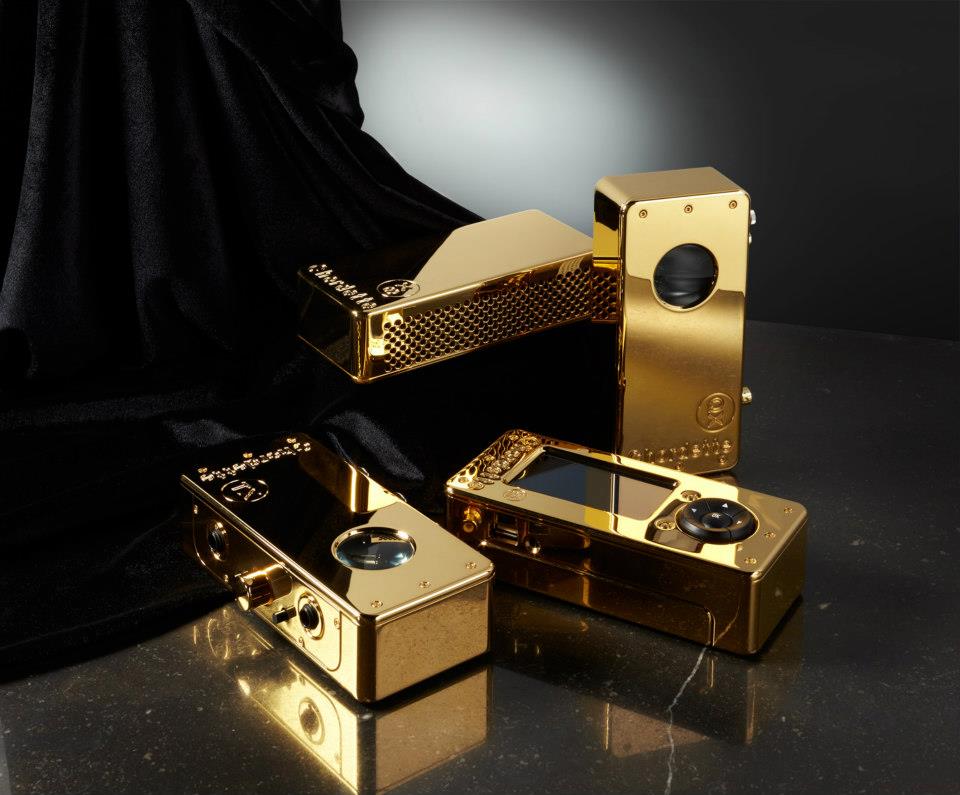

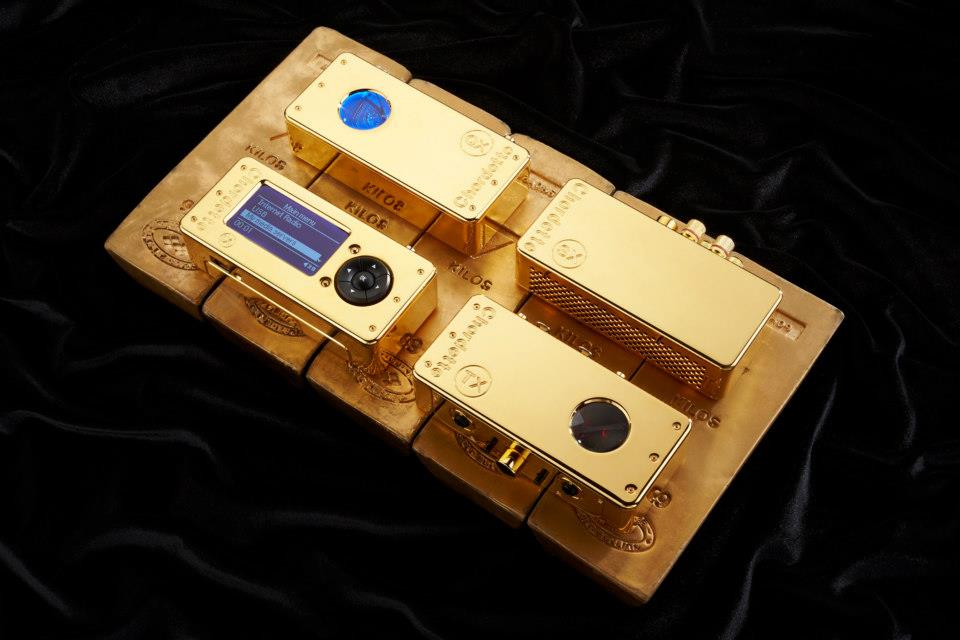

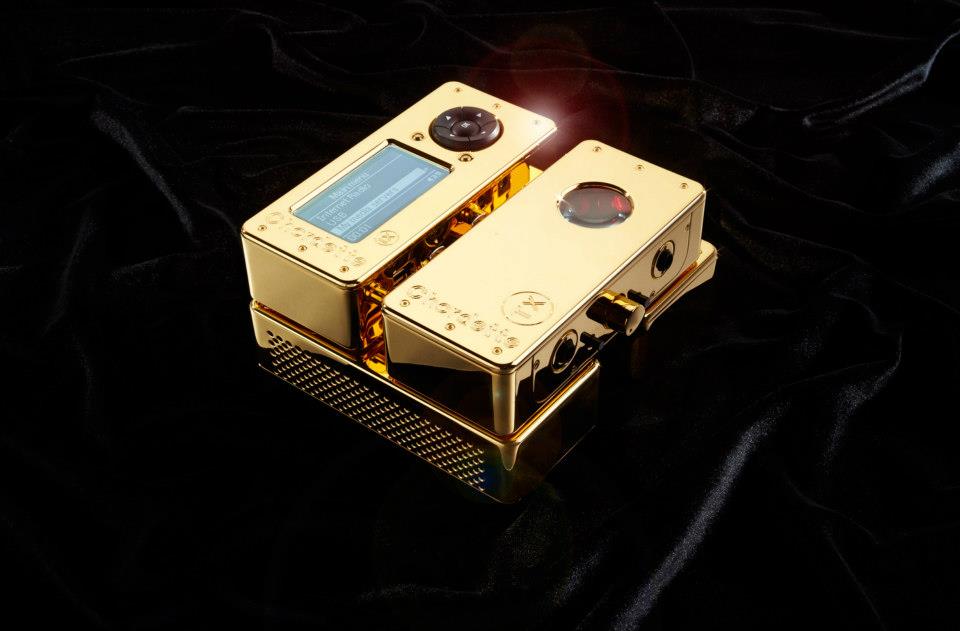

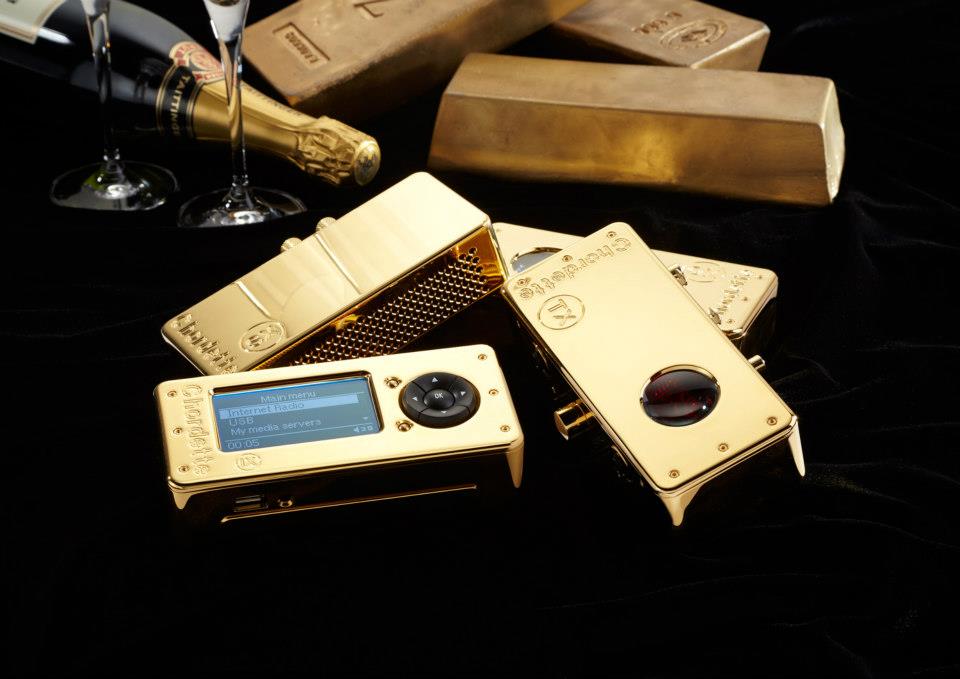

CHORDから、chordette 「MX」シリーズ登場!!!

海外ニュース速報 [World]

MX Series SX amplifier  製品情報
MX Series TX headphone amplifier  製品情報
MX Series IX streamer  製品情報
MX Series QX DAC  製品情報

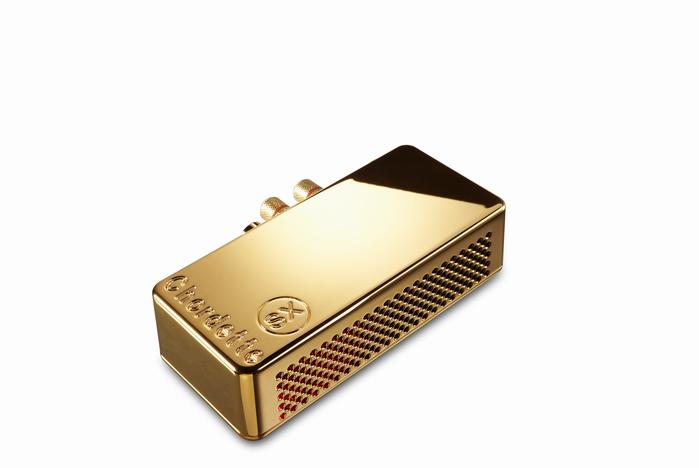

MX Series SX amplifier
 The SX is a high-quality, vertical MOSFET, class AB amplifier which can be used in stereo or mono mode (when bridged). Based on the Chordette Scamp amplifier, with additional RCA inputs added in place of the 48kHz USB input, it will allow other MX-type units to play directly into this apt-X bluetooth 35-watt stereo amplifier.
SX amplifier
(Preamp section) • Unbalanced input: 2x pair RCA phono • Gain: variable manual volume control (Power amp section) • Output power: 2x40W RMS per channel @ 0.05% distortion (into 4 ohms), 1x 80W RMS bridged mono @ 0.05% distortion into 4 ohms • Frequency response: -1dB, 0.8Hz to 46kHz (8 ohms); -3dB, 0.8Hz to 77kHz (8 ohms); -1dB, 0.8Hz to 39kHz (4 ohms); -3dB, 0.8Hz to 75kHz (4 ohms) • Signal to noise ratio: better than –103dB, ‘A’ weighted two thirds • Channel separation: 80dB • Output impedance: 0.03 ohms • Output inductance: 2.6mH • Output connections: 4x gold binding posts • Slew rate: 70V per mS, 1kHz 20V square wave • Stability: unconditional • Power supply: 12V 8A, 100V – 240V 50/60Hz power adapter supplied • Dimensions: 160 x 70 x 40mm (WxHxD) • Weight: 0.4Kg

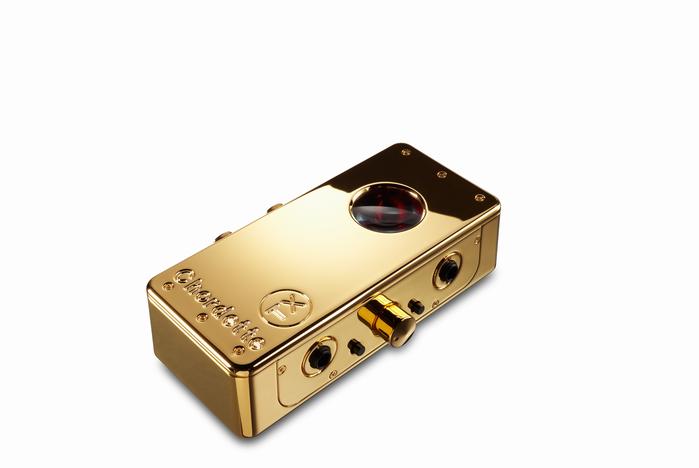

MX Series TX headphone amplifier
The TX is an advanced headphone amplifier with both balanced and RCA inputs, plus a high-quality USB input for music replay from computers etc. though the unit’s high-quality DAC. With two outputs, two people can listen simultaneously.
TX headphone amplifier
• Frequency response: 20Hz–200kHz • THD+N: 0.06% • Dynamic range: 112dB • USB DAC: 0.006% THD; 44.1/48 kHz, USB 2.0 compliant • Switchable inputs: 1xUSB (B-type), 1xRCA phono pair or XLR balanced pair • Output: 2x¼-inch headphone jack socket • Power supply: 12V 0.6A 2.1mm connector centre pin positive • Dimensions: 160x70x40mm (WxHxD) • Weight: 0.4kg

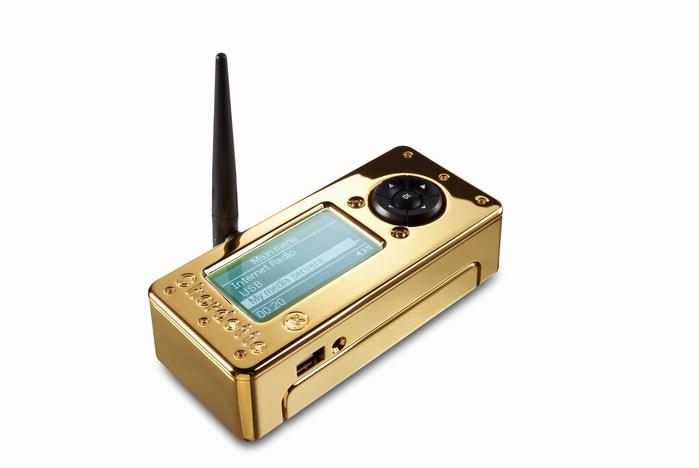

MX Series IX streamer
Based on the award-winning Index network music player, the IX streamer and internet radio device can access music stored on a network computer, NAS or USB key, with control using a smartphone or tablet app, with full cover art display.
IX streamer
• Network inputs: RJ45 Ethernet 10/100Mb, Wi-Fi 802.11b/g, 40- and 128-bit WEP, WPA security • USB input: supports memory stick or hard disk drives (FAT32 formatting) • Analogue outputs: 1x pair of gold-plated RCA phono analogue audio, 1x coax BNC digital audio (fixed 44kHz sample rate), 1x TOSLink digital audio (fixed 44kHz rate) • Audio format support: MP3 (up to 48kHz, CBR & VBR); AAC-LC (up to 48kHz, 8-320 kbps); WMA (up to 48 kHz, CBR & VBR); WAV (up to 48 kHz, up to 1.44 Mb/s); FLAC • Power Supply: 12V 0.6A 2.1mm connector, centre pin positive, 100V – 240V 50/60Hz 1A wall adapter supplied • Weight: 0.4kg • Dimensions: 160x70x40mm (WxHxD)

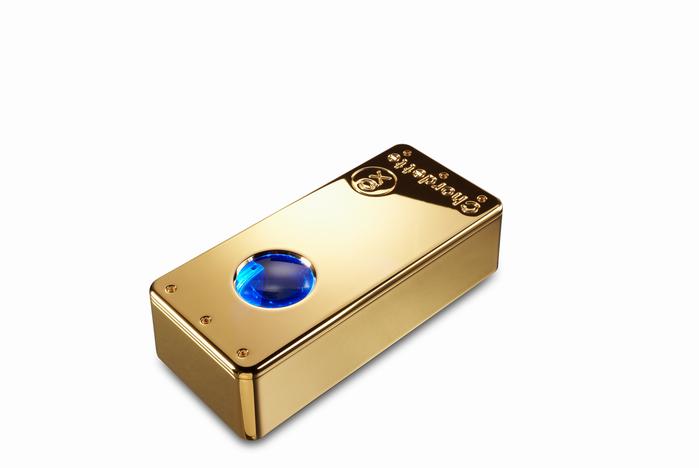

MX Series QX DAC
The advanced QX DAC is based on our highly acclaimed QuteHD and is capable of playing DSD and 192kHz files over USB. The FPGA (field programmable gate array) device can also accept the digital BNC output from the IX streamer. A range of luxurious finish options is available, including black, silver and high-quality gold.
• Harmonic distortion: 103 dBV • Signal-to-noise ratio: 115dBV • Dynamic range: 118dBV • Digital inputs: • 1 x USB HD with DSD decoding, 44.1 kHz to 192kHz, 16-32-bit (future 384kHz-ready) • 1x Optical • 1x Coaxial 44.1 kHz/ 384kHz-ready, 16-32-bit • Outputs: 2x RCA phono • Power supply: 12v 1A 2.1mm connector. Centre point positive 100V- 240V – 50/60Hz, 1A wall adapter supplied • Weight: 0.4kg • Dimensions: 160x70x40mm (WxHxD)




« »
